2011 LEXUS RX350 warning light

430
3-7. Other interior features
Erasing the entire HomeLink® memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink® memory.
nBefore programming
lInstall a new battery in the remote control transmitter.
lThe battery side of the remote control transmitter must be pointed away from
the HomeLink® button.
nCertification for the garage door opener
For vehicles sold in the U.S.A.
FCC ID: CB2070NHL4
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
nWhen support is necessary
Visit on the web at www.homelink.com or call 1-800-355-3515.

480
4-3. Do-it-yourself maintenance
nHow to initialize the tire pressure warning system
Park the vehicle in safe place and turn the “ENGINE START
STOP” switch off.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (→P. 6 0 2 )
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press and hold the tire pressure
warning reset switch until the tire
pressure warning light flashes
slowly 3 times.
Wait for a few minutes in “ENGINE START STOP” switch to on,
and then turn the “ENGINE START STOP” switch off.
STEP1
STEP2
STEP3
STEP4
STEP5

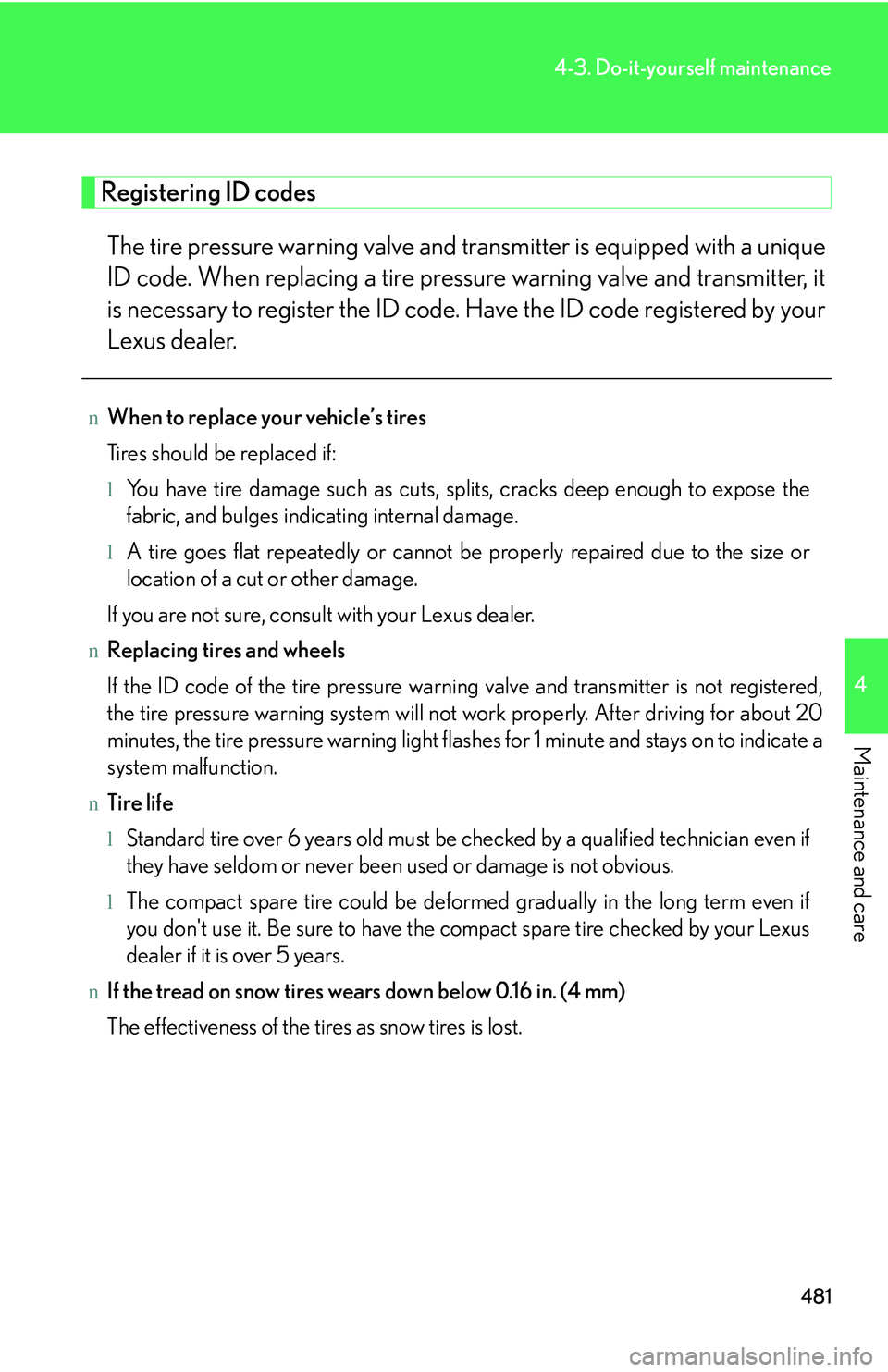

481
4-3. Do-it-yourself maintenance
4

Maintenance and care
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique
ID code. When replacing a tire pressure warning valve and transmitter, it
is necessary to register the ID code. Have the ID code registered by your
Lexus dealer.
nWhen to replace your vehicle’s tires
Tires should be replaced if:
lYou have tire damage such as cuts, splits, cracks deep enough to expose the
fabric, and bulges indicating internal damage.
lA tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage.
If you are not sure, consult with your Lexus dealer.
nReplacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered,
the tire pressure warning system will not work properly. After driving for about 20
minutes, the tire pressure warning light flashes for 1 minute and stays on to indicate a
system malfunction.
nTire life
lStandard tire over 6 years old must be checked by a qualified technician even if
they have seldom or never been used or damage is not obvious.
lThe compact spare tire could be deformed gradually in the long term even if
you don't use it. Be sure to have the compact spare tire checked by your Lexus
dealer if it is over 5 years.
nIf the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.

483
4-3. Do-it-yourself maintenance
4

Maintenance and care
nInitializing the tire pressure warning system
Initialize the tire pressure warning system with the tire inflation pressure adjusted to
the specified level.
nIf you push the tire pressure warning reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the specified level
and initialize the tire pressure warning system again.
nWhen the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
lWhen operating the tire pressure warning reset switch, the tire pressure warn-
ing light does not flash 3 times.
lAfter carrying out the initialization procedure, the tire pressure warning light
flashes for 1 minute then stays on after driving for 20 minutes.
nRoutine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.

485
4-3. Do-it-yourself maintenance
4

Maintenance and care
CAUTION
nTire pressure warning system operation
The tire pressure warning system may not provide warning immediately if a tire
bursts or if sudden air leakage occurs.
nWhen inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train, as well as dangerous handling characteristics,
which may lead to an accident resulting in death or serious injury.
lDo not mix tires of different makes, models or tread patterns. Also, do not mix
tires of remarkably different treadwear.
lDo not use tire sizes other than those recommended by Lexus.
lDo not mix differently constructed tires (radial, bias-belted or bias-ply tires).
lDo not mix summer, all season and snow tires.
lDo not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
nWhen initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.

506
4-3. Do-it-yourself maintenance
6ECU-IG1 NO. 310 A
Outside rear view mirror, windshield
wipers and washer, seat heaters,
starter system, power outlet, moon
roof, Automatic High Beam
7ECU-IG1 NO. 110 A
Multiplex communication system,
electric power steering system, shift
lock control system, tilt and telescopic
steering, starter system, automatic
transmission system, power back
door, tire pressure warning system
8S/ROOF30 AMoon roof
9FUEL OPN7. 5 AFuel filler door opener
10PSB30 APre-collision seat belt
11TI & TE30 ATilt and telescopic steering system
12DR LOCK10 APower door lock system
13FR FOG15 AFront fog lights
14P-S E AT L H30 APo w e r s e a t ( l e f t - s i d e )
154WD7. 5 AAW D s y s t e m
16INVERTER20 A
17RR FOG7. 5 A
18D/L ALT B25 AMultiplex communication system
19HEATER10 AAir conditioning system
20ECU-IG1 NO. 210 A
Air conditioning system, multiport fuel
injection system/sequential multiport
fuel injection system, SRS airbag sys-
tem, multi-information display
FuseAmpereCircuit

5

When trouble arises
535
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Parking brake engaged warning buzzer
→P. 5 5 1
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning lightWarning light/Details
(U.S.A.)


(Canada)
Brake system warning light (warning buzzer)*

536
5-2. Steps to take in an emergency
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lamp
Indicates a malfunction in:
