266
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ayer) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 2 6 9
Operating a Bluetooth® enabled portable playerP. 2 74
Setting up a Bluetooth® enabled portable playerP. 2 7 7
Bluetooth® audio system setupP. 2 8 3
: If equipped
284
3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equi pped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 2 8 8
Making a phone callP. 2 9 6
Setting a mobile phoneP. 3 0 0
Security and system setupP. 3 0 5
Using the phone bookP. 3 0 9
: If equipped
435

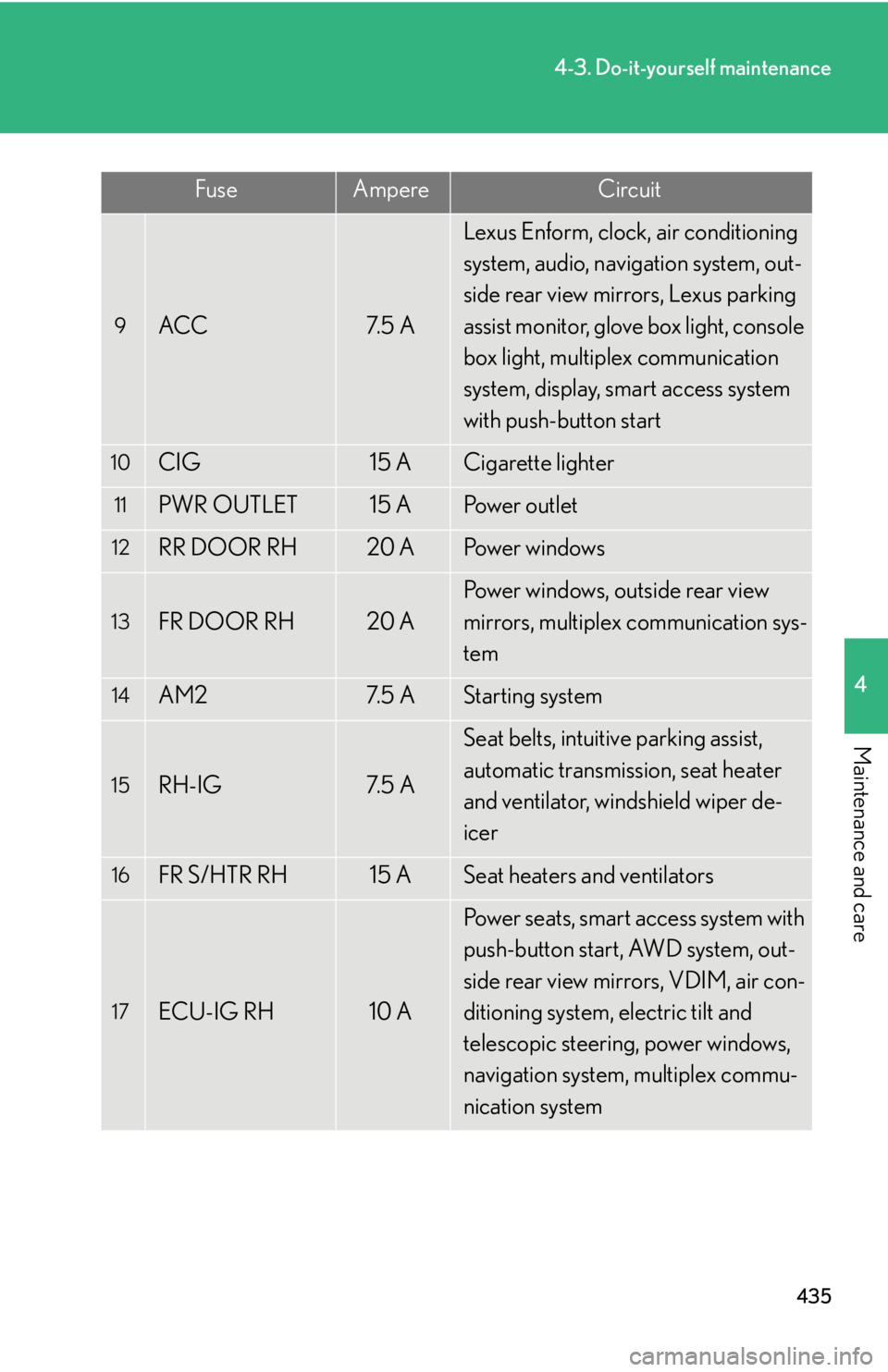

4-3. Do-it-yourself maintenance
4
Maintenance and care
9ACC7. 5 A
Lexus Enform, clock, air conditioning
system, audio, navigation system, out-
side rear view mirrors, Lexus parking
assist monitor, glove box light, console
box light, multiplex communication
system, display, smart access system
with push-button start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 A
Power windows, outside rear view
mirrors, multiplex communication sys-
tem
14AM27. 5 AStarting system
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, air con-
ditioning system, electric tilt and
telescopic steering, power windows,
navigation system, multiplex commu-
nication system
FuseAmpereCircuit
488
5-2. Steps to take in an emergency
CAUTION
■When using the spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●EPS
●VDIM
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Cruise control
Also, not only can the following system not be utilized fully, it may actually negatively
effect the drive-train components:
●AWD system (if equipped)
Index
561
Abbreviation list .................... 562
Alphabetical index ................. 564
What to do if... ....................... 574
For details of equipment related to the navigation system,
such as the audio system, refer to the “Navigation System
Owner's Manual”.
