4-3. Do-it-yourself maintenance
4
Maintenance and care
IS350/250_U
9ACC7. 5 A
Lexus Enform, clock, air conditioning
system, audio, navigation system, out-
side rear view mirrors, Lexus parking
assist monitor, glove box light, console
box light, multiplex communication
system, display, smart access system
with push-button start
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 A
Po w e r w i n d o w s , o u t s i d e r e a r v i e w
mirrors, multiplex communication sys-
tem
14AM27. 5 AStarting system
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heater
and ventilator, windshield wiper de-
icer
16FR S/HTR RH15 ASeat heaters and ventilators
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, AWD system, out-
side rear view mirrors, VDIM, air con-
ditioning system, electric tilt and
telescopic steering, power windows,
navigation system, multiplex commu-
nication system
FuseAmpereCircuit
436
4-3. Do-it-yourself maintenance
IS350/250_U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 4 3 9 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify the fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
567

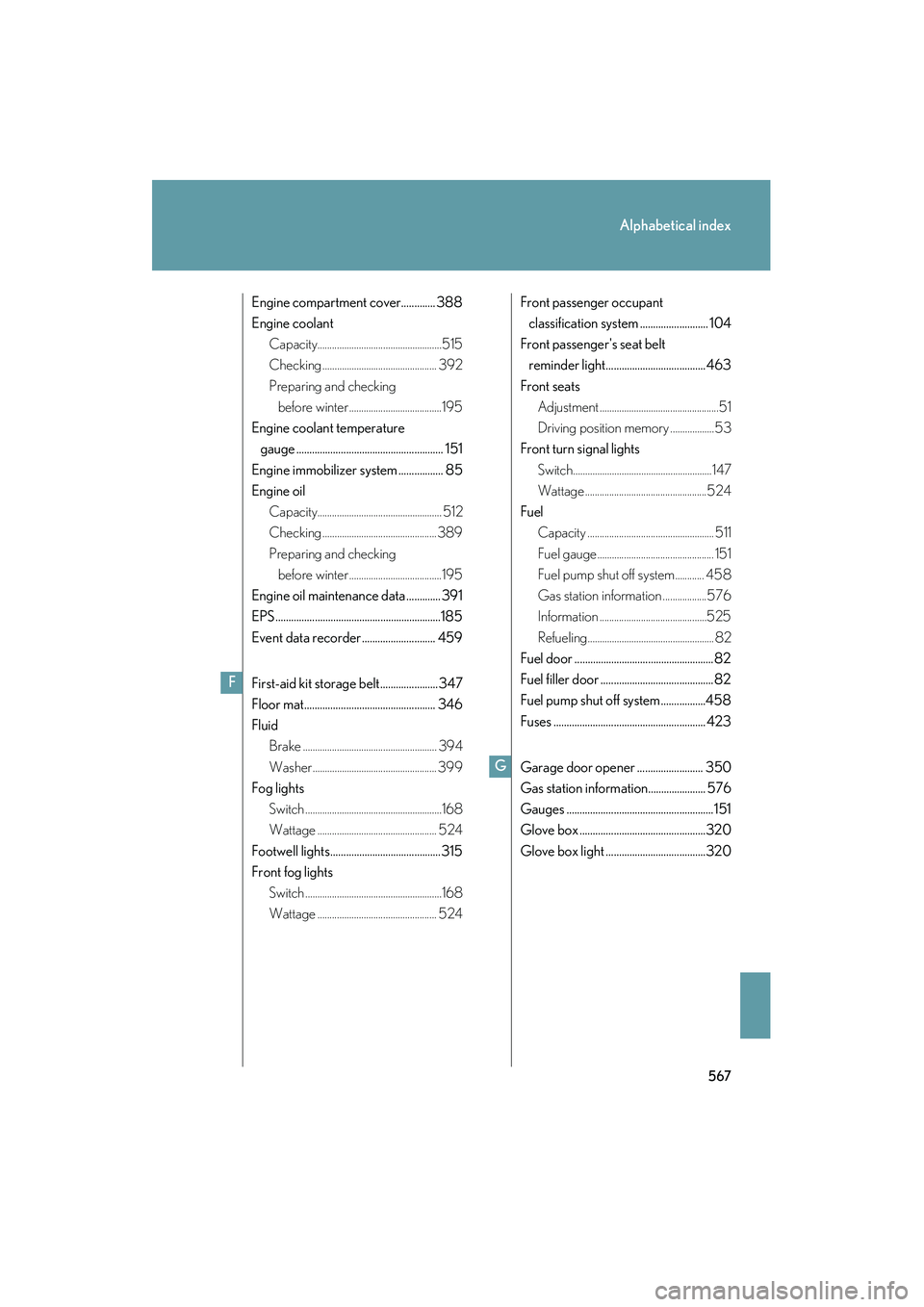

Alphabetical index
