2011 Lexus GS460 display

2
Quick_GS_G_U_(OM30C25U)
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of color and equipment.

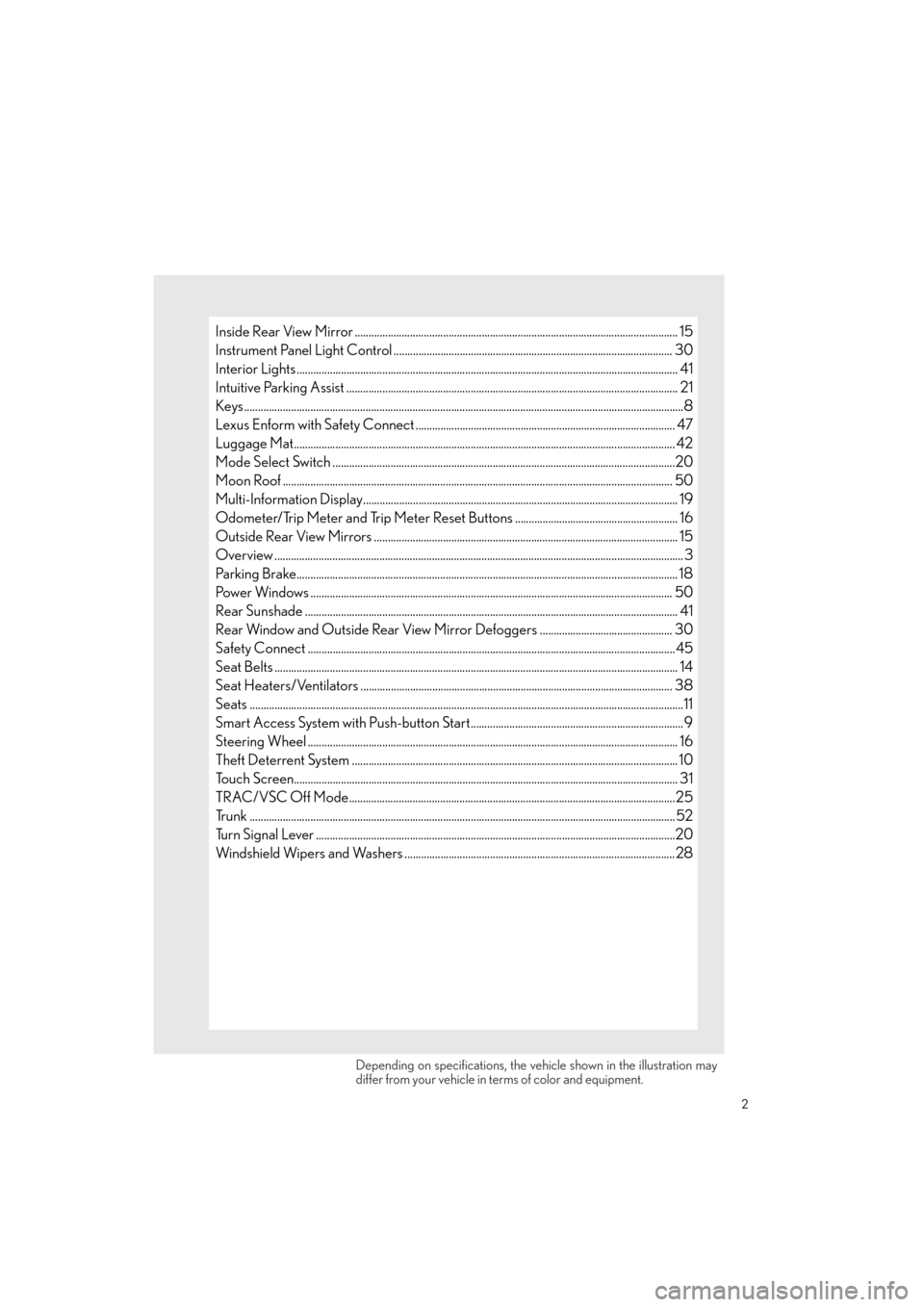

Inside Rear View Mirror ..................................................................................................................... 15
Instrument Panel Light Control ..................................................................................................... 30
Interior Lights .......................................................................................................................................... 41
Intuitive Parking Assist ........................................................................................................................ 21
Keys...............................................................................................................................................................8
Lexus Enform with Safety Connect .............................................................................................. 47
Luggage Mat.......................................................................................................................................... 42
Mode Select Switch ............................................................................................................................20
Moon Roof ............................................................................................................................................. 50
Multi-Information Display.................................................................................................................. 19
Odometer/Trip Meter and Trip Meter Reset Buttons ........................................................... 16
Outside Rear View Mirrors .............................................................................................................. 15
Overview .................................................................................................................................................... 3
Parking Brake.......................................................................................................................................... 18
Power Windows ................................................................................................................................... 50
Rear Sunshade ....................................................................................................................................... 41
Rear Window and Outside Rear View Mirror Defoggers ................................................ 30
Safety Connect ..................................................................................................................................... 45
Seat Belts .................................................................................................................................................. 14
Seat Heaters/Ventilators ................................................................................................................. 38
Seats .............................................................................................................................................................11
Smart Access System with Push-button Start............................................................................. 9
Steering Wheel ...................................................................................................................................... 16
Theft Deterrent System ...................................................................................................................... 10
Touch Screen........................................................................................................................................... 31
TRAC/VSC Off Mode......................................................................................................................25
Trunk .......................................................................................................................................................... 52
Turn Signal Lever ..................................................................................................................................20
Windshield Wipers and Washers ..................................................................................................28

3
Quick_GS_G_U_(OM30C25U)
OverviewInstrument Panel
Windshield wipers and
washer switch
P.28Headlight switch
Turn signal lever
Fog light switch P.26
P.20
P.27
See P.5
Inside door lock button P.49
Door lock switch P.49
Power window switches P.50
Window lock switch P.50
Multi-information
display
P.19
Driving position
memory switches
P.12
Parking brake pedal P. 18
Trunk opener P.52
Fuel filler door opener P.51
See P. 6
Hood lock release lever P.51

Quick_GS_G_U_(OM30C25U)
16
With navigation system
Tu r n a u t o m o d e o n
Tu r n a u t o m o d e o f f
The indicator comes on when auto mode is
turned on.
Steering Wheel
Up
Down
Aw a y f ro m t h e d r i v e r
Toward the driver
Odometer/Trip Meter and Trip Meter Reset
Buttons
Changes the display.
Resets the trip meter driving range to “0”.
1
2
1
2
3
4
The steering wheel retracts automatically when the “ENGINE START STOP” switch is
turned OFF to allow for easy exit and entry. The steering wheel returns automatically to its
previously set position when the “ENGINE START STOP” switch is switched to ACCES-
SORY or IGNITION ON mode.
1
2

Quick_GS_G_U_(OM30C25U)
18
Automatic Transmission
■Shift positions
PPa r k *
RReverse
NNeutral (drive not engaged)
DDrive
S“S” mode
*: The engine can only be started in “P”.
The vehicle can only be shifted out of “P”
when the “ENGINE START STOP” switch is
in IGNITION ON mode and the brake pedal
is depressed.
■“S” mode
“S” mode allows the driver to select the shift range manually based on driving conditions.
Shift the shift lever to “S”.
To u p s h i f t : shift the shift lever toward “+”.
To d o w n s h i f t : shift the shift lever toward “-”.
The selected shift range is displayed on the
instrument cluster.
Parking Brake
To s e t: firmly depress the parking brake pedal.
To r e l e a s e: depress the parking brake pedal
again.

19
Quick_GS_G_U_(OM30C25U)
Multi-information Display
■Display information
●Trip information
Outside temperature
Driving range
Average fuel consumption
Current fuel consumption
●Intuitive parking assist information
(if equipped)
●Dynamic radar cruise control settings
(if equipped)
●Wa r n i n g m e s s a g e s
■Changing the display
Trip information items can be switched by press-
ing the “DISP” switch.
The multi-information display shows information about your vehicle, including the items
shown below.
■When using the intuitive parking assist or dynamic radar cruise control, the appropriate
display is shown on the screen.
■If a problem is detected in any of the vehicle’s systems, a warning message is shown on the
multi-information display.

21
Quick_GS_G_U_(OM30C25U)
Intuitive Parking Assist
■Turning the system on and off
The system can be turned on and off using the
intuitive parking assist switch.
■Screen display
Multi-information display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the dual sen-
sors
Indicates the steering maneuvers required to
avoid an obstacle
Indicates obstacles detected by the rear cor-
ner sensors
Indicates obstacles detected by the back sen-
sors To u c h s c r e e n
: If equipped
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2
3
4

23
Quick_GS_G_U_(OM30C25U)
Dynamic Radar Cruise Control
Indicator
Display
Cruise control switch
Vehicle-to-vehicle distance control switch
■Cruise control display
Cruise control settings are shown on the multi-
information display.
Vehicle ahead indicator
Vehicle-to-vehicle distance
Preset speed
■Vehicle-to-vehicle distance control mode
Press the “ON-OFF” button.
Accelerate or decelerate to the desired
speed, and then push the lever down.
Following distance can be adjusted using the
vehicle-to-vehicle distance control switch.
: If equipped
Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-
vehicle distance control mode.
1
2
3
4
1
2
3

25
Quick_GS_G_U_(OM30C25U)
AVS (Adaptive Variable Suspension System)
Sports mode
Suitable for meandering mountainous driv-
ing or high speed driving.
Normal mode
Suitable for normal driving.
TRAC/VSC Off Mode
To turn off TRAC: Push the VSC OFF switch
briefly. The message “TRAC OFF” appears on
the multi-information display.
To turn off VSC: Push and hold the VSC OFF
switch for 3 seconds when the vehicle is not mov-
ing. The slip off indicator light should come on
and the message “TRAC OFF” appears on the
multi-information display.
Push the button again to turn the system back on.
: If equipped
AVS controls the suspension and steering wheel operation according to the road and
driving conditions.
1
2
This switch turns off the traction control system or vehicle stability control system.
Use this switch if the wheels get stuck in snow, mud etc.
