2011 Lexus ES350 traction control

ES350_U
21
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a mobile phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
When left unattended, children may be able to start the vehicle or shift the vehicle
into neutral. There is also a danger that children may injure themselves by playing
with the cigarette lighter, the windows, the moon roof, or other features of the vehi-
cle. In addition, heat build-up or extremely cold temperatures inside the vehicle can
be fatal to children.

177
2-4. Using other driving systems
2
When driving
ES350_U
Driving assist systems
When the VSC/TRAC systems are operatingIf the vehicle is in danger of slip-
ping, or if the front wheels spin, the
slip indicator light flashes to indi-
cate that the VSC/TRAC systems
have been engaged.
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are suppl ementary and should not be relied
upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface
■Brake assist
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
■VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.
■TRAC (Traction Control)
Maintains drive power and prevents the front wheels from spinning when
starting the vehicle or accelerating on slippery roads.
■PCS (Pre-Collision System) (if equipped)
→ P. 1 8 2

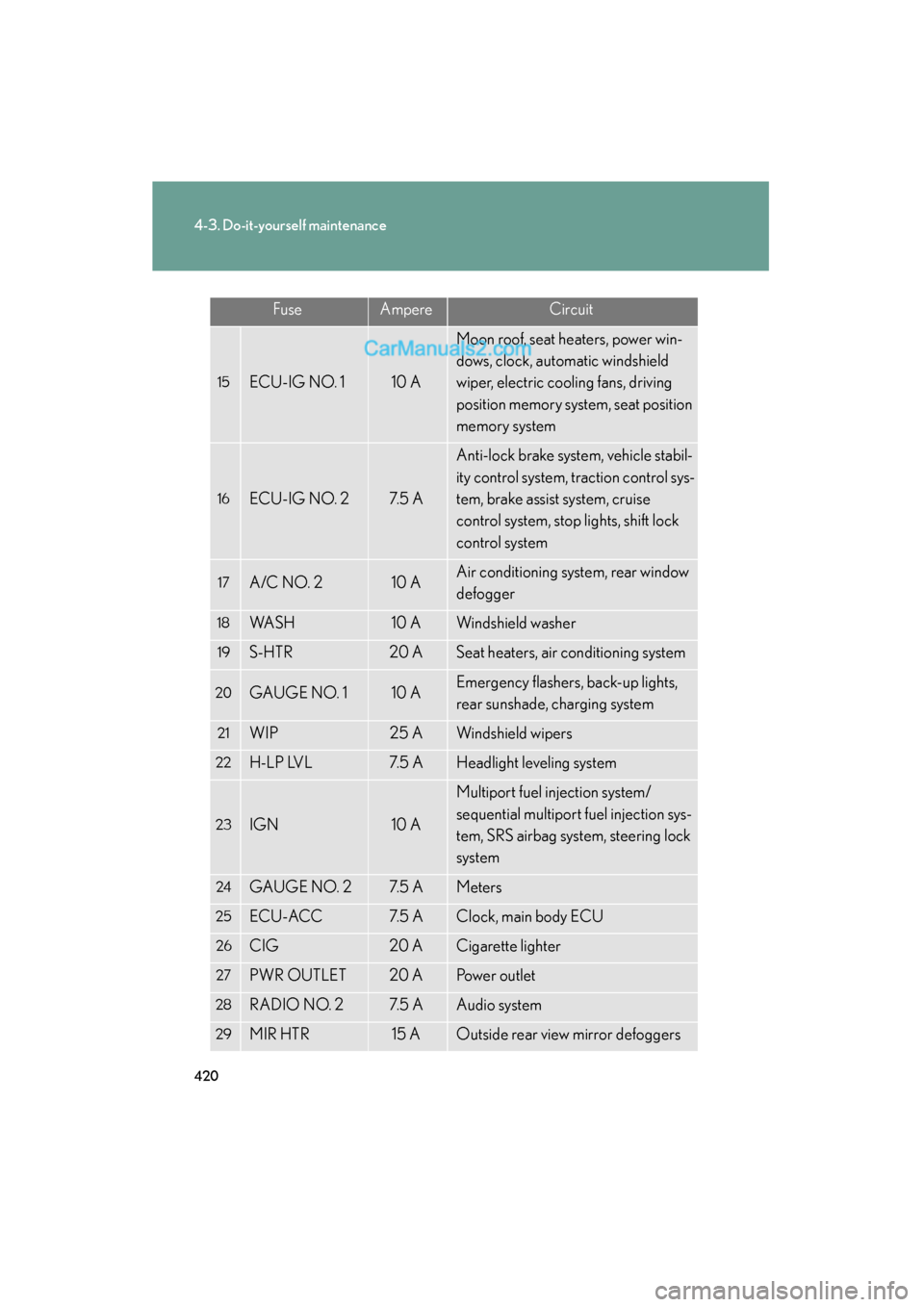

420
4-3. Do-it-yourself maintenance
ES350_U
15ECU-IG NO. 110 A
Moon roof, seat heaters, power win-
dows, clock, automatic windshield
wiper, electric cooling fans, driving
position memory system, seat position
memory system
16ECU-IG NO. 27. 5 A
Anti-lock brake system, vehicle stabil-
ity control system, traction control sys-
tem, brake assist system, cruise
control system, stop lights, shift lock
control system
17A/C NO. 210 AAir conditioning system, rear window
defogger
18WA S H10 AWindshield washer
19S-HTR20 ASeat heaters, air conditioning system
20GAUGE NO. 110 AEmergency flashers, back-up lights,
rear sunshade, charging system
21WIP25 AWindshield wipers
22H - L P LV L7. 5 AHeadlight leveling system
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, SRS airbag system, steering lock
system
24GAUGE NO. 27. 5 AMeters
25ECU-ACC7. 5 AClock, main body ECU
26CIG20 ACigarette lighter
27PWR OUTLET20 APower outlet
28RADIO NO. 27. 5 AAudio system
29MIR HTR15 AOutside rear view mirror defoggers
FuseAmpereCircuit

509
6-1. Specifications
6
Vehicle specifications
ES350_U■
DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use, however, and may depart sign ificantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.

542
ES350_U
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A /CAir Conditioning
ABSAnti-lock Brake System
AFSAdaptive Front lighting System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent data recorder
ELREmergency Locking Retractor
G AW RGross Axle Weight Ratings
GVWRGross Vehicle Weight Rating
I/MEmission inspection and maintenance
L ATC HLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTraction Control

555
Alphabetical index
ES350_U
Tachometer .............................................. 136
Tail lightsReplacing light bulbs ........................424
Switch ........................................................ 147
Wattage .................................................. 501
Talk switch............................................... 286
Telephone switch ................................. 286
Theft deterrent system
Alarm ............................................................ 81
Engine immobilizer system ..............79
Tire inflation pressure......................... 403
Tire information Glossary ................................................. 510
Size ........................................................... 507
Tire identification number ............. 507
Uniform tire quality grading........ 508
Tires Chains ....................................................... 193
Checking ............................................... 394
If you have a flat tire.......................... 467
Inflation pressure ............................... 403
Inflation pressure sensor................ 395
Information............................................505
Replacing............................................... 467
Rotating tires ........................................ 394
Size ........................................................... 499
Snow tires................................................195
Spare tire ............................................... 467
Tools ........................................................... 467
Total load capacity.................................190 Towing
Dinghy towing .....................................204
Emergency towing............................435
Trailer towing .........................................197
TRAC........................................................... 177
Traction control .......................................177
Trip meter ................................................. 136
Trunk Extending a space ............................. 337
Opener ...................................................... 44
Trunk light Trunk light ................................................. 45
Wattage ................................................... 501
Turn signal lights
Replacing light bulbs ........................ 424
Switch........................................................ 133
Wattage ................................................... 501T
