ES350_U
5
4-1. Maintenance and careCleaning and protecting the vehicle exterior................... 362
Cleaning and protecting the vehicle interior .................... 365
4-2. Maintenance Maintenance requirements .... 368
General maintenance ................ 370
Emission inspection and maintenance (I/M)
programs ...................................... 373
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 374
Hood.................................................. 378
Positioning a floor jack............... 379
Engine compartment................... 381
Tires ................................................... 394
Tire inflation pressure................ 403
Wheels.............................................. 407
Air conditioning filter................. 409
Electronic key battery ................... 411
Checking and replacing fuses ................................................. 413
Headlight aim (vehicles with discharge headlights) .............. 422
Light bulbs ....................................... 424 5-1. Essential information
Emergency flashers .................... 434
If your vehicle needs to be towed ............................................. 435
If you think something is wrong .............................................. 441
Fuel pump shut off system ........ 442
Event data recorder.................... 443
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 445
If a warning message is displayed....................................... 455
If you have a flat tire..................... 467
If the engine will not start .......... 476
If the shift lever cannot be shifted from P .............................. 478
If you lose your keys .................... 479
If the electronic key does not operate properly .............. 480
If the vehicle battery is discharged .................................. 483
If your vehicle overheats ........... 486
If the vehicle becomes stuck............................................... 489
If your vehicle has to be stopped in an emergency ...... 490
4Maintenance and care5When trouble arises

Maintenance and care4
361
ES350_U
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 362
Cleaning and protecting the vehicle interior .............. 365
4-2. Maintenance Maintenance requirements ....................... 368
General maintenance .......... 370
Emission inspection and maintenance (I/M)
programs................................ 373 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ............................ 374
Hood .......................................... 378
Positioning a floor jack ......... 379
Engine compartment ............ 381
Tires............................................ 394
Tire inflation pressure........... 403
Wheels ...................................... 407
Air conditioning filter ........... 409
Electronic key battery............ 411
Checking and replacing fuses ......................................... 413
Headlight aim (vehicles with discharge
headlights) ............................ 422
Light bulbs................................ 424

424
4-3. Do-it-yourself maintenance
ES350_U

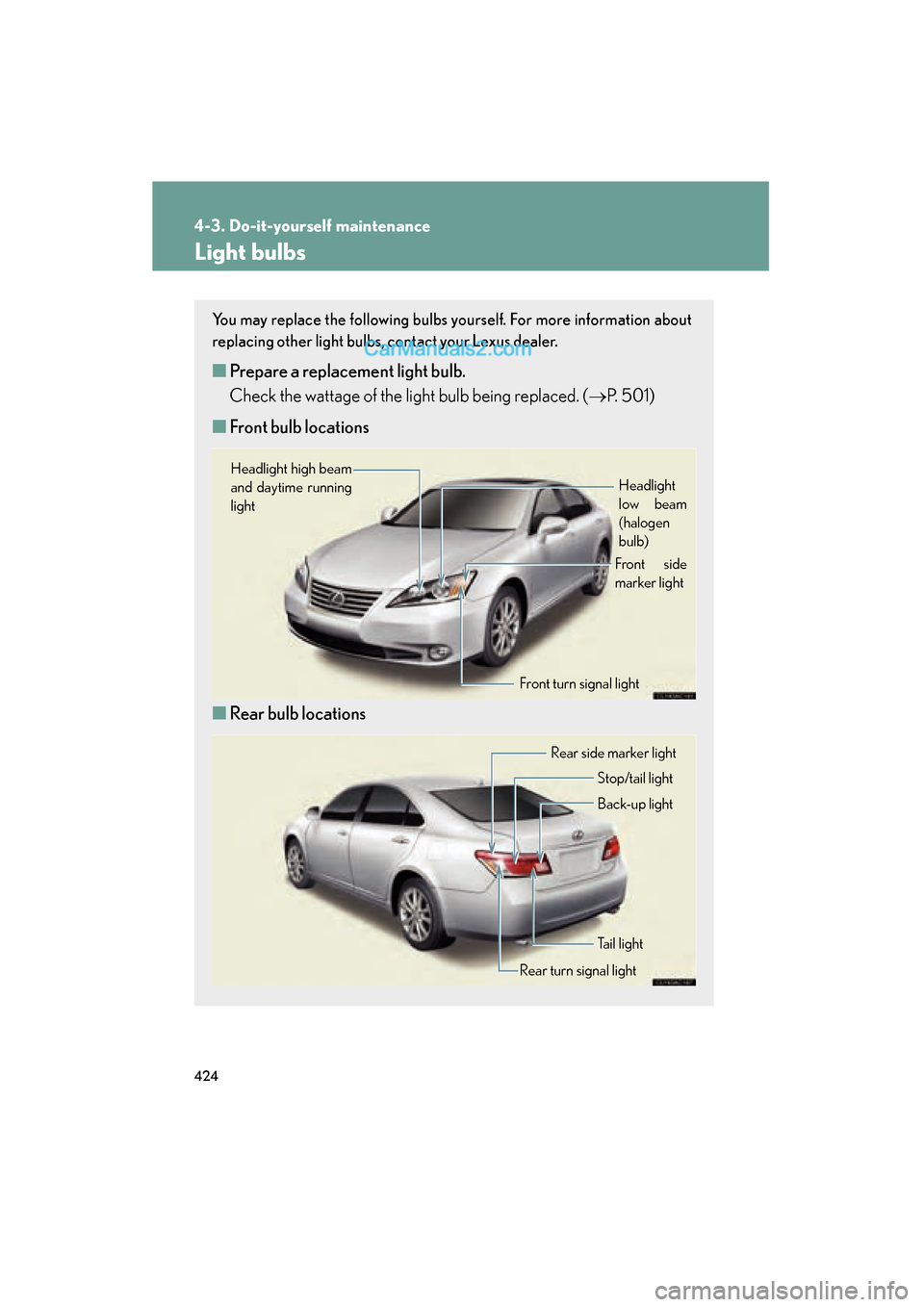

Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( →P. 501)
■ Front bulb locations
■ Rear bulb locations
Headlight high beam
and daytime running
light Headlight
low beam
(halogen
bulb)
Front turn signal light
Front side
marker light
Rear turn signal lightStop/tail light
Rear side marker light
Back-up light
Tail light

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U

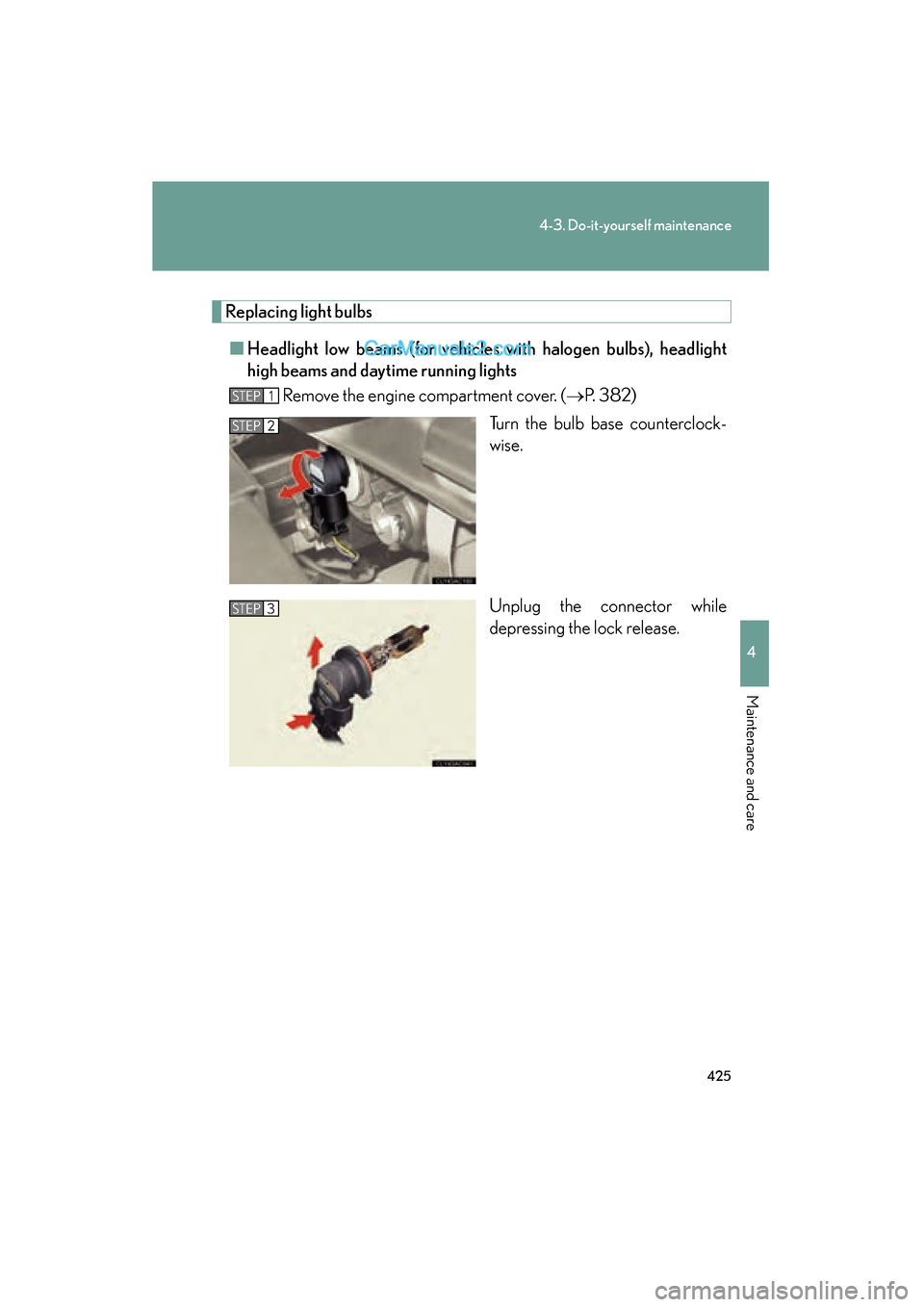

Replacing light bulbs■ Headlight low beams (for vehicles with halogen bulbs), headlight
high beams and daytime running lights
Remove the engine compartment cover. ( →P. 382)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■

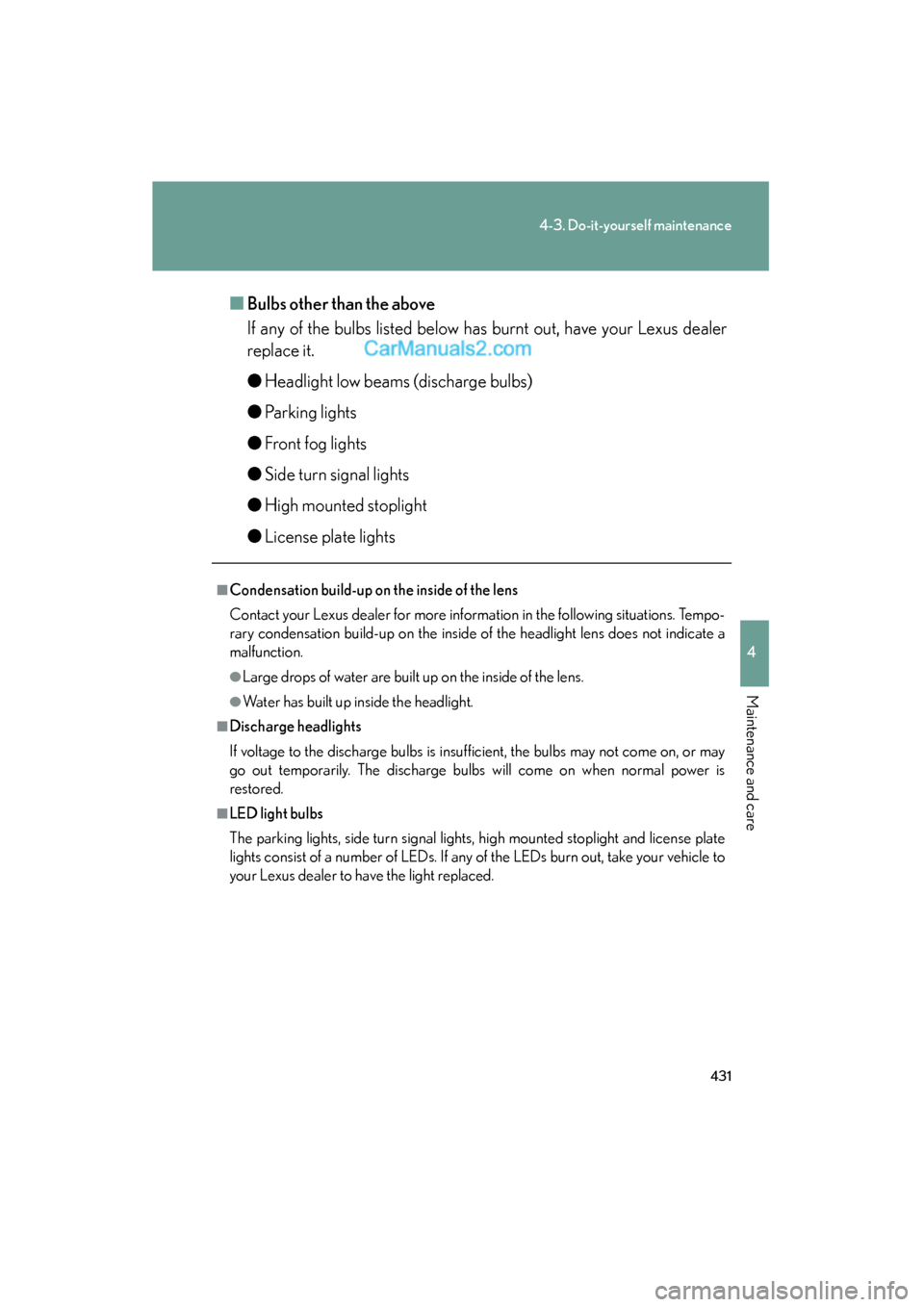

Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (discharge bulbs)
● Parking lights
● Front fog lights
● Side turn signal lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED light bulbs
The parking lights, side turn signal lights, high mounted stoplight and license plate
lights consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to
your Lexus dealer to have the light replaced.

432
4-3. Do-it-yourself maintenance
ES350_U

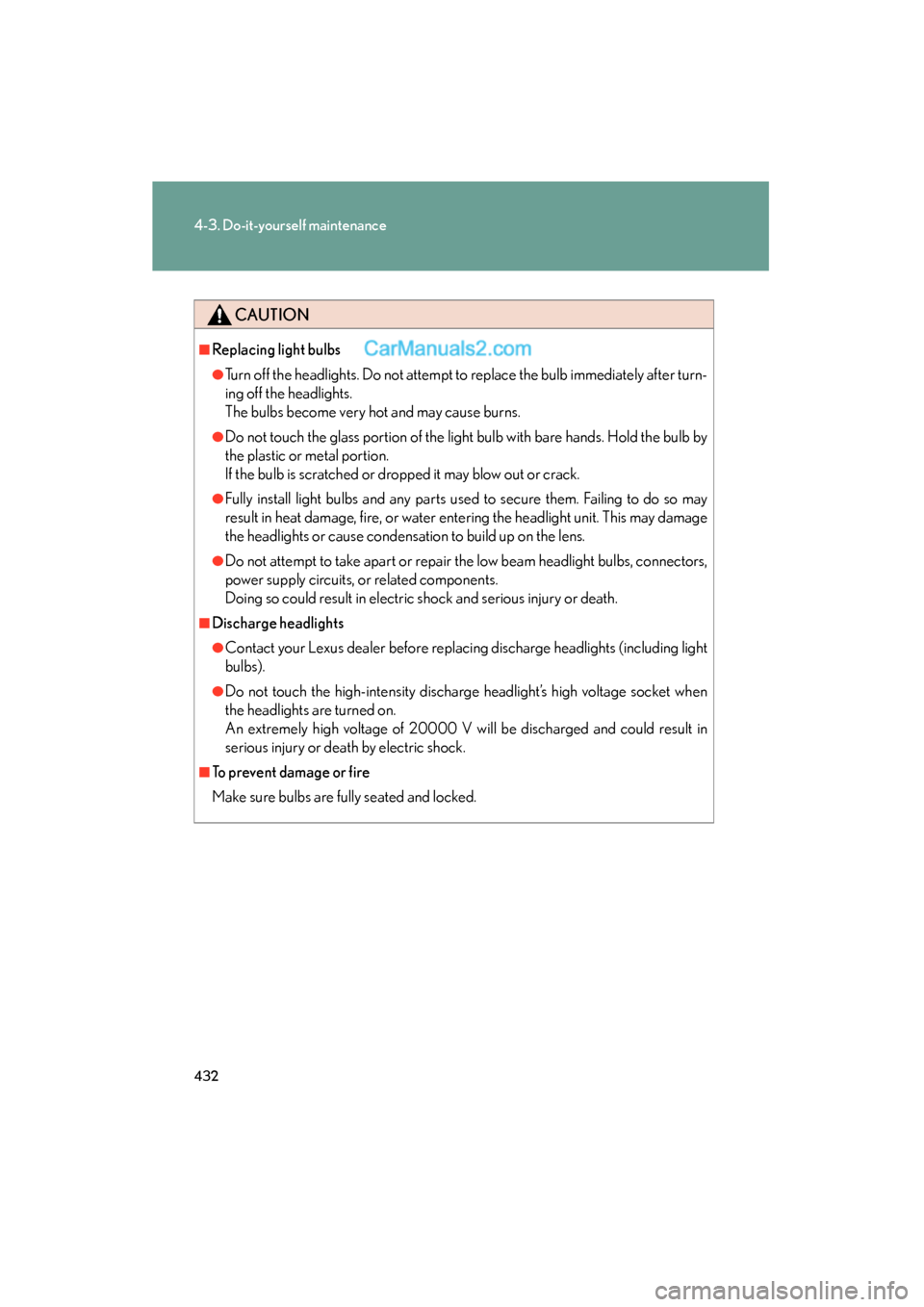

CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

501
6-1. Specifications
6
Vehicle specifications
ES350_U

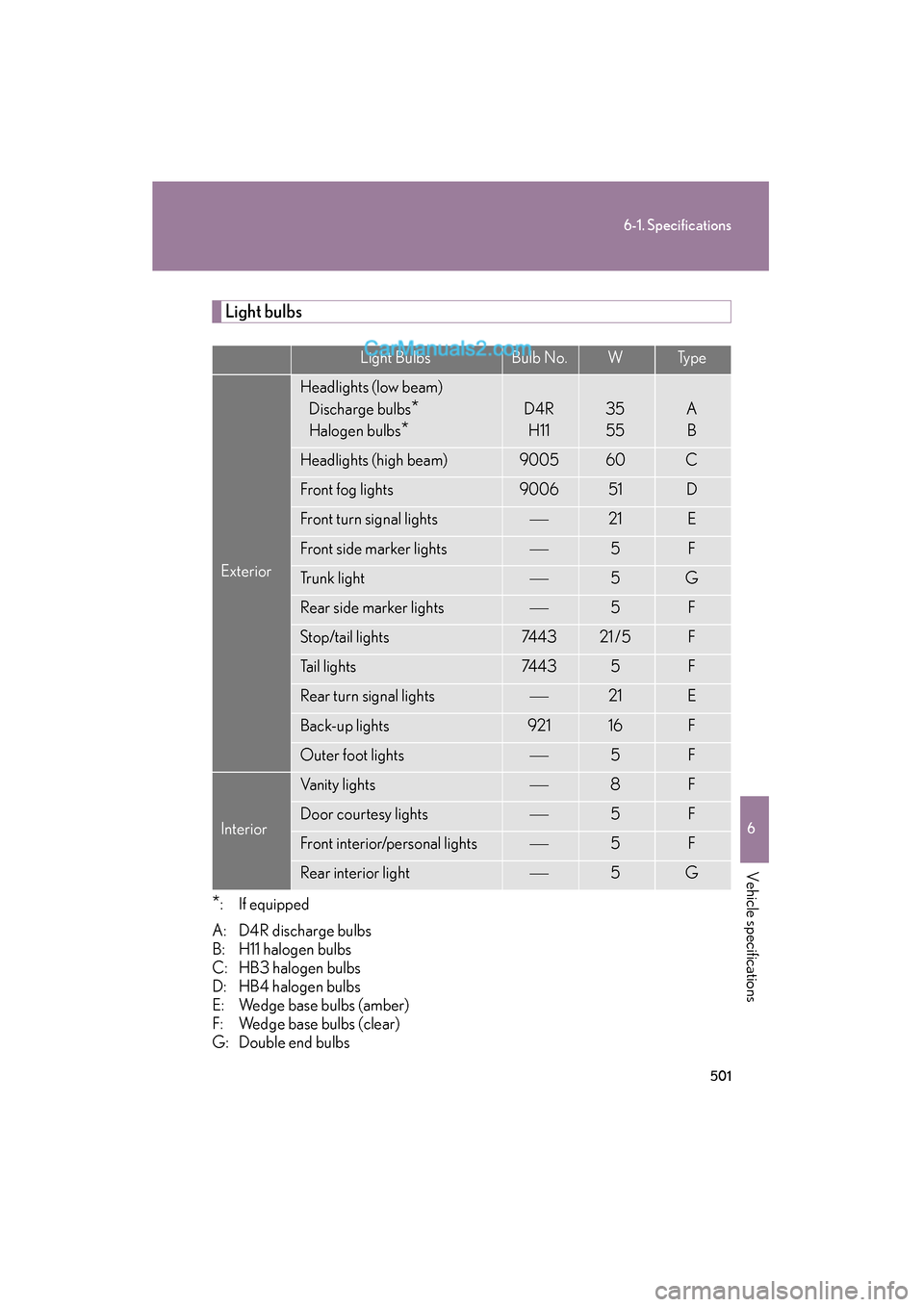

Light bulbs
*: If equipped
A: D4R discharge bulbs
B: H11 halogen bulbs
C: HB3 halogen bulbs
D: HB4 halogen bulbs
E: Wedge base bulbs (amber)
F: Wedge base bulbs (clear)
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam) Discharge bulbs
*
Halogen bulbs*
D4RH1135
55AB
Headlights (high beam)900560C
Front fog lights900651D
Front turn signal lights21E
Front side marker lights5F
Tr u n k l i g h t5G
Rear side marker lights5F
Stop/tail lights744321 /5F
Tail lights74435F
Rear turn signal lights21E
Back-up lights92116F
Outer foot lights5F
Interior
Vanity lights8F
Door courtesy lights5F
Front interior/personal lights5F
Rear interior light5G

549
