2011 Lexus ES350 Tail light

ES350_U
9
Tires
●Rotation
● Replacement
● Inflation pressure
P. 394
P. 467
P. 499
Tail lights P. 147
Side marker lights P. 147
Trunk P. 44
Rear window defogger P. 215
Doors P. 40
Fuel filler door P. 76
Turn signal lights P. 133

83
1-6. Theft deterrent system
1
Before driving
ES350_U
■Panic mode
■When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be triggered
when the battery is reconnected.
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
●Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the battery.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
When is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.

140
2-2. Instrument cluster
ES350_U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 3 3 )
(if equipped)
AFS OFF indicator light
(→ P. 1 4 8 )
Headlight high beam indi-
cator ( →P. 1 4 8 )Slip indicator ( →P. 177)
(USA)
Headlight indicator
(→ P. 147)VSC off indicator
(→ P. 1 7 8 )
(Canada)
Tail light indicator
(→ P. 147)
(without
navigation
system)
SRS airbag on-off indica-
tor (→ P. 9 7 )
Front fog light indicator
(→ P. 1 5 1 )
(with navi-
gation sys-
tem)
SRS airbag on-off indica-
tor (→ P. 9 7 )
Eco Driving Indicator
Light (→P. 1 4 6 )
Shift position and shift range indica-
tors ( →P. 1 3 0 )
Cruise control indicator
(→ P. 155, 158)
Cruise control “SET” indi-
cator ( →P. 155, 158)
(if equipped)
Radar cruise control indi-
cator ( →P. 1 5 8 )
*
*
*
*
*
*

147
2
When driving
ES350_U
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
The daytime running
lights turn on.
The side marker, parking,
tail, license plate, day-
time running lights and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The headlights, parking
lights and daytime run-
ning lights turn on and off
automatically.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode)
USACanada

149
2-3. Operating the lights and windshield wipers
2
When driving
ES350_U
■Daytime running light system
●To make your vehicle more visible to other drivers, the headlights turn on auto-
matically (at a reduced intensity) whenever the engine is started and the parking
brake is released. Daytime running lights are not designed for use at night.
●Compared to turning on the headlights, the daytime running light system offers
greater durability and consumes less electricity, so it can help improve fuel
economy.
■Headlight control sensor
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds
after all doors are closed with the “ENGINE START STOP” switch switched to
ACCESSORY mode or turned OFF. (The light turns off immediately if
the button on the key is pressed after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF and driver’s door is opened.
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
OFF once and then back to the
or position.
■Automatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes... (vehicles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight control system to mal-
function.

318
3-6. Using the storage features
ES350_U

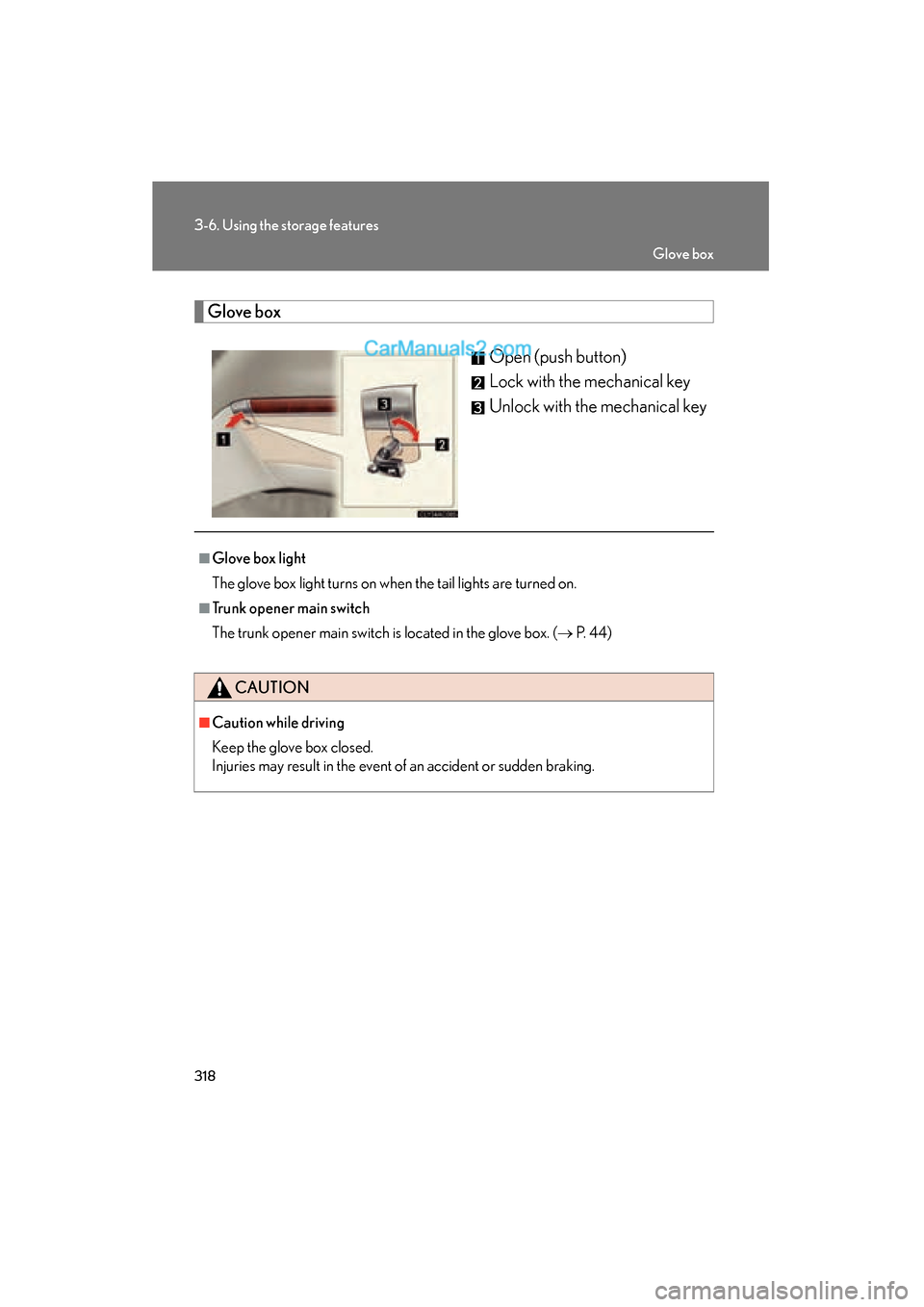

Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are turned on.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( → P. 4 4 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

319
3-6. Using the storage features
3
Interior features
ES350_U

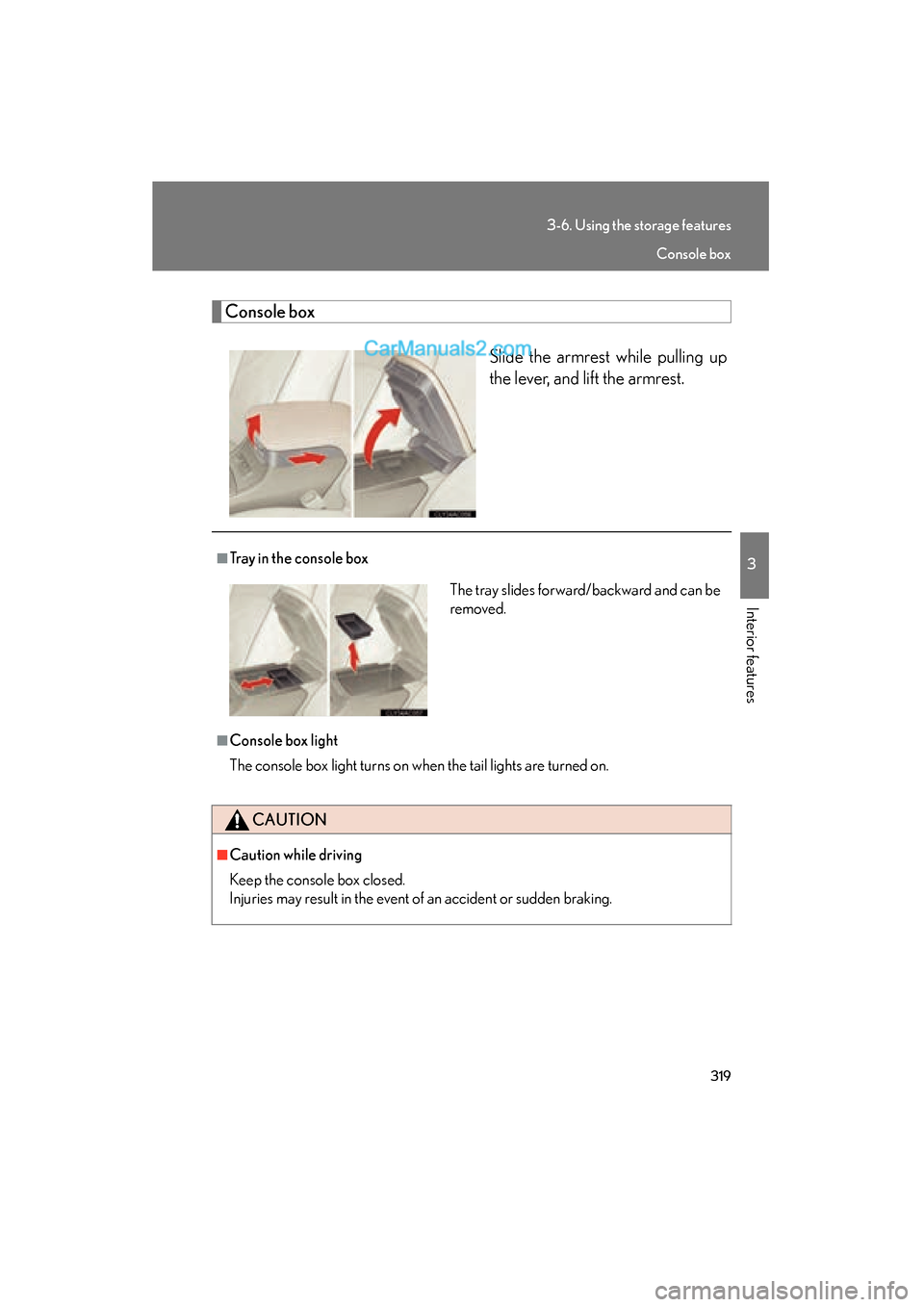

Console boxSlide the armrest while pulling up
the lever, and lift the armrest.
■Tray in the console box
■Console box light
The console box light turns on when the tail lights are turned on.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
The tray slides forward/backward and can be
removed.
Console box

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■
Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR RH25 APower window
2RR DOOR LH25 APower window
3FUEL OPN7. 5 AFuel filler door opener
4FR FOG15 AFront fog lights
5OBD7. 5 AOn-board diagnosis system
6ECU-B NO.27. 5 AECU powers
7STO P10 AStop lights
8TI & TE30 ATilt and telescopic steering
9A/C7. 5 AAir conditioning system
10PWR25 APower windows
11DOOR NO.225 AMain body ECU
12S/ROOF30 AMoon roof
13TA I L10 AFront and rear side marker lights, tail
lights, license plate lights
14PA N E L7. 5 ASwitch illumination
