4-3. Do-it-yourself maintenance
ES350_U
15ECU-IG NO. 110 A
Moon roof, seat heaters, power win-
dows, clock, automatic windshield
wiper, electric cooling fans, driving
position memory system, seat position
memory system
16ECU-IG NO. 27. 5 A
Anti-lock brake system, vehicle stabil-
ity control system, traction control sys-
tem, brake assist system, cruise
control system, stop lights, shift lock
control system
17A/C NO. 210 AAir conditioning system, rear window
defogger
18WA S H10 AWindshield washer
19S-HTR20 ASeat heaters, air conditioning system
20GAUGE NO. 110 AEmergency flashers, back-up lights,
rear sunshade, charging system
21WIP25 AWindshield wipers
22H - L P LV L7. 5 AHeadlight leveling system
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, SRS airbag system, steering lock
system
24GAUGE NO. 27. 5 AMeters
25ECU-ACC7. 5 AClock, main body ECU
26CIG20 ACigarette lighter
27PWR OUTLET20 APower outlet
28RADIO NO. 27. 5 AAudio system
29MIR HTR15 AOutside rear view mirror defoggers
FuseAmpereCircuit

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U
Replacing light bulbs■ Headlight low beams (for vehicles with halogen bulbs), headlight
high beams and daytime running lights
Remove the engine compartment cover. ( →P. 382)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

426
4-3. Do-it-yourself maintenance
ES350_U■

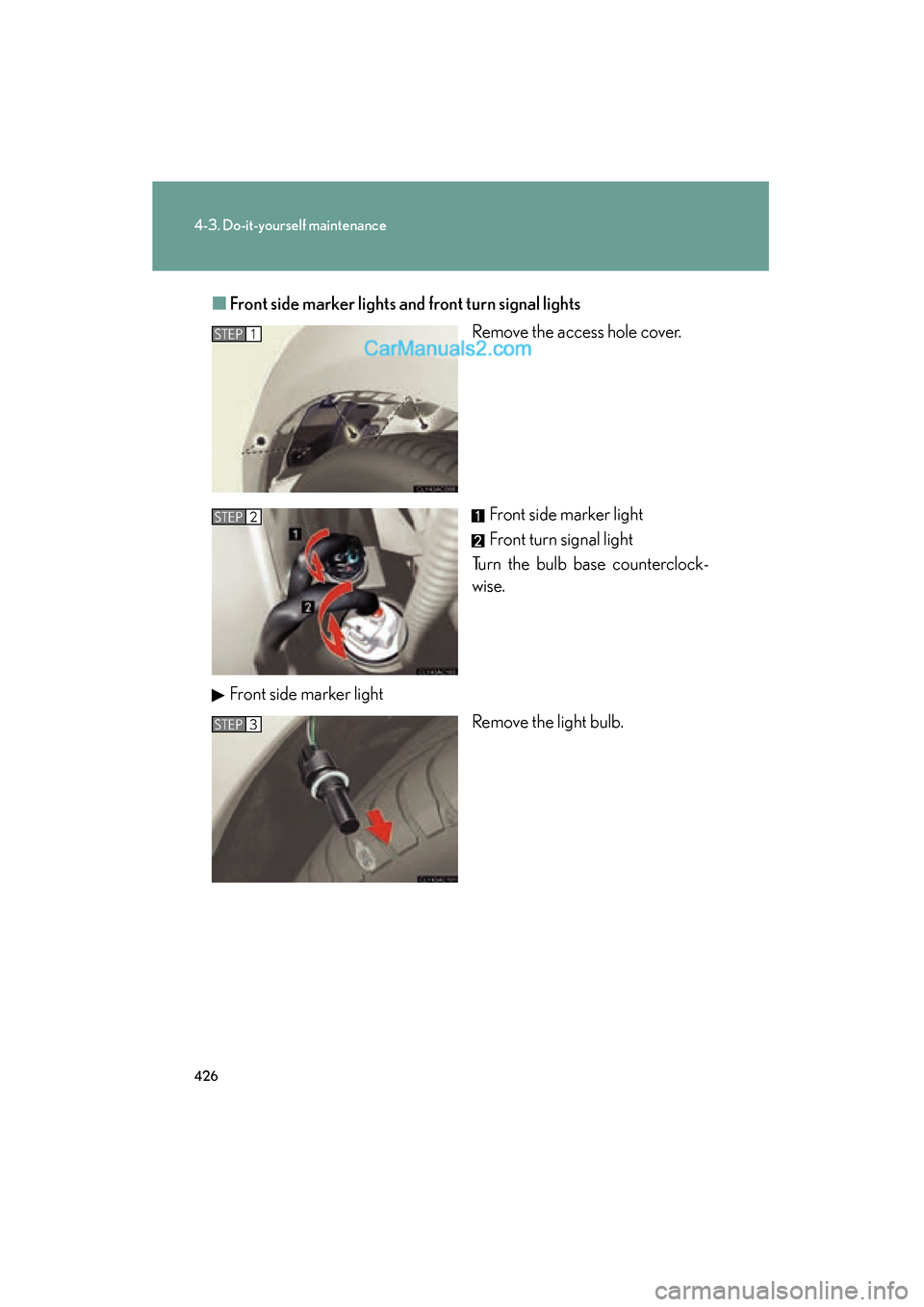

Front side marker lights and front turn signal lights
Remove the access hole cover.
Front side marker light
Front turn signal light
Turn the bulb base counterclock-
wise.
Front side marker light Remove the light bulb.
STEP1
STEP2
STEP3

428
4-3. Do-it-yourself maintenance
ES350_U■

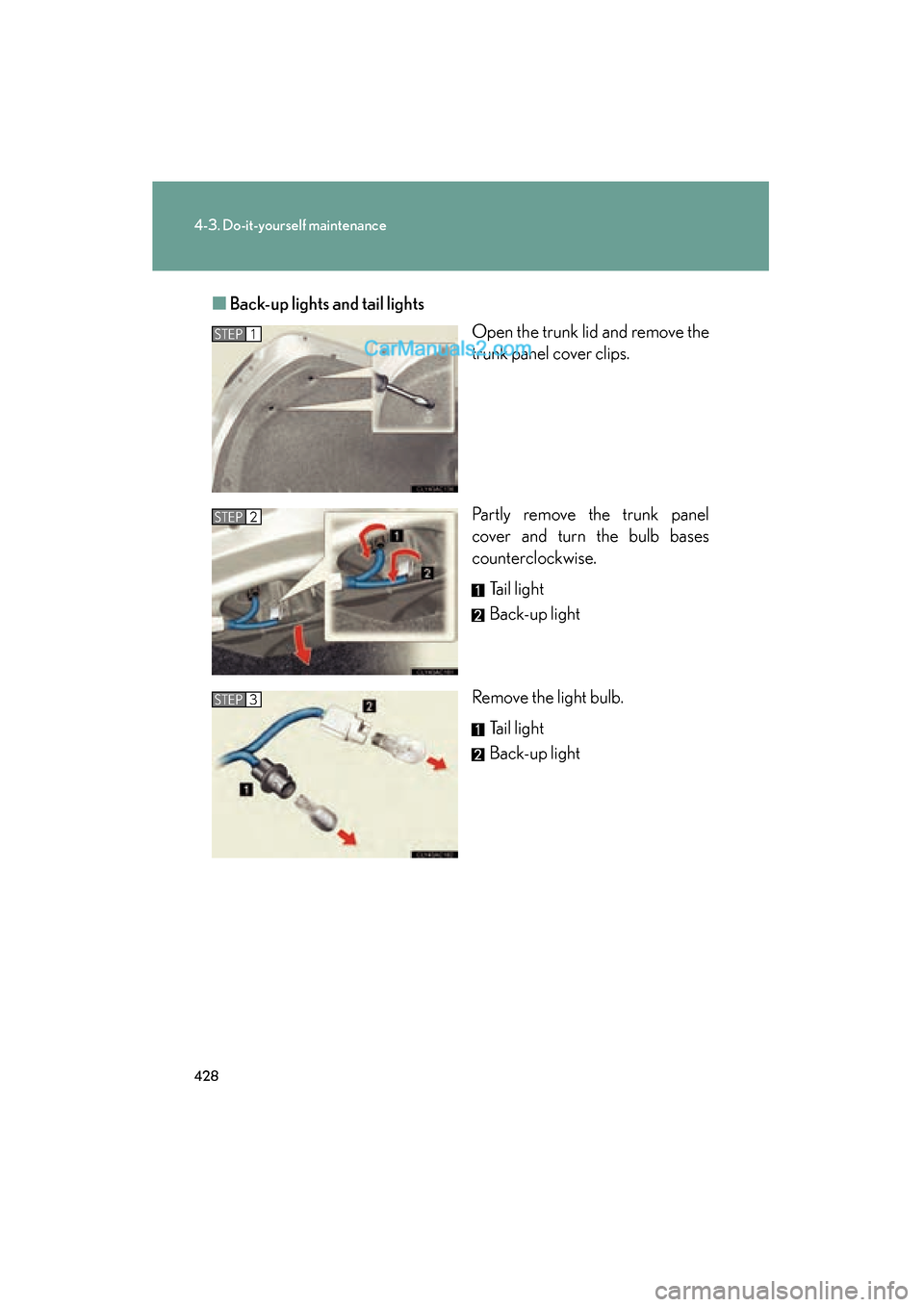

Back-up lights and tail lights
Open the trunk lid and remove the
trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
Tail light
Back-up light
Remove the light bulb. Tail light
Back-up light
STEP1
STEP2
STEP3

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
ES350_U■

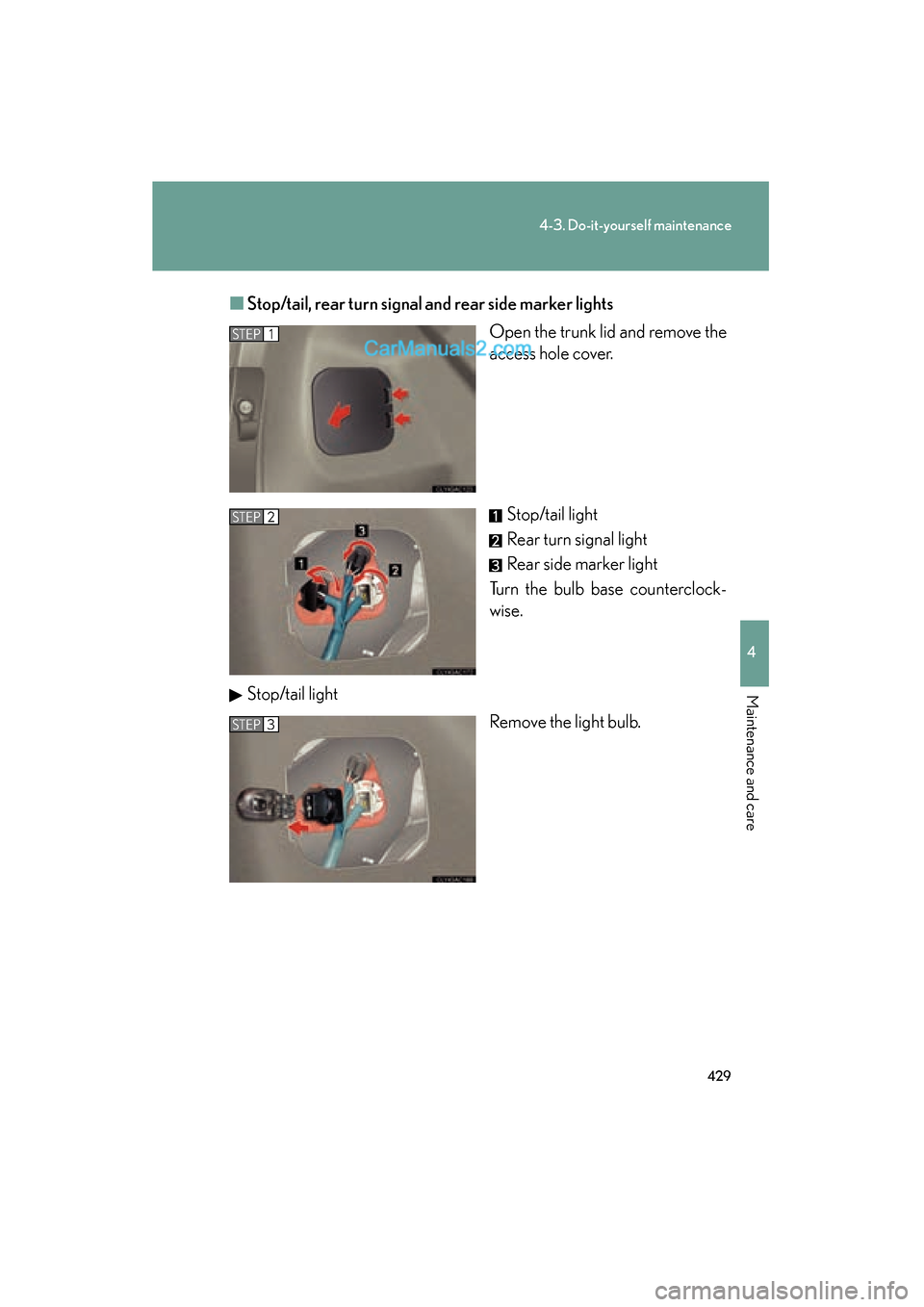

Stop/tail, rear turn signal and rear side marker lights
Open the trunk lid and remove the
access hole cover.
Stop/tail light
Rear turn signal light
Rear side marker light
Turn the bulb base counterclock-
wise.
Stop/tail light Remove the light bulb.
STEP1
STEP2
STEP3
