TABLE OF CONTENTSIndex
ES350_U
2
1-1. Key informationKeys ...................................................... 24
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 26
Wireless remote control ............. 38
Doors.................................................... 40
Trunk..................................................... 44
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 48
Driving position memory (driver’s seat) ................................. 49
Seat position memory (front passenger’s seat) ............. 53
Head restraints................................. 55
Seat belts ............................................ 57
Steering wheel.................................. 63
Anti-glare inside rear view mirror ................................................ 64
Outside rear view mirrors ........... 66 1-4. Opening and closing the
windows and moon roof
Power windows................................ 68
Moon roof ............................................ 71
1-5. Refueling Opening the fuel tank cap........... 76
1-6. Theft deterrent system Engine immobilizer system ......... 79
Alarm..................................................... 81
1-7. Safety information Correct driving posture ............... 84
SRS airbags ....................................... 86
Front passenger occupant classification system .................... 97
Child restraint systems ............... 102
Installing child restraints ............. 106
2-1. Driving procedures Driving the vehicle ......................... 118
Engine (ignition) switch .............. 126
Automatic Transmission ............ 130
Turn signal lever............................. 133
Parking brake ................................. 134
Horn.................................................... 135
1Before driving
2When driving

ES350_U
14
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 147
P. 133
P. 151Gauges and meters P. 136
Multi-information display P. 142
Windshield wipers and
washer switch
P. 152
Engine (ignition) switch P. 126
Trunk opener main switch P. 44
Glove box P. 318
Tilt and telescopic steering control switch P. 63
Parking brake pedal P. 134
Audio remote control switches P. 259
Hood lock release lever P. 378
Tire pressure warning reset switch P. 396
“AFS OFF” switch ∗ P. 148
Tire pressure warning select switch P. 397
Horn P. 135

ES350_U
20

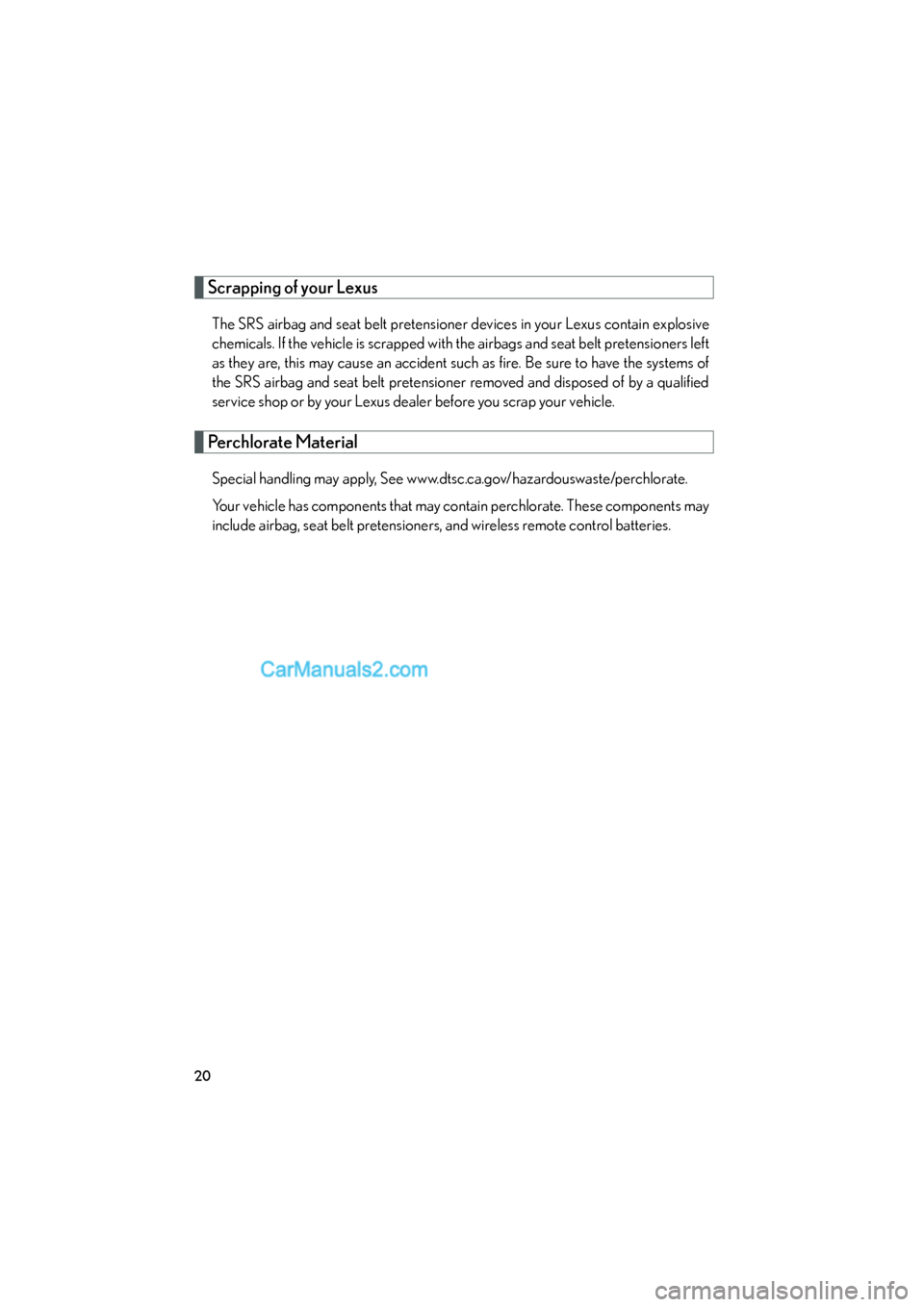

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.

Before driving1
23
ES350_U
1-1. Key informationKeys ............................................... 24
1-2. Opening, closing and locking the doors
and trunk
Smart access system with push-button start .................... 26
Wireless remote control ........ 38
Doors ........................................... 40
Trunk ............................................. 44
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .................................. 48
Driving position memory (driver’s seat) ........................... 49
Seat position memory (front passenger’s seat) ........ 53
Head restraints .......................... 55
Seat belts ..................................... 57
Steering wheel........................... 63
Anti-glare inside rear view mirror ......................................... 64
Outside rear view mirrors ...... 66 1-4. Opening and closing the
windows and moon roof
Power windows .......................... 68
Moon roof .................................... 71
1-5. Refueling Opening the fuel tank cap ...... 76
1-6. Theft deterrent system Engine immobilizer system.... 79
Alarm............................................. 81
1-7. Safety information Correct driving posture ......... 84
SRS airbags ................................ 86
Front passenger occupant classification system.............. 97
Child restraint systems ......... 102
Installing child restraints....... 106

24
ES350_U
1-1. Key information
Keys
Using the mechanical keyTake out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 2 6 )
• Operating the wireless remote control function
(→ P. 3 8 )
Mechanical keys
Key number plate
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch OFF and lock the glove box and the armrest
door as circumstances demand. ( →P. 44, 318, 337)
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( →P. 4 7 9 )

30
1-2. Opening, closing and locking the doors and trunk
ES350_U
■Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
Windows and standard moon roof: A buzzer sounds to indicate that the windows
and standard moon roof are operating.
■Door lock buzzer
If a door is not fully closed, a buzzer sounds for 10 seconds if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the fol-
lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start and
wireless remote control from operating properly:
(Ways of coping: →P. 4 8 0 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, mobile phone, cordless phone or other wire-
less communication devices
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity

31
1-2. Opening, closing and locking the doors and trunk
1
Before driving
ES350_U
●When carrying or using the electronic key together with the following devices
that emit radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing on the key.
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after
is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. ( →P. 8 1 )
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door
Exterior: Beeps three
times
Interior: Pings once
Hold the door handle except
a driver’s door handle to
unlock all doors
Hold any door handle to
unlock all doorsExterior: Beeps twice
Interior: Pings once
STEP3

32
1-2. Opening, closing and locking the doors and trunk
ES350_U
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 weeks or more
●When the electronic key has been left within approximately 6 ft. (2 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch.
●The vehicle is locked/unlocked using the wireless remote control function.
( → P. 3 8 )
●The vehicle is locked/unlocked using the mechanical key. ( →P. 4 8 0 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( →P. 464)
●The battery becomes depleted even if the electronic key is not used because
the key always receives radio waves. If the smart access system with push-but-
ton start or the wireless remote control does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( →P. 4 1 1 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field.
• T Vs
• Personal computers
• Mobile phones, cordless phones and battery chargers
• Recharging mobile phones or cordless phones
• Glass top ranges
• Table lamps
