2011 Lexus CT200h sensor

140
1-7. Theft deterrent system
CT200h_EE (OM76041E)
Canceling the intrusion sensor and tilt sensor (if equipped)
Turn the “POWER” switch off
and press the intrusion sensor
and tilt sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt
sensor will revert to on each
time the “POWER” switch is
turned to ON mode.

143
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
The alarm will still be set even when the intrusion sensor and tilt sensor
are canceled.
After the intrusion sensor and tilt sensor are canceled, pressing the
“POWER” switch or unlocking the doors using the entry function or
wireless remote control will re-enable the intrusion sensor and tilt sen-
sor.
When the alarm system is set again, the intrusion sensor and tilt sensor
will be set.
Intrusion sensor considerations
The sensor may trigger the alarm in the following situations:
People or pets are in the vehicle.
A window or the moon roof is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sen-
sors of other vehicles
• The movement of people outside
the vehicle

144
1-7. Theft deterrent system
CT200h_EE (OM76041E)
The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, and
other kinds of repeated impacts or vibrations.
Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
The vehicle is transported by a ferry, trailer, train, etc.
The vehicle is parked in a parking garage.
The vehicle is inside a car wash that moves the vehicle.
Any of the tires loses air pressure.
The vehicle is jacked up.
An earthquake occurs or the road caves in.
Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
The vehicle is parked in a place where
extreme vibrations or noises occur,
such as in a parking garage.
Ice or snow is removed from the vehi-
cle, causing the vehicle to receive
repeated impacts or vibrations.

145
1-7. Theft deterrent system
1
Before driving
CT200h_EE (OM76041E)
NOTICE
To ensure the intrusion sensor functions correctly
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
To ensure that the sensors operate prop-
erly, do not touch or cover them.
Do not spray air fresheners or other
products directly into the sensor holes.

150
1-8. Safety information
CT200h_EE (OM76041E)
SRS airbag system components
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the
occupants.Front passenger airbag
“PASSENGER AIRBAG”
indicator
Side airbags
Curtain shield airbags
Curtain shield airbag sen-
sors
SRS warning lightDriver airbag
Side and curtain shield air-
bag sensors
Knee airbags
Front airbag sensors
Airbag sensor assembly
Airbag manual on-off
switch

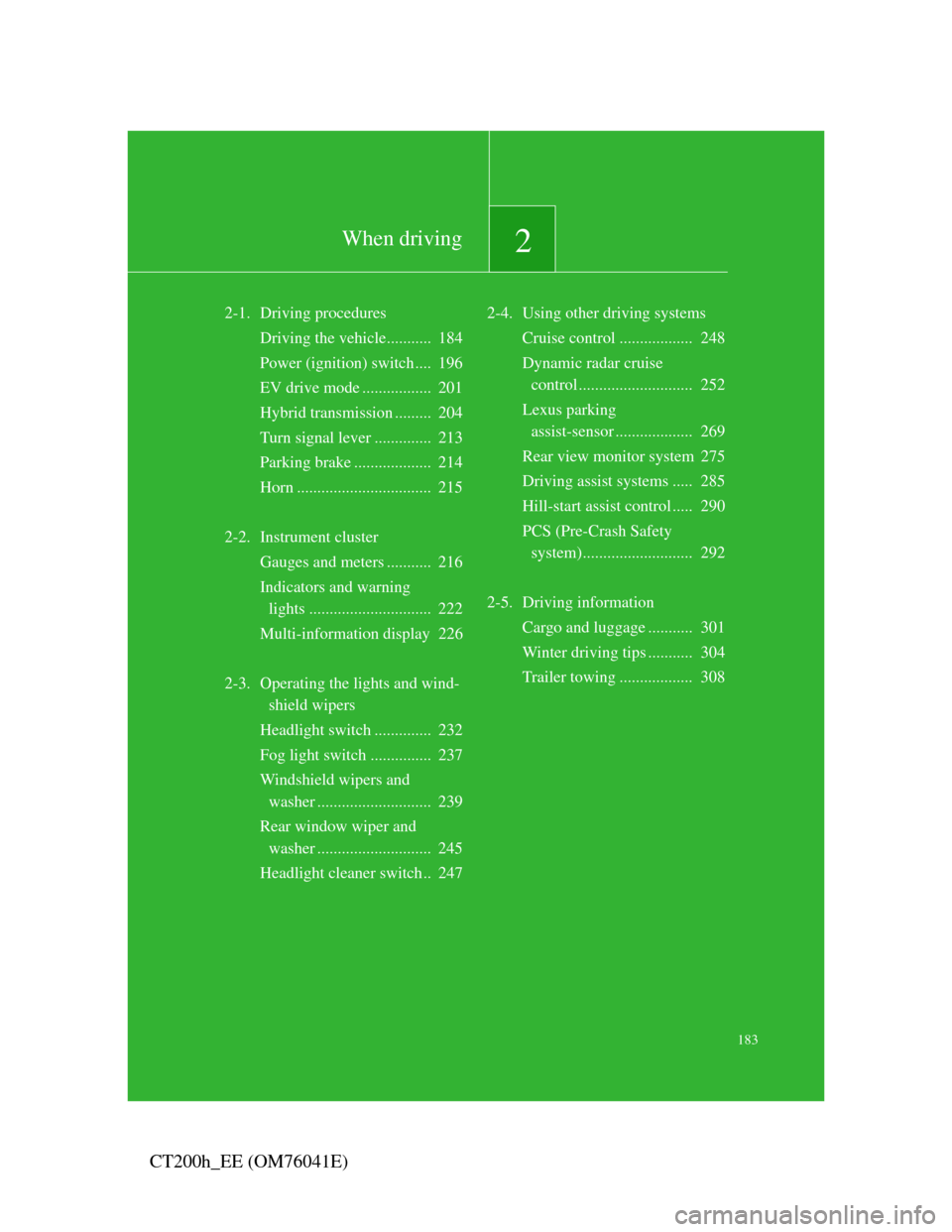

2When driving
183
CT200h_EE (OM76041E)
2-1. Driving procedures
Driving the vehicle........... 184
Power (ignition) switch .... 196
EV drive mode ................. 201
Hybrid transmission ......... 204
Turn signal lever .............. 213
Parking brake ................... 214
Horn ................................. 215
2-2. Instrument cluster
Gauges and meters ........... 216
Indicators and warning
lights .............................. 222
Multi-information display 226
2-3. Operating the lights and wind-
shield wipers
Headlight switch.............. 232
Fog light switch ............... 237
Windshield wipers and
washer ............................ 239
Rear window wiper and
washer ............................ 245
Headlight cleaner switch .. 2472-4. Using other driving systems
Cruise control .................. 248
Dynamic radar cruise
control ............................ 252
Lexus parking
assist-sensor ................... 269
Rear view monitor system 275
Driving assist systems ..... 285
Hill-start assist control ..... 290
PCS (Pre-Crash Safety
system)........................... 292
2-5. Driving information
Cargo and luggage ........... 301
Winter driving tips ........... 304
Trailer towing .................. 308

223
2-2. Instrument cluster
2
When driving
CT200h_EE (OM76041E)
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 213)“ECO MODE” indica-
tor (P. 206)
Tail light indicator
(P. 232)“SPORT MODE” indi-
cator (P. 206)
Headlight high beam
indicator (P. 233)
(if equipped)
Cruise control indicator
(P. 248, 252)
(if equipped)
Front fog light indicator
(P. 237)
(if equipped)
Radar cruise control
indicator (P. 252)
Rear fog light indicator
(P. 237)
(if equipped)
Lexus parking assist-
sensor indicator (P.
269)
“READY” indicator
(P. 196)Slip indicator
(P. 287, 290)
EV indicator (P. 3 6 )
(if equipped)
“PCS” warning
(P. 293)
EV drive mode indica-
tor (P. 201)
*1,
*1,

235
2-3. Operating the lights and windshield wipers
2
When driving
CT200h_EE (OM76041E)
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the front position lights
turn on automatically (at an increased intensity) whenever the hybrid system
is started. Daytime running lights are not designed for use at night.
Headlight control sensor
Automatic light off system
When the light switch is in the or position: The headlights
turn off automatically if the “POWER” switch is turned to ACCES-
SORY mode or OFF.
When the light switch is in the position: The headlights and all
lights turn off automatically if the “POWER” switch is turned to
ACCESSORY mode or OFF and the driver’s door is opened.
To turn the lights on again, turn the “POWER” switch to ON mode, or turn
the light switch off once and then back to the
or position.
Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the num-
ber of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Light reminder buzzer (if equipped)
A buzzer sounds when the “POWER” switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened while the lights are
turned on.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction
