2011 Lancia Ypsilon fuse box

GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
❒open the glove compartment and extract the
roof light A fig. 146;
❒open the protection B and replace the bulb;
❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
REPLACING FUSESGENERAL INFORMATION
Fuses protect the electrical system: they intervene
(blow) in the event of a fault or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 147 must be intact. If it is not, replace the
blown fuse with another with the same amperage
(same colour).
B = intact fuse;
C = fuse with damaged filament.
To replace a fuse, use the tweeters D hooked to the
fuse box lid on the left-hand side of the
dashboard.
Refer to the tables on the following pages to
identify the protective fuse.
fig. 146
L0F0065
fig. 147
L0F0005
181GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

FUSE LOCATION
Engine compartment fuse box
This is located next to the battery: to access fuses
proceed as follows:
❒move the cover A fig. 148 aside;
❒undo the screw A fig. 149, free the tabs B and
pull the cover upwards C. The ID number of
the electrical component corresponding to each
fuse can be found on the back of the cover.
After replacing the fuse, make sure that you
have closed cover C correctly on the fuse box.
If you need to wash the engine
compartment, take care not to directly
hit the fuse box and the window wiper
motors with the water jet.
fig. 148
L0F0170
fig. 149
L0F0094
183GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

Dashboard fuse box
To access the fuses, pull the lower part of flap B
with one hand while pushing with the other hand
on part A. The fuses are located in the fuse box
shown in fig. .
fig. 151
L0F0171
185GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
152

187GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
fig. 154
L0F0212
Luggage compartment fuse box
The fuse box is located on the left side
luggage compartment underneath the side cover.
The fuses are located in the fuse box shown in fig.
154.
fig. 153
L0F0128
A fig. 15
of the 3

FUSE SUMMARY TABLEEngine compartment fuse box FUSE AMPS
BCM F01 60
RDU F02 50
Ignition switch F03 20
BSM1 (pump) F04 40
EPS F05 70
Engine single speed cooling fan (heated engines) F06 20
Engine dual speed cooling fan solenoid valve/Engine
cooling fan low speed (conditioned engines)F06 30
Engine cooling electric fan high speed F07 40
Fog lights F08 30
Headlamp washer pump F09 20
Horns F10 15
Engine management system (secondary loads) F11 10
Main beam headlights F14 15
Sunroof motor F15 20
+15 ECM/coil T10 F16 7,5
ECM main loads (versions 0.9 TwinAir 85 HP/
F17 10
'+30 ECM/coil T09 F18 5
Fuel pump F19 15
188
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
1.2 8V 69 HP)

Engine compartment fuse box FUSE AMPS
Heated rear window/mirror defrosters F20 30
Air conditioning compressor F21 7,5
Supply from SCM main relay for ECU
F22 15
Supply from SCM main relay for ECM
F22 10
BSM 9.0 (ECU, valves) F23 20
BSM 9.0/NGE (+15 INT) F24 7,5
Heater plug control unit (versions 1.3 16V MultiJet) F81 60
Passenger compartment fan F82 40
Front power socket (with or without cigar lighter) F85 15
Battery charge status sensor F87 5+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not
ignition-operated)
189GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
(versions 1.2 8V 69 HP) (versions 0.9 TwinAir 85 HP/1.3 16V MultiJet)

Dashboard fuse box FUSE AMPS
Free F12 -
+ 15 headlamp alignment corrector and IPC
F13 5
+ 15 INT/A F31 5
Free F32 -
+30 KL30 F36 10
+15 switch on brake pedal (NO) F37 7,5
Door central locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+ 15 KL15 F49 7,5
+ 15 KL15 F50 7,5
+ 15 KL15 F51 5
+30 KL30 F53 7,5+15 = ignition-operated positive terminal
+30 = battery direct positive terminal (not
ignition-operated)
190
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
headlamp levelling

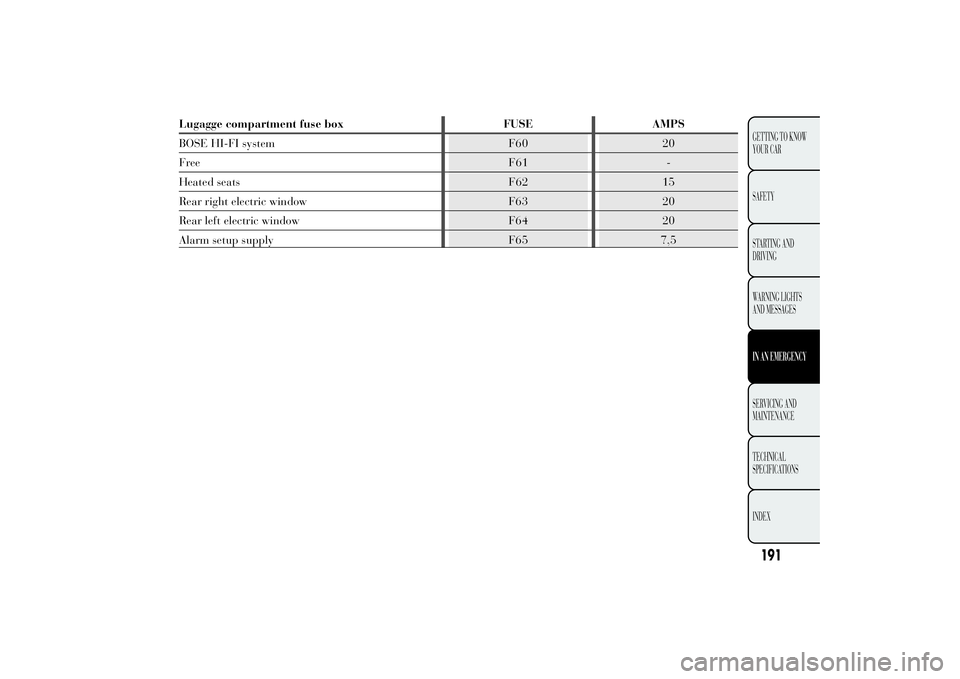

Lugagge compartment fuse box FUSE AMPS
BOSE HI-FI system F60 20
Free F61 -
Heated seats F62 15
Rear right electric window F63 20
Rear left electric window F64 20
Alarm setup supply F65 7,5
