Safety features of your vehicle
C040700AUN
Curtain air bag (if equipped)
Curtain air bags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in cer-
tain side impact collisions.The curtain air bags are designed to
deploy only during certain side impact
collisions, depending on the crash sever-
ity, angle, speed and impact. The curtain
air bags are not designed to deploy in all
side impact situations, collisions from the
front or rear of the vehicle or in most
rollover situations.
WARNING
In order for side and curtain air
bags to provide the best protec-
tion, both front seat occupants
and both outboard rear occu-
pants should sit in an upright
position with the seat belts prop-
erly fastened. Importantly, chil-
dren should sit in a proper child
restraint system in the rear seat.
(Continued)
(Continued)
When children are seated in therear outboard seats, they must be
seated in the proper child
restraint system. Make sure to
put the child restraint system as
far away from the door side as
possible, and secure the child
restraint system in a locked posi-
tion.
Do not allow the passengers to lean their heads or bodies onto
doors, put their arms on the
doors, stretch their arms out of
the window, or place objects
between the doors and passen-
gers when they are seated on
seats equipped with side impact
and/or curtain air bags.
Never try to open or repair any components of the side curtain
air bag system. This should only
be done by an authorized KIA
dealer.
Failure to follow the above men-
tioned instructions can result in
injury or death to the vehicle occu-
pants in an accident.
OAM039034
OUN026091

Features of your vehicle
34
4
To operate the electric rearview mirror:
The mirror defaults to the ON position
whenever the ignition switch is turned
on.
Press the ON/OFF button (1) to turn the automatic dimming function off.
The mirror indicator light will turn off.
Press the ON/OFF button (1) to turn
the automatic dimming function on.
The mirror indicator light will illuminate.
D140200AHM-EU
Outside rearview mirror
Be sure to adjust the mirror angles
before driving.
Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch. The mir-
ror heads can be folded back to prevent
damage during an automatic car wash or
when passing through a narrow street.
OAM049025
Indicator
Sensor
Rear view display
(if equipped)
WARNING - Rearview mir-
rors
The right outside rearview mirroris convex. Objects seen in the
mirror are closer than they
appear.
Use your interior rearview mirror or direct observation to deter-
mine the actual distance of fol-
lowing vehicles when changing
lanes.
CAUTION
Do not scrape ice off the mirrorface; this may damage the surfaceof the glass. If ice should restrict the movement of the mirror, do notforce the mirror for adjustment. Toremove ice, use a deicer spray, or a sponge or soft cloth with warmwater.
CAUTION
If the mirror is jammed with ice, donot adjust the mirror by force. Usean approved spray de-icer (not radi- ator antifreeze) to release thefrozen mechanism or move thevehicle to a warm place and allow the ice to melt.

Driving your vehicle
30
5
E070600AAM

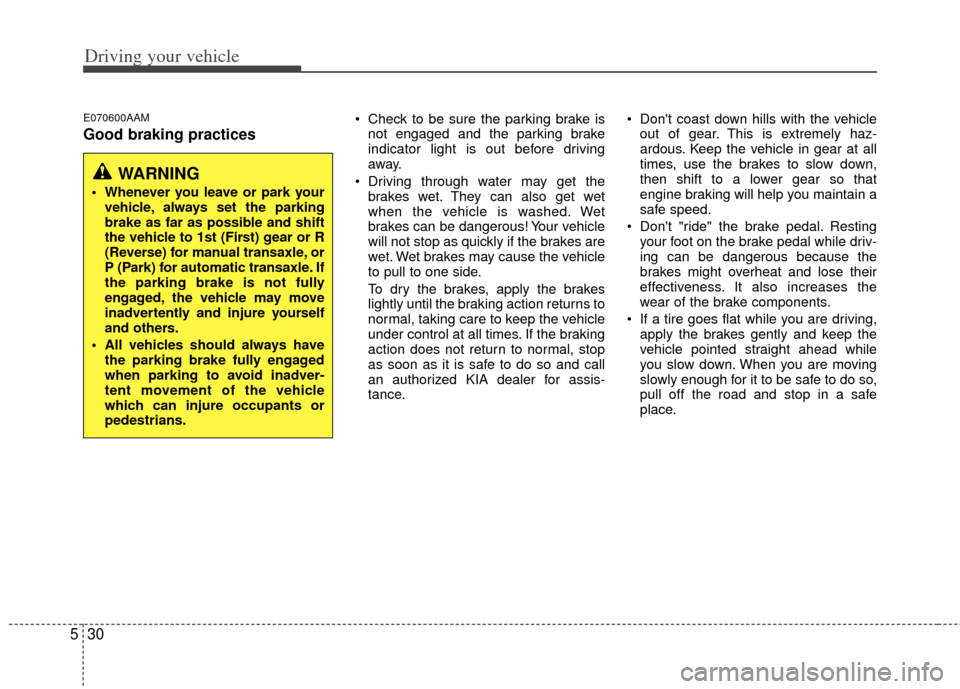

Good braking practices
Check to be sure the parking brake is
not engaged and the parking brake
indicator light is out before driving
away.
Driving through water may get the brakes wet. They can also get wet
when the vehicle is washed. Wet
brakes can be dangerous! Your vehicle
will not stop as quickly if the brakes are
wet. Wet brakes may cause the vehicle
to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal, taking care to keep the vehicle
under control at all times. If the braking
action does not return to normal, stop
as soon as it is safe to do so and call
an authorized KIA dealer for assis-
tance. Don't coast down hills with the vehicle
out of gear. This is extremely haz-
ardous. Keep the vehicle in gear at all
times, use the brakes to slow down,
then shift to a lower gear so that
engine braking will help you maintain a
safe speed.
Don't "ride" the brake pedal. Resting your foot on the brake pedal while driv-
ing can be dangerous because the
brakes might overheat and lose their
effectiveness. It also increases the
wear of the brake components.
If a tire goes flat while you are driving, apply the brakes gently and keep the
vehicle pointed straight ahead while
you slow down. When you are moving
slowly enough for it to be safe to do so,
pull off the road and stop in a safe
place.
WARNING
Whenever you leave or park yourvehicle, always set the parking
brake as far as possible and shift
the vehicle to 1st (First) gear or R
(Reverse) for manual transaxle, or
P (Park) for automatic transaxle. If
the parking brake is not fully
engaged, the vehicle may move
inadvertently and injure yourself
and others.
All vehicles should always have the parking brake fully engaged
when parking to avoid inadver-
tent movement of the vehicle
which can injure occupants or
pedestrians.

Index
4I
Engine number ··················\
··················\
··················\
···········8-7
Engine oil ··················\
··················\
··················\
·················7-14\
Engine overheats··················\
··················\
··················\
········6-6
Engine start/stop button ··················\
··················\
···············5-7
Engine temperature gauge ··················\
··················\
·········4-39
Engine will not start··················\
··················\
··················\
···6-3
Evaporative emission control (including ORVR) System ··················\
··················\
··················\
·················7-58\
Exhaust emission control system··················\
·················7-59\
Explanation of scheduled maintenance items················7-11
Exterior care··················\
··················\
··················\
·············7-52
Exterior features··················\
··················\
··················\
·······4-93 Roof rack ··················\
··················\
··················\
·············4-93
Flat tire ··················\
··················\
··················\
··················\
···6-17 Changing tires ··················\
··················\
··················\
·····6-18
Compact spare tire ··················\
··················\
················6-23
Jack and tools ··················\
··················\
··················\
······6-17
Removing and storing the spare tire ··················\
·······6-18
Floor mat anchor(s) ··················\
··················\
··················\
·4-92
Fluid Brake/clutch fluid ··················\
··················\
··················\
7-18
Power steering fluid ··················\
··················\
··············7-19
Washer fluid ··················\
··················\
··················\
········7-22
Folding the rear seat ··················\
··················\
··················\
··3-9
Front seat adjustment - manual ··················\
··················\
···3-4
Fuel filler lid ··················\
··················\
··················\
············4-24 Fuel gauge··················\
··················\
··················\
················4-40
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-46
Fuse/relay panel description··················\
··················\
··7-47
Memory fuse ··················\
··················\
··················\
·······7-45
Multi fuse ··················\
··················\
··················\
············7-46
Gauge Engine temperature gauge··················\
··················\
·····4-39
Fuel gauge ··················\
··················\
··················\
···········4-40
Glove box··················\
··················\
··················\
·················4-87\
Hazard warning flasher··················\
··················\
··············4-57
Hazardous driving conditions ··················\
··················\
····5-38
Headrest ··················\
··················\
··················\
············3-5, 3-11
Highway driving ··················\
··················\
··················\
······5-42
Hood··················\
··················\
··················\
··················\
·······4-22
Horn ··················\
··················\
··················\
··················\
·······4-32
How to use this manual ··················\
··················\
···············1-2
Ignition key interlock system ··················\
··················\
····5-19
Immobilizer system ··················\
··················\
··················\
···4-3
F
G
H
I

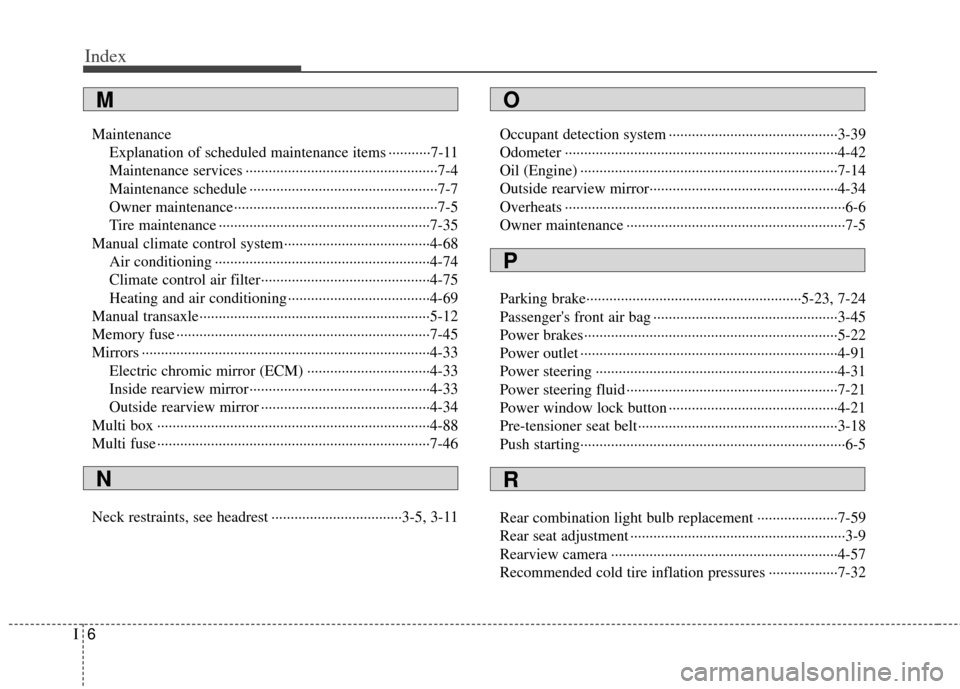

Index
6I
MaintenanceExplanation of scheduled maintenance items ···········7-11
Maintenance services ··················\
··················\
··············7-4
Maintenance schedule ··················\
··················\
·············7-7
Owner maintenance··················\
··················\
·················7-5
Tire maintenance ··················\
··················\
··················\
·7-35
Manual climate control system··················\
··················\
··4-68 Air conditioning ··················\
··················\
··················\
··4-74
Climate control air filter··················\
··················\
········4-75
Heating and air conditioning··················\
··················\
·4-69
Manual transaxle··················\
··················\
··················\
······5-12
Memory fuse ··················\
··················\
··················\
············7-45
Mirrors ··················\
··················\
··················\
··················\
···4-33 Electric chromic mirror (ECM) ··················\
··············4-33
Inside rearview mirror··················\
··················\
···········4-33
Outside rearview mirror ··················\
··················\
········4-34
Multi box ··················\
··················\
··················\
·················4-88\
Multi fuse ··················\
··················\
··················\
·················7-46\
Neck restraints, see headrest ··················\
················3-5, 3-1\
1 Occupant detection system ··················\
··················\
········3-39
Odometer ··················\
··················\
··················\
·················4-42\
Oil (Engine) ··················\
··················\
··················\
·············7-14
Outside rearview mirror··················\
··················\
·············4-34
Overheats ··················\
··················\
··················\
··················\
·6-6
Owner maintenance ··················\
··················\
··················\
···7-5
Parking brake··················\
··················\
··················\
··5-23, 7-24
Passenger's front air bag ··················\
··················\
············3-45
Power brakes··················\
··················\
··················\
············5-22
Power outlet ··················\
··················\
··················\
·············4-91
Power steering ··················\
··················\
··················\
·········4-31
Power steering fluid ··················\
··················\
··················\
·7-21
Power window lock button ··················\
··················\
········4-21
Pre-tensioner seat belt··················\
··················\
················3-18
Push starting··················\
··················\
··················\
···············6-5
Rear combination light bulb replacement ··················\
···7-59
Rear seat adjustment ··················\
··················\
··················\
··3-9
Rearview camera ··················\
··················\
··················\
·····4-57
Recommended cold tire inflation pressures ··················\
7-32
O
P
R
M
N

I7
Index
Recommended lubricants and capacities ··················\
·······8-4Recommended SAE viscosity number··················\
······8-5
Remote keyless entry ··················\
··················\
··················\
·4-5
Road warning ··················\
··················\
··················\
·············6-2
Rocking the vehicle ··················\
··················\
··················\
·5-39
Roof rack ··················\
··················\
··················\
·················4-93\
Seat belts ··················\
··················\
··················\
··················\
3-12 Pre-tensioner seat belt ··················\
··················\
···········3-18
Seat belt - Driver's··················\
··················\
·················3-14\
Seat belt warning··················\
··················\
··················\
·3-14
Seat belts - Front passenger and rear seat ·················3-16\
Seat warmer ··················\
··················\
··················\
···············3-8
Seatback pocket ··················\
··················\
··················\
·········3-9
Seating capacity ··················\
··················\
··················\
·······5-46
Seats ··················\
··················\
··················\
··················\
·········3-2 Armrest ··················\
··················\
··················\
··················\
3-7
Folding the rear seat ··················\
··················\
················3-9
Front seat adjustment - manual ··················\
·················3-4
Headrest ··················\
··················\
··················\
·······3-5, 3-11
Rear seat adjustment ··················\
··················\
···············3-9
Seat warmer··················\
··················\
··················\
···········3-8
Seatback pocket··················\
··················\
··················\
·····3-9
Shift lock system ··················\
··················\
··················\
·····5-19
Side impact air bag ··················\
··················\
··················\
··3-49 Spare tire
Compact spare tire ··················\
··················\
················6-23
Removing and storing the spare tire ··················\
·······6-18
Smart key ··················\
··················\
··················\
··················\
·4-9
Smooth cornering··················\
··················\
··················\
·····5-40
Snow tires ··················\
··················\
··················\
·······5-43, 7-44
Special driving conditions ··················\
··················\
·········5-38 Driving at night ··················\
··················\
··················\
···5-40
Driving in flooded areas··················\
··················\
········5-41
Driving in the rain ··················\
··················\
·················5-41\
Hazardous driving conditions ··················\
·················5-38\
Highway driving··················\
··················\
··················\
··5-42
Reducing the risk of a rollover ··················\
···············5-38
Rocking the vehicle··················\
··················\
···············5-39
Smooth cornering ··················\
··················\
··················\
5-40
Speedometer··················\
··················\
··················\
·············4-38
Sports mode ··················\
··················\
··················\
·············5-18
Starting difficulties, see Engine will not start ·················6-3
Starting the engine ··················\
··················\
··················\
·····5-6
Steering wheel···············\
··················\
··················\
·············4-31 Horn··················\
··················\
··················\
··················\
···4-32
Power steering ··················\
··················\
··················\
·····4-31
Tilt steering ··················\
··················\
··················\
·········4-31
Storage compartment ··················\
··················\
·················4-87\
Center console storage ··················\
··················\
··········4-87
Glove box ··················\
··················\
··················\
············4-87
Luggage box ··················\
··················\
··················\
········4-88
Multi box ··················\
··················\
··················\
·············4-88
S
