2011 JEEP WRANGLER snow chains

When inPartial Off mode, the TCS portion of ESC has
been disabled and the “ESC Activation/Malfunction
Indicator Light” will be illuminated. All other stability features of ESC function normally. This
mode is intended to be used if the vehicle is in deep
snow, sand, or gravel conditions and more wheel spin
than ESC would normally allow is required to gain
traction. To turn ESC on again, momentarily press the
ESC OFF switch. This will restore the normal “ESC On”
mode of operation.
NOTE:
To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the ESC OFF switch. Once the situation
requiring ESC to be switched to the “Partial Off” mode is
overcome, turn ESC back on by momentarily pressing the
ESC OFF switch. This may be done while the vehicle is in
motion.
ESC OFF Switch
5
STARTING AND OPERATING 419

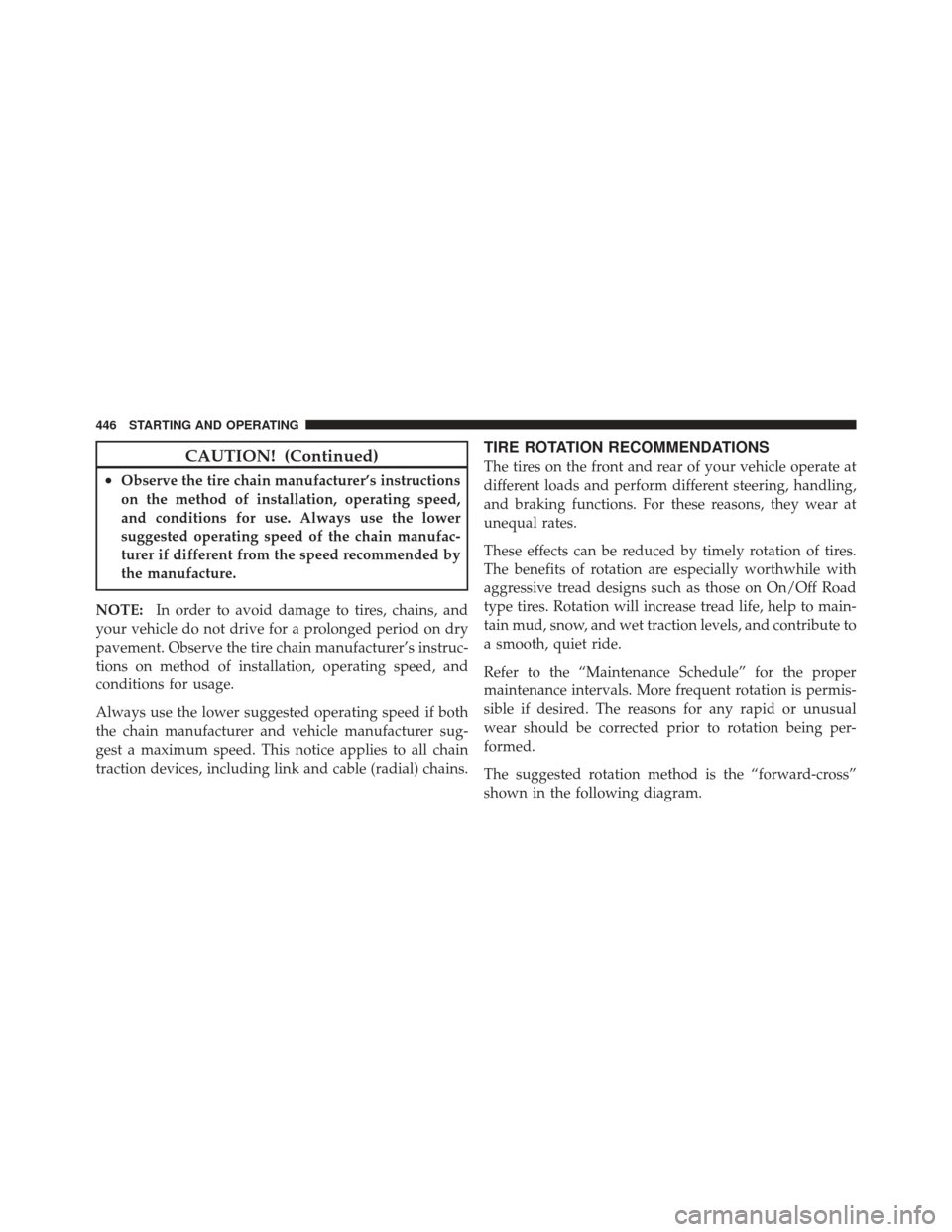

CAUTION! (Continued)
•Observe the tire chain manufacturer’s instructions
on the method of installation, operating speed,
and conditions for use. Always use the lower
suggested operating speed of the chain manufac-
turer if different from the speed recommended by
the manufacture.
NOTE: In order to avoid damage to tires, chains, and
your vehicle do not drive for a prolonged period on dry
pavement. Observe the tire chain manufacturer’s instruc-
tions on method of installation, operating speed, and
conditions for usage.
Always use the lower suggested operating speed if both
the chain manufacturer and vehicle manufacturer sug-
gest a maximum speed. This notice applies to all chain
traction devices, including link and cable (radial) chains.
TIRE ROTATION RECOMMENDATIONS
The tires on the front and rear of your vehicle operate at
different loads and perform different steering, handling,
and braking functions. For these reasons, they wear at
unequal rates.
These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute to
a smooth, quiet ride.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals. More frequent rotation is permis-
sible if desired. The reasons for any rapid or unusual
wear should be corrected prior to rotation being per-
formed.
The suggested rotation method is the “forward-cross”
shown in the following diagram.
446 STARTING AND OPERATING

2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
NOTE:
•If your vehicle is equipped with a matching full-size
spare wheel and tire assembly, it has a tire pressure
monitoring sensor, and can be monitored by the Tire
Pressure Monitoring System (TPMS). In the event that
the matching full-size spare tire is swapped with a low
pressure road tire, the next ignition key cycle will still
show the “Tire Pressure Monitoring Telltale Light” to
be ON, and a chime to sound. Driving the vehicle for
up to 20 minutes above 15 mph (24 km/h) will turnOFF the “Tire Pressure Monitoring Telltale Light” as
long as none of the road tires are below the low
pressure warning threshold.
•If your vehicle is not equipped with a matching
full-size spare wheel and tire assembly, it does not
have a tire pressure monitoring sensor in the spare tire.
The TPMS will not be able to monitor the tire pressure.
If you install the spare tire in place of a road tire that
has a pressure below the low-pressure warning limit,
upon the next ignition key cycle, a chime will sound
and the “Tire Pressure Monitoring Telltale Light” will
turn ON. After driving the vehicle for up to 20 minutes
above 15 mph (24 km/h), the “Tire Pressure Monitor-
ing Telltale Light” will flash on and off for 75 seconds
and then remain on solid. For each subsequent ignition
key cycle, a chime will sound and the “Tire Pressure
Monitoring Telltale Light” will flash on and off for
75 seconds and then remain on solid. Once you repair
or replace the original road tire, and reinstall it on the
5
STARTING AND OPERATING 451

Shoulder Belt Upper Anchorage.............. 53
Shoulder Belts ........................... 47
Side Airbag ............................. 66
Side Window Demisters (Defrosters) .......... 362
Signals, Turn ................. 89,151,267,547,548
Snow Chains (Tire Chains) ................. 445
Soft Top ........................... 194,219
Spare Tire ....................... 440,441,486
Specifications Fuel (Gasoline) ...................... 452
Oil ............................... 511
Speed Control (Cruise Control) .............. 159
Speedometer ........................... 266
Starting ............................... 370
Automatic Transmission ................ 370
Cold Weather ....................... 371
Engine Block Heater .................. 373
Engine Fails to Start .................. 371
Manual Transmission .................. 370 Remote
............................ 26
Steering Power .......................... 405,406
Tilt Column ........................ 158
Wheel, Tilt ......................... 158
Steering Wheel Audio Controls .............. 348
Steering Wheel Mounted
Sound System Controls ................... 348
Storage ............................ 169,545
Storage, Behind the Seat ................... 169
Storage, Vehicle ...................... 361,545
Storing Your Vehicle ...................... 545
Stuck, Freeing .......................... 495
Sunrider ........................... 247,250
Supplemental Restraint System - Airbag ........ 59
Sway Bar Disconnect, Electronic ............. 389
Swing Gate, Rear ......................... 42
System, Remote Starting .................... 26
596 INDEX
