2011 JEEP LIBERTY hood release

TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.2. Outside of the vehicle, locate the safety latch lever
between the grille and hood opening (left of center when
facing hood). Push the safety latch lever to the right and
then raise the hood.
Hood ReleaseUnderhood Safety Latch
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

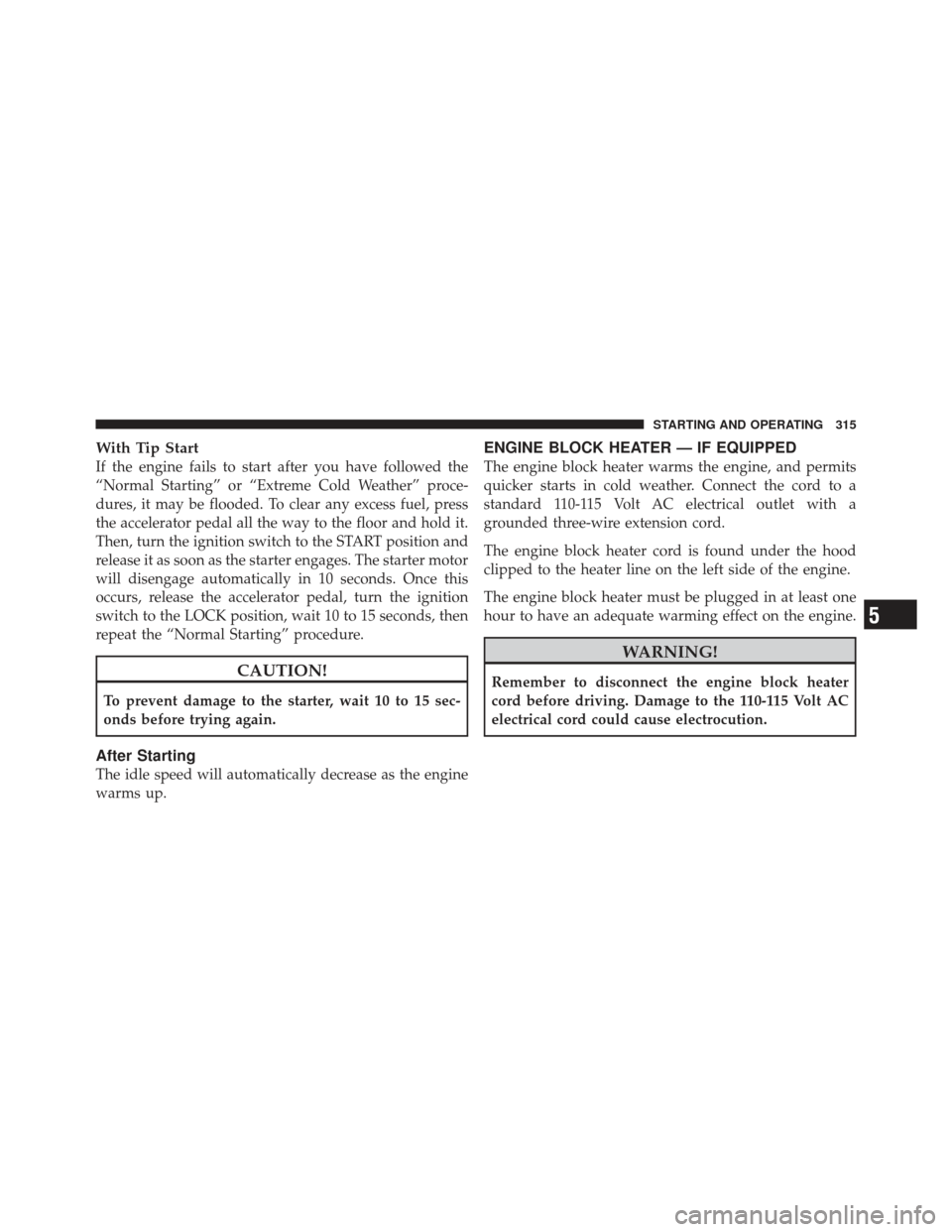

With Tip Start
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather” proce-
dures, it may be flooded. To clear any excess fuel, press
the accelerator pedal all the way to the floor and hold it.
Then, turn the ignition switch to the START position and
release it as soon as the starter engages. The starter motor
will disengage automatically in 10 seconds. Once this
occurs, release the accelerator pedal, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
CAUTION!
To prevent damage to the starter, wait 10 to 15 sec-
onds before trying again.
After Starting
The idle speed will automatically decrease as the engine
warms up.
ENGINE BLOCK HEATER — IF EQUIPPED
The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a
grounded three-wire extension cord.
The engine block heater cord is found under the hood
clipped to the heater line on the left side of the engine.
The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.
WARNING!
Remember to disconnect the engine block heater
cord before driving. Damage to the 110-115 Volt AC
electrical cord could cause electrocution.
5
STARTING AND OPERATING 315

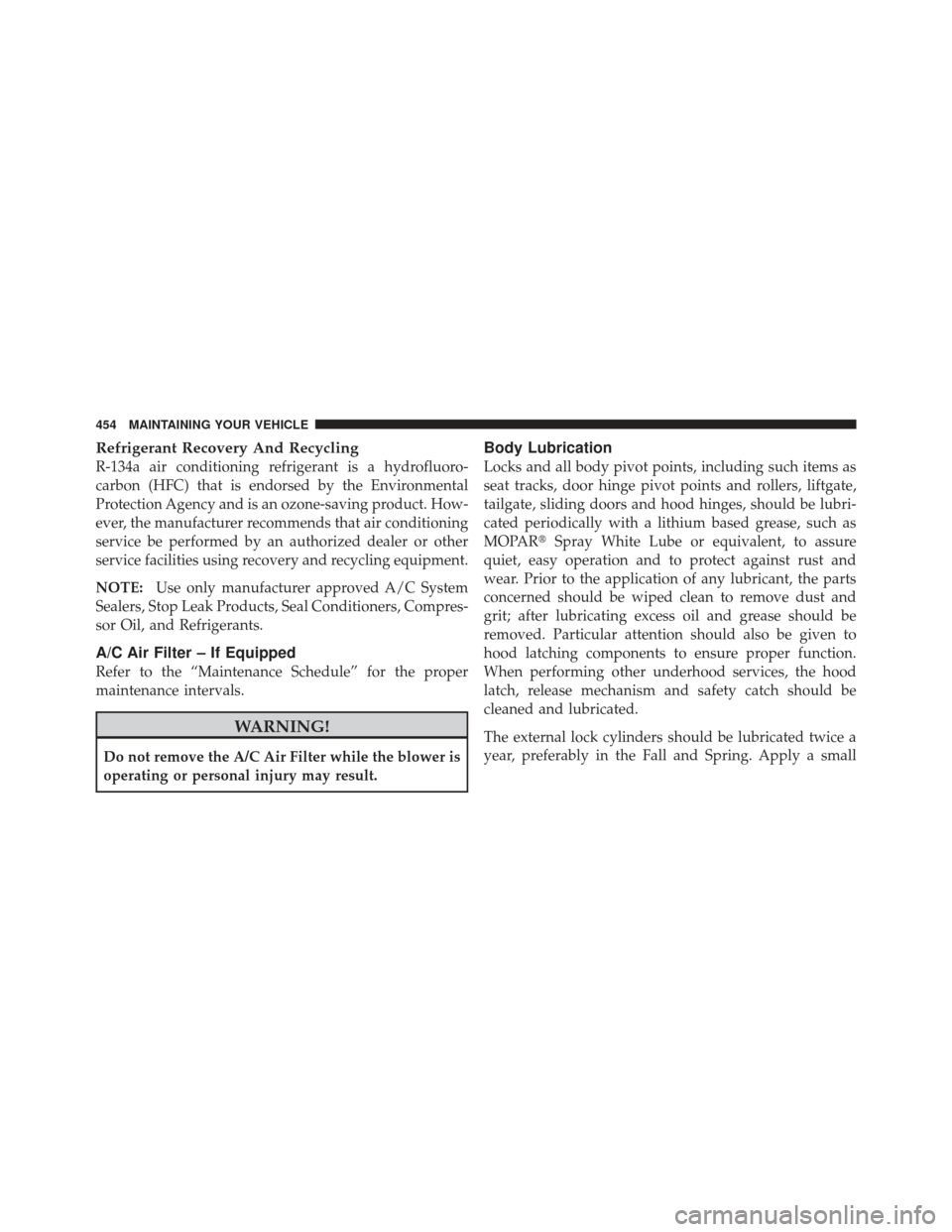

Refrigerant Recovery And Recycling
R-134a air conditioning refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by an authorized dealer or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, and Refrigerants.
A/C Air Filter – If Equipped
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
Do not remove the A/C Air Filter while the blower is
operating or personal injury may result.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPAR Spray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
454 MAINTAINING YOUR VEHICLE

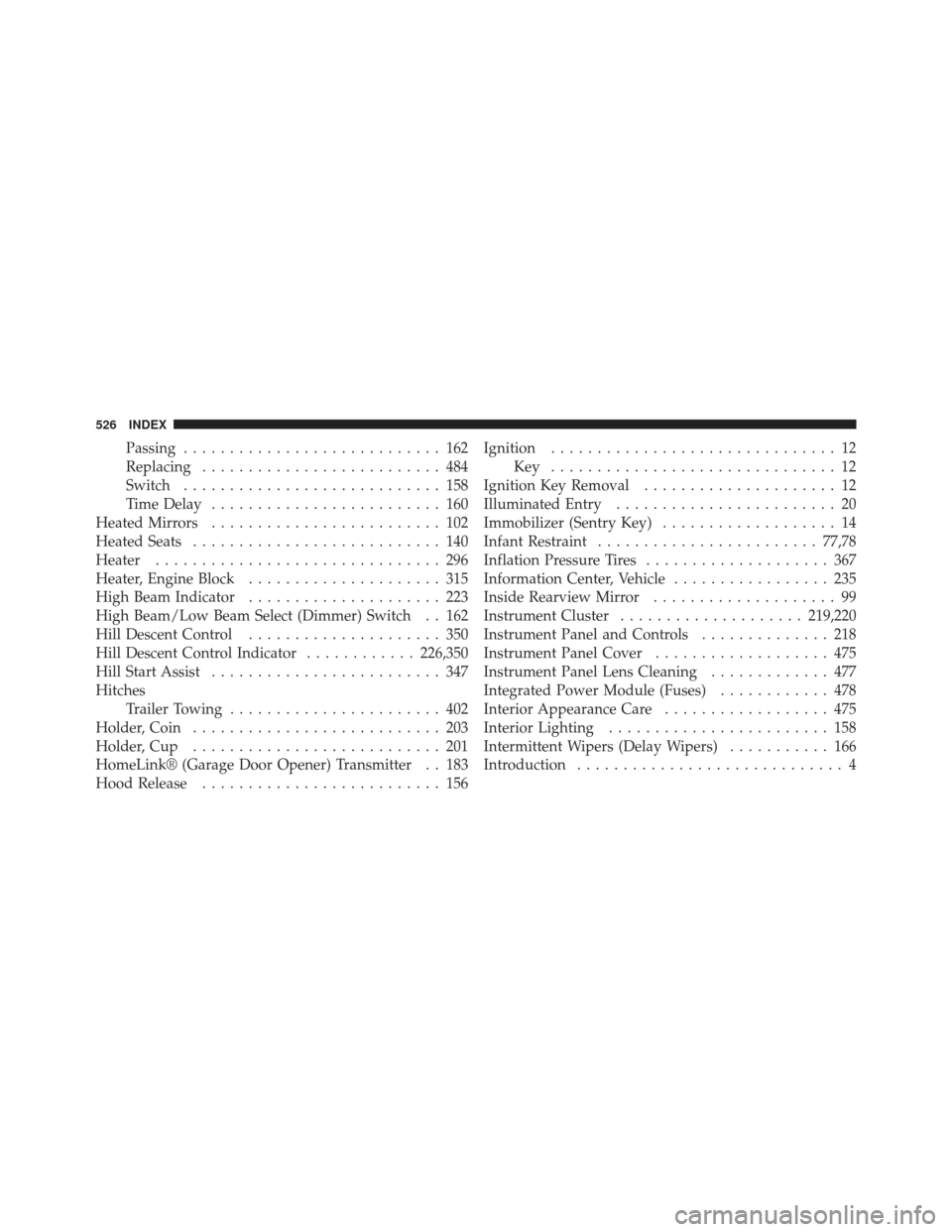

Passing............................ 162
Replacing .......................... 484
Switch ............................ 158
Time Delay ......................... 160
Heated Mirrors ......................... 102
Heated Seats ........................... 140
Heater ............................... 296
Heater, Engine Block ..................... 315
High Beam Indicator ..................... 223
High Beam/Low Beam Select (Dimmer) Switch . . 162
Hill Descent Control ..................... 350
Hill Descent Control Indicator ............226,350
Hill Start Assist ......................... 347
Hitches Trailer Towing ....................... 402
Holder, Coin ........................... 203
Holder, Cup ........................... 201
HomeLink® (Garage Door Opener) Transmitter . . 183
Hood Release .......................... 156 Ignition
............................... 12
Key ............................... 12
Ignition Key Removal ..................... 12
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 14
Infant Restraint ........................ 77,78
Inflation Pressure Tires .................... 367
Information Center, Vehicle ................. 235
Inside Rearview Mirror .................... 99
Instrument Cluster .................... 219,220
Instrument Panel and Controls .............. 218
Instrument Panel Cover ................... 475
Instrument Panel Lens Cleaning ............. 477
Integrated Power Module (Fuses) ............ 478
Interior Appearance Care .................. 475
Interior Lighting ........................ 158
Intermittent Wipers (Delay Wipers) ........... 166
Introduction ............................. 4
526 INDEX

Radio Operation........................ 295
Rain Sensitive Wiper System ................ 168
Rear Axle (Differential) .................... 469
Rear Park Sense System ................... 175
Rear Seat, Folding ....................... 149
Rear Window Defroster ................... 211
Rear Window Features .................... 210
Rear Wiper/Washer ...................... 210
Rearview Mirrors ........................ 99
Reclining Front Seats ..................... 143
Recorder, Event Data ...................... 76
Recreational Towing ...................... 413
Shifting into Transfer Case Neutral (N) ..... 416
Shifting out of Transfer Case Neutral (N) .... 418
Reformulated Gasoline .................... 389
Refrigerant ............................ 454
Release, Hood .......................... 156
Reminder, Lights On ..................... 161
Reminder, Seat Belt ....................... 56 Remote Control
Starting System ....................... 27
Remote Keyless Entry (RKE) ................. 20
Remote Sound System (Radio) Controls ........ 293
Remote Starting System .................... 27
Replacement Bulbs ....................... 484
Replacement Keys ........................ 16
Replacement Parts ....................... 446
Replacement Tires ....................... 374
Reporting Safety Defects ................... 512
Resetting Oil Change Indicator ...........232,239
Restraint, Head ......................... 145
Restraints, Child ......................... 77
Restraints, Occupant ...................... 41
Retractable Cargo Area Cover ............... 208
Roll Over Warning ........................ 4
Roof Sky Slider Power .................. 193,470
Roof Type Carrier ....................... 212
532 INDEX
