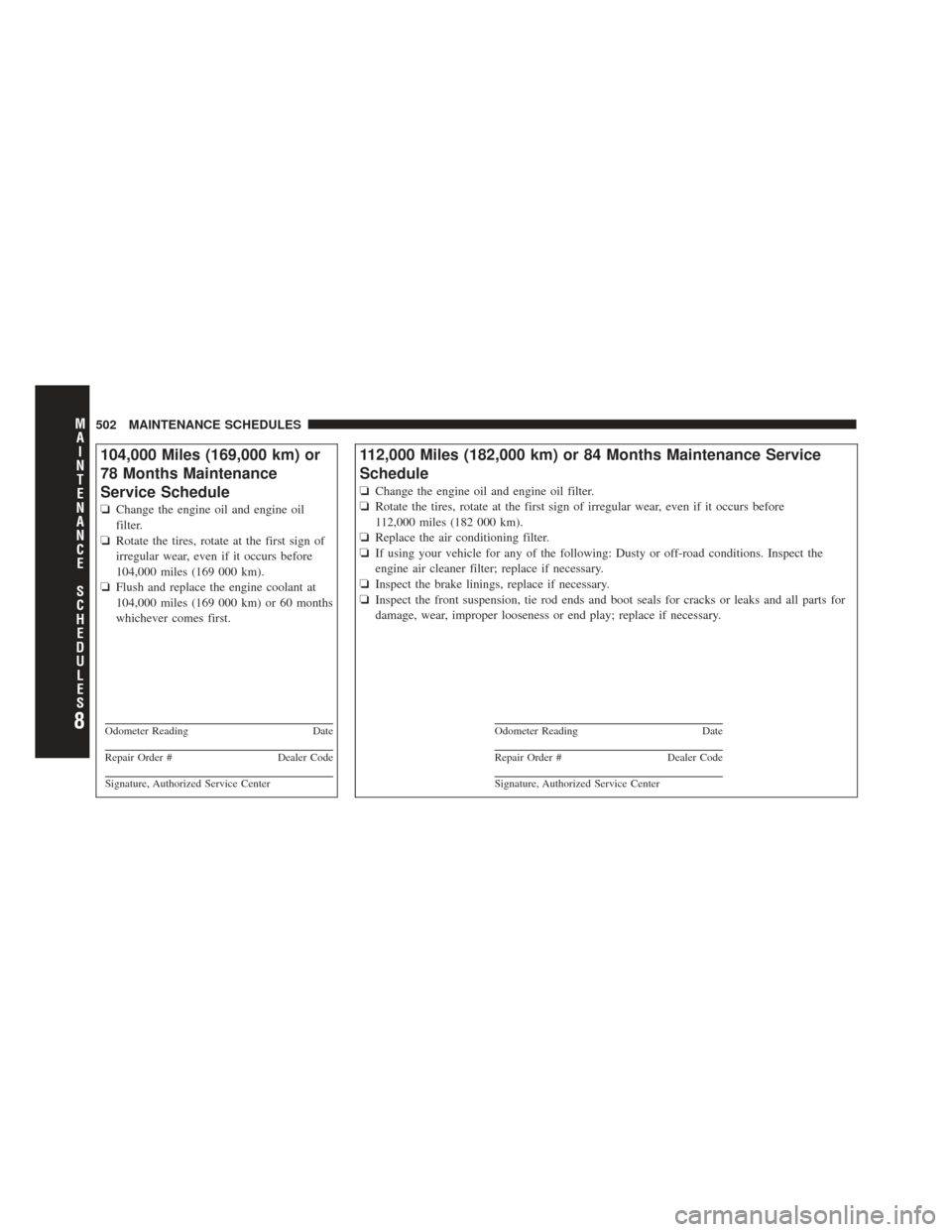

2011 JEEP LIBERTY maintenance schedule

104,000 Miles (169,000 km) or
78 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
104,000 miles (169 000 km).
❏ Flush and replace the engine coolant at
104,000 miles (169 000 km) or 60 months
whichever comes first.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
112,000 Miles (182,000 km) or 84 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
112,000 miles (182 000 km).
❏ Replace the air conditioning filter.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S502 MAINTENANCE SCHEDULES

120,000 Miles (195,000 km) or 90 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
120,000 miles (195 000 km).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
❏ Change the automatic transmission fluid and filter(s).
❏ Replace the accessory drive belt(s).
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 503

128,000 Miles (208,000 km) or 96 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
128,000 miles (208 000 km).
❏ Replace the air conditioning filter.
❏ Replace the engine air cleaner filter.
❏ Replace the ignition cables (3.7L Engine).
❏ Replace the spark plugs (3.7L Engine).
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Change the transfer case fluid if using your vehicle for any of the following: police, taxi,
fleet, or frequent trailer towing.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
136,000 Miles (221,000 km) or
102 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
136,000 miles (221 000 km).
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S504 MAINTENANCE SCHEDULES

144,000 Miles (234,000 km) or 108 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before
144,000 miles (234 000 km).
❏ Replace the air conditioning filter.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter; replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the CV joints.
❏ Inspect exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play; replace if necessary.
❏ Inspect the front and rear axle fluid, change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
152,000 Miles (247,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before
152,000 miles (247 000 km).
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 505

† This maintenance is recommended by the manufacturer
to the owner, but is not required to maintain emissions
warranty.
WARNING!
•You can be badly injured working on or around a
motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If
you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
•Failure to properly inspect and maintain your
vehicle could result in a component malfunction
and effect vehicle handling and performance. This
could cause an accident.
8
MA I
N T
E
N A
N CE
S
C
H E
D
U L
E
S506 MAINTENANCE SCHEDULES

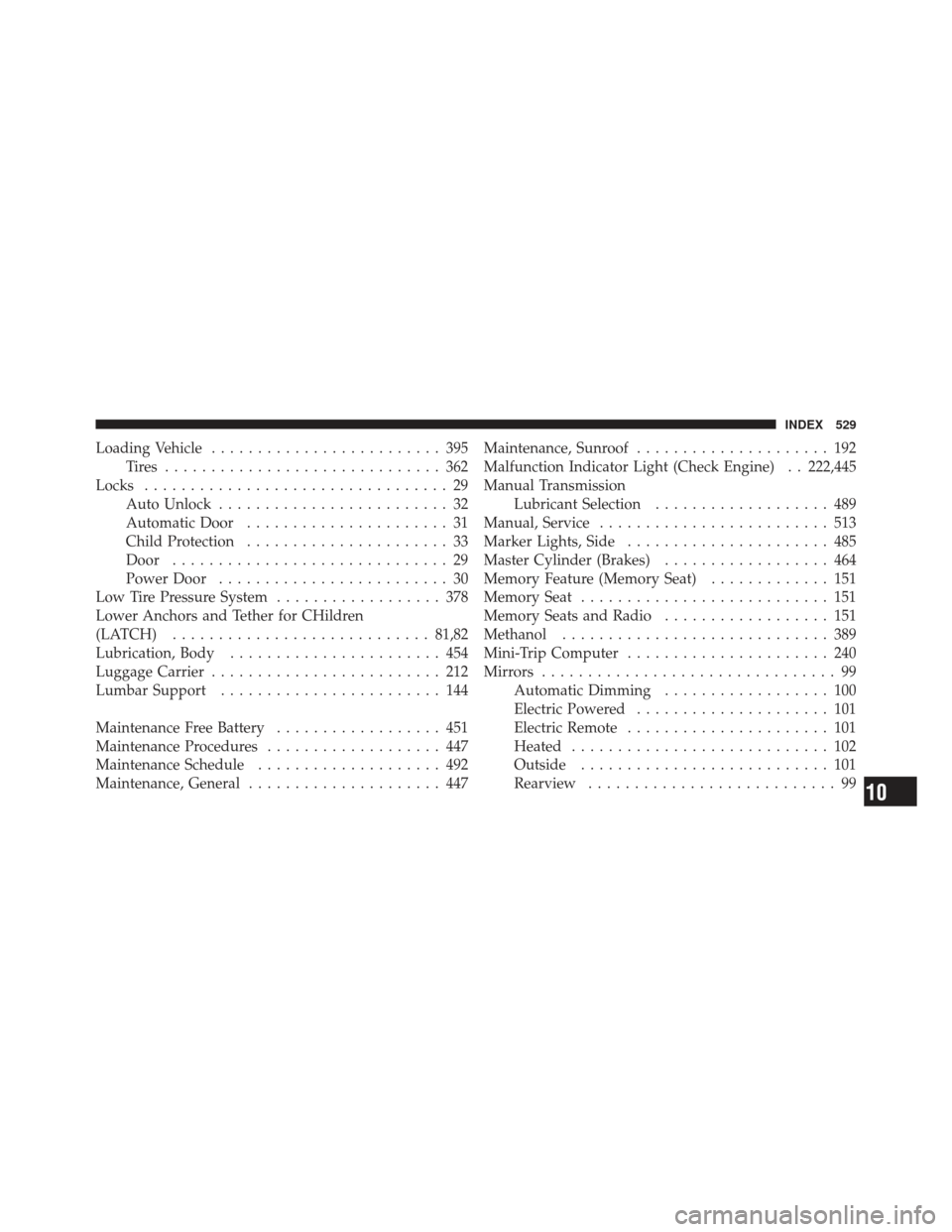

Loading Vehicle......................... 395
Tires .............................. 362
Locks ................................. 29
Auto Unlock ......................... 32
Automatic Door ...................... 31
Child Protection ...................... 33
Door .............................. 29
Power Door ......................... 30
Low Tire Pressure System .................. 378
Lower Anchors and Tether for CHildren
(LATCH) ............................ 81,82
Lubrication, Body ....................... 454
Luggage Carrier ......................... 212
Lumbar Support ........................ 144
Maintenance Free Battery .................. 451
Maintenance Procedures ................... 447
Maintenance Schedule .................... 492
Maintenance, General ..................... 447 Maintenance, Sunroof
..................... 192
Malfunction Indicator Light (Check Engine) . . 222,445
Manual Transmission Lubricant Selection ................... 489
Manual, Service ......................... 513
Marker Lights, Side ...................... 485
Master Cylinder (Brakes) .................. 464
Memory Feature (Memory Seat) ............. 151
Memory Seat ........................... 151
Memory Seats and Radio .................. 151
Methanol ............................. 389
Mini-Trip Computer ...................... 240
Mirrors ................................ 99
Automatic Dimming .................. 100
Electric Powered ..................... 101
Electric Remote ...................... 101
Heated ............................ 102
Outside ........................... 101
Rearview ........................... 99
10
INDEX 529

Rotation, Tires.......................... 377
Safety Checks Inside Vehicle ................. 89
Safety Checks Outside Vehicle ............... 91
Safety Defects, Reporting .................. 512
Safety Information, Tire ................... 357
Safety Tips ............................. 87
Safety, Exhaust Gas ....................... 88
Satellite Radio Antenna .................265,290
Schedule, Maintenance .................... 492
Seat Belt Maintenance .................... 477
Seat Belt Reminder ....................... 56
Seat Belts ............................ 44,89
Adjustable Upper Shoulder Anchorage ...... 49
And Pregnant Women .................. 58
Child Restraint ..................... 77,84
Extender ........................... 58
Front Seat .......................... 44
Inspection .......................... 89 Pretensioners
........................ 50
Reminder .......................... 232
Shoulder Belt Anchorage ................ 49
Untwisting Procedure .................. 50
Seats ................................. 138
Adjustment ......................... 138
Easy Entry ......................... 154
Head Restraints ...................... 145
Heated ............................ 140
Height Adjustment ................... 139
Lumbar Support ..................... 144
Memory ........................... 151
Power ............................ 139
Rear Folding ........................ 149
Reclining .......................... 143
Seatback Release ..................... 149
Tilting ............................ 139
Security Alarm (Theft Alarm) .............18,234
Selec-Trac Operation ...................... 327
10
INDEX 533
