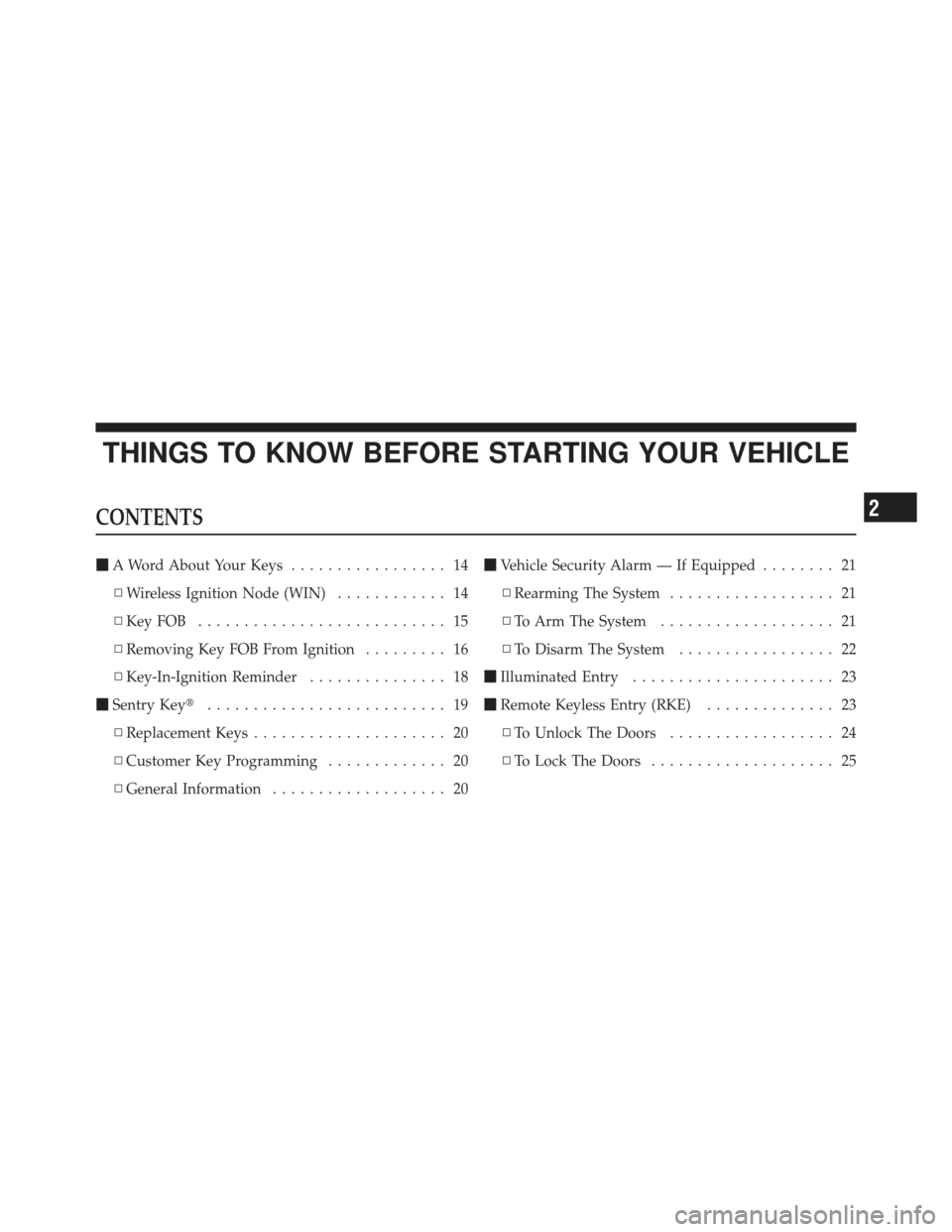

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys ................. 14
▫ Wireless Ignition Node (WIN) ............ 14
▫ KeyFOB ........................... 15
▫ Removing Key FOB From Ignition ......... 16
▫ Key-In-Ignition Reminder ............... 18
 Sentry Key .......................... 19
▫ Replacement Keys ..................... 20
▫ Customer Key Programming ............. 20
▫ General Information ................... 20
Vehicle Security Alarm — If Equipped ........ 21
▫ Rearming The System .................. 21
▫ To Arm The System ................... 21
▫ To Disarm The System ................. 22
 Illuminated Entry ...................... 23
 Remote Keyless Entry (RKE) .............. 23
▫ To Unlock The Doors .................. 24
▫ To Lock The Doors .................... 25
2

▫Remote Open Window Feature —
If Equipped ......................... 25
▫ Using The Panic Alarm ................. 26
▫ Programming Additional Transmitters ...... 26
▫ Transmitter Battery Replacement .......... 26
▫ General Information ................... 28
 Remote Starting System — If Equipped ....... 29
▫ How To Use Remote Start ............... 29
 Door Locks ........................... 33
▫ Power Door Locks .................... 34
▫ Child-Protection Door Lock System —
Rear Doors .......................... 35
 Keyless Enter-N-Go ..................... 36
Windows ............................ 41
▫ Power Windows ...................... 41
▫ Wind Buffeting ....................... 44
 Liftgate ............................. 44
▫ Liftgate Flipper Glass .................. 45
▫ Power Liftgate — If Equipped ............ 46
 Occupant Restraints ..................... 48
▫ Lap/Shoulder Belts .................... 52
▫ Lap/Shoulder Belt Operating Instructions .... 53
▫ Lap/Shoulder Belt Untwisting Procedure .... 57
▫ Adjustable Upper Shoulder Belt Anchorage . . . 57
▫ Energy Management Feature ............. 58
▫ Seat Belts In Passenger Seating Positions ..... 59
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Automatic Locking Retractor Mode (ALR) —
If Equipped ......................... 60
▫ Seat Belt Pretensioners ................. 61
▫ Supplemental Active Head Restraints
(AHR) ............................. 61
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 65
▫ Seatbelt Lock Out ..................... 67
▫ Seat Belts And Pregnant Women .......... 67
▫ Seat Belt Extender ..................... 67
▫ Supplemental Restraint System (SRS) —
Airbags ............................ 68
▫ Advanced Front Airbag Features .......... 70▫
Airbag Deployment Sensors And Controls . . . 74
▫ Event Data Recorder (EDR) .............. 81
▫ Child Restraints ...................... 82
 Engine Break-In Recommendations .......... 95
 Safety Tips ........................... 96
▫ Transporting Passengers ................ 96
▫ Exhaust Gas ......................... 97
▫ Safety Checks You Should Make Inside The
Vehicle ............................. 98
▫ Periodic Safety Checks You Should Make
Outside The Vehicle .................. 100
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle on
the driver’s side should the battery in the vehicle or the
RKE transmitter go dead. The emergency key is also for
locking the glove box. You can keep the emergency key
with you when valet parking.
NOTE:Entering a vehicle using the emergency key with
the theft alarm armed, will result in the alarm sounding.
Insert the Key Fob (even if the Key Fob battery is dead)
into the ignition switch to disarm theft alarm.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.
NOTE:You can insert the double-sided emergency key
into the lock cylinders with either side up.Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
With the Keyless Enter-N-Go feature, the EVIC will
display the ignition switch position “OFF/ACC/RUN”.
Refer to “Electronic Vehicle Information Center (EVIC)”
in “Understanding Your Instrument Panel” for further
information.
NOTE:
•If you try to remove the Key Fob before you place the
shift lever in PARK, it may become trapped temporar-
ily in the ignition switch. If this occurs, rotate the key
to the right slightly, then remove the Key Fob as
described. If a malfunction occurs, the system will trap
the key in the ignition switch to warn you that this
safety feature is inoperable. The engine can be started
and stopped, but the Key Fob cannot be removed until
you obtain service.
Emergency Key Removal
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•The power window switches, radio, power sunroof (if
equipped), and power outlets will remain active for up
to 10 minutes after the ignition switch is turned to the
OFF position. Opening either front door will cancel
this feature. The time for this feature is programmable.
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Programmable
Features)” in “Understanding Your Instrument Panel”
for further information.CAUTION!
•If your vehicle battery becomes low or dead, your
Key Fob will become locked in the ignition.
•Do not attempt to remove the Key Fob while in
this condition, damage could occur to the Key Fob
or ignition module. Only remove the emergency
key for locking and unlocking the doors.
•Leave the Key Fob in the ignition and either:
•Jump Start the vehicle.
•Charge the battery.
•Contact your dealer for assistance on how
to remove the Key Fob using the manual
over ride method.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the Key
Fob in the ignition or Keyless Enter-N-Go in the
ACC or ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove Key Fob from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or ACC ignition
position.
With the Keyless Enter-N-Go feature, opening the driv-
er’s door when the vehicle’s ignition switch is placed in
ACC or ON/RUN (engine stopped) will cause the re-
minder chime to sound. Refer to “Starting Procedures” in
“Starting And Operating” for further information.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

SENTRY KEY
The Sentry KeyImmobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Key Fob with Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the light begins to flash after the bulb check, it indicates that someone used an invalid
Key Fob to start the engine. Either of these conditions will
result in the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
The Sentry Key
Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
