NOTE:When using a portable battery booster pack
follow the manufacturer’s operating instructions and
precautions.
CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery in your vehicle is located under the passen-
ger’s front seat. There are remote locations located under
the hood to assist in jump-starting.
Remote Battery Posts
1 — Remote Positive (+) Post (covered with protective cap)
2 — Remote Negative (-) Post
472 WHAT TO DO IN EMERGENCIES

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. Remove the protective cover over the remote positive
(+)
battery post. Pull upward on the cover to remove it.
4. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 473

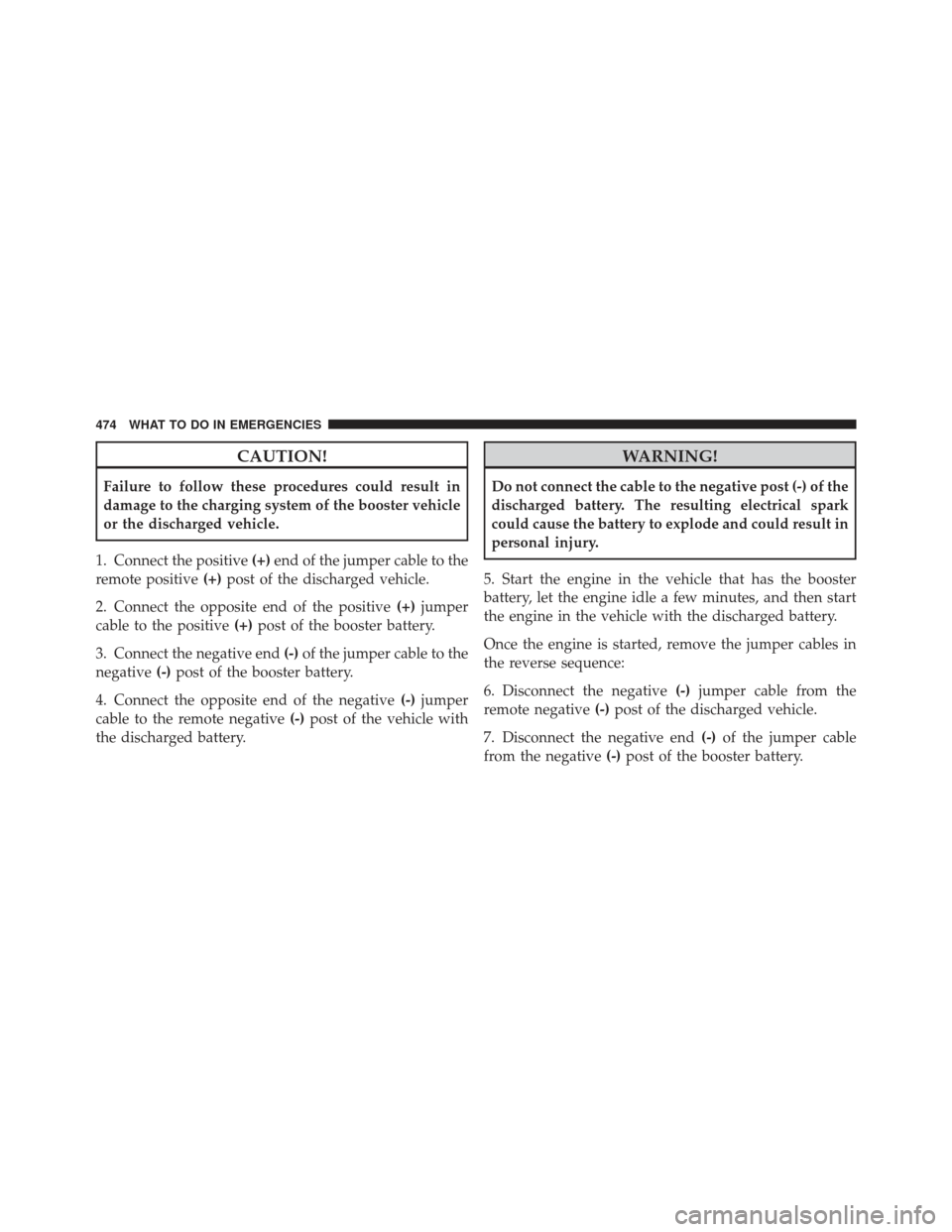

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
1. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
Once the engine is started, remove the jumper cables in
the reverse sequence:
6. Disconnect the negative (-)jumper cable from the
remote negative (-)post of the discharged vehicle.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
474 WHAT TO DO IN EMERGENCIES

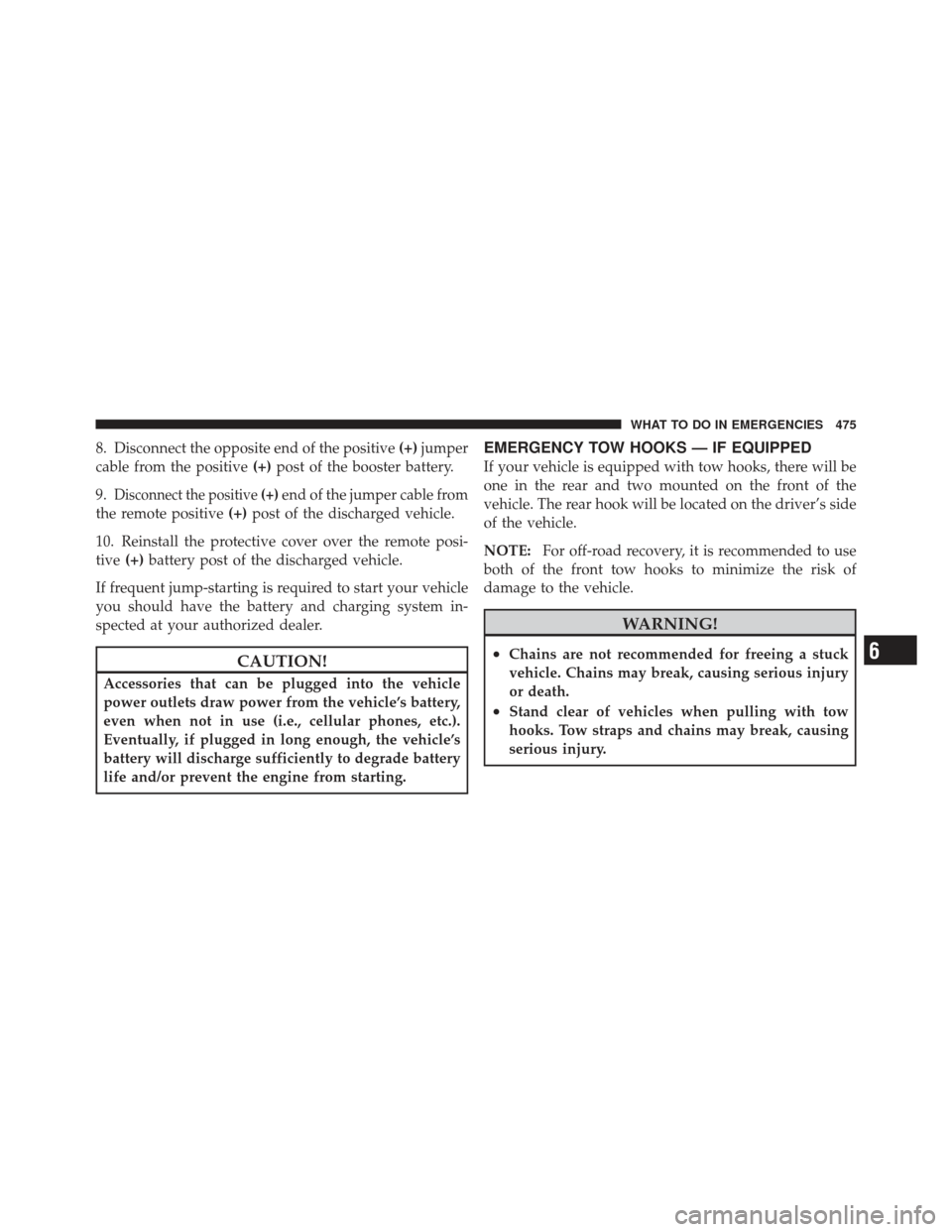

8. Disconnect the opposite end of the positive(+)jumper
cable from the positive (+)post of the booster battery.
9.
Disconnect the positive (+)end of the jumper cable from
the remote positive (+)post of the discharged vehicle.
10. Reinstall the protective cover over the remote posi-
tive (+)battery post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
EMERGENCY TOW HOOKS — IF EQUIPPED
If your vehicle is equipped with tow hooks, there will be
one in the rear and two mounted on the front of the
vehicle. The rear hook will be located on the driver’s side
of the vehicle.
NOTE: For off-road recovery, it is recommended to use
both of the front tow hooks to minimize the risk of
damage to the vehicle.
WARNING!
•Chains are not recommended for freeing a stuck
vehicle. Chains may break, causing serious injury
or death.
•Stand clear of vehicles when pulling with tow
hooks. Tow straps and chains may break, causing
serious injury.
6
WHAT TO DO IN EMERGENCIES 475

E-85 Fuel............................. 429
Electric Remote Mirrors ................... 110
Electrical Outlet, Auxiliary (Power Outlet) ...... 221
Electronic Brake Control System ............. 381
Anti-Lock Brake System ................. 381
Brake Assist System .................... 382
Electronic Roll Mitigation ................ 383
Traction Control System ................. 382
Electronic Roll Mitigation (ERM) ............. 383
Electronic Speed Control (Cruise Control) ....163,167
Electronic Stability Control (ESC) ............. 384
Electronic Vehicle Information Center
(EVIC) ............................. 250,258
Emergency, In Case of Hazard Warning Flasher ................. 462
Jacking ............................. 463
Jump Starting ......................... 471
Tow Hooks .......................... 475
Emission Control System Maintenance ......... 486Engine
Air Cleaner .......................... 492
Block Heater ......................... 348
Break-In Recommendations ................ 95
Compartment ...................... 483,484
Compartment Identification ............483,484
Cooling ............................. 502
Exhaust Gas Caution ................ 48,97,428
Fails to Start .......................... 347
Flooded, Starting ...................... 347
Fuel Requirements .................. 424,533
Jump Starting ......................... 471
Multi-Displacement .................... 379
Oil .............................. 489,533
Oil Change Interval .................... 490
Oil Disposal .......................... 492
Oil Filter ............................ 492
Oil Filter Disposal ..................... 492
Oil Selection ....................... 490,533
568 INDEX

Rear Park Sense System................... 195
Rear Seat, Folding ....................... 137
Rear Window Defroster ................... 238
Rear Window Features .................... 237
Rear Wiper/Washer ...................... 237
Rearview Mirrors ........................ 108
Reclining Front Seats ..................... 127
Recorder, Event Data ...................... 81
Recreational Towing ...................... 453
Shifting into Transfer Case Neutral (N) ....... 456
Shifting out of Transfer Case Neutral (N) ..... 459
Reformulated Gasoline .................... 425
Refrigerant ............................ 496
Reminder, Seat Belt ....................... 65
Remote Control Starting System ........................ 29
Remote Keyless Entry (RKE) ................. 23
Remote Sound System (Radio) Controls ........ 321
Remote Starting System .................... 29 Replacement Bulbs
....................... 526
Replacement Keys ........................ 20
Replacement Parts ....................... 487
Replacement Tires ....................... 411
Reporting Safety Defects ................... 558
Restraints, Child ......................... 82
Restraints, Occupant ...................... 48
Retractable Cargo Area Cover ............... 234
Roll Over Warning ........................ 5
Rotation, Tires .......................... 414
Safety Checks Inside Vehicle ................. 98
Safety Checks Outside Vehicle ............... 100
Safety Defects, Reporting .................. 558
Safety Information, Tire ................... 394
Safety Tips ............................. 96
Safety, Exhaust Gas ..................... 48,97
Satellite Radio (uconnect™ studios) ........... 320
Satellite Radio Antenna ................... 309
10
INDEX 577

Shifting............................... 349
Automatic Transmission ................. 349
Shoulder Belts ........................... 52
Side Airbag ............................. 77
Signals, Turn ................... 100,250,528,530
Sirius Backseat TV™ (uconnect™ studios) ...... 320
SmartBeams ........................... 148
Snow Chains (Tire Chains) ................. 412
Snow Plow ............................ 452
Snow Tires ............................ 413
Spare Tire ....................... 407,408,464
Specifications Fuel (Gasoline) ........................ 424
Oil ................................ 490
Speed Control (Cruise Control) ...........163,167
Speedometer ........................... 255
Starting ............................. 29,343
Automatic Transmission ................. 343
Cold Weather ...................... 346,348Engine Block Heater
.................... 348
Engine Fails to Start .................... 347
Remote .............................. 29
Starting and Operating .................... 343
Starting Procedures ...................... 343
Steering Power ........................... 375,378
Tilt Column ....................... 160,161
Wheel, Heated ........................ 162
Wheel, Tilt ........................ 160,161
Steering Wheel Audio Controls .............. 321
Steering Wheel Mounted Sound
System Controls ......................... 321
Storage ............................... 525
Storage, Vehicle ...................... 335,525
Storing Your Vehicle ...................... 525
Sun Roof ........................... 214,217
Sun Visor Extension ...................... 112
Sunglasses Storage ....................... 207
10
INDEX 579

Supplemental Restraint System - Airbag........ 68
Suspension, Air ......................... 365
Sway Control, Trailer ..................... 387
Synthetic Engine Oil ...................... 491
System, Remote Starting .................... 29
Tachometer ............................ 248
Telescoping Steering Column .............160,161
Temperature Control, Automatic (ATC) ........ 328
Temperature Gauge, Engine Coolant .......... 257
Tether Anchor, Child Restraint ............... 86
Theft System Arming ...................... 21
Theft System Disarming .................... 22
Tie Down Hooks, Cargo ................... 236
Tilt Steering Column ................... 160,161
Tire and Loading Information Placard ......... 399
Tire Identification Number (TIN) ............. 397
Tire Markings .......................... 394
Tire Safety Information .................... 394 Tires ...........................
100,403,561
Air Pressure .......................... 404
Chains .............................. 412
Changing ............................ 463
Compact Spare ........................ 407
General Information .................... 403
High Speed .......................... 406
Inflation Pressures ..................... 404
Jacking ............................. 463
Life of Tires .......................... 410
Load Capacity ..................... 399,400

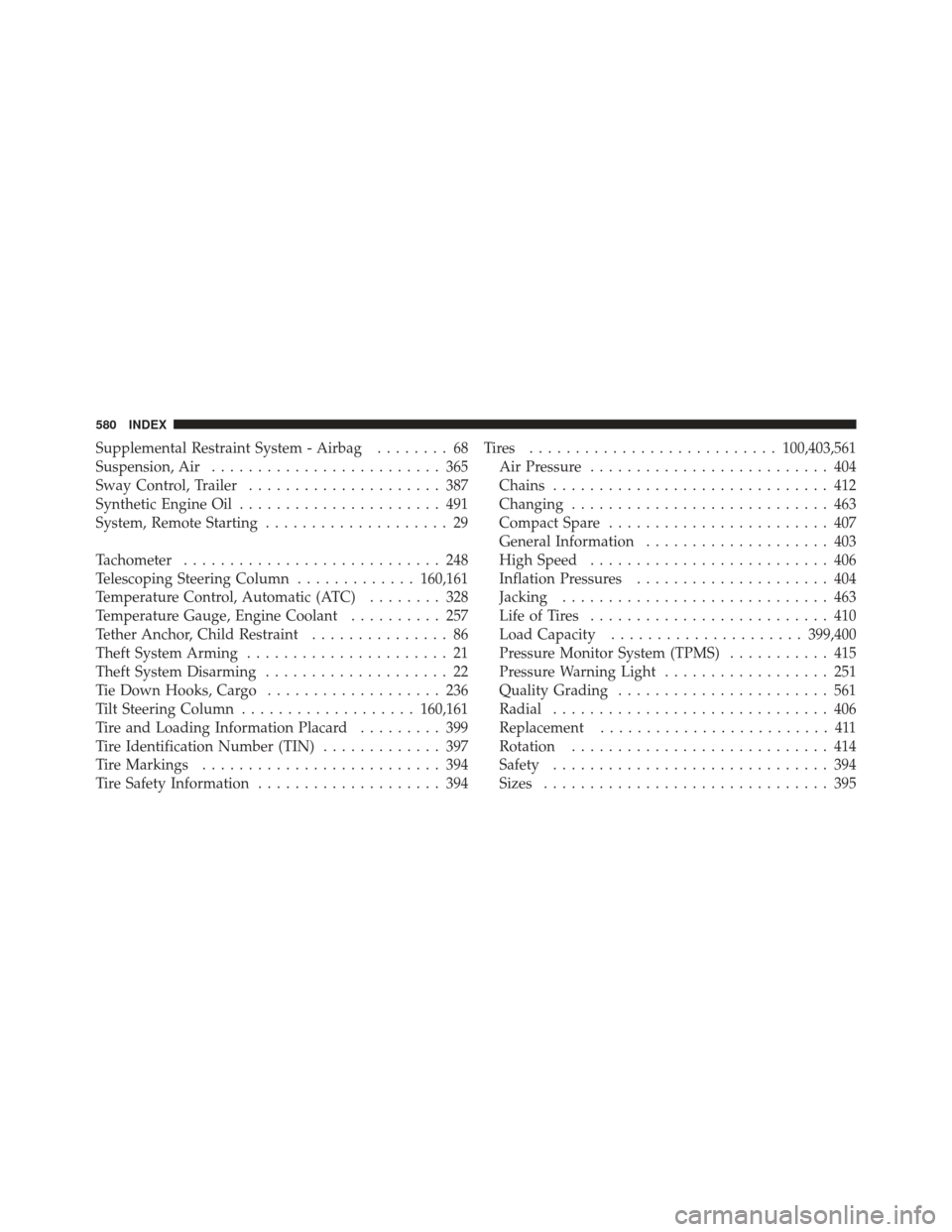

Pressure Monitor System (TPMS) ........... 415
Pressure Warning Light .................. 251
Quality Grading ....................... 561
Radial .............................. 406
Replacement ......................... 411
Rotation ............................ 414
Safety .............................. 394
Sizes ............................... 395
580 INDEX
