●Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
● Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire. ●
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator light to
come on.
● Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage.
● Insert the cap straight into the fuel-filler
tube, then tighten until the fuel-filler cap
clicks. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If thelight does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
●
The LOOSE FUEL CAP warning (if so equipped)
will appear if the fuel-filler cap is not properly
tightened. It may take a few driving trips for
the message to be displayed. Failure to
tighten the fuel-filler cap properly after the
LOOSE FUEL CAP warning (if so equipped) ap-
pears may cause the
Malfunction Indi-
cator Light (MIL) to illuminate.
The fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise to remove. To tighten,
turn the cap clockwise until ratcheting clicks
are heard.
3-24Pre-driving checks and adjustments

Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push thebutton on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position.
Confirming memory storage
● Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Move the selector lever to the P (Park) position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position or to the exit position when
the entry/exit function is set to active with
the indicator light flashing, and then the
light will stay on for approximately 5
seconds.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
● When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
3-32Pre-driving checks and adjustments

Image Viewer
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake.Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show. ●
(Next)
Select the “
” key to display the next
file.
●
(Previous)
Select the “
” key to display the previ-
ous file.
Setting the Image Viewer :
The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are avail-
able for the full screen display.
● Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
● Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Or-
der List”. For “Order List”, the image order is
the order of the files as stored on the USB
memory.
SAA2491SAA2492
4-18Monitor, climate, audio, phone and voice recognition systems

Next/Previous Track and
Fast Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while the CD is being
played, the CD will play while fast forwarding or
rewinding. When the button is released, the CD
will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the CD is being
played, the next track or the beginning of the
current track on the CD will be played.
When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played.
REPEAT (RPT), RANDOM (RDM) :
When the
button is pushed while the CD
is played, the play pattern can be changed as
follows:
(CD)
(CD with compressed audio files)
CD EJECT :
When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it will be
pulled back into the slot to protect it.
DVD (DIGITAL VERSATILE DISC)
PLAYER OPERATION
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
and apply the parking brake.
WARNING
● The driver must not attempt to operate the
DVD system or wear the headphones while
the vehicle is in motion so that full attention
may be given to vehicle operation.
● Do not attempt to modify the system to dis-
play a movie on the front screen while the
vehicle is being driven. Doing so may dis-
tract the driver and may cause a collision and
serious personal injury or death.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
4-58Monitor, climate, audio, phone and voice recognition systems

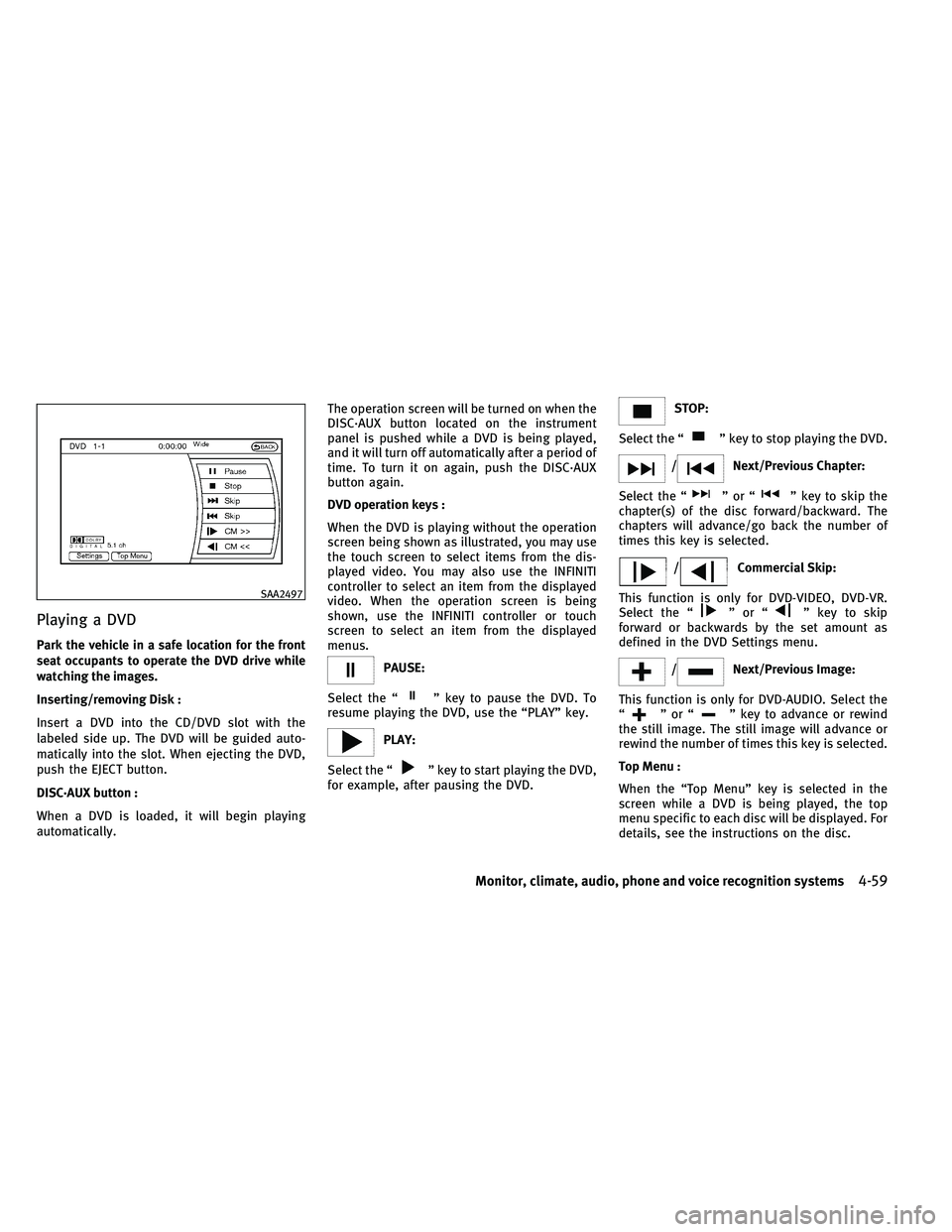

Playing a DVD
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Inserting/removing Disk :
Insert a DVD into the CD/DVD slot with the
labeled side up. The DVD will be guided auto-
matically into the slot. When ejecting the DVD,
push the EJECT button.
DISC·AUX button :
When a DVD is loaded, it will begin playing
automatically.The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
button again.
DVD operation keys :
When the DVD is playing without the operation
screen being shown as illustrated, you may use
the touch screen to select items from the dis-
played video. You may also use the INFINITI
controller to select an item from the displayed
video. When the operation screen is being
shown, use the INFINITI controller or touch
screen to select an item from the displayed
menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
”or“” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
”or“” key to skip
forward or backwards by the set amount as
defined in the DVD Settings menu.
/Next/Previous Image:
This function is only for DVD-AUDIO. Select the
“
”or“” key to advance or rewind
the still image. The still image will advance or
rewind the number of times this key is selected.
Top Menu :
When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2497
Monitor, climate, audio, phone and voice recognition systems4-59

●Play Mode
Select the preferred play mode.
Movie file operation
Park the vehicle in a safe location for the front
seat occupants to operate the USB memory
while watching the images.
PLAY :
When the DISC·AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC·AUX button
repeatedly until the center display changes to
the USB memory mode. Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
SAA2503
4-64Monitor, climate, audio, phone and voice recognition systems

When the rewind button is pushed for less than
1.5 seconds within 3 seconds after the current
track starts playing, the previous track will be
played.
The INFINITI controller can also be used to
select tracks when the iPodis playing.
Play pattern change :
When the
button is pushed while a track
is being played, the play pattern can be
changed as follows:
MUSIC BOX
The Music Box audio system can store songs
from CD being played. The system has a 9.3
gigabyte (GB) storage capacity.
The following CDs can be recorded in the Music
Box audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard-disk.
NOTE:
If the audio system needs to be replaced due to a
malfunction, all stored music data will be
erased.
Recording CD
1. Operate the audio system to play a CD. For
the details of playing a CD, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” key
is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
SAA2513
4-72Monitor, climate, audio, phone and voice recognition systems

●Individual tracks can be deleted from the
hard disk drive after the CD is recorded.
If the title information of the track being re-
corded is stored either in the in-vehicle memory
or in the CD, the title is automatically displayed
on the screen. For title acquisition from the
in-vehicle memory, music recognition technol-
ogy and related data are provided by
Gracenote.
If a track is not recorded successfully due to
skipping sounds, the
mark is displayed
behind the track number. The Music Box
cannot perform recording under
the following conditions.
● There is not enough space in-vehicle
memory
● The number of albums reaches the maximum
of 500.
● The number of tracks reaches the maximum
of 3,000.
Automatic recording :
If the “Automatic Recording” function is turned
to ON, recording starts when a CD is inserted.
(See “Music Box settings” later in this sec-
tion.)
Stopping recording :
To stop the recording, select the “Stop REC” key
button by touching the screen or using the
INFINITI controller.
If the CD is ejected, the audio system is turned
off or the ignition switch is pushed to the OFF
position, the recording also stops.
SAA2514
Monitor, climate, audio, phone and voice recognition systems4-73
