2011 INFINITI M tow

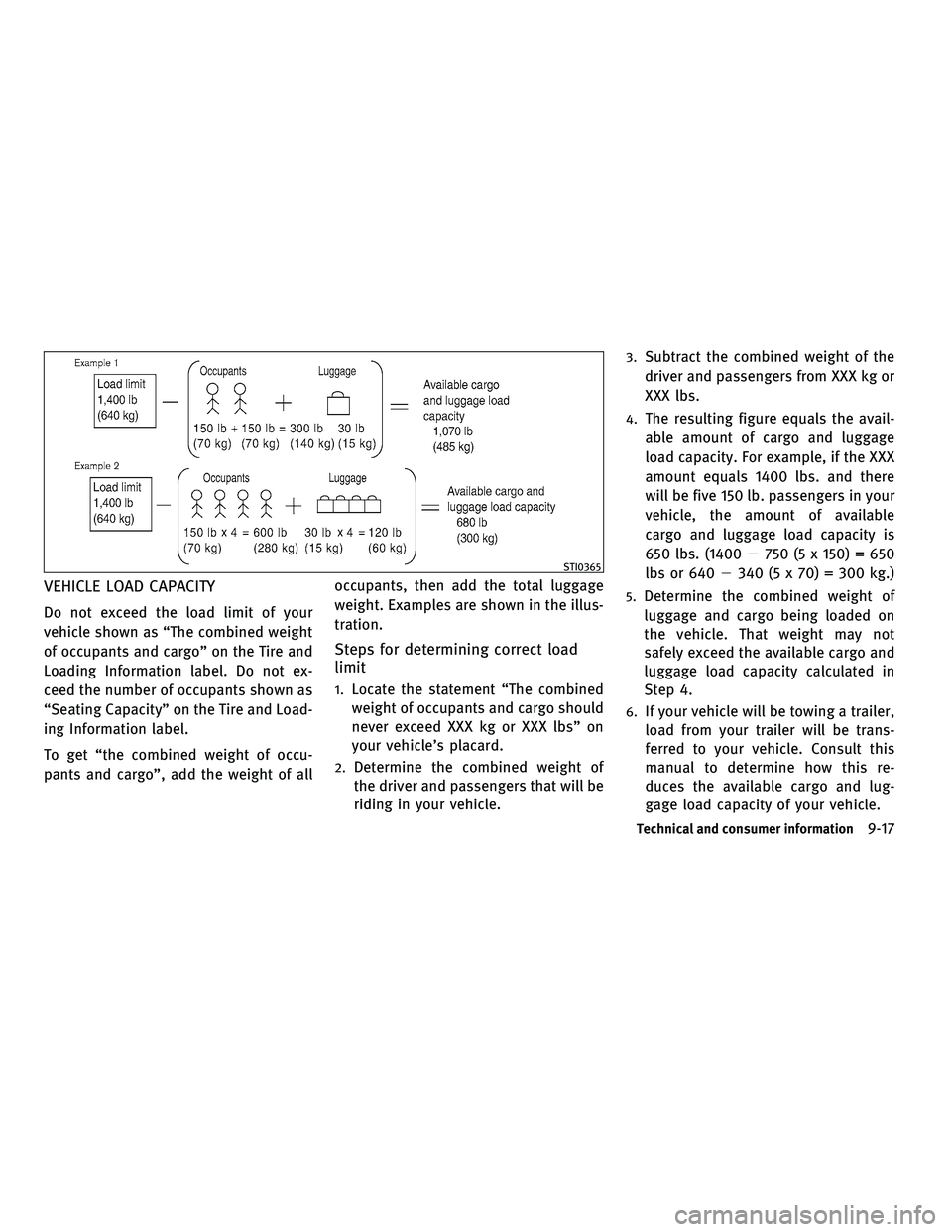

VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined weight
of occupants and cargo” on the Tire and
Loading Information label. Do not ex-
ceed the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of alloccupants, then add the total luggage
weight. Examples are shown in the illus-
tration.
Steps for determining correct load
limit
1.Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2.Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 750 (5 x 150) = 650
lbs or 640 340 (5 x 70) = 300 kg.)
5.Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6.If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.
STI0365
Technical and consumer information9-17
—
—
01/13/10—pattie


ceeded, move or remove items to bring
all weights below the ratings.Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
●
Failure to follow these guidelines can result
in severe transmission damage.
● Whenever flat towing your vehicle, always
tow forward, never backward.
● DO NOT tow any automatic transmission ve-
hicle with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE internal
transmission parts due to lack of transmis-
sion lubrication.
● For emergency towing procedures refer to
“TOWING RECOMMENDED BY INFINITI” in the
“6. In case of emergency” section of this
manual.
Automatic transmission
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly MUST
be placed under the towed vehicle’s drive
wheels. Alwaysfollow the dolly manufacturer’s
recommendations when using their product.
TOWING A TRAILER
Technical and consumer information9-19
—
—
01/13/10—pattie
