Automatic Transmission (AT)
position indicator light
When the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to a
transmission protection mode, the AT position
indicator light will blink and a chime will sound.
See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section for further details.
Blind Spot Intervention (BSI)
ON indicator light (green; if
so equipped)
The light comes on in green when the Blind
Spot Intervention (BSI) system is turned on. The
light turns off when the system is turned off.
NOTE:
This light is common with the blind spot warning
light (orange). (See “Blind Spot Warning
(BSW)/Blind Spot Intervention (BSI) system
warning light” earlier in this section).
For more details, see “BLIND SPOT WARNING
(BSW) SYSTEM/BLIND SPOT INTERVENTION™ (BSI)
SYSTEM” in the “5. Starting and driving” section.
ECO drive indicator
light
When the ignition switch is pushed to the ON
position, the light will come on in orange, turn
green, and then turn off.
When the drive mode select switch is turned to
the ECO mode, the ECO drive indicator light will
illuminate or change its color depending on the
accelerator pedal operation to help assist the
driver to drive economically. For more details,
see “ECO MODE” in the “5. Starting and driving”
section.
Front fog light indicator
light
The front fog light indicator light illuminates
when the front fog lights are on. (See “FOG
LIGHT SWITCH” later in this section.)
Front passenger air bag
status light
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light opera-
tion, see “INFINITI ADVANCED AIR BAG SYSTEM (front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion of this manual.
High beam indicator
light
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Intelligent Brake Assist (IBA)
off indicator light (if so
equipped)
The light illuminates when the Intelligent Brake
Assist (IBA) off switch is pushed to OFF. This
indicates that the Intelligent Brake Assist (IBA)
system is not operating.
When the IBA off indicator light illuminates
while the system is turned on (without the
warning chime sound), this light indicates that
the system control is temporarily unavailable.
When the IBA off indicator light illuminates with
the warning chime sound while the IBA system
is turned on, this light indicates that the system
may not be functioning properly. Park the ve-
hicle in a safe place. Check to see if the laser
sensor is clean. Turn the engine off, then restart
the engine.
2-16Instruments and controls
—
—
07/15/10—tbrooks


If the IBA off indicator light illuminates after
following the procedures above, it may indicate
that the system or Active Trace Control (if so
equipped) is malfunctioning. Although the ve-
hicle is still driveable under normal conditions,
have the vehicle checked at an INFINITI retailer.
(See “INTELLIGENT BRAKE ASSIST (IBA) SYS-
TEM” in the “5. Starting and driving” section
and “VEHICLE DYNAMIC CONTROL (VDC) SYS-
TEM” in the “5. Starting and driving” section.)
Lane Departure Prevention
(LDP) ON indicator light
(green; if so equipped)
The light comes on in green when the Lane
Departure Prevention (LDP) system is turned on.
The light turns off when the system is turned
off.
NOTE:
This light is common with the lane departure
warning light (orange). (See “Lane departure
warning light” earlier in this section.)
For more details, see “LANE DEPARTURE WARN-
ING (LDW) SYSTEM/LANE DEPARTURE PREVEN-
TION (LDP) SYSTEM” in the “5. Starting and
driving” section.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come
on steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least
3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. (See “READINESS
FOR INSPECTION/MAINTENANCE (I/M) TEST (US
only)” in the “9. Technical and consumer infor-
mation” section.) Operation :
The malfunction indicator light will come on in
one of two ways:
●
Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap if the
LOOSE FUEL CAP warning (if so equipped)
appears in the dot matrix crystal display. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after
a few driving trips. If the
light does
not turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer. You
do not need to have your vehicle towed to
the retailer.
● Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
Instruments and controls2-17
—
—
07/15/10—tbrooks


INDICATORS FOR OPERATION
1. Engine start operation indicator
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
directly in any position.
2. Steering lock release malfunction
indicator
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.Unregistered Intelligent Key :
The warning appears when the ignition switch
is pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.
See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.
4. SHIFT “P” warning
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
5. “PUSH” warning
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
6. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
7. Engine start operation for
Intelligent Key system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not
communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depressing
the brake pedal. (See “INTELLIGENT KEY BAT-
TERY DISCHARGE” in the “5. Starting and driv-
ing” section.)
Instruments and controls2-21
—
—
01/12/10—pattie

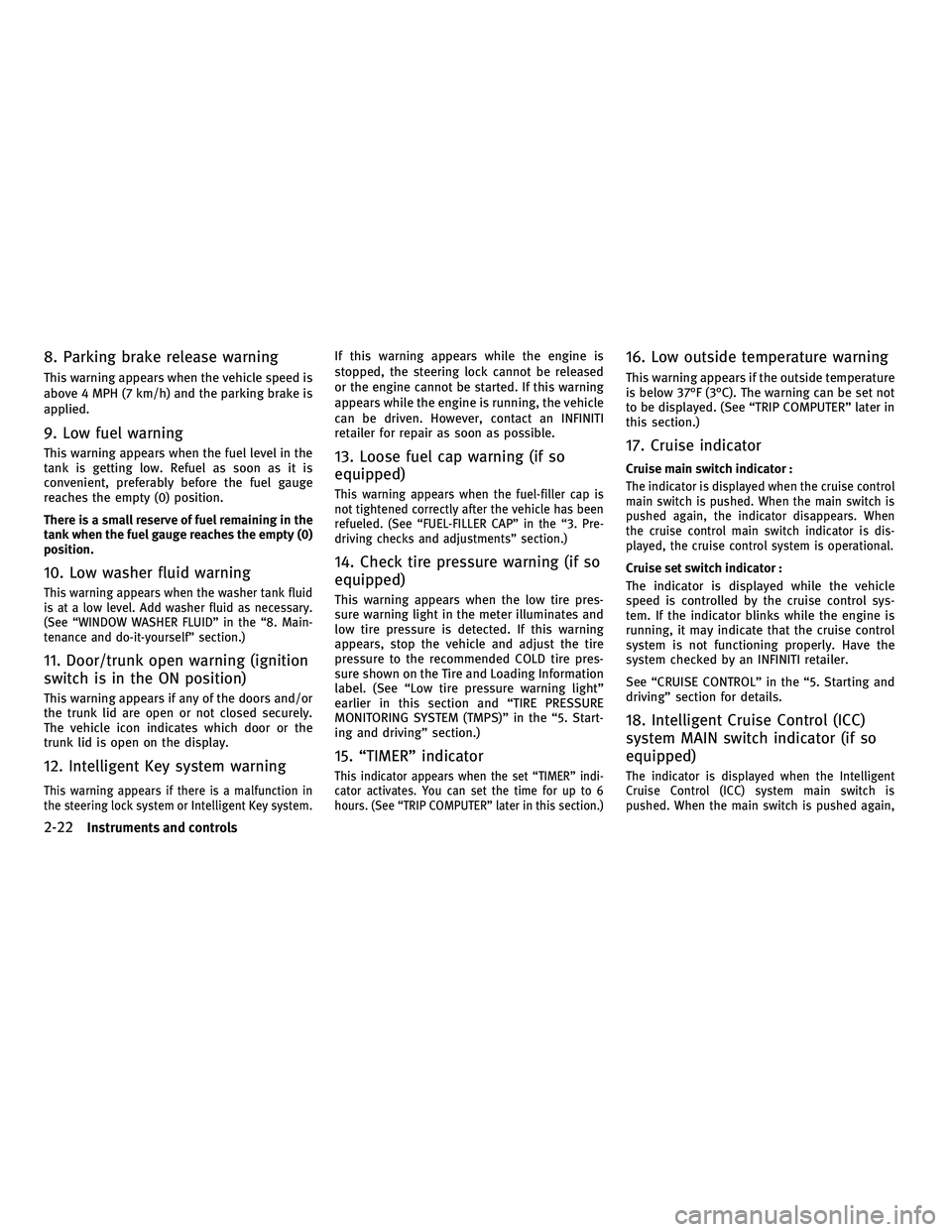

8. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
9. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (0)
position.
10. Low washer fluid warning
This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See “WINDOW WASHER FLUID” in the “8. Main-
tenance and do-it-yourself” section.)
11. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
12. Intelligent Key system warning
This warning appears if there is a malfunction in
the steering lock system or Intelligent Key system.
If this warning appears while the engine is
stopped, the steering lock cannot be released
or the engine cannot be started. If this warning
appears while the engine is running, the vehicle
can be driven. However, contact an INFINITI
retailer for repair as soon as possible.
13. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. (See “FUEL-FILLER CAP” in the “3. Pre-
driving checks and adjustments” section.)
14. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TMPS)” in the “5. Start-
ing and driving” section.)
15. “TIMER” indicator
This indicator appears when the set “TIMER” indi-
cator activates. You can set the time for up to 6
hours. (See “TRIP COMPUTER” later in this section.)
16. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
17. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise control
main switch is pushed. When the main switch is
pushed again, the indicator disappears. When
the cruise control main switch indicator is dis-
played, the cruise control system is operational.
Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
18. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
2-22Instruments and controls
—
—
07/15/10—tbrooks


The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus. ALERT :
There are 3 submenus under the alert menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● TIMER
Select this submenu to specify when the
“TIMER” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● FILTER
Select this submenu to set or reset the
distance for replacing the oil filter. ●
TIRE
Select this submenu to set or reset the
distance for replacing tires.
● OTHER
Select this submenu and set or reset the
distance for replacing items other than the
engine oil, oil filter and tires.
OPTIONS :
There are 4 submenus under the display menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● LANGUAGE
Select this submenu to choose English or
French for display.
● UNIT
Select this submenu to choose the unit from
miles, MPG, °F or km, l/100km, °C.
● EFFECTS
Select this menu to set the dial effects
described below to on or off.
– The indicator needles sweep in the me- ters when the engine is started.
2-26Instruments and controls
—
—
07/15/10—tbrooks


Daytime running light system
(Canada only)
The daytime running lights automatically illumi-
nate when the engine is started with the park-
ing brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the
headlight switch to the
position for full
illumination when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illumi-
nate once the parking brake is released. The
daytime running lights will remain on until the
ignition switch is pushed to the OFF position.
Adaptive Front lighting System (AFS)
(if so equipped)
The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low beam)
toward the turning direction to improve the
driver’s view. When the headlight switch is ON
and the driver operates the steering wheel in a
turn, the AFS system will be activated.
The AFS will operate:
● when the headlight switch is ON.
● when the selector lever is in any position
other than P (Park) or R (Reverse).
● when the vehicle is driven at above 16 MPH
(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is below 3 MPH (5 km/h) and the
steering wheel is turned. The vehicle must
attain a speed above 16 MPH (25 km/h)
before AFS activates the left-side headlight. To turn the AFS off, push the AFS switch. (The
AFS OFF indicator light will illuminate.) Push the
switch again to turn the system on again.
AFS will also adjust the headlight to a proper
axis automatically, depending on the number of
occupants in the vehicle, the load the vehicle is
carrying and the road conditions.
If the AFS OFF indicator light blinks after the
ignition switch has been pushed to the ON
position, this may indicate that the AFS is not
functioning properly. Have the system checked
by an INFINITI retailer. When the engine is
started, the headlights will vibrate to check the
system condition. This is not a malfunction.
SIC4333
Instruments and controls2-35
—
—
07/15/10—tbrooks


To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so could
affect proper operation of the supplemental
front air bag system. Tampering with the
supplemental front air bag system may result
in serious personal injury.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.
CAUTION
●The battery could run down if the seat heater
is operated while the engine is not running.
● Do not use the seat heater for extended pe-
riods or when no one is using the seat.
● Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the heater.
● Any liquid spilled on the heated seat should
be removed immediately with a dry cloth.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials. ●
If any abnormalities are found or the heated
seat does not operate, turn the switch off
and have the system checked by an INFINITI
retailer.SIC4332
HORN HEATED SEATS (if so equipped)
Instruments and controls2-39
—
—
07/15/10—tbrooks


4. When the vehicle’s interior is warmed orcooled, and/or before you leave the ve-
hicle, be sure to turn the control knob to
the OFF position (center). The indicator
light
Bon the control knob goes off at
the OFF position.
To check the air filter for the climate con-
trolled seat, contact an INFINITI retailer.
WARNING
Do not use or allow occupants to use the seat
heater if you or the occupants cannot monitor
elevated seat temperatures or have an inability
to feel pain in body parts that contact the seat.
Use of the seat heater by such people could
result in serious injury.
CAUTION
● The battery could run down if the climate
controlled seat is operated while the engine
is not running.
● Do not use the climate controlled seat for
extended periods or when no one is using
the seat. ●
Do not put anything on the seat which insu-
lates heat, such as a blanket, cushion, seat
cover, etc. Otherwise, the seat may become
overheated.
● Do not place anything hard or heavy on the
seat or pierce it with a pin or similar object.
This may result in damage to the climate
controlled seat.
● Any liquid spilled on the seat should be re-
moved immediately with a dry cloth.
● The climate controlled seat has an air filter.
Do not operate climate controlled seat with-
out an air filter. This may result in damage to
the system.
● When cleaning the seat, never use gasoline,
thinner, or any similar materials.
● If any malfunctions are found or the climate
controlled seat does not operate, turn the
switch off and have the system checked by
an INFINITI retailer. The warning systems switch will turn on and off
the Lane Departure Warning (LDW) system, the
Blind Spot Warning (BSW) system and the For-
ward Collision Warning (FCW) system at the
same time.
The FCW system will sound a warning chime
and the vehicle ahead detection indicator light
blinks to alert the driver if the vehicle is travel-
ing close to the vehicle ahead. (See “FORWARD
COLLISION WARNING (FCW) SYSTEM” in the “5.
Starting and driving” section.)
The LDW system will sound a warning chime
and blink the lane departure warning light
(orange) to alert the driver if the vehicle is
traveling close to either the left or the right of a
SIC4335
WARNING SYSTEMS SWITCH (if so
equipped)
Instruments and controls2-41
—
—
07/15/10—tbrooks
