2011 INFINITI M CD player

●Direct Tune
Inputs the channel number by using a key-
pad.
Text (models without navigation system) :
When the “Text” key is selected with the
INFINITI controller on the display and then the
ENTER button is pushed while the satellite radio
is being played, the text information listed
below will be displayed on the screen.
● CH Name
● Category
● Name
● Title
● Other
Compact Disc (CD) player operation
Push the ignition switch to the ACC or ON
position and insert the Compact Disc (CD) into
the slot with the label side facing up. The CD
will be guided automatically into the slot and
start playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will automati-
cally turn off and the CD will play. If the system has been turned off while the CD
was playing, pushing the ON·OFF button will
start the CD.
Do not use 3.1 in (8 cm) discs.
PLAY :
When the DISC·AUX (CD play) button is pushed
with the system off and the CD loaded, the
system will turn on and the CD will start to play.
When the DISC·AUX button is pushed with the
CD loaded and the radio playing, the radio will
automatically be turned off and the CD will start
to play.
Menu (models with navigation system) :
When the “Menu” key on the display is selected
while the CD is being played, the menu screen
will be displayed. The following menu options
are available.
● Folder List (for CD with compressed audio
files)
Displays the folder list.
● Track List
Displays the track list. ●
Play Mode
Select a play mode from the following items.
– Normal
– 1 Folder Repeat (for CD with compressed audio files)
– 1 Track Repeat
– 1 Disc Random
– 1 Folder Random (for CD with compressed audio files)
● Record to Music Box (for CD)
Select to choose specific songs on the CD to
record to the Music Box.
● Title Text Priority (for CD)
Set the priority to CDDB (Compact Disc Data
Base) to acquire track information from the
Gracenote Database, or set the priority to
CD-TEXT to acquire the information from
CDs.
● Automatic Recording (for CD)
When this item is turned to ON, the Music
Box hard drive automatically starts record-
ing when a CD is inserted.
● Recording Quality (for CD)
The larger number (132) will increase the
recorded sound quality while taking up more
Monitor, climate, audio, phone and voice recognition systems4-61
—
—
07/15/10—tbrooks


space on the Music Box leaving less room for
more songs.
For the details of Music Box, see “MUSIC BOX
HARD DRIVE (models with navigation system)”
later in this section.
Text (models without navigation system) :
When the “Text” key is selected in the screen
using the INFINITI controller and then the ENTER
button is pushed while the CD is being played,
the music information below will be displayed
on the screen.
CD:
● Disc title
● Track title
CD with compressed audio files:
● Folder title
● File title
● Song title
● Album title
● Artist
Next/Previous Track and Fast
Forward/Rewind :
When the
(fast forward) or(re-
wind) button is pushed for more than 1.5 sec- onds while the CD is being played, the CD will
play while fast forwarding or rewinding. When
the button is released, the CD will return to
normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the CD is being
played, the next track or the beginning of the
current track on the CD will be played.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(CD with compressed audio files)
CD EJECT :
When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it will be
pulled back into the slot to protect it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position.
4-62Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


WARNING
●The driver must not attempt to operate the
DVD system or wear the headphones while
the vehicle is in motion so that full attention
may be given to vehicle operation.
● Do not attempt to modify the system to dis-
play a movie on the front screen while the
vehicle is being driven. Doing so may dis-
tract the driver and may cause a collision and
serious personal injury or death.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
Display settings
To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.
Then you can adjust each item using the
INFINITI controller. After changes have been
made push the BACK button to save the setting.
Playing a DVD
DISC·AUX button :
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,
SAA2497
Monitor, climate, audio, phone and voice recognition systems4-63
—
—
07/15/10—tbrooks


Connected Devices :
Registered devices are shown on the list. Select
a Bluetoothdevice from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth device.
Edit Bluetooth Info :
Change the name broadcasted by this system
over Bluetooth. Change the PIN code that is
entered when connecting a hands free device to
this system. Replace Connected Phone :
Replace the Bluetooth
connection with a con-
nected Bluetooth cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
IPOD PLAYER OPERATION
Connecting iPod
Open the console lid and connect the iPod
cable to the USB connector. If compatible, the
battery of the iPod is charged while the con-
nection to the vehicle.
Depending on the version of the iPod, the
display on the iPod shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod is connected to
the vehicle, the iPod music library can only be
operated by the vehicle audio controls.
* iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
SAA2964
4-74Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Next/Previous Track and Fast
Forward/Rewind :
When the
orbutton is pushed for
more than 1.5 seconds while the iPod is play-
ing, the iPod will play while fast forwarding or
rewinding. When the button is released, the
iPod will return to the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the iPod is play-
ing, the next track or the beginning of the
current track on the iPod will be played.
The INFINITI controller can also be used to
select tracks when the iPod is playing.
REPEAT (RPT), RANDOM (RDM) :
When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
MUSIC BOX HARD DRIVE (models with
navigation system)
The Music Box hard drive audio system can
store songs from CDs being played. The system
has a 9.3 gigabyte (GB) storage capacity.
The following CDs can be recorded in the Music
Box hard drive audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard drive.
NOTE:
If the hard drive needs to be replaced due to a
malfunction, all stored music data will be
erased.
Recording CDs
1. Operate the audio system to play a CD. For
the details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” key
is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
SAA2513
4-76Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks

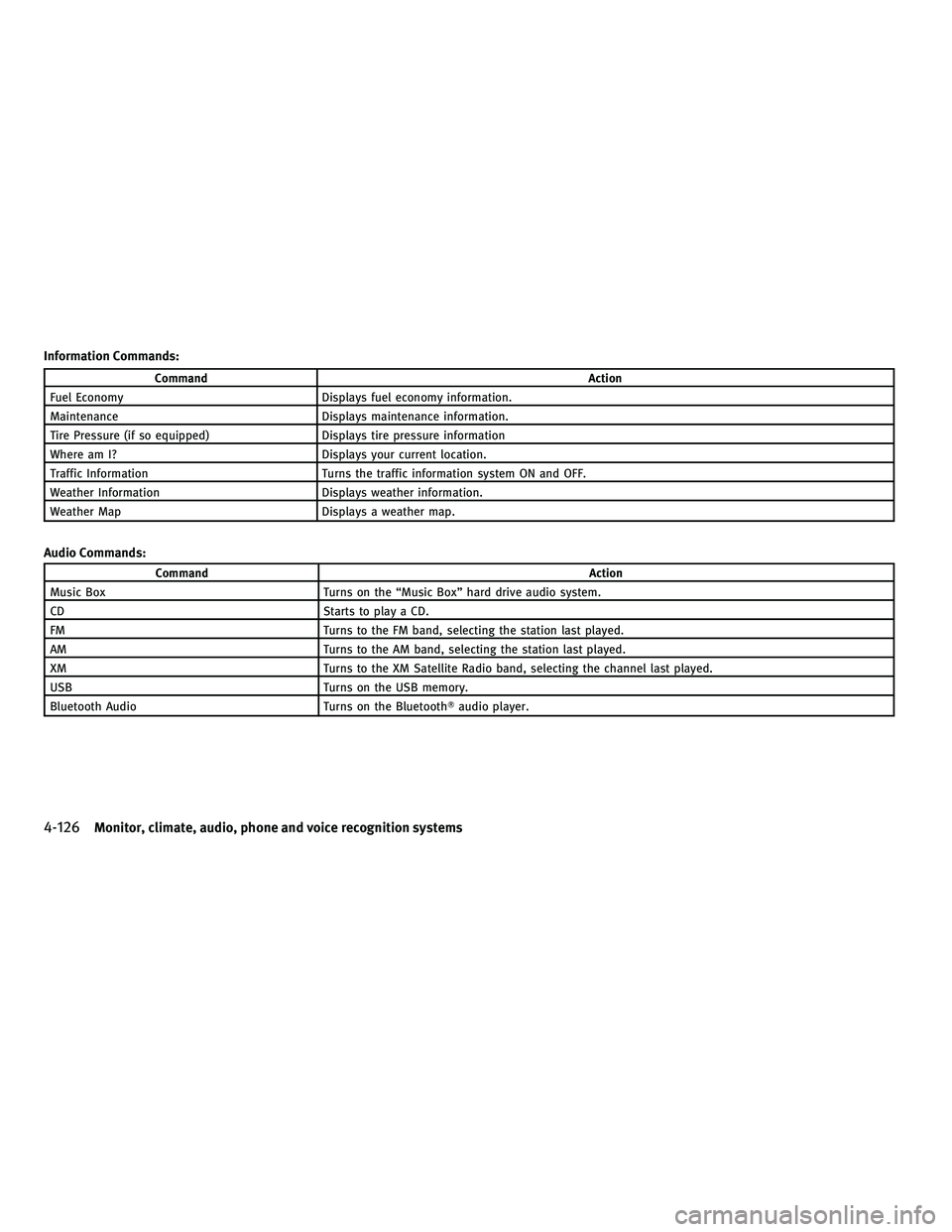

Information Commands:
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Tire Pressure (if so equipped) Displays tire pressure information
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Audio Commands:
Command Action
Music Box Turns on the “Music Box” hard drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetoothaudio player.
4-126Monitor, climate, audio, phone and voice recognition systems
—
—
07/15/10—tbrooks


Card holder.................. .2-48
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Child restraints Booster seats ............... .1-33
LATCH system ................ 1-21
Precautions on child restraints ......1-19
Child safety .................. .1-17
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-14
Cigarette lighter and ashtrays ........2-44
Circuit breaker, Fusible link ..........8-23
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic climate
control ..................... .4-30
Clock ..................... .2-43
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-92
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-61
Compact spare tire ............. .8-40
Console box ................. .2-47
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-30 Coolant
Capacities and recommended
fuel/lubricants ............... .9-2
Changing engine coolant .........8-11
Checking engine coolant level ......8-10
Corrosion protection ..............7-6
Cruise control ..................5-39
Cruise

control
Fixed speed cruise control (on ICC
system) .................. .5-58
Intelligent cruise control (ICC) system . . 5-41
Cruise indicator ............... .2-22
Cup holders .................. .2-45
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-10
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance Control Assist (DCA) system . . . .5-62
Distance Control Assist (DCA) system
switch indicator ............... .2-23
Distance Control Assist (DCA) system
warning light ................. .2-12
Distance to empty .............. .2-25
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-18
Drive positioner ............... .3-26
Driving Cold weather driving ............5-92 Driving with automatic transmission . . . 5-12
Precautions when starting and driving . . 5-2
E
Economy, Fuel ................ .5-81
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label ......9-12
Emission control system warranty ......9-21
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-80
Capacities and recommended
fuel/lubricants ...............9-2
Changing engine coolant .........8-11
Changing engine oil and filter ......8-12
Checking engine coolant level . . ....8-10
Checking engine oil level .........8-11
Engine block heater ............5-93
Engine compartment check locations . . . 8-6
Engine cooling system ..........8-10
Engine oil .................. 8-11
Engine

oil and oil filter
recommendation ..............9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator . . . . . 2-21
If your vehicle overheats .........6-11
Starting the engine ............. 5-11
Engine coolant temperature gauge . .....2-7
Entry/exit function, Automatic drive
positioner ................... .3-26
10-2
—
—
07/26/10—dmoore


Event Data Recorders (EDR)..........9-23
Exhaust gas (carbon monoxide) ........5-2
Filter Air cleaner housing filter .........8-19
Changing engine oil and filter ......8-12
F
Flashers
(See hazard warning flasher switch) .....2-37
Flat tire ..................... .6-2
Flat towing .................. .9-19
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-14
Brake fluid ................. 8-15
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ............... 8-10
Engine oil .................. 8-11
Power steering fluid ............8-14
Window washer fluid ...........8-15
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-58
F.M.V.S.S./C.M.V.S.S. certification label . . .9-12
Fog light switch ............... .2-37
Forward Collision Warning (FCW) system . .5-73
Front passenger air bag and status light . .1-43
Front power seat adjustment ..........1-3
Front-seat active head restraints ........1-7
Front seat, Front seat adjustment .......1-3
Fuel Capacities and recommended
fuel/lubricants ............... .9-2
Fuel economy ................ 5-81
Fuel economy information (display) . . . 4-10 Fuel-filler cap
................ 3-19
Fuel-filler door ............... 3-19
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Gauge ....................2-8
Fuses ..................... .8-22
Fusible links ................. .8-23
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-19
Gauge ...................... .2-5
Gauge Engine coolant temperature gauge .
. . .2-7
Fuel gauge ..................2-8
Odometer ..................2-6
Speedometer ................2-6
Tachometer .................2-7
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-47
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-86
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch ........2-37
Headlights Aiming control (See adaptive front
lighting system (AFS)) ...........2-35 Bulb replacement
............. 8-28
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Head restraints ................. .1-4
Heated seats ................. .2-39
Heated steering wheel .............2-38
Heater Automatic climate control . . . . .....4-30
Engine block heater ............5-93
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-16
Hook, Coat hooks .............. .2-48
Horn ...................... .2-39
I
Ignition switch, Automatic transmission
models ..................... .5-12
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-43
Indicator, Dot matrix display .........2-19
Indicator lights ................ .2-15
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
INFINITI

voice recognition system ......4-109
INFO button .................. .4-8
Inside mirror ................. .3-23
Inspection/maintenance (I/M) test ......9-22
Instrument brightness control ........2-36
Instrument panel ............... .2-4
Intelligent Brake Assist (IBA) off indicator
light ...................... .2-16
Intelligent Brake Assist (IBA) system .....5-77
10-3
—
—
07/26/10—dmoore
