VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually control the
proper following distance. The vehicle-to-
vehicle distance control mode of the Intelligent
Cruise Control (ICC) system may not be able to
maintain the selected distance between ve-
hicles (following distance) or selected vehicle
speed under some circumstances.
The vehicle-to-vehicle distance control mode
uses a sensor
Alocated on the front of the
vehicle to detect vehicles traveling ahead. The
sensor generally detects the signals returned
from the reflectors on a vehicle ahead. There-
fore, if the sensor cannot detect the reflector on the vehicle ahead, the ICC system may not
maintain the selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
●
When the reflector of the vehicle ahead is
positioned high on the vehicle (trailer, etc.)
● When the reflector on the vehicle ahead is
missing, damaged or covered
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
visibility
● When excessively heavy baggage is loaded
in the rear seat or the trunk of your vehicle
The ICC system is designed to automatically
check the sensor’s operation within the limita-
tions of the system. When the sensor is covered
with dirt or obstructs, the system will automati-
cally be canceled. If the sensor is covered with
ice, a transparent or translucent vinyl bag, etc.,
the ICC system may not detect them. In these
instances, the vehicle-to-vehicle distance con-
trol mode may not cancel and may not be able
to maintain the selected following distance from the vehicle ahead. Be sure to check and
clean the sensor regularly.
The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead; the system will decelerate the vehicle as
necessary and if the vehicle ahead comes to a
stop, the vehicle decelerates to a standstill.
However, the ICC system can only apply up to
25% of the vehicles total braking power. This
system should only be used when traffic condi-
tions allow vehicle speeds to remain fairly
constant or when vehicle speeds change gradu-
ally. If a vehicle moves into the traveling lane
ahead or if a vehicle traveling ahead rapidly
decelerates, the distance between vehicles may
become closer because the ICC system cannot
decelerate the vehicle quickly enough. If this
occurs, the ICC system will sound a warning
chime and blink the system display to notify the
driver to take necessary action.
The system will cancel and a warning chime will
sound if the speed is below approximately 15
MPH ( 24 km/h) and a vehicle is not detected
ahead. The system will also disengage when
the vehicle goes above the maximum set speed.
See “Approach warning” later in this section.
SSD0943
Starting and driving5-45
—
—
01/13/10—tbrooks

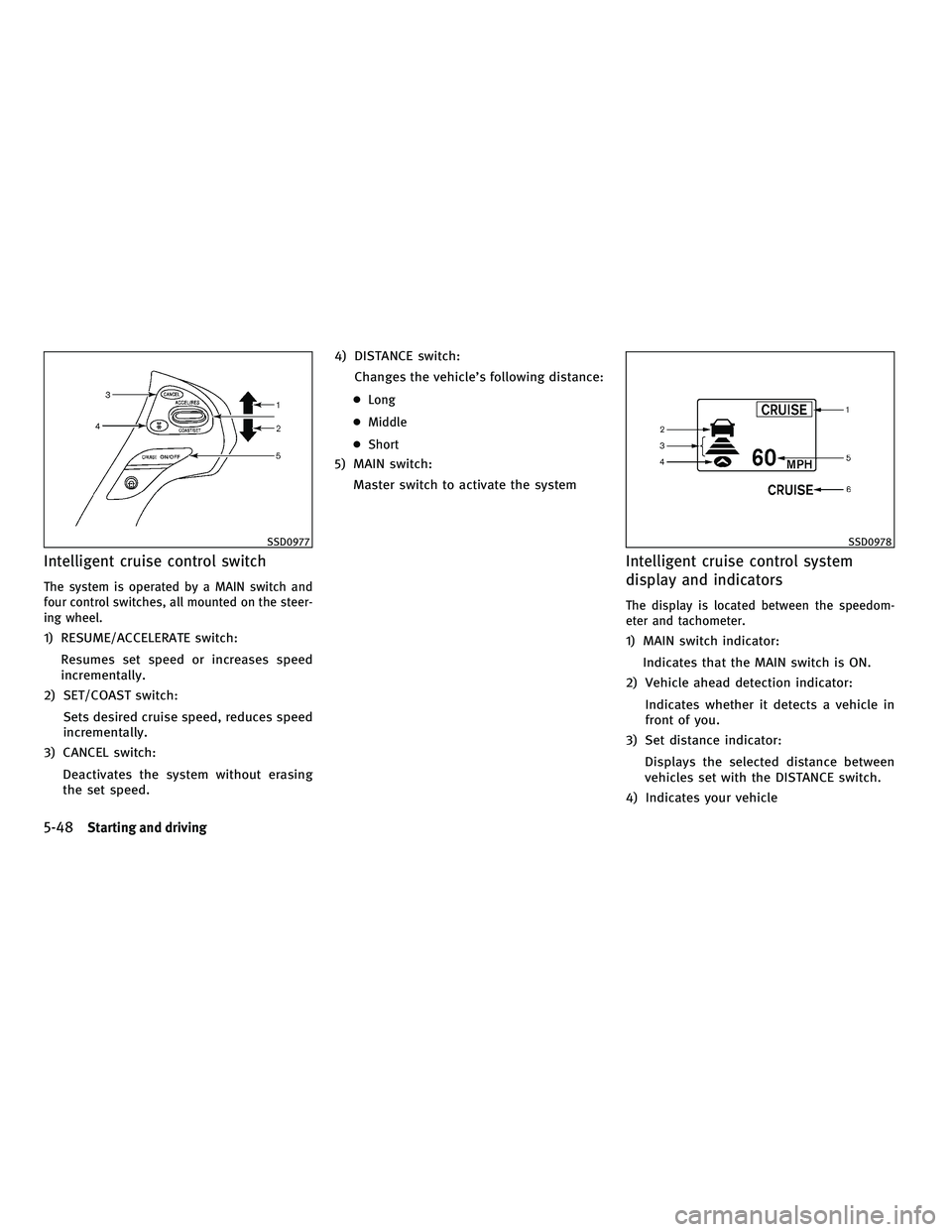

Intelligent cruise control switch
The system is operated by a MAIN switch and
four control switches, all mounted on the steer-
ing wheel.
1) RESUME/ACCELERATE switch:Resumes set speed or increases speed
incrementally.
2) SET/COAST switch:
Sets desired cruise speed, reduces speed
incrementally.
3) CANCEL switch:
Deactivates the system without erasing
the set speed. 4) DISTANCE switch:
Changes the vehicle’s following distance:
●Long
● Middle
● Short
5) MAIN switch:
Master switch to activate the system
Intelligent cruise control system
display and indicators
The display is located between the speedom-
eter and tachometer.
1) MAIN switch indicator:
Indicates that the MAIN switch is ON.
2) Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in
front of you.
3) Set distance indicator:
Displays the selected distance between
vehicles set with the DISTANCE switch.
4) Indicates your vehicle
SSD0977SSD0978
5-48Starting and driving
—
—
01/12/10—pattie


1. System set display with vehicle ahead
2. System set display without vehicle ahead
System operation
WARNING
Normally when controlling the distance to a
vehicle ahead, this system automatically accel-
erates or decelerates your vehicle according to
the speed of the vehicle ahead. Depress the
accelerator to properly accelerate your vehicle
when acceleration is required for a lanechange. Depress the brake pedal when decel-
eration is required to maintain a safe distance
to the vehicle ahead due to its sudden braking
or if a vehicle cuts in. Always stay alert when
using the ICC system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected
in the lane ahead.
The ICC system displays the set speed. Vehicle detected ahead :
When a vehicle is detected in the lane ahead,
the ICC system decelerates the vehicle by con-
trolling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
system then controls the vehicle speed based
on the speed of the vehicle ahead to maintain
the driver selected distance.
The stoplights of the vehicle come on and the
brake pedal depresses when braking is per-
formed by the ICC system.
When the brake operates, a noise may be heard.
This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and
selected distance.
Vehicle ahead not detected :
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The
ICC system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
If a vehicle ahead appears during acceleration
to the set vehicle speed or any time the ICC
SSD0984
5-52Starting and driving
—
—
01/13/10—tbrooks


NOTE:
The approach warning chime may sound and the
system display may blink when the ICC sensor
detects some reflectors
Awhich are fitted on
vehicles in other lanes or on the side of the road.
This may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may de-
tect these reflectors when the vehicle is driven
on winding roads, hilly roads or when entering
or exiting a curve. The ICC sensor may also de-
tect reflectors on narrow roads or in road con-
struction zones. In these cases you will have to
manually control the proper distance ahead of
your vehicle.
Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
●
When the vehicle ahead is not detected and
your vehicle is traveling below the speed of
15 MPH (24 km/h)
● When the system judges the vehicle is at
standstill
● When the selector lever is not in the D or
Manual mode
● When the windshield wipers are operating at
high speed (HI). If the vehicle is equipped
with a rain sensing auto-wiper, the system
may cancel when the wipers are set to the
AUTO position.
● When the parking brake is applied
● When the drive mode select switch is turned
to the SNOW mode
● When the VDC system is turned off
● When ABS or VDC (including the traction
control system) operates
● When driving into a strong light (i.e., sun-
light) ●
When distance measurement becomes im-
paired due to adhesion of dirt or obstruction
to the sensor
● When a wheel slips
SSD0284A
5-56Starting and driving
—
—
01/12/10—pattie


Warning light and display
Condition A :
Under the following conditions, the Intelligent
Cruise Control system is automatically can-
celed. The chime will sound and the system will
not be able to be set.
●When the VDC is turned off
● When the ABS or VDC (including the traction
control system) operates
● When a tire slips
● When the drive mode select switch is turned
to the SNOW mode
● When strong light (sunlight, etc.) is directly
shining on the front of the vehicle Action to take :
When the conditions listed above are no longer
present, turn the system off using the Intelli-
gent Cruise Control MAIN Switch. Turn the ICC
system back on to use the system.
Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime sounds and the ICC system warning
light (orange) will come on and the “CLEAN
SENSOR” indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.
SSD0988SSD0989
Starting and driving5-57
—
—
01/12/10—pattie


Condition C :
When the ICC system is not operating properly,
the chime sounds and the ICC system warning
light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the ICC
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.Sensor maintenance
The sensor for the ICC systemAis located
below the front bumper.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor clean. Wipe with a
soft cloth carefully so as not to damage the
sensor.
● Do not strike or damage the areas around
the sensor. Do not touch or remove the
screw located on the sensor. Doing so could
cause failure or malfunction. If the sensor is
damaged due to an accident, contact an
INFINITI retailer. ●
Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
CONVENTIONAL (FIXED SPEED) CRUISE
CONTROL MODE
This mode allows driving at a speed between 25
to 90 MPH (40 to 144 km/h) without keeping
your foot on the accelerator pedal.
WARNING
● In the conventional (fixed speed) cruise con-
trol mode, a warning chime does not sound
to warn you if you are too close to the vehicle
ahead, as neither the presence of the vehicle
ahead nor the vehicle-to-vehicle distance is
detected.
● Pay special attention to the distance be-
tween your vehicle and the vehicle ahead of
you or a collision could occur.
● Always confirm the setting in the Intelligent
Cruise Control system display.
● Do not use the conventional (fixed speed)
cruise control mode when driving under the
following conditions:
– when it is not possible to keep the vehicle at a set speedSSD0979SSD0943
5-58Starting and driving
—
—
01/12/10—pattie


– in heavy traffic or in traffic that varies inspeed
– on winding or hilly roads
– on slippery roads (rain, snow, ice, etc.)
– in very windy areas
● Doing so could cause a loss of vehicle control
and result in an accident.
Conventional (fixed speed) cruise
control switch
1) RESUME/ACCELERATE switch:
Resumes set speed or increases speed
incrementally.
2) SET/COAST switch:
Sets the desired cruise speed, reduces
speed incrementally.
3) CANCEL switch:
Deactivates the system without erasing
the set speed.
4) MAIN switch:
Master switch to activate the system.
Conventional (fixed speed) cruise
control mode display and indicators
The display is located between the speedom-
eter and tachometer.
1) MAIN switch indicator:Indicates that the MAIN switch is ON.
2) Cruise set switch indicator:
Displays while the vehicle speed is con-
trolled by the conventional (fixed speed)
cruise control mode of the ICC system.
3) Cruise system warning light:
Comes on if there is a malfunction in the
cruise control system.
SSD0990SSD0991
Starting and driving5-59
—
—
01/12/10—pattie


Operating conventional (fixed speed)
cruise control mode
To turn on the conventional (fixed speed) cruise
control mode,push and hold the MAIN switch
Afor longer than about 1.5 seconds.
When pushing the MAIN switch on, the Intelli-
gent Cruise Control system display and the
CRUISE indicator are displayed on the dot ma-
trix crystal display. After you hold the MAIN
switch on for longer than about 1.5 seconds, the
Intelligent Cruise Control system display goes
out. The CRUISE indicator stays lit. You can now
set your desired cruising speed. Pushing the
MAIN switch again will turn the system com-
pletely off. When the Distance Control Assist (DCA) system
is on, the conventional (fixed speed) cruise
control mode cannot be turned on even though
the MAIN switch is pushed and held.
To turn on the conventional (fixed speed) cruise
control mode, turn off the DCA system. See
“DISTANCE CONTROL ASSIST (DCA) SYSTEM”
later in this section.
When the ignition switch is pushed to the OFF
position, the system is also automatically
turned off. To use the Intelligent Cruise Control
again, quickly push and release the MAIN
switch (vehicle-to-vehicle distance control
mode) or push and hold it (conventional cruise
control mode) again to turn it on.
CAUTION
To avoid accidentally engaging cruise control,
make sure to turn the MAIN switch off when not
using the Intelligent Cruise Control system.
To set cruising speed,
accelerate your vehicle to
the desired speed, push the SET/COAST switch
and release it. (The SET indicator will come on in
the display.) Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.
● To pass another vehicle, depress the accel-
erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, manually maintain vehicle speed.
To cancel the preset speed, use any of the
following methods:
a) Push the CANCEL button. The SET indica- tor will go out.
SSD0992SSD0993
5-60Starting and driving
—
—
01/12/10—pattie
