TOWING RECOMMENDED BY INFINITI
Two-Wheel Drive (2WD) models
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illus-
trated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive
damage to the transmission. If it is neces-
sary to tow the vehicle with the front wheels
raised, always use towing dollies under the
rear wheels. ●
When towing rear wheel drive models with
the front wheels on the ground or on towing
dollies: Push the ignition switch to the ACC
or ON position, and secure the steering
wheel in a straight-ahead position with a
rope or similar device. Never secure the
steering wheel by selecting the LOCK posi-
tion. This may damage the steering lock
mechanism.
Two-wheel drive models
SCE0788
In case of emergency6-13
—
—
01/13/10—pattie


Intelligent All-Wheel Drive (AWD)
models
INFINITI recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow Intelligent AWD models with any of
the wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
All-wheel drive models
SCE0488
SCE0885
6-14In case of emergency
—
—
01/13/10—pattie


Tire and Loading Information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Vehicle load limit: See “VEHICLE
LOADING INFORMATION” in the “9.
Technical and consumer informa-
tion” section.
3Original size: The size of the tires
originally installed on the vehicle
at the factory.
4Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked
for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance of
tire wear, vehicle handling, drive-
ability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see “TIRE LABELING”
later in this section.
6Spare tire size or compact spare
tire size (if so equipped)SDI2567
8-32Maintenance and do-it-yourself
—
—
07/26/10—dmoore


white lettering or bears manufacturer,
brand and/or model name molding that
is higher or deeper than the same mold-
ing on the other sidewall of the tire, or
(2) the outward facing sidewall of an
asymmetrical tire that has a particular
side that must always face outward
when mounted on a vehicle.
TYPES OF TIRES
WARNING
●When changing or replacing tires, be sure all
four tires are of the same type (Example:
Summer, All Season or Snow) and construc-
tion. An INFINITI retailer may be able to help
you with information about tire type, size,
speed rating and availability.
● Replacement tires may have a lower speed
rating than the factory equipped tires, and
may not match the potential maximum ve-
hicle speed. Never exceed the maximum
speed rating of the tire.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire side-
wall. Snow tires have better snow traction than
All Season tires and may be more appropriate in
some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
8-36Maintenance and do-it-yourself
—
—
07/26/10—dmoore

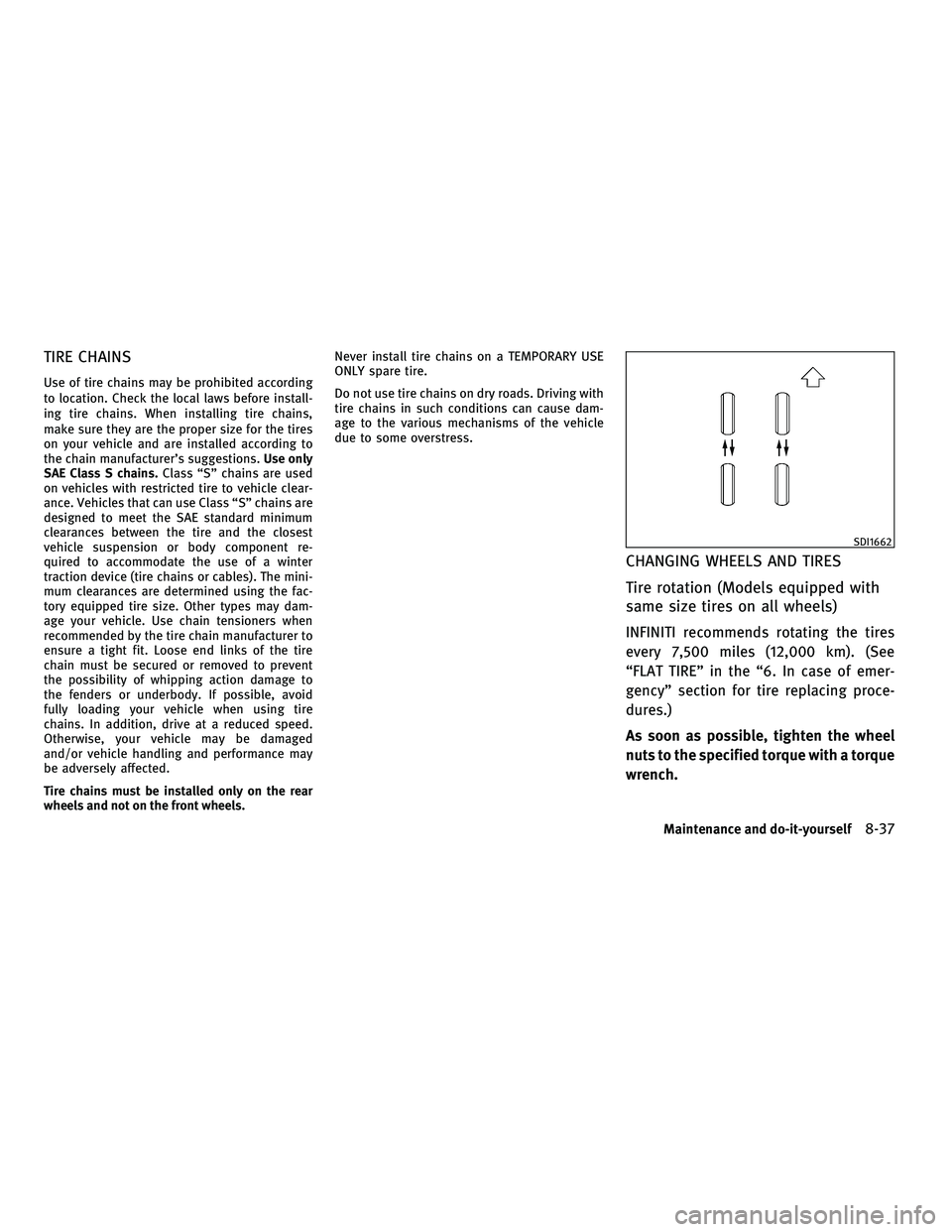

TIRE CHAINS
Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are the proper size for the tires
on your vehicle and are installed according to
the chain manufacturer’s suggestions.Use only
SAE Class S chains. Class “S” chains are used
on vehicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a winter
traction device (tire chains or cables). The mini-
mum clearances are determined using the fac-
tory equipped tire size. Other types may dam-
age your vehicle. Use chain tensioners when
recommended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to
the fenders or underbody. If possible, avoid
fully loading your vehicle when using tire
chains. In addition, drive at a reduced speed.
Otherwise, your vehicle may be damaged
and/or vehicle handling and performance may
be adversely affected.
Tire chains must be installed only on the rear
wheels and not on the front wheels. Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause dam-
age to the various mechanisms of the vehicle
due to some overstress.
CHANGING WHEELS AND TIRES
Tire rotation (Models equipped with
same size tires on all wheels)
INFINITI recommends rotating the tires
every 7,500 miles (12,000 km). (See
“FLAT TIRE” in the “6. In case of emer-
gency” section for tire replacing proce-
dures.)
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
SDI1662
Maintenance and do-it-yourself8-37
—
—
07/26/10—dmoore


Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “SPECIFICATIONS”
in the “9. Technical and consumer information”
section for recommended types and sizes of
tires and wheels.)
WARNING
●The use of tires other than those recom-
mended or the mixed use of tires of different
brands, construction (bias, bias-belted or ra-
dial), or tread patterns can adversely affect
the ride, braking, handling, ground clear-
ance, body-to-tire clearance, tire chain
clearance, speedometer calibration, head-
light aim and bumper height. Some of these
effects may lead to accidents and could re-
sult in serious personal injury. ●
If the wheels are changed for any reason,
always replace with wheels which have the
same off-set dimension. Wheels of a differ-
ent off-set could cause premature tire wear,
degrade vehicle handling characteristics
and/or interference with the brake
discs/drums. Such interference can lead to
decreased braking efficiency and/or early
brake pad/shoe wear. See “WHEELS AND
TIRES” in the “9. Technical and consumer
information” section of this manual for
wheel off-set dimensions.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not install a damaged or deformed wheel
or tire even if it has been repaired. Such
wheels or tires could have structural damage
and could fail without warning.
● The use of retread tire is not recommended. ●
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
Intelligent All-Wheel Drive (AWD)
models
CAUTION
● Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference
difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears.
● ONLY use spare tires specified for the Intel-
ligent AWD model.
If excessive tire wear is found, it is recom-
mended that all four tires be replaced with tires
of the same size, brand, construction and tread
pattern. The tire pressure and wheel alignment
should also be checked and corrected as nec-
essary. Contact an INFINITI retailer.
Maintenance and do-it-yourself8-39
—
—
07/26/10—dmoore


This vehicle is equipped with an Event Data Re-
corder (EDR). The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The
EDR in this vehicle is designed to record such
data as:
●How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data with the type of personally identifying data rou-
tinely acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
A genuine INFINITI Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustra-
tions and step-by-step diagnostic and adjust-
ment procedures, this manual is the same one
used by the factory trained technicians working
at an INFINITI retailer. Also available are genu-
ine INFINITI Owner’s Manuals, and genuine
INFINITI Service and Owner’s Manuals for older
INFINITI models.
In the USA:
For current pricing and availability of genuine
INFINITI Service Manuals
for the 2000 model
year and later, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genuine
INFINITI Service Manuals for the 1999 model
year and prior, see an INFINITI retailer, or
contact:
1-800-247-5321
For current pricing and availability of genuine
INFINITI Owner’s Manuals for this model year
and prior, see an INFINITI retailer, or contact:
1-800-247-5321
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE MANUAL
ORDER INFORMATION
Technical and consumer information9-23
—
—
07/14/10—dstomski


10 Index
4 Wheel Active Steer (4WAS) system.....5-91
4 Wheel Active Steer (4WAS) warning
light ...................... .2-12
A
ABS (Anti-lock Braking System) ........5-87
Adaptive front lighting system (AFS) .....2-35
Advanced air bag system ...........1-41
Aiming control, Adaptive front lighting
system (AFS) ................. .2-35
Air bag system Advanced air bag system .........1-41
Front passenger air bag and status
light ..................... 1-43
Front-seat mounted side-impact
supplemental air bag system .......1-46
Roof-mounted curtain side-impact
supplemental air bag system .......1-46
Air bag warning labels .............1-48
Air bag warning light ..........1-48 , 2-15
Air cleaner housing filter ...........8-19
Air conditioner Air conditioner service ...........4-44
Air conditioner specification label ....9-13
Air conditioning system refrigerant and
lubricant recommendations .......4-44
Automatic climate control ........4-30
In-cabin microfilter ............4-43
Operation
(See automatic climate control) .....4-30 Alarm, How to stop alarm
(see vehicle security system)
.........2-28
Alcohol, drugs and driving ...........5-6
Antenna .................... .4-85
Anti-lock Braking System (ABS) ........5-87
Anti-lock braking system (ABS) warning
light ...................... .2-10
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-10
Ashtrays
(See cigarette lighter and ashtrays) .....2-44
Audible reminders .............. .2-18
Audio operation precautions .........4-44
Audio system ................. .4-44
Audio system, Steering wheel audio
controls .................... .4-83
Autolight system ............... .2-33
Automatic Automatic

climate control .........4-32
Automatic transmission fluid (ATF) ....8-14
Climate control .............. 4-30
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-5
Automatic drive positioner ..........3-26
Automatic seat positioner ...........3-26
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-16
Battery Battery saver system ...........2-34
Intelligent Key ............... 8-25
Variable voltage control system .....8-18
Before starting the engine ...........5-10
Belts (See drive belts) .............8-18
Bluetooth hands-free phone system
(models with navigation system) . . . . . . .4-86
Booster seats ................. .1-33
Brake Anti-lock Braking System (ABS) . .....5-87
Brake fluid ................. 8-15
Brake system ............... 5-84
Parking brake operation .........5-16
Brake warning light .............. .2-11
Break-in schedule .............. .5-80
Brightness control and display ON/OFF
button ..................... .4-8
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel .........2-10
Bulb replacement .............. .8-27
C
Cabin air filter ................ .4-43
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
07/26/10—dmoore
