INFINITI CUSTOMER CARE PROGRAM
INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI retailer
are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your
INFINITI retailer cannot assist you with or you
would like to provide INFINITI directly with
comments or questions, please contact our
(INFINITI’s) Consumer Affairs Department using
our toll-free number:For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask for
the following information:
– Your name, address, and telephone number
– Vehicle identification number (on dash
panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
OR You can write to INFINITI with the information on
the left at:
For U.S. customersINFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.

1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-54)
2. Trunk lid release switch (P. 3-18)
3. Sonar system off switch (if so equipped) (P. 5-49) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-32) 7. Paddle shifter (if so equipped) (P. 5-15)
8. Steering-wheel-mounted controls (left
side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (if so equipped)
(P. 4-108)/Phone switch (if so equipped)
(P. 4-84)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-24)
10. Windshield wiper and washer switch (P. 2-29)
11. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-22)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-40)
SIC4683
COCKPIT
0-10Illustrated table of contents

1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-18)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
0-12Illustrated table of contents

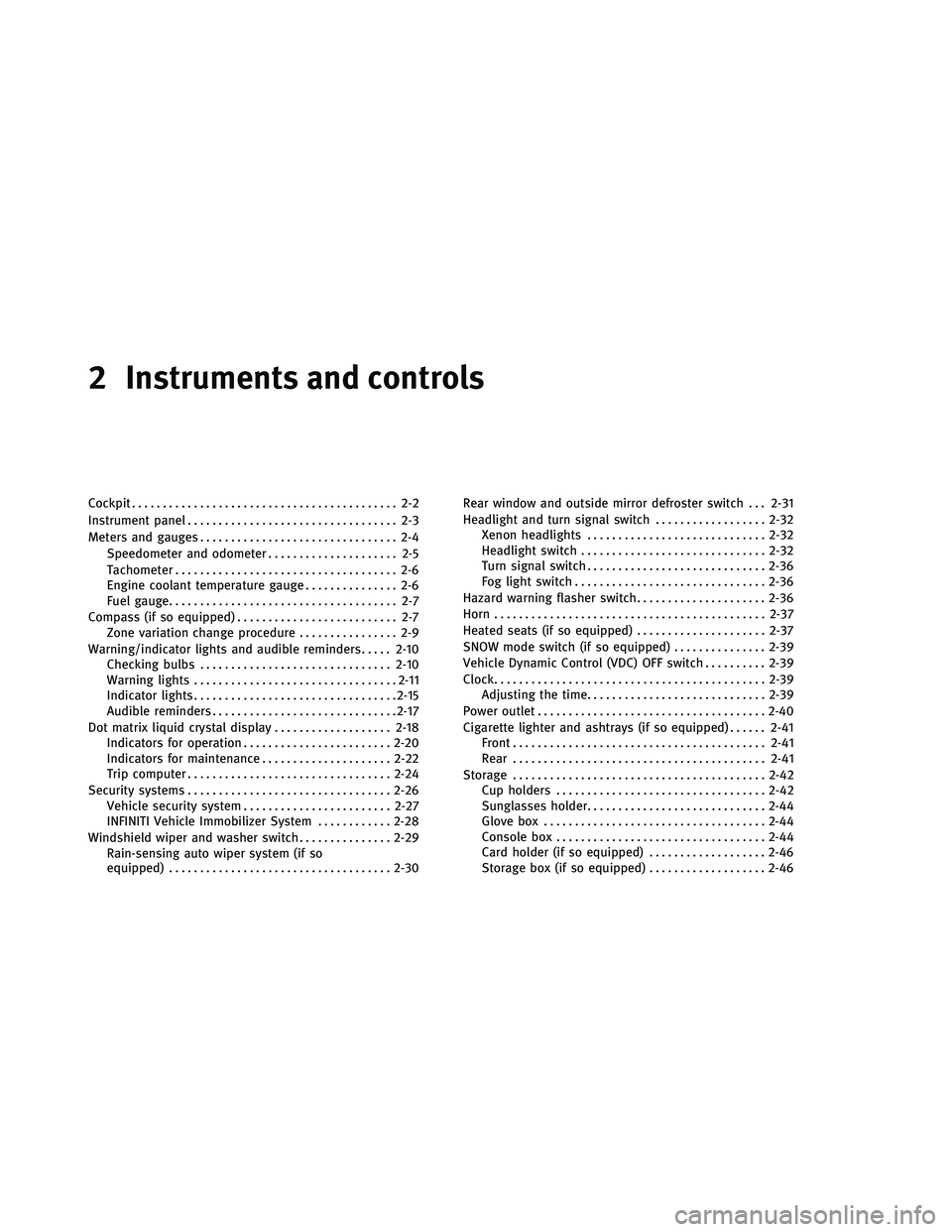

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Compass (if so equipped) .......................... 2-7
Zone variation change procedure ................ 2-9
Warning/indicator lights and audible reminders .....2-10
Checking bulbs ............................... 2-10
Warning lights ................................. 2-11
Indicator lights ................................. 2-15
Audible reminders .............................. 2-17
Dot matrix liquid crystal display ...................2-18
Indicators for operation ........................ 2-20
Indicators for maintenance .....................2-22
Trip computer ................................. 2-24
Security systems ................................. 2-26
Vehicle security system ........................ 2-27
INFINITI Vehicle Immobilizer System ............2-28
Windshield wiper and washer switch ...............2-29
Rain-sensing auto wiper system (if so
equipped) .................................... 2-30Rear window and outside mirror defroster switch . . . 2-31
Headlight and turn signal switch
..................2-32
Xenon headlights ............................. 2-32
Headlight switch .............................. 2-32
Turn signal switch ............................. 2-36
Fog light switch ............................... 2-36
Hazard warning flasher switch .....................2-36
Horn ............................................ 2-37
Heated seats (if so equipped) .....................2-37
SNOW mode switch (if so equipped) ...............2-39
Vehicle Dynamic Control (VDC) OFF switch ..........2-39
Clock ............................................ 2-39
Adjusting the time ............................. 2-39
Power outlet ..................................... 2-40
Cigarette lighter and ashtrays (if so equipped) ......2-41
Front ......................................... 2-41
Rear ......................................... 2-41
Storage ......................................... 2-42
Cup

holders .................................. 2-42
Sunglasses holder ............................. 2-44
Glove box .................................... 2-44
Console box .................................. 2-44
Card holder (if so equipped) ...................2-46
Storage box (if so equipped) ...................2-46

1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-54)
2. Trunk lid release switch (P. 3-18)
3. Sonar system off switch (if so equipped) (P. 5-49) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-32) 7. Paddle shifter (if so equipped) (P. 5-15)
8. Steering-wheel-mounted controls (left
side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (if so equipped)
(P. 4-108)/Phone switch (if so equipped)
(P. 4-84)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-24)
10. Windshield wiper and washer switch (P. 2-29)
11. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-22)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-24)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-40)
SIC4683
COCKPIT
2-2Instruments and controls

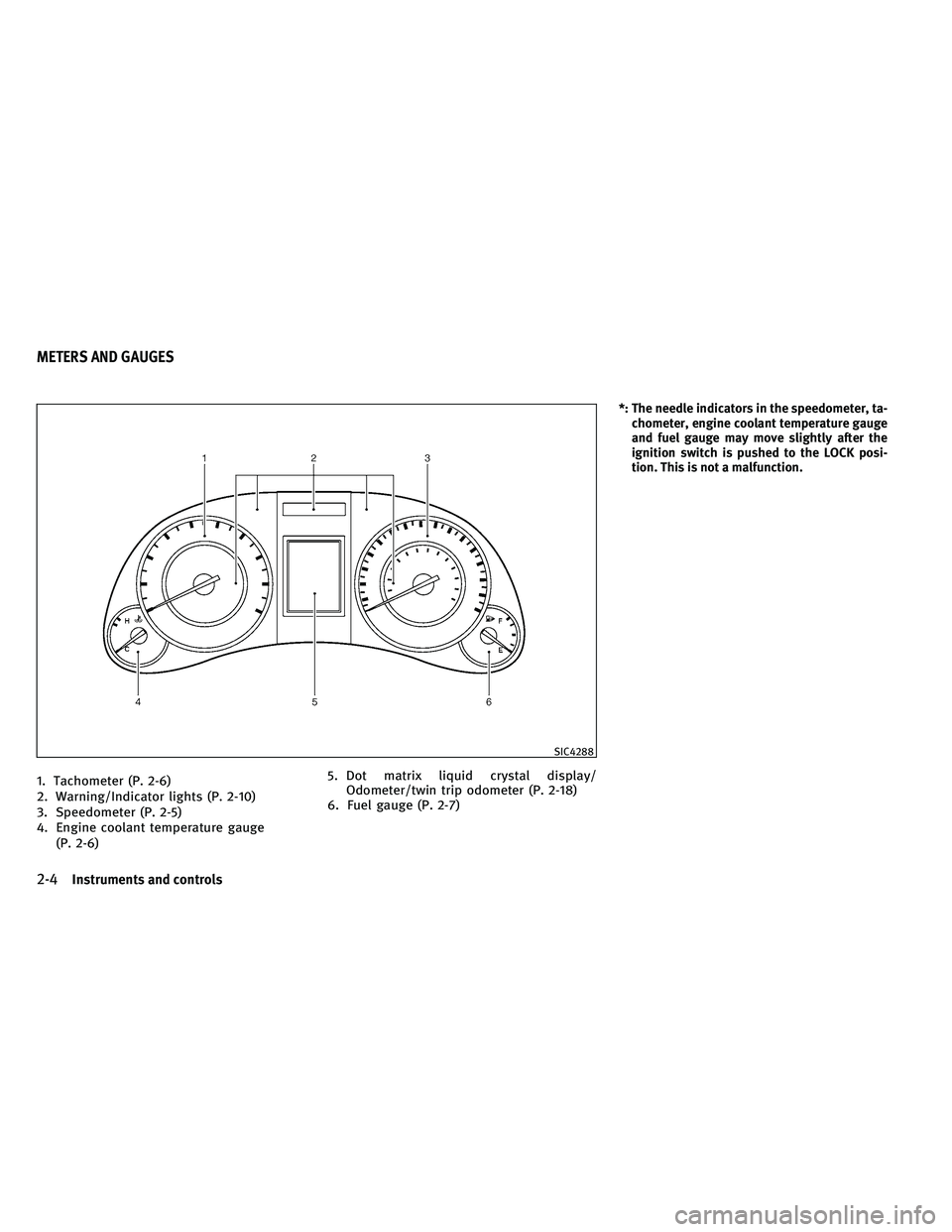

1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-10)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-18)
6. Fuel gauge (P. 2-7)
*: The needle indicators in the speedometer, ta- chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the
ignition switch is pushed to the LOCK posi-
tion. This is not a malfunction.
SIC4288
METERS AND GAUGES
2-4Instruments and controls

SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display :
Pushing the TRIP A/B RESET switch
3at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP A/B RESET switch
3for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
Speedometer
SIC4289
Odometer/twin trip odometer
SIC3259
Instruments and controls2-5

TRIP COMPUTER
Switches for the trip computer are located on
the right side of the combination meter panel.
To operate the trip computer, push the side or
front of the switches as shown above.
Aswitch
Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA. Each time the
switchAis pushed, the
display will change as follows:
Current fuel consumption →Average fuel con-
sumption and speed →Elapsed time and trip
odometer →Distance to empty (dte) →Outside
air temperature (ICY) →Setting →Warning
check
1. Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
2. Average fuel consumption (MPG or
l (liter)/100 km) and speed (MPH or
km/h)
Fuel consumption :
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch
Bfor longer than 1 second. (The average speed
is also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”. Speed :
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
switchBfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
3. Elapsed time and trip odometer
(mls or km)
Elapsed time :
The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switchBfor longer than
1 second. (The trip odometer is also reset at the
same time.)
Trip odometer :
The trip odometer mode shows the total dis-
tance the vehicle has been driven since the last
reset. Resetting is done by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
SIC3264
