2011 INFINITI G-COUPE jacking

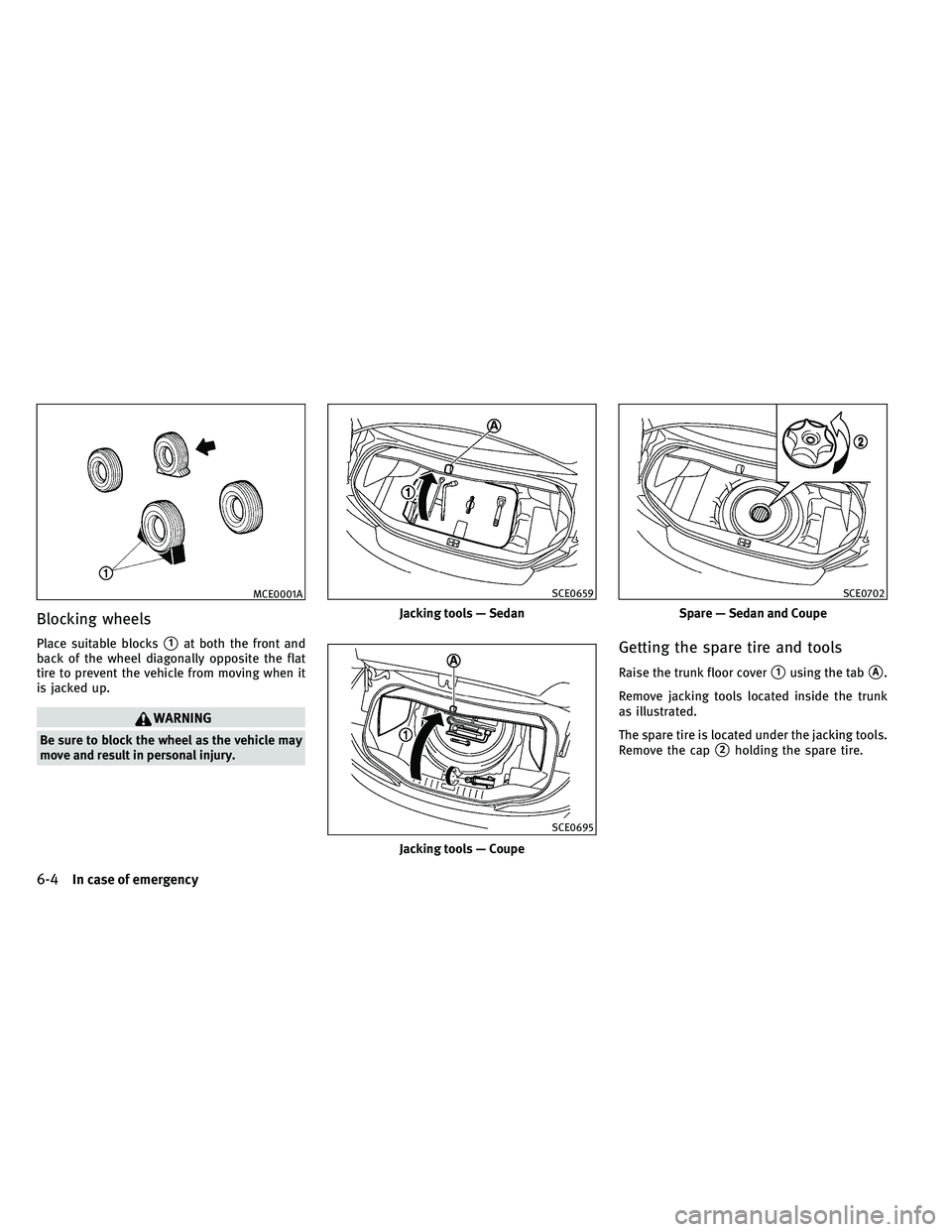

Blocking wheels
Place suitable blocks1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the vehicle may
move and result in personal injury.
Getting the spare tire and tools
Raise the trunk floor cover1using the tabA.
Remove jacking tools located inside the trunk
as illustrated.
The spare tire is located under the jacking tools.
Remove the cap
2holding the spare tire.
MCE0001A
Jacking tools — Sedan
SCE0659
Jacking tools — Coupe
SCE0695
Spare — Sedan and Coupe
SCE0702
6-4In case of emergency

Jacking up the vehicle and removing
the damaged tire
WARNING
●Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
Carefully read the caution label attached to the
jack body and the following instructions.
1. Place the jack directly under the jack-up point as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
Jack-up point
CE1089-A
In case of emergency6-5

5. Securely store the flat tire and jackingequipment in the vehicle.
6. Place the spare tire cover and the trunk floor carpeting over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The T-type spare tire and small size spare
tire are designed for emergency use. See
specific instructions under the heading
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada). To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
●
If done incorrectly, jump starting can lead to
a battery explosion, resulting in severe in-
jury or death. It could also damage your
vehicle.
● Explosive hydrogen gas is always present in
the vicinity of the battery. Keep all sparks
and flames away from the battery.
● Do not allow battery fluid to come into con-
tact with eyes, skin, clothing or painted sur-
faces. Battery fluid is a corrosive sulphuric
acid solution which can cause severe burns.
If the fluid should come into contact with
anything, immediately flush the contacted
area with water.
● Keep the battery out of the reach of children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle. ●
Whenever working on or near a battery, al-
ways wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
● Do not attempt to jump start a frozen battery.
It could explode and cause serious injury.
● Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
JUMP STARTING
6-8In case of emergency

Front (except for INFINITI Performance Line,
Aerodynamic Package models — Coupe):
1. To remove the hook cover from the bum-per with a suitable tool, insert the tool into
the mesh and take off the removable part.
2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Attach the tow strap to the recovery hook.
Make sure that the hook is properly secured
in the original place after use.
Sedan
SCE0892
Coupe (except for INFINITI Performance Line, Aerodynamic Package models)
SCE0893
In case of emergency6-15

3. Securely install the vehicle recovery hook
3stored with jacking tools as illustrated.
Attach the tow strap to the recovery hook.
Wrap the hook
3and strap with a cloth
to avoid bumper damage as illustrated.
Make sure that the hook is properly se-
cured in the original place after use.
Rear :
Do not use the tie down hooks
1for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks.
Coupe (INFINITI Performance Line, Aerodynamic Package models)
SCE0965SCE0891
In case of emergency6-17
