2011 INFINITI G-CONVERTIBLE jacking

Getting emergency tire puncture
repair kit
Take out the emergency tire puncture repair kit
located under the cargo room or in the trunk.
The repair kit consists of the following items:
1Tire sealant bottle
2Air compressor
3Speed restriction sticker
NOTE:
For models with the emergency tire puncture
repair kit, a spare tire, jack and rod are not
equipped as standard. These parts are dealer
options. Contact an INFINITI retailer about ob-
taining these parts. See “CHANGING FLAT TIRE
(for models with spare tire)” earlier in this sec-
tion for usage of jacking tools and tire replace-
ment.
Before using emergency tire puncture
repair kit
●If any foreign object (for example, a screw or
nail) is embedded in the tire, do not remove
it.
● Check the expiration date of the sealant
(shown on the label attached to the bottle).
Never use a sealant whose expiration date
has passed.
Repairing tire
WARNING
Observe the following precautions when using
the tire repair compound.
● Swallowing the compound is dangerous. Im-
mediately drink as much water as possible
and seek prompt medical assistance.
● Rinse well with lots of water if the compound
comes into contact with skin or eyes. If irri-
tation persists, seek prompt medical
attention.
● Keep the repair compound out of the reach of
children.
● The emergency repair compound may cause
a malfunction of the tire pressure sensors
and cause the low tire pressure warning light
to illuminate. Have the tire pressure sensor
replaced as soon as possible.
NOTE:
Do not remove any nails or screws that have
penetrated the tire when performing repairs.
SCE0887
In case of emergency6-5

3. Remove the jacking tool case.
4. Remove the retainer by turning it counter-clockwise, and then remove the spare
tire. 5. Remove the jack storage lid, and then
remove the jack.
Jacking up the vehicle and removing
the damaged tire
WARNING
●Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
SCE0800SCE0801
6-10In case of emergency

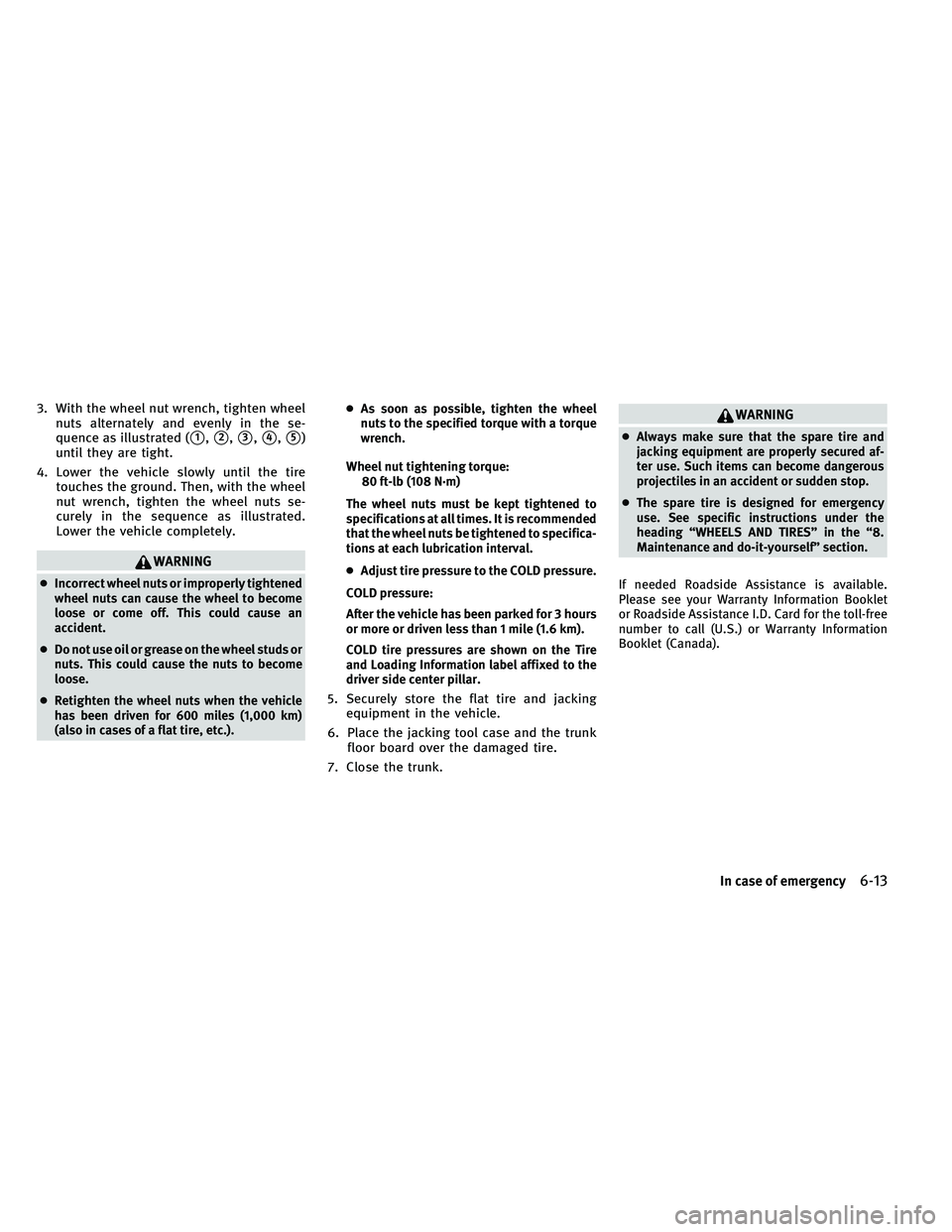

3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.). ●
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to
specifications at all times. It is recommended
that the wheel nuts be tightened to specifica-
tions at each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for 3 hours
or more or driven less than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the jacking tool case and the trunk floor board over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The spare tire is designed for emergency
use. See specific instructions under the
heading “WHEELS AND TIRES” in the “8.
Maintenance and do-it-yourself” section.
If needed Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
In case of emergency6-13

2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Make sure that the hook is properly secured
in the original place after use.Front (Aerodynamic Package models):
1. To remove the hook cover1from the
bumper, use a suitable tool.
2. Pull the cover up
2and then pull it out.
3. Securely install the vehicle recovery hook stored with jacking tools.
Aerodynamic Package models
SCE0964
6-20In case of emergency
