2011 INFINITI G-CONVERTIBLE ESP

●All seat belt assemblies, including retractors
and attaching hardware, should be in-
spected after any collision by an INFINITI re-
tailer. INFINITI recommends that all seat belt
assemblies in use during a collision be re-
placed unless the collision was minor and
the belts show no damage and continue to
operate properly.
Seat belt assemblies not in use during a col-
lision should also be inspected and replaced
if either damage or improper operation is
noted.
● All child restraints and attaching hardware
should be inspected after any collision. Al-
ways follow the restraint manufacturer’s in-
spection instructions and replacement rec-
ommendations. The child restraints should
be replaced if they are damaged.CHILD SAFETY
Children need adults to help protect them. They
need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices, and
community organizations. Every child is differ-
ent, so be sure to learn the best way to trans-
port your child.
There are three basic types of child restraint
systems:
● Rear-facing child restraint
● Front-facing child restraint
● Booster seat
The proper restraint depends on the child’s
size. Generally, infants (up to about 1 year and
less than 20 lb (9 kg)) should be placed in
rear-facing child restraints. Front-facing child
restraints are available for children who out-
grow rear-facing child restraints and are at least
1 year old. Booster seats are used to help
position a vehicle lap/shoulder belt on a child
who can no longer use a front-facing child
restraint.
WARNING
Infants and children need special protection.
The vehicle’s seat belts may not fit them prop-
erly. The shoulder belt may come too close to
the face or neck. The lap belt may not fit over
their small hip bones. In an accident, an im-
properly fitting seat belt could cause serious or
fatal injury. Always use appropriate child
restraints.
All U.S. states and Canadian provinces or terri-
tories require the use of approved child re-
straints for infants and small children. (See
“CHILD RESTRAINTS” later in this section.)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
INFINITI recommends that all pre-teens and chil-
dren be restrained in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in the
front seat.
This is especially important because your ve-
hicle has a supplemental restraint system (air
bag system) for the front passenger. (See
“SUPPLEMENTAL RESTRAINT SYSTEM” later in
this section.)
Safety — Seats, seat belts and supplemental restraint system1-13

●When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
supplemental side air bag inflates, you may
be seriously injured. Be especially careful
with children, who should always be prop-
erly restrained. Some examples of danger-
ous riding positions are shown in the
illustrations.
● Do not use seat covers on the front seat-
backs. They may interfere with supplemen-
tal side air bag inflation.
1. Crash zone sensor
2. Supplemental front air bag modules
(INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact supplemental air bags 4. Occupant classification system control
unit
5. Occupant classification sensor (pattern sensor)
6. Pop-up roll bars
SSS0934
1-40Safety — Seats, seat belts and supplemental restraint system

5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Instruments and controls2-27

Main power window switch (driver’s
side)
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window
4. Rear right passenger side window
5. Window lock button
To open or close the window, push downAor
pull up
Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Passenger side power window switch
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3279SIC3241
Instruments and controls2-47

The HomeLinkUniversal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink. Consult the
Owner’s Manual of each device or call the
manufacturer or retailer of those devices for
additional information.
When your vehicle is recovered, you will need to
reprogram the HomeLink Universal Transceiver
with your new transmitter information.
FCC Notice:
This device complies with FCC rules part 15. Op-
eration is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference and (2) This device must accept any
interference that may be received, including in-
terference that may cause undesired operation. The transmitter has been tested and complies
with FCC and DOC/MDC rules. Changes or modi-
fications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
Instruments and controls2-55

●Do not operate the retractable hard top in a
strong wind. It could be blown by the wind,
striking someone or damaging the retract-
able hard top.
● When the retractable hard top is retracted,
do not allow anyone to stand up or extend
any portion of their body out of the opening
while the vehicle is in motion or while the
retractable hard top is being operated.
● In an accident you could be thrown from the
vehicle with an open retractable hard top if
you do not use seat belts. Always use seat
belts and proper child restraints.
● Do not place any objects on or near the re-
tractable hard top operating switch. Unin-
tentional operation of the retractable hard
top may cause injuries or an accident if the
objects press the switch.
● Do not put your fingers or hands in the gap
between the rear seats and the rear parcel
shelf or the side flaps. Doing so may cause
injury if the retractable hard top is operated.CAUTION
● Do not operate the retractable hard top when
the temperature is below 32°F (0°C). This
may result in damage to the retractable hard
top material or operating system.
● Remove water drops, snow, ice or sand from
the retractable hard top, and dry the surface
of the retractable hard top completely before
opening it.
● Do not open the retractable hard top when it
is wet or damp. If the retractable hardtop and
rear window are wet, water might get inside
of the vehicle. To avoid this, wipe off any
water drops before opening the retractable
hard top.
● Do not place any objects between the hard
rail and the structure. Doing so could inter-
fere with retractable hard top operation and
cause damage to the retractable hard top
operating system or the objects.
● Do not place any objects on the upper area of
the windshield glass or the hard rail when
the retractable hard top is fully opened. Do-
ing so could interfere with retractable hard
top operation and cause damage. ●
Do not place any object between the retract-
able hard top when the retractable hard top
is stored in the storage space. Doing so may
interfere with retractable hard top operation
and cause damage.
● Do not place anything on the retractable
hard top, rear parcel shelf, side flaps and
trunk lid. Even small items may interfere
with the retractable hard top operation and
could cause damage to the retractable hard
top or the vehicle body.
● Do not place anything in the retractable hard
top storage area. The retractable hard top
will not fit there properly, and this could
damage the retractable hard top and/or the
vehicle body.
● Do not sit or place excessive weight on the
top, rear parcel shelf, side flaps and trunk
lid, especially when the retractable hard top
is being operated. The retractable hard top
may be damaged.
● Do not drive the vehicle with the retractable
hard top partially opened. Always make sure
the retractable hard top is either fully
opened or closed before driving.
● Secure items so that they cannot be blown
from the vehicle while driving with the re-
tractable hard top open.
Pre-driving checks and adjustments3-19

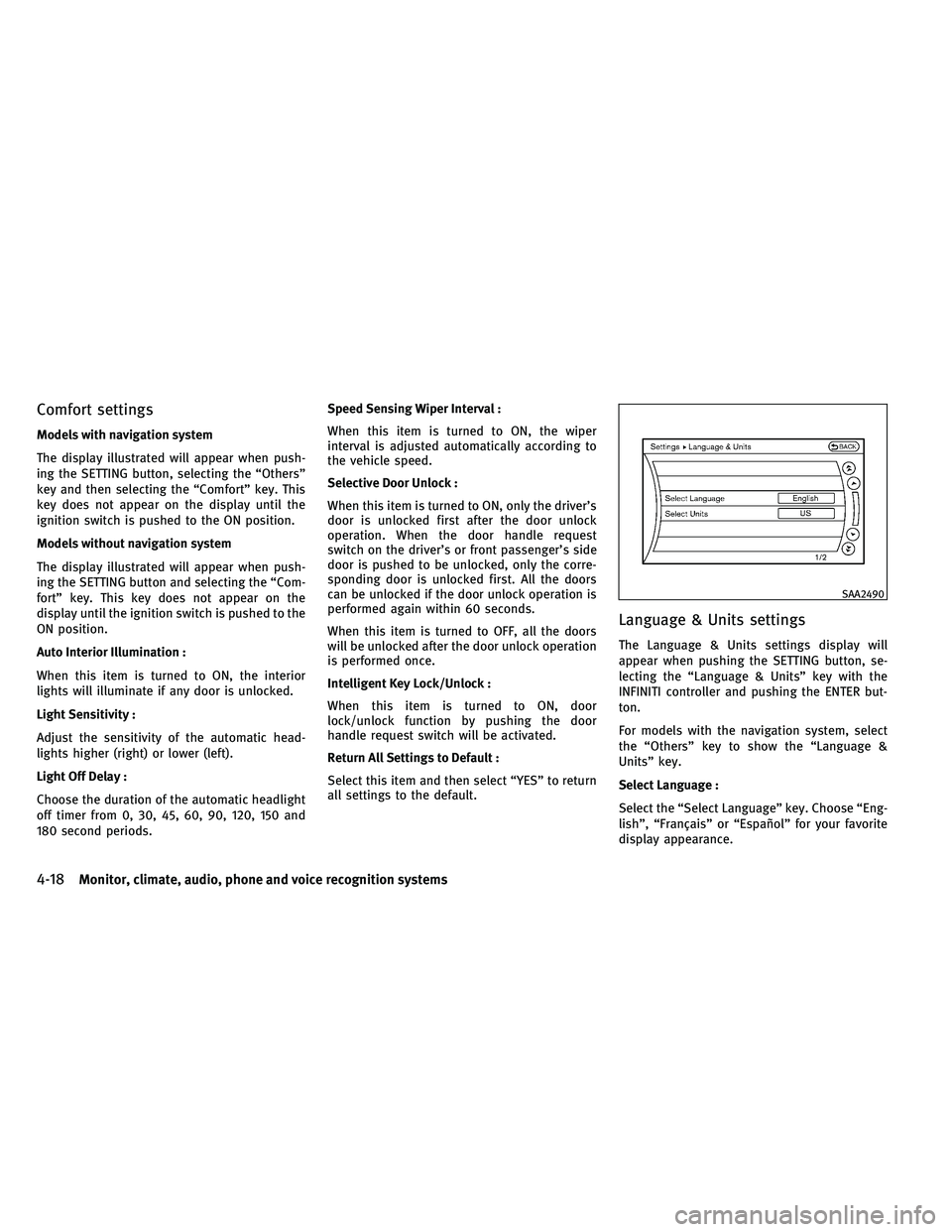

Comfort settings
Models with navigation system
The display illustrated will appear when push-
ing the SETTING button, selecting the “Others”
key and then selecting the “Comfort” key. This
key does not appear on the display until the
ignition switch is pushed to the ON position.
Models without navigation system
The display illustrated will appear when push-
ing the SETTING button and selecting the “Com-
fort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “Eng-
lish”, “Français” or “Español” for your favorite
display appearance.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems

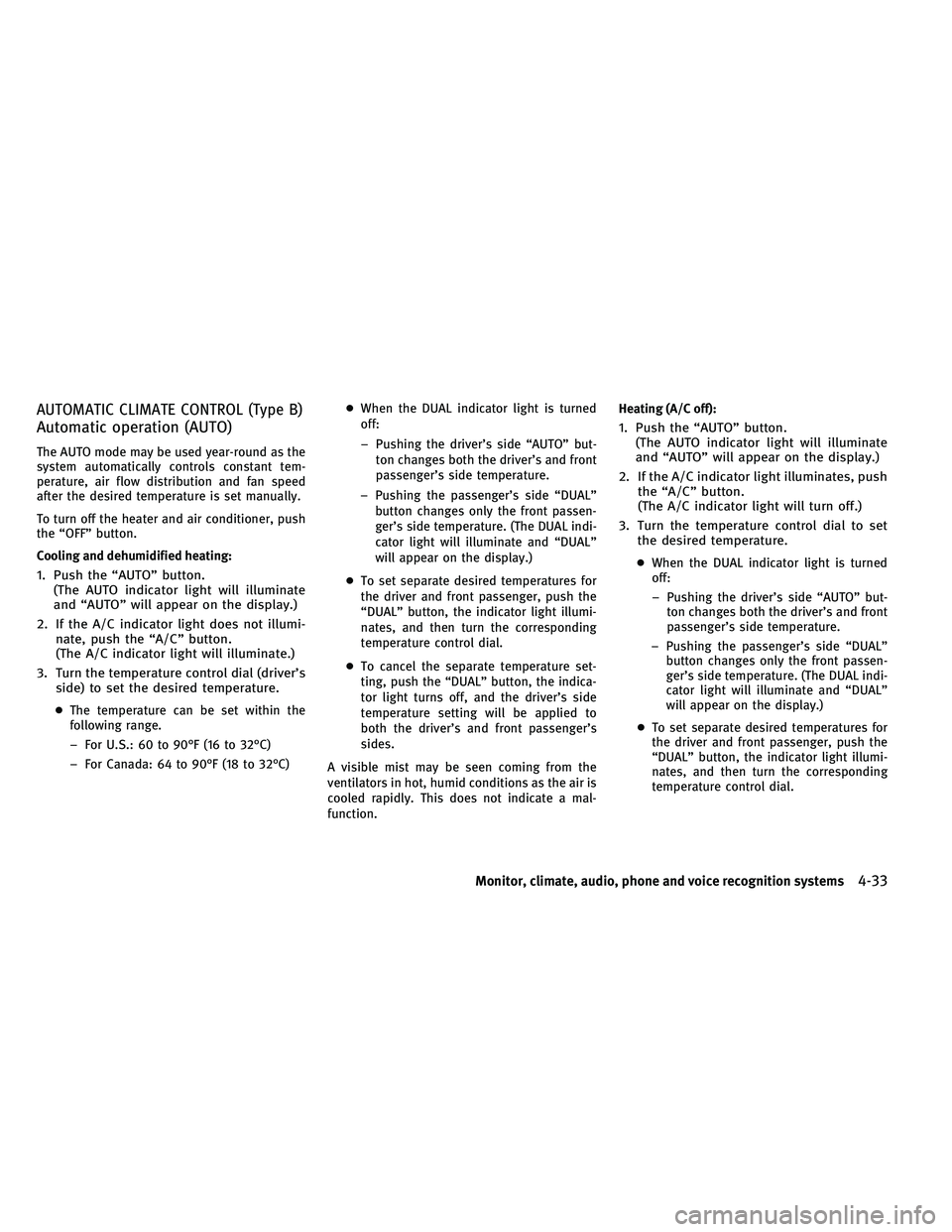

AUTOMATIC CLIMATE CONTROL (Type B)
Automatic operation (AUTO)
The AUTO mode may be used year-round as the
system automatically controls constant tem-
perature, air flow distribution and fan speed
after the desired temperature is set manually.
To turn off the heater and air conditioner, push
the “OFF” button.
Cooling and dehumidified heating:
1. Push the “AUTO” button.
(The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light does not illumi- nate, push the “A/C” button.
(The A/C indicator light will illuminate.)
3. Turn the temperature control dial (driver’s side) to set the desired temperature.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C) ●
When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but- ton changes both the driver’s and front
passenger’s side temperature.
– Pushing the passenger’s side “DUAL” button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)
● To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
● To cancel the separate temperature set-
ting, push the “DUAL” button, the indica-
tor light turns off, and the driver’s side
temperature setting will be applied to
both the driver’s and front passenger’s
sides.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function. Heating (A/C off):
1. Push the “AUTO” button.
(The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light illuminates, push the “A/C” button.
(The A/C indicator light will turn off.)
3. Turn the temperature control dial to set the desired temperature.
●When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but- ton changes both the driver’s and front
passenger’s side temperature.
– Pushing the passenger’s side “DUAL” button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)
● To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
Monitor, climate, audio, phone and voice recognition systems4-33
