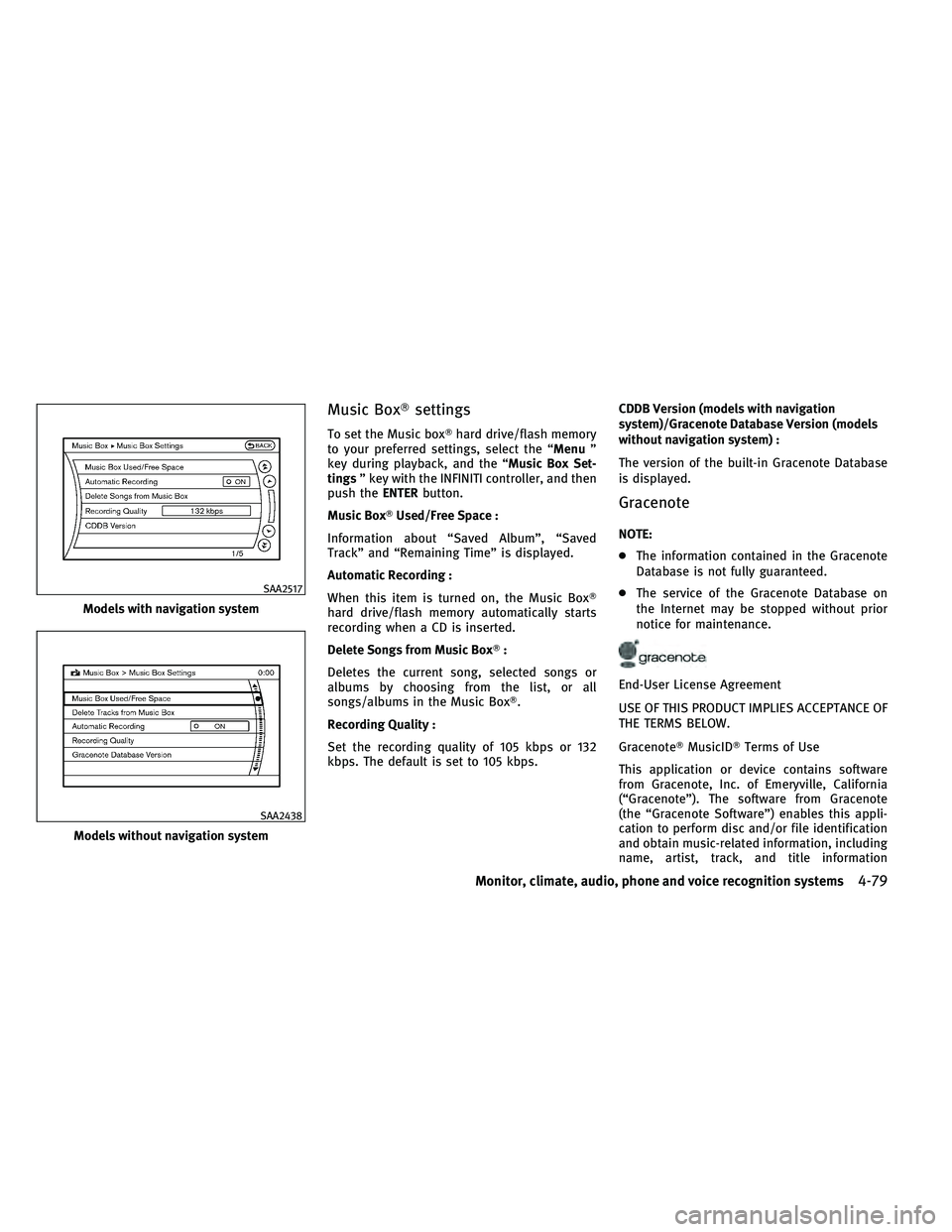

Music Boxsettings
To set the Music box hard drive/flash memory
to your preferred settings, select the “Menu ”
key during playback, and the “Music Box Set-
tings ” key with the INFINITI controller, and then
push the ENTERbutton.
Music Box Used/Free Space :
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
Automatic Recording :
When this item is turned on, the Music Box
hard drive/flash memory automatically starts
recording when a CD is inserted.
Delete Songs from Music Box :
Deletes the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box.
Recording Quality :
Set the recording quality of 105 kbps or 132
kbps. The default is set to 105 kbps. CDDB Version (models with navigation
system)/Gracenote Database Version (models
without navigation system) :
The version of the built-in Gracenote Database
is displayed.
Gracenote
NOTE:
●
The information contained in the Gracenote
Database is not fully guaranteed.
● The service of the Gracenote Database on
the Internet may be stopped without prior
notice for maintenance.
End-User License Agreement
USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF
THE TERMS BELOW.
Gracenote MusicIDTerms of Use
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this appli-
cation to perform disc and/or file identification
and obtain music-related information, including
name, artist, track, and title information
Models with navigation system
SAA2517
Models without navigation system
SAA2438
Monitor, climate, audio, phone and voice recognition systems4-79

4. Gradually steer the vehicle to a safe loca-tion off the road and away from traffic if
possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and either contact a roadside emergency ser-
vice to change the tire or see “CHANGING
FLAT TIRE (for models with spare tire)” in
the “6. In case of emergency” section of
this Owner’s Manual.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addition-
ally, if you are injured in an accident, alcohol
can increase the severity of the injury. INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired
by alcohol, drugs, or some other physical con-
dition.
WARNING
Do not operate the push-button ignition switch
while driving the vehicle except in an emer-
gency. (The engine will stop when the ignition
switch is pushed 3 consecutive times or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to the
P (Park) position (for automatic transmission
model) or the shift lever to the N (Neutral)
position (for manual transmission model).
PUSH-BUTTON IGNITION SWITCH
Starting and driving5-7

●Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal (MT
model) with the ignition switch in any posi-
tion. ●
If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and the clutch pedal (MT model)
and pushing the push-button ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

4.Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather. In cold weather, keep the
engine running for a minimum of2-3
minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
When racing the engine up to 4,000 rpm or
more under no load condition, the engine
will enter the fuel cut mode.
5. To stop the engine, shift the selector lever
to the P (Park) position (AT model) or
move the shift lever to the N (Neutral)
position (MT model), and push the igni-
tion switch to the OFF position.
AUTOMATIC TRANSMISSION
7 speed automatic transmission
The automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum
vehicle performance and driving enjoyment.
Starting the vehicle
After starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), DS (Drive Sport) or
Manual shift mode position. Be sure the vehicle
is fully stopped before attempting to shift the
selector lever.
This automatic transmission model is designed
so that the foot brake pedal must be depressed
before shifting from P (Park) to any drive posi-
tion while the ignition switch position is ON.
The selector lever cannot be moved out of the P
(Park) position and into any of the other gear
positions if the ignition switch is pushed to the
LOCK, OFF or ACC position.
1. Keep the foot brake pedal depressed and
push the selector lever button to shift into
a driving gear.
2. Release the parking brake and foot brake, then gradually start the vehicle in motion.
WARNING
●Do not depress the accelerator pedal while
shifting from P (Park) or N (Neutral) to R (Re-
verse), D (Drive), DS (Drive Sport) or manual
shift mode. Always depress the brake pedal
until shifting is completed. Failure to do so
could cause you to lose control and have an
accident.
● Cold engine idle speed is high, so use cau-
tion when shifting into a forward or reverse
gear before the engine has warmed up.
● Never shift to P (Park) or R (Reverse) while
vehicle is moving forward. Never shift to P
(Park), D (Drive) or DS (Drive Sport) while
vehicle is moving rearward. Failure to do so
could cause you to lose control and have an
accident.
DRIVING THE VEHICLE
Starting and driving5-12

●Except in an emergency, do not shift to the N
(Neutral) position while driving. Doing so
can cause a loss of engine braking which
may result in a collision, serious personal
injury or death. In addition, coasting with
the transmission in the N (Neutral) position
may cause serious damage to the
transmission.
CAUTION
● When stopping the vehicle on an uphill
grade, do not hold the vehicle by depressing
the accelerator pedal. The foot brake should
be used for this purpose.
● Do not downshift abruptly on slippery roads.
This may cause a loss of control.
Shifting
To move the selector lever,
: Push the button while depressing the
brake pedal,
: Push the button,
: Just move the selector lever.
After starting the engine, fully depress the
brake pedal and shift the selector lever from P
(Park) to R (Reverse), N (Neutral), D (Drive), DS
(Drive Sport) or Manual shift mode position. Push the button to shift into P (Park) or R
(Reverse). All other positions can be selected
without pushing the button.
WARNING
Apply the parking brake if the selector lever is
in any position while the engine is not running.
Failure to do so could cause the vehicle to move
unexpectedly or roll away and result in serious
personal injury or property damage.
CAUTION
Make sure the vehicle is completely stopped
and the transmission is in the P (Park) position.
P (Park) position :
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector lever
button pushed in to move the selector lever from
the N (Neutral) position or any drive position to
the P (Park) position. Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position.Selector lever
SSD0596
5-13Starting and driving

CAUTION
Use this position only when the vehicle is com-
pletely stopped.
R (Reverse) :
Use this position to back up. Always be sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal must
be depressed and the selector lever button
pushed in to move the selector lever from the P
(Park) position, the N (Neutral) position or any
drive position to the R (Reverse) position.
N (Neutral) :
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to the N (Neutral) position and restart
a stalled engine while the vehicle is moving.
D (Drive) :
Use this position for all normal forward driving.
DS (Drive Sport) mode
Move the selector lever from D (Drive) to the left
into the manual shift gate. The transmission
position indicator in the meter shows “DS”.
In the DS (Drive Sport) mode, the transmission
changes to the “sporty” driving shift operation,
creating a more aggressive acceleration feeling
than the D (Drive) mode and providing a gear
change sensation when the driver accelerates
quickly.
When the driver selects the manual shift mode
using the selector lever (or the paddle shifter)
during the DS (Drive Sport) mode operation, the
driver must move the selector lever from DS
(Drive Sport) to D (Drive) and back again to
re-select the DS (Drive Sport) mode.
Manual shift mode
When the selector lever is in the DS (Drive
Sport) position, the transmission is ready for
the manual shift mode. Shift ranges can be
selected manually by moving the selector lever
up or down, or pulling the right-side or left-side
paddle shifter.
When shifting up, move the selector lever to the
+ (up) side or pull the right-side paddle shifter
(+)
A(if so equipped). The transmission shifts
to the higher range.
Paddle shifter
SSD0599
5-14Starting and driving

Shift lock release
If the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the selector lever button pushed.
To move the selector lever, perform the follow-
ing procedure:
1. Push the ignition switch to the OFF orLOCK position.
2. Apply the parking brake.
3. Remove the shift lock cover
Ausing a
suitable tool. 4. Push down the shift lock
Bas illustrated.
5. Push the selector lever button
Cand
move the selector lever to N (Neutral)
position
Dwhile holding down the shift
lock.
Push the ignition switch to the ON position to
unlock the steering wheel (if so equipped). Now
the vehicle may be moved to the desired loca-
tion.
For models with a steering wheel lock mecha-
nism: If the battery is discharged completely,
the steering wheel cannot be unlocked. Do not
move the vehicle with the steering wheel
locked.
If the lever cannot be moved out of P (Park),
have an INFINITI retailer check the automatic
transmission system as soon as possible.
MANUAL TRANSMISSION
WARNING
● Do not downshift abruptly on slippery roads.
This may cause a loss of vehicle control.
● Do not over-rev the engine when shifting to a
lower gear. This may cause a loss of vehicle
control or engine damage.
CAUTION
● Do not rest your foot on the clutch pedal
while driving. This may damage the clutch.
● Fully depress the clutch pedal before shift-
ing to help prevent transmission damage.
● Stop your vehicle completely before shifting
into the R (Reverse) position.
● When the vehicle is stopped with the engine
running for a period of time, for example at a
stop light, shift to the N (Neutral) position
and release the clutch pedal with the foot
brake applied.SSD0598
5-16Starting and driving

When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently). When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases). When the corner of
the vehicle is very close to the object, less than
11.8 in (30 cm) away, the indicator stops blink-
ing and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed, the
colors of the sonar indicator and the distance
guide lines in the rear view indicate different
distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section for the “Sonar” settings.) When the
sonar indicator is off, only a tone sounds when
the sonar detects obstacles.
SONAR SYSTEM OFF SWITCH
The sonar system OFF switch on the instrument
panel allows the driver to turn the sonar system
on and off. To turn the sonar system on and off,
the ignition switch must be in the “ON” posi-
tion. The indicator light
1on the switch will
illuminate when the system is turned off. If the
indicator light flashes when the sonar system is
not turned off, it may indicate a malfunction in
the sonar system.
WARNING
If the engine is not running or is turned off while
driving, the power assist for the steering will
not work. Steering will be harder to operate.
The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steering.
If the engine stops or the drive belt breaks, you
will still have control of the vehicle. However,
much greater steering effort is needed, espe-
cially in sharp turns and at low speeds.
SSD0929
POWER STEERING
Starting and driving5-47
