●Do not place objects with sharp edges on the
seat. Also, do not place heavy objects on the
seat that will leave permanent impressions
in the seat. Such objects can damage the
seat or occupant classification sensor (pat-
tern sensor). This can affect the operation of
the air bag system and result in serious per-
sonal injury.
● Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of the
air bag system and result in serious personal
injury.
● Immediately after inflation, several front air
bag system components will be hot. Do not
touch them; you may severely burn yourself.
● No unauthorized changes should be made to
any components or wiring of the air bag sys-
tem. This is to prevent accidental inflation of
the supplemental air bag or damage to the
supplemental air bag system.
● Do not make unauthorized changes to your
vehicle’s electrical system, suspension sys-
tem or front end structure. This could affect
proper operation of the front air bag system. ●
Tampering with the air bag system may re-
sult in serious personal injury. Tampering
includes changes to the steering wheel and
the instrument panel assembly by placing
material over the steering wheel pad and
above the instrument panel or by installing
additional trim material around the air bag
system.
● Modifying or tampering with the front pas-
senger seat may result in serious personal
injury. For example, do not change the front
seats by placing material on the seat cush-
ion or by installing additional trim material,
such as seat covers, on the seat that is not
specifically designed to assure proper air
bag operation. Additionally, do not stow any
objects under the front passenger seat or the
seat cushion and seatback. Such objects
may interfere with the proper operation of
the occupant classification sensor.
● No unauthorized changes should be made to
any components or wiring of the seat belt
system. This may affect the front air bag
system. Tampering with the seat belt system
may result in serious personal injury. ●
Work on and around the front air bag system
should be done by an INFINITI retailer. Instal-
lation of electrical equipment should also be
done by an INFINITI retailer. The Supplemen-
tal Restraint System (SRS) wiring har-
nesses* should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices should not
be used on the air bag system.
● A cracked windshield should be replaced im-
mediately by a qualified repair facility. A
cracked windshield could affect the function
of the supplemental air bag system.
* The SRS wiring harness connectors are yel-
low and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front
air bag system and guide the buyer to the
appropriate sections in this Owner’s Manual.
1-46Safety — Seats, seat belts and supplemental restraint system

becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.
After pretensioner activation, load limiters al-
low the seat belt to release webbing (if neces-
sary) to reduce forces against the chest.
The supplemental air bag warning light
is used to indicate malfunctions in the preten-
sioner system. If the operation of the supple-
mental air bag warning light indicates there is a
malfunction (See “SUPPLEMENTAL AIR BAG
WARNING LIGHT” in this section), have the
system checked by an INFINITI retailer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental front-
impact air bag systems are placed in the vehicle
as shown in the illustration.
SRS air bag
The warning labels1are located on the
surface of the sun visors.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light, dis-
playingin the instrument panel, moni-
tors the circuits of the supplemental front-
impact air bag, front seat-mounted side-impact
supplemental air bag, roof-mounted curtain
side-impact supplemental air bag, and seat belt
pretensioner systems. The monitored circuits
include the Air bag Control Unit (ACU), satellite
sensors, occupant classification sensor, crash
zone sensor, front air bag modules, side air bag
modules, curtain air bag modules, pretension-
ers, front passenger air bag status light and all
related wiring.
SSS1016SPA1097
Safety — Seats, seat belts and supplemental restraint system1-49

Front fog light indicator
light
The front fog light indicator light illuminates
when the front fog lights are on. (See “FOG
LIGHT SWITCH” later in this section.)
Front passenger air bag
status light
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light opera-
tion, see “INFINITI ADVANCED AIR BAG SYSTEM
(front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion of this manual.
High beam indicator
light
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Intelligent Brake Assist (IBA)
off indicator light (if so
equipped)
The light illuminates when the Intelligent Brake
Assist (IBA) off switch is pushed to OFF. This
indicates that the Intelligent Brake Assist (IBA)
system is not operating.
When the IBA off indicator light illuminates
while the system is turned on (without the
warning chime sound), this light indicates that
the system control is temporarily unavailable.
When the IBA off indicator light illuminates with
the warning chime sound while the IBA system
is turned on, this light indicates that the system
may not be functioning properly. Park the ve-
hicle in a safe place. Check to see if the laser
sensor is clean. Turn the engine off, then restart
the engine.
If the IBA off indicator light illuminates after
following the procedures above, it may indicate
that the system is malfunctioning. Although the
vehicle is still driveable under normal condi-
tions, have the vehicle checked at an INFINITI
retailer. (See “INTELLIGENT BRAKE ASSIST (IBA)
SYSTEM” in the “5. Starting and driving” sec-
tion.)
Lane Departure Prevention
(LDP) ON indicator light
(green; if so equipped)
The light comes on in green when the Lane
Departure Prevention (LDP) system is turned on.
The light turns off when the system is turned
off.
NOTE:
This light is common with the lane departure
warning light (orange). (See “Lane departure
warning light” earlier in this section.)
For more details, see “LANE DEPARTURE WARN-
ING (LDW) SYSTEM/LANE DEPARTURE PREVEN-
TION (LDP) SYSTEM” in the “5. Starting and
driving” section.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come
on steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
2-18Instruments and controls

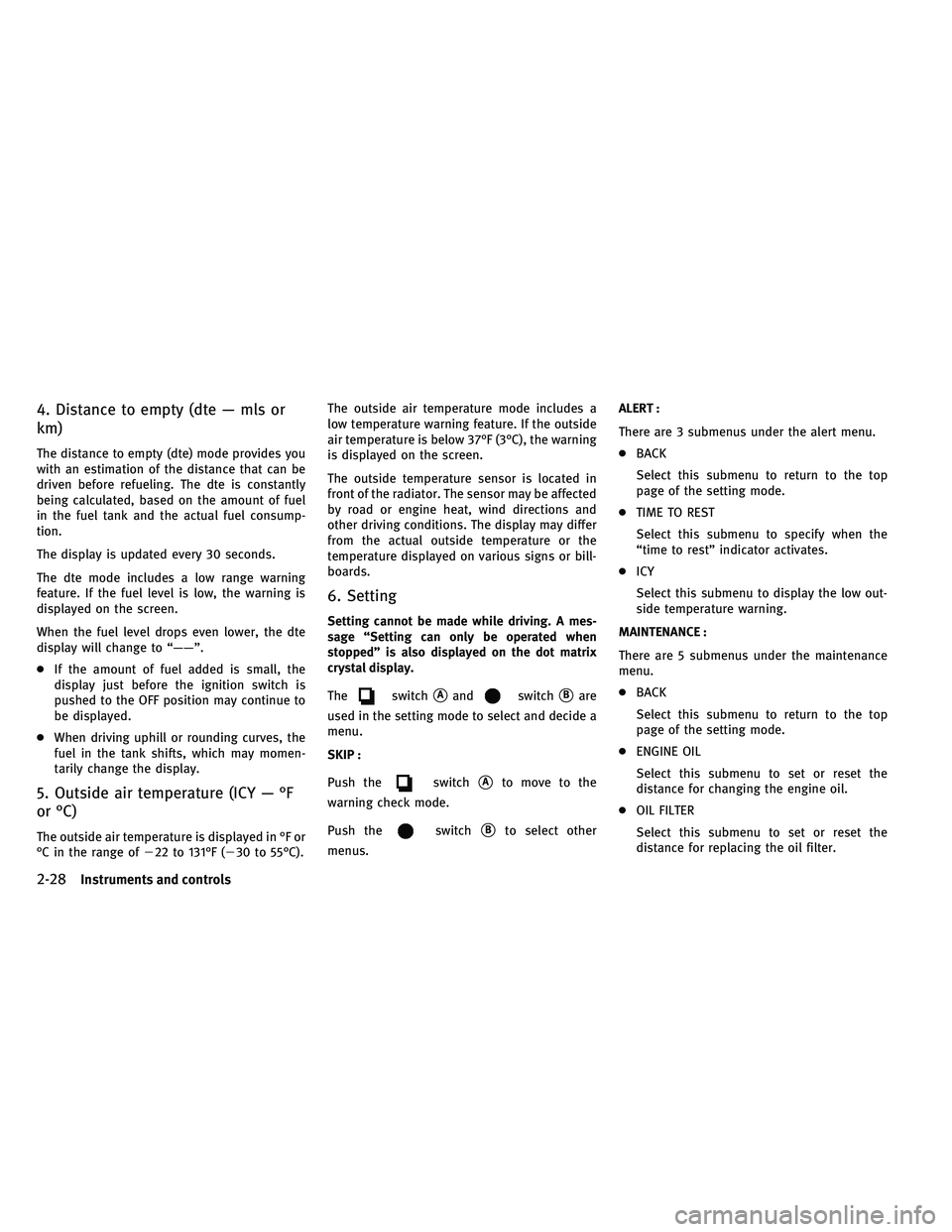

4. Distance to empty (dte — mls or
km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel
in the fuel tank and the actual fuel consump-
tion.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “——”.
●If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momen-
tarily change the display.
5. Outside air temperature (ICY — °F
or °C)
The outside air temperature is displayed in °F or
°C in the range of 22 to 131°F (30 to 55°C). The outside air temperature mode includes a
low temperature warning feature. If the outside
air temperature is below 37°F (3°C), the warning
is displayed on the screen.
The outside temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual outside temperature or the
temperature displayed on various signs or bill-
boards.
6. Setting
Setting cannot be made while driving. A mes-
sage “Setting can only be operated when
stopped” is also displayed on the dot matrix
crystal display.
The
switchAandswitchBare
used in the setting mode to select and decide a
menu.
SKIP :
Push the
switchAto move to the
warning check mode.
Push the
switchBto select other
menus. ALERT :
There are 3 submenus under the alert menu.
●
BACK
Select this submenu to return to the top
page of the setting mode.
● TIME TO REST
Select this submenu to specify when the
“time to rest” indicator activates.
● ICY
Select this submenu to display the low out-
side temperature warning.
MAINTENANCE :
There are 5 submenus under the maintenance
menu.
● BACK
Select this submenu to return to the top
page of the setting mode.
● ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
● OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
2-28Instruments and controls

If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.Be sure not to put anything on top of the photo
sensor
Alocated on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in
the neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low
beam.
3Pulling the lever toward you will flash the headlight high beam even when the
headlight switch is in the OFF position.
Battery saver system
A chime will sound when the driver side door is
opened with the light switch in theor
SAA0642ASIC3269
2-36Instruments and controls

The warning systems switch will turn on and off
the Lane Departure Warning (LDW) system, the
Blind Spot Warning (BSW) system and the For-
ward Collision Warning (FCW) system at the
same time.
The LDW system will sound a warning chime
and blink the lane departure warning light
(orange) to alert the driver if the vehicle is
traveling close to either the left or the right of a
traveling lane with detectable lane markers.
(See “LANE DEPARTURE WARNING (LDW)
SYSTEM/LANE DEPARTURE PREVENTION (LDP)
SYSTEM” in the “5. Starting and driving” sec-
tion.)The BSW system will illuminate the Blind Spot
Warning (BSW) indicator lights, located next to
the outside mirrors, when the radar sensors
detect a vehicle in the detection zone. If the turn
signal is activated in the direction of the de-
tected vehicle, a chime sounds twice and the
BSW indicator light will flash. (See “BLIND SPOT
WARNING (BSW) SYSTEM” in the “5. Starting
and driving” section.)
The FCW system will sound a warning chime
and the vehicle ahead detection indicator light
blinks to alert the driver if the vehicle is travel-
ing close to the vehicle ahead. (See “FORWARD
COLLISION WARNING (FCW) SYSTEM” in the “5.
Starting and driving” section.)
The warning systems switch is automatically
turned on when the engine is started, and the
warning systems ON indicator
1on the switch
illuminates.
To cancel the warning systems, push the warn-
ing systems switch to turn off the system. The
warning systems ON indicator will turn off. NOTE:
If you continue to push the warning systems
switch from off to on for over 4 seconds, a chime
will sound. This will change the default status of
the LDW, BSW and FCW systems to OFF so that
these systems will not automatically turn on
when the engine is started. If this procedure is
repeated, the default status will return to ON.
SSD1156
WARNING SYSTEMS SWITCH (if so
equipped)
2-42Instruments and controls

Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A: Push the
switchBto make the
inside rearview mirror operate normally and the
indicator light will turn off. Push the
switch again to turn the system on.
Type B: Push the “” switch
Cto make the
inside rearview mirror operate normally. The
indicator light will turn off. Push the “I” switch
Dto turn the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation. For the compass (if so equipped) operation, see
“COMPASS” in the “2. Instruments and con-
trols” section.
For the HomeLink
Universal Transceiver opera-
tion, see “HomeLink UNIVERSAL TRANS-
CEIVER” in the “2. Instruments and controls”
section.
Type A
SPA2422A
Type B
SPA2450
3-22Pre-driving checks and adjustments

Moving closer to a projecting object
The positionCis shown further than the
position
Bin the display. However, the posi-
tion
Cis actually at the same distance as the
position
A. The vehicle may hit the object when moving toward the position
Aif the
object projects over the actual moving course.
CAMERA AIDING CORNER SONAR
FUNCTION
When the corner of the vehicle moves closer to
the object while the Around View Monitor is
displayed, an indicator is displayed and a tone
is sounded by the corner sonar function to warn
the driver.
The color of the corner sonar indicator and the
pattern of the tone vary according to the dis-
tance to the object.
When the object is detected, the indicator
(green) appears and blinks and the tone sounds
intermittently. When the vehicle moves closer to
the object, the color of the indicator turns
yellow and the rate of the blinking and the
volume of the tone increase. When the corner of
the vehicle is very close to the object, the
indicator stops blinking and turns red, and the
tone sounds continuously.
Keep the corner sonars (located on the front
and rear bumper fascia) free from snow, ice and
large accumulations of dirt. Do not clean the
sensors with sharp objects. If the sensors are
covered, the accuracy of the corner sonar func-
tion will be diminished.
WARNING
● The corner sonar function is not designed to
prevent the object.
● The colors of the corner sonar indicator and
the distance guide lines in the
front/rearview indicate different distances
to the object.
● Inclement weather may affect the function of
the corner sonar system; this may include
reduced performance or a false activation.
● This function is designed as an aid to the
driver in detecting large stationary objects
to help avoid damaging the vehicle. The sys-
tem will not detect small objects below the
bumper, and may not detect objects close to
the bumper or on the ground.
● If your vehicle sustains damage to the bum-
per fascia, leaving it misaligned or bent, the
sensing zone may be altered causing inaccu-
rate measurement of obstacles or false
alarms.
CAUTION
Keep the interior of the vehicle as quiet as pos-
sible to hear the tone clearly.
SAA1980
4-36Monitor, climate, audio, phone and voice recognition systems
