2011 HYUNDAI VERACRUZ turn signal bulb

Features of your vehicle
76
4
D190600AUN
Turn signals and lane change sig- nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed. If the indicator contin-
ues to flash after a turn, manually return
the lever to the OFF position. To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out andwill require replacement.
✽✽
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
D190601AEN
One-touch lane change function (if equipped)
To activate an one-touch lane change
function, move the turn signal lever
slightly for less than 0.5 second and then
release it. The lane change signals will
blink 3 times. D190700AEN
Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow, etc. The fog lights will turn
on when fog light switch is pressed after
the parklight is turned on.
To turn off the fog lights, press the switch again.
OEN040066OEN046067
CAUTION
When in operation, the fog lights
consume large amounts of vehicleelectrical power. Only use the fog lights when visibility is poor.
procarmanuals.com

549
Driving your vehicle
E140401AUN
Following distance
Stay at least twice as far behind the vehi-
cle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
E140402AUN
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond the
passed vehicle before you can return to
your lane.
E140403AUN
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move your hand to the left.
To move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.E140404AUN
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well
in advance. E140405AFD
Turn signals when towing a trailer
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer are
burned out. Thus, you may think drivers
behind you are seeing your signals
when, in fact, they are not. It’s important
to check occasionally to be sure the trail-
er bulbs are still working. You must also
check the lights every time you discon-
nect and then reconnect the wires.Do not connect a trailer lighting system
directly to your vehicle’s lighting system.
Use only an approved trailer wiring har-
ness.
An authorized HYUNDAI dealer can
assist you in installing the wiring harness.
WARNING
Failure to use an approved trailer wiring harness could result in dam-
age to the vehicle electrical system
and/or personal injury.
procarmanuals.com

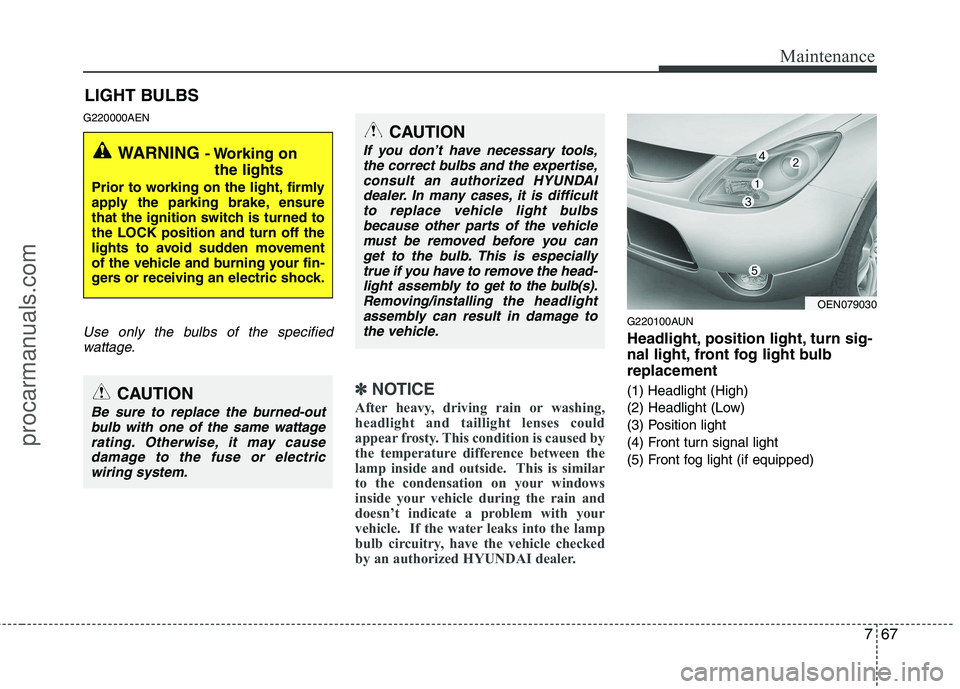

767
Maintenance
LIGHT BULBS
G220000AEN
Use only the bulbs of the specified wattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
G220100AUN
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Position light
(4) Front turn signal light
(5) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage
rating. Otherwise, it may cause damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficultto replace vehicle light bulbs because other parts of the vehicle
must be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OEN079030
procarmanuals.com

769
Maintenance
8. Install a new headlight bulb and snapthe headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
9. Connect the headlight bulb socket connector.
10. Install the headlight bulb cover by turning it clockwise.
11. Connect the power connector to the back of the headlight assembly.
12. Reinstall the headlight assembly to the body of the vehicle.
✽✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.Position light bulb
1. Remove the socket from the assembly by pulling it out.
2. Remove the bulb by pulling it straight out.
3. Insert a new bulb into the socket.
4. Install the socket into the assembly by pushing it in. Turn signal light bulb
1. Remove the socket from the assembly
by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it until the
tabs on the bulb align with the slots in
the socket. Pull the bulb out of the
socket.
3. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
4. Install the socket into the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
OEN079063OEN079064
procarmanuals.com

771
Maintenance
G220300CEN-EE
Rear combination light bulb replacement
(1) Tail light
(2) Back-up light
(3) Rear turn signal light(4) Stop and tail light
(5) Rear fog light (if equipped)Outside light
1. Open the tailgate.
2. Loosen the light assembly retainingscrews with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OEN079032
OEN079033
Type A
Type B
OEN076034
OEN076035
OEN076036
OEN076037
procarmanuals.com

Specifications & Consumer information
2
8
Item mm (in)
Overall length 4840 (190.6)
Overall width 1945 (76.6) / 1972 (77.6)* 1
Overall height 1750 (68.9) / 1795 (70.7)* 2
Front tread 1668 (65.7)
Rear tread 1671 (65.8)
Wheelbase 2805 (110.4)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55 or 35 (HID)
Front turn signal lights 21
Position lights 5
Side repeater lights* LED
Front fog lights* 55
Rear fog light* 21
Stop and tail lights 21/5 or LED
Tail light* 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* LED
License plate lights 5 Map lamps 10
Room lamps 10
Luggage lamp* 10
Glove box lamp 5
Vanity mirror lamps* 5Puddle lamps* 5
Door courtesy lamps* 15 or LED
BULB WATTAGE
* : If equipped
*
1
: with side step
* 2
: with roof rack
I010000AEN-EE
I030000AEN-EE
procarmanuals.com

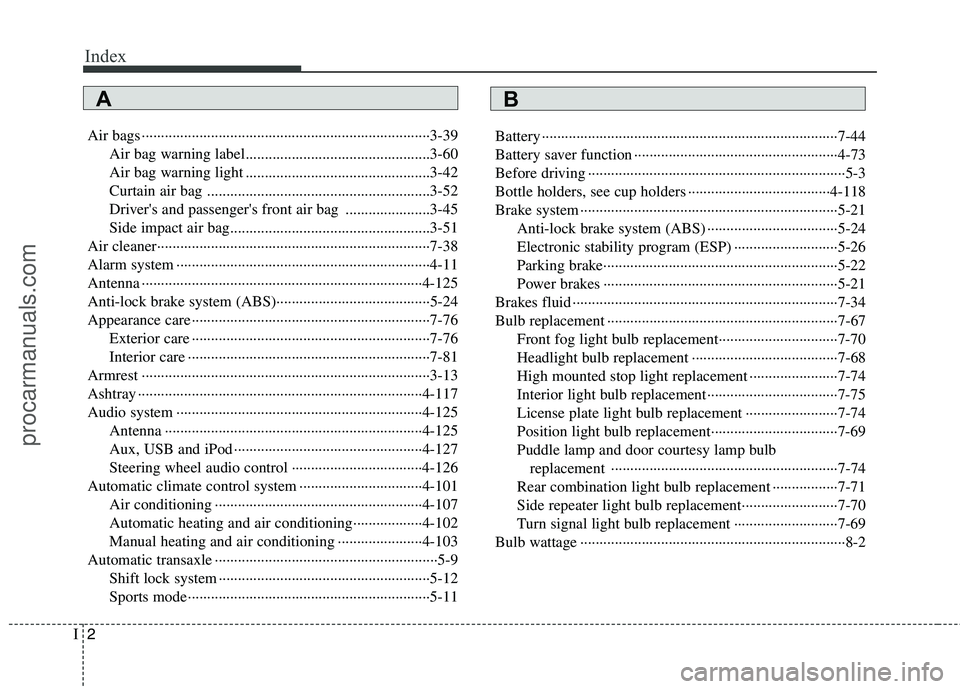

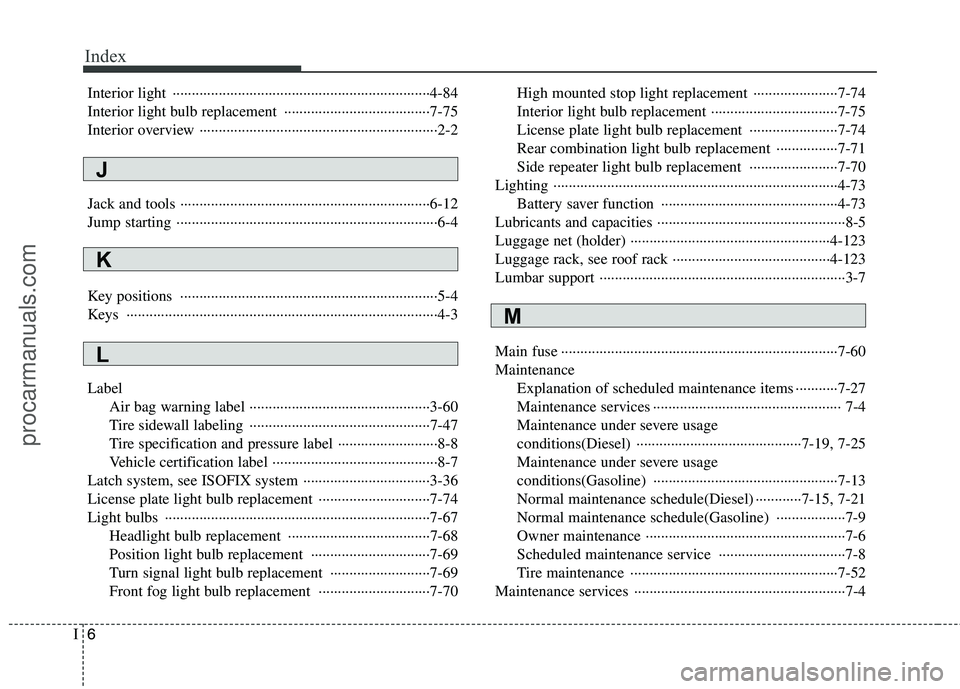

Index
2
I
Air bags ···········································································3-39
Air bag warning label................................................3-60
Air bag warning light ................................................3-42
Curtain air bag ..........................................................3-52
Driver's and passenger's front air bag ......................3-45
Side impact air bag....................................................3-51
Air cleaner·······································································7-38
Alarm system ··································································4-11
Antenna ·········································································4-125
Anti-lock brake system (ABS)········································5-24
Appearance care······························································7-76 Exterior care ······························································7-76
Interior care ·······························································7-81
Armrest ···········································································3-13
Ashtray ··········································································4-117
Audio system ································································4-125 Antenna ···································································4-125
Aux, USB and iPod ·················································4-127
Steering wheel audio control ··································4-126
Automatic climate control system ································4-101 Air conditioning ······················································4-107
Automatic heating and air conditioning··················4-102
Manual heating and air conditioning ······················4-103
Automatic transaxle ··························································5-9 Shift lock system ·······················································5-12
Sports mode·······························································5-11 Battery ·············································································7-44
Battery saver function ·····················································4-73
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-118
Brake system ···································································5-21
Anti-lock brake system (ABS) ··································5-24
Electronic stability program (ESP) ···························5-26
Parking brake·····························································5-22
Power brakes ·····························································5-21
Brakes fluid ·····································································7-34
Bulb replacement ····························································7-67 Front fog light bulb replacement·······························7-70
Headlight bulb replacement ······································7-68
High mounted stop light replacement ·······················7-74
Interior light bulb replacement··································7-75
License plate light bulb replacement ························7-74
Position light bulb replacement·································7-69
Puddle lamp and door courtesy lamp bulb replacement ···························································7-74
Rear combination light bulb replacement ·················7-71
Side repeater light bulb replacement·························7-70
Turn signal light bulb replacement ···························7-69
Bulb wattage ·····································································8-2
AB
procarmanuals.com

Index
6
I
Interior light ···································································4-84
Interior light bulb replacement ······································7-75
Interior overview ······························································2-2
Jack and tools ·································································6-12
Jump starting ····································································6-4
Key positions ···································································5-4
Keys ·················································································4-3 Label
Air bag warning label ···············································3-60
Tire sidewall labeling ···············································7-47
Tire specification and pressure label ··························8-8
Vehicle certification label ···········································8-7
Latch system, see ISOFIX system ·································3-36
License plate light bulb replacement ·····························7-74
Light bulbs ·····································································7-67 Headlight bulb replacement ·····································7-68
Position light bulb replacement ·······························7-69
Turn signal light bulb replacement ··························7-69
Front fog light bulb replacement ·····························7-70 High mounted stop light replacement ······················7-74
Interior light bulb replacement ·································7-75
License plate light bulb replacement ·······················7-74
Rear combination light bulb replacement ················7-71
Side repeater light bulb replacement ·······················7-70
Lighting ··········································································4-73 Battery saver function ··············································4-73
Lubricants and capacities ·················································8-5Luggage net (holder) ····················································4-123
Luggage rack, see roof rack ·········································4-123
Lumbar support ································································3-7
Main fuse ········································································7-60 Maintenance Explanation of scheduled maintenance items ···········7-27Maintenance services ················································· 7-4
Maintenance under severe usage
conditions(Diesel) ···········································7-19, 7-25
Maintenance under severe usage conditions(Gasoline) ················································7-13 Normal maintenance schedule(Diesel) ············7-15, 7-21
Normal maintenance schedule(Gasoline) ··················7-9
Owner maintenance ····················································7-6
Scheduled maintenance service ·································7-8
Tire maintenance ······················································7-52
Maintenance services ·······················································7-4
L
M
K
J
procarmanuals.com
