Features of your vehicle
76
4
D190600AUN
Turn signals and lane change sig- nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed. If the indicator contin-
ues to flash after a turn, manually return
the lever to the OFF position. To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out andwill require replacement.
✽✽
NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
D190601AEN
One-touch lane change function (if equipped)
To activate an one-touch lane change
function, move the turn signal lever
slightly for less than 0.5 second and then
release it. The lane change signals will
blink 3 times. D190700AEN
Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow, etc. The fog lights will turn
on when fog light switch is pressed after
the parklight is turned on.
To turn off the fog lights, press the switch again.
OEN040066OEN046067
CAUTION
When in operation, the fog lights
consume large amounts of vehicleelectrical power. Only use the fog lights when visibility is poor.
procarmanuals.com

767
Maintenance
LIGHT BULBS
G220000AEN
Use only the bulbs of the specified wattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
G220100AUN
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Position light
(4) Front turn signal light
(5) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage
rating. Otherwise, it may cause damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficultto replace vehicle light bulbs because other parts of the vehicle
must be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OEN079030
procarmanuals.com

Maintenance
70
7
G220103AEN
Front fog light bulb replacement
1. Remove the front bumper under cover
and reach your hand into the back of
the front bumper.
2. Disconnect the power connector from the socket.
3. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
4. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
5. Connect the power connector to the socket.
6. Reinstall the front bumper under cover. G220102BEN
Headlight (HID type) bulb replace-
ment
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
✽✽ NOTICE
HID lamps have superior performance vs.
halogen bulbs. HID lamps are estimated by
the manufacturer to last twice as long or
longer than halogen bulbs depending on their
frequency of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID lamps
life. HID lamps do not fail in the same man-
ner as halogen incandescent lamps. If a head-
lamp goes out after a period of operation but
will immediately relight when the headlamp
switch is cycled it is likely the HID lamp needs
to be replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
G220200AEN
Side repeater light bulb replace- ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer
OEN079061OEN076031
procarmanuals.com

771
Maintenance
G220300CEN-EE
Rear combination light bulb replacement
(1) Tail light
(2) Back-up light
(3) Rear turn signal light(4) Stop and tail light
(5) Rear fog light (if equipped)Outside light
1. Open the tailgate.
2. Loosen the light assembly retainingscrews with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
OEN079032
OEN079033
Type A
Type B
OEN076034
OEN076035
OEN076036
OEN076037
procarmanuals.com

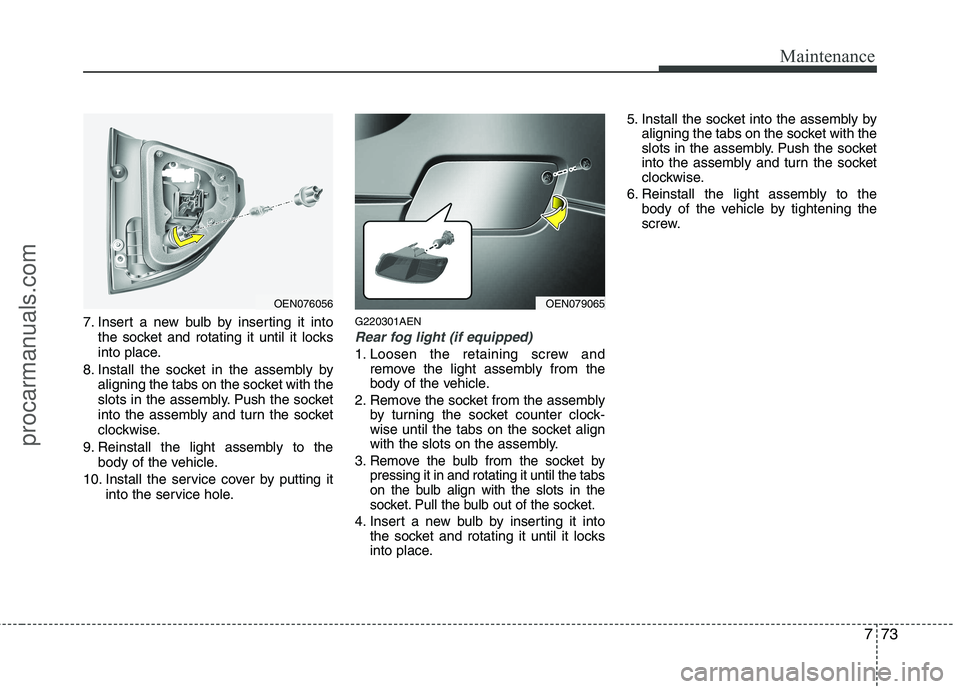

773
Maintenance
7. Insert a new bulb by inserting it intothe socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
9. Reinstall the light assembly to the body of the vehicle.
10. Install the service cover by putting it into the service hole. G220301AENRear fog light (if equipped)
1. Loosen the retaining screw and
remove the light assembly from the
body of the vehicle.
2. Remove the socket from the assembly by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the assembly.
3.
Remove the bulb from the socket bypressing it in and rotating it until the tabs
on the bulb align with the slots in the
socket. Pull the bulb out of the socket.
4. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place. 5. Install the socket into the assembly by
aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
6. Reinstall the light assembly to the body of the vehicle by tightening the
screw.
OEN076056OEN079065
procarmanuals.com

Specifications & Consumer information
2
8
Item mm (in)
Overall length 4840 (190.6)
Overall width 1945 (76.6) / 1972 (77.6)* 1
Overall height 1750 (68.9) / 1795 (70.7)* 2
Front tread 1668 (65.7)
Rear tread 1671 (65.8)
Wheelbase 2805 (110.4)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55 or 35 (HID)
Front turn signal lights 21
Position lights 5
Side repeater lights* LED
Front fog lights* 55
Rear fog light* 21
Stop and tail lights 21/5 or LED
Tail light* 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* LED
License plate lights 5 Map lamps 10
Room lamps 10
Luggage lamp* 10
Glove box lamp 5
Vanity mirror lamps* 5Puddle lamps* 5
Door courtesy lamps* 15 or LED
BULB WATTAGE
* : If equipped
*
1
: with side step
* 2
: with roof rack
I010000AEN-EE
I030000AEN-EE
procarmanuals.com

Index
2
I
Air bags ···········································································3-39
Air bag warning label................................................3-60
Air bag warning light ................................................3-42
Curtain air bag ..........................................................3-52
Driver's and passenger's front air bag ......................3-45
Side impact air bag....................................................3-51
Air cleaner·······································································7-38
Alarm system ··································································4-11
Antenna ·········································································4-125
Anti-lock brake system (ABS)········································5-24
Appearance care······························································7-76 Exterior care ······························································7-76
Interior care ·······························································7-81
Armrest ···········································································3-13
Ashtray ··········································································4-117
Audio system ································································4-125 Antenna ···································································4-125
Aux, USB and iPod ·················································4-127
Steering wheel audio control ··································4-126
Automatic climate control system ································4-101 Air conditioning ······················································4-107
Automatic heating and air conditioning··················4-102
Manual heating and air conditioning ······················4-103
Automatic transaxle ··························································5-9 Shift lock system ·······················································5-12
Sports mode·······························································5-11 Battery ·············································································7-44
Battery saver function ·····················································4-73
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-118
Brake system ···································································5-21
Anti-lock brake system (ABS) ··································5-24
Electronic stability program (ESP) ···························5-26
Parking brake·····························································5-22
Power brakes ·····························································5-21
Brakes fluid ·····································································7-34
Bulb replacement ····························································7-67 Front fog light bulb replacement·······························7-70
Headlight bulb replacement ······································7-68
High mounted stop light replacement ·······················7-74
Interior light bulb replacement··································7-75
License plate light bulb replacement ························7-74
Position light bulb replacement·································7-69
Puddle lamp and door courtesy lamp bulb replacement ···························································7-74
Rear combination light bulb replacement ·················7-71
Side repeater light bulb replacement·························7-70
Turn signal light bulb replacement ···························7-69
Bulb wattage ·····································································8-2
AB
procarmanuals.com

Index
4
I
Central door lock switch ··········································4-14
Child-protector rear door lock ·································4-16
Drinks holders, see cup holders ···································4-118
Driver's air bag ·······························································3-45
Driving at night ······························································5-38
Driving in flooded areas ················································5-39
Driving in the rain ··························································5-39
Economical operation ····················································5-35
Electric chromic mirror (ECM) ·····································4-41
Electric power steering ··················································4-42
Emergency starting ··························································6-4 Jump starting ······························································6-4
Push starting ·······························································6-5
Emergency tailgate safety release ··································4-18
Emergency towing ·························································6-23
Emergency while driving ·················································6-2
Emergency commodity ··················································6-26
Emission control system ················································7-82 Crankcase emission control system ·························7-82
Evaporative emission control system ·······················7-82
Exhaust emission control system ·····························7-83
Engine compartment ················································2-4, 7-2
Engine coolant ·······························································7-31
Engine number ·································································8-8
Engine oil ·······································································7-30 Engine overheats ······························································6-6
Engine temperature gauge ·············································4-51
Engine will not start ·························································6-3
Evaporative emission control system ····························7-82
Exhaust emission control system ···································7-83Explanation of scheduled maintenance items ················7-27
Exterior care ···································································7-76
Exterior features ···························································4-123
Roof rack ································································4-123
Flat tire ···········································································6-12 Changing tires ··························································6-14
Compact spare tire ···················································6-19
Jack and tools ···························································6-12
Removing and storing the spare tire ························6-13
Floor mat anchor(s) ·····················································4-122Fluid Washer fluid ······························································7-36
Brakes fluid ·······························································7-34
Folding the rear seat ······················································3-16
Four wheel drive (4WD) ················································5-14
Front fog light bulb replacement ···································7-70Front seat adjustment - manual ········································3-4
Front seat adjustment - power ··········································3-9
Fuel filler lid ··································································4-30
Fuel filter (for diesel) ·····················································7-37
E
F
procarmanuals.com
