Maintenance
48
7
✽✽
NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.

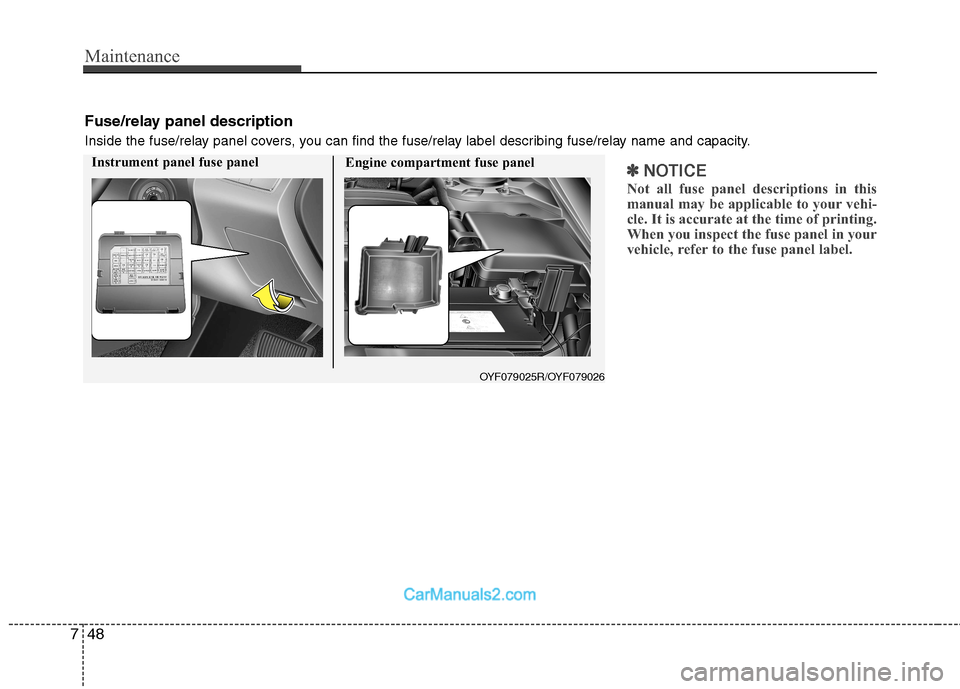

Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Engine compartment fuse panel
OYF079025R/OYF079026
Instrument panel fuse panel

749
Maintenance

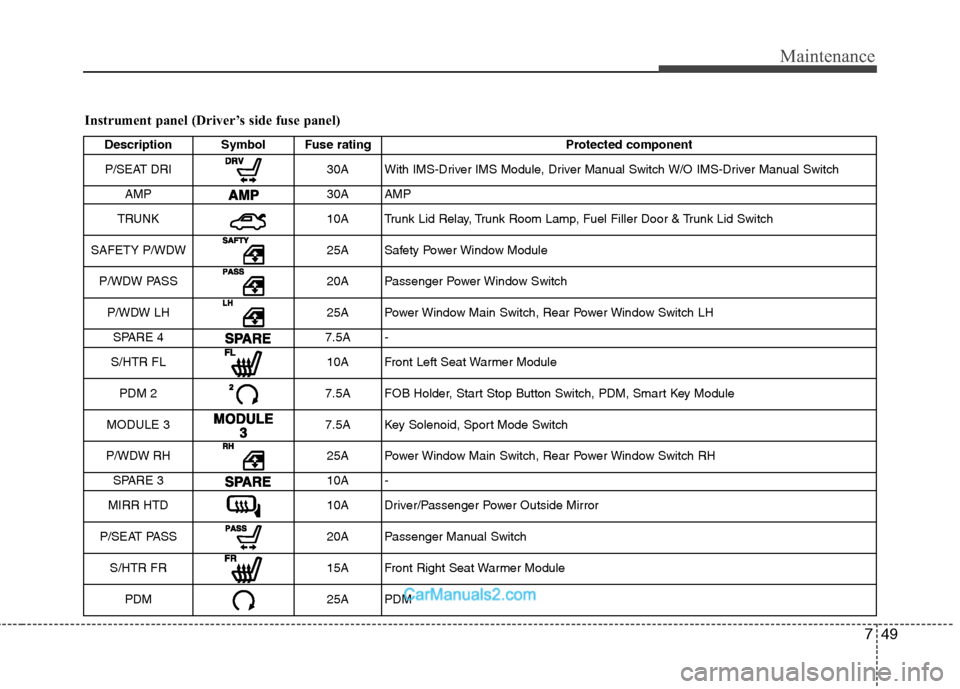

Instrument panel (Driver’s side fuse panel)Description Symbol Fuse rating Protected component
P/SEAT DRI
30A With IMS-Driver IMS Module, Driver Manual Switch W/O IMS-Driver Manual Switch
AMP
30A AMP
TRUNK
10A Trunk Lid Relay, Trunk Room Lamp, Fuel Filler Door & Trunk Lid Switch
SAFETY P/WDW
25A Safety Power Window Module
P/WDW PASS
20A Passenger Power Window Switch
P/WDW LH
25A Power Window Main Switch, Rear Power Window Switch LH
SPARE 4
7.5A -
S/HTR FL
10A Front Left Seat Warmer Module
PDM 2
7.5A FOB Holder, Start Stop Button Switch, PDM, Smart Key Module
MODULE 3
7.5A Key Solenoid, Sport Mode Switch
P/WDW RH
25A Power Window Main Switch, Rear Power Window Switch RH
SPARE 3
10A -
MIRR HTD
10A Driver/Passenger Power Outside Mirror
P/SEAT PASS
20A Passenger Manual Switch
S/HTR FR
15A Front Right Seat Warmer Module
PDM
25A PDM

Maintenance
50
7
Description Symbol Fuse rating Protected component
I.O.D
POWER
CONNECTOR
10A Power Outside Mirror Switch, Instrument Cluster, Driver/Passenger Door Lamp, Driver
IMS Module, Ignition Key ILL. & Door Warning Switch, BCM, A/C Control Module, Room
Lamp, Front Monitor, Glove Box Lamp, Data Link Connector, IMS Switch, Vanity Lamp
LH/RH, Auto Light & Photo Sensor, RF Receiver, Overhead Console Lamp, Clock
AUDIO
POWER
CONNECTOR
15A Audio
CLOCK
10A BCM, Clock, Front Monitor, Smart Key Module, PDM, Audio, Power Outside Mirror
Switch, AMP, Overhead Console Lamp
SPARE 1
10A -
A/CON
7.5A A/C Control Module, E/R Fuse & Relay Box(RLY.14)
S/HTR RR
20A Rear Seat Warmer Switch LH/RH
S/ROOF
20A Panorama Sunroof
P/OUTLET
15A Front Power Outlet #2
MODULE 2
7.5A BCM
WIPER
25A E/R Fuse & Relay Box(RLY.11/RLY.12), Front Wiper Motor, Multifunction Switch(Wiper)
MODULE 5
7.5A Driver IMS Module, Panorama Sunroof, PDM, Rain Sensor
DR LOCK
20A Door Lock/Unlock Relay
C/LIGHTER
15A Front Power Outlet #1, Cigarette Lighter

751
Maintenance
Description Symbol Fuse rating Protected componentMODULE 1
7.5A Instrument Cluster(ON/START Input), Clock, Sport Mode Switch IND., Electro Chromic
Mirror, Auto Head Lamp Levelling Device Module(Auto), Head Lamp Levelling Device
Switch(Manual), Head Lamp Levelling Device Actuator LH/RH, Rear Parking Assist
Sensor Side LH/RH, Audio, Rear Parking Assist Sensor Centre LH/RH, Driver/Passenger
Seat Warmer Module, BCM, Seat Belt Reminder Indicator(Australia)
IG 1
20A E/R Fuse & Relay Box (Fuse - F10 /F11 /F12 /F13)
--- -
A/BAG
15A SRS Control Module
START 1
7.5A W/O Smart Key-Ignition Lock Switch, Burglar Alarm Relay, E/R Fuse & Relay Box(RLY. 3)
With Smart Key-PCM, PDM
MDPS
10A Yaw Rate Sensor, Steering Angle Sensor, ESP Off Switch
PDM 3
7.5A PDM, Smart Key Module
SPARE 2
10A -
A/BAG IND.
7.5A Instrument Cluster(IND.)

Maintenance
52
7
Description Symbol Fuse rating Protected component
MULTI FUSE
60A I/P Junction Box (Fuse - F23 / F28, IPS Control Module - IPS 1 /IPS 4 /IPS 6 /IPS 7 /IPS
9, Power Connector - F17)
60AI/P Junction Box (Fuse - F3 / F4 / F10 / F15 /F16, Power Connector - F18, Power
Window Relay)
40A W/O Smart Key - Ignition Switch, With Smart Key - RLY. 1 (ACC Relay), RLY. 9 (IG1 Relay)
40A ESP Control Module, ABS Control Module
40A RLY. 2 (Rear Defogger Relay)
40A RLY. 14 (Blower Relay)
60AI/P Junction Box (Fuse - F1 / F2 / F9 / F14, IPS Control Module - IPS 2 /IPS 3 /IPS 5 /IPS 8)
80A -
FUSE
10A A/C Control Module (Auto)
10A Back-up Lamp Switch (M/T), RLY. 8 (Back-up Lamp Relay) (A/T)
10A ESP Control Module, ABS Control Module, RLY. 13 (HAC Relay)
15A Vehicle Speed Sensor (M/T), Transaxle Range Switch (A/T), RLY. 6 (Start2 Relay)
10A Stop Lamp Switch, PCM
30A W/O Smart Key - Ignition Switch, RLY. 3 (Start1 Relay), With Smart Key - RLY. 3 (Start1
Relay), RLY. 10 (IG2 Relay)
-- -
-- -
40A EMS Box (Fuse - F35/ F36/ F37/ F38)

753
Maintenance

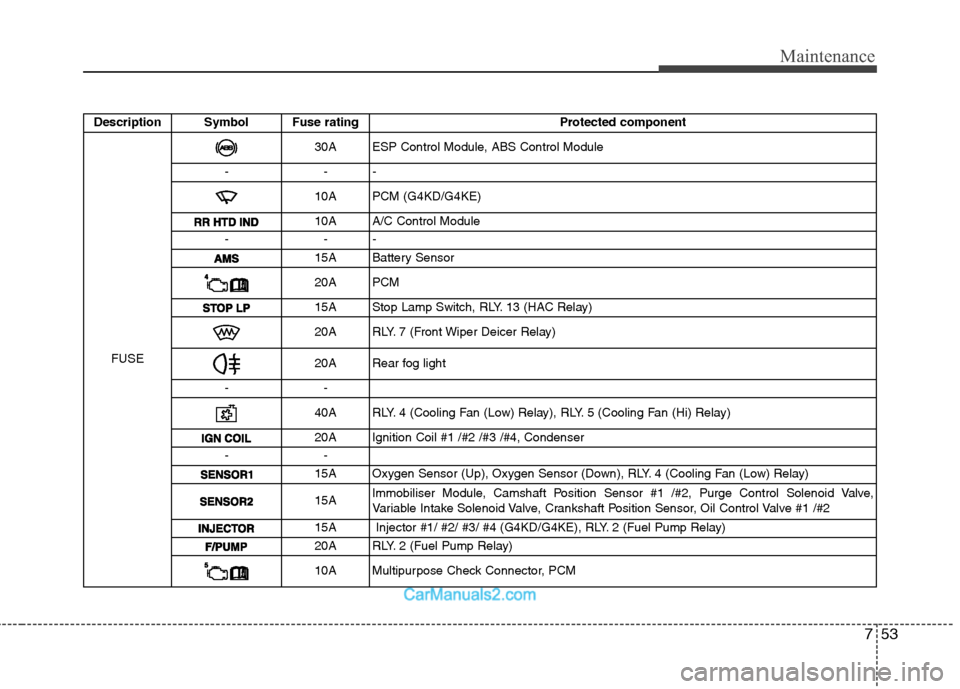

Description Symbol Fuse ratingProtected component
FUSE
30A ESP Control Module, ABS Control Module
-- -
10A PCM (G4KD/G4KE)
10A A/C Control Module
-- -
15A Battery Sensor
20A PCM
15A Stop Lamp Switch, RLY. 13 (HAC Relay)
20A RLY. 7 (Front Wiper Deicer Relay)
20A Rear fog light
--
40A RLY. 4 (Cooling Fan (Low) Relay), RLY. 5 (Cooling Fan (Hi) Relay)
20A Ignition Coil #1 /#2 /#3 /#4, Condenser
--
15A Oxygen Sensor (Up), Oxygen Sensor (Down), RLY. 4 (Cooling Fan (Low) Relay)
15A Immobiliser Module, Camshaft Position Sensor #1 /#2, Purge Control Solenoid Valve,
Variable Intake Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1 /#2
15A Injector #1/ #2/ #3/ #4 (G4KD/G4KE), RLY. 2 (Fuel Pump Relay)
20A RLY. 2 (Fuel Pump Relay)
10A Multipurpose Check Connector, PCM

Maintenance
54
7

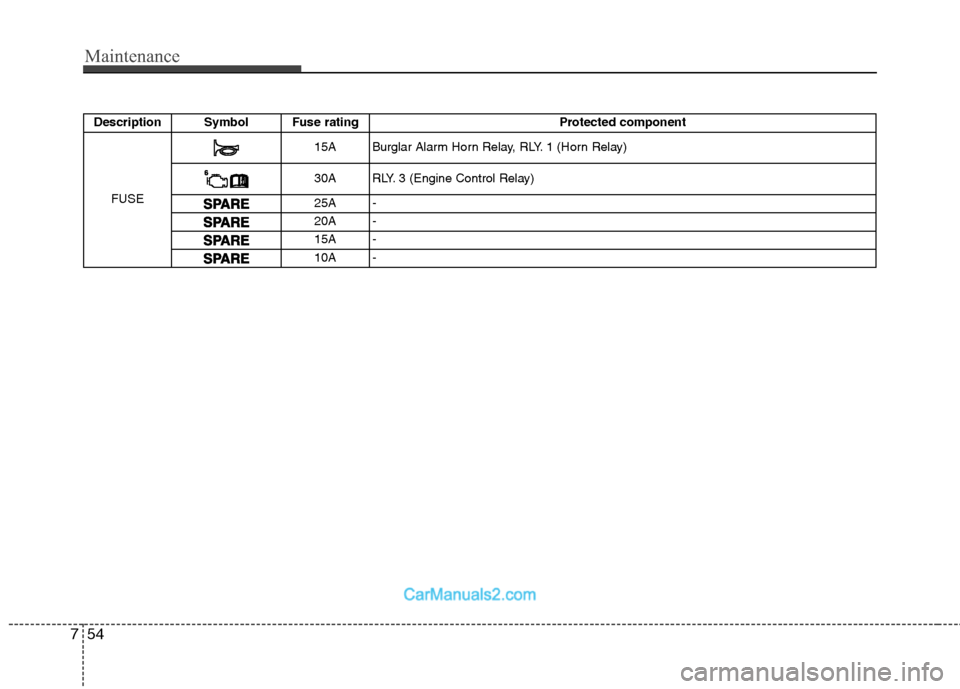

Description Symbol Fuse rating Protected component
FUSE
15A Burglar Alarm Horn Relay, RLY. 1 (Horn Relay)
30A RLY. 3 (Engine Control Relay)
25A -
20A -
15A -
10A -

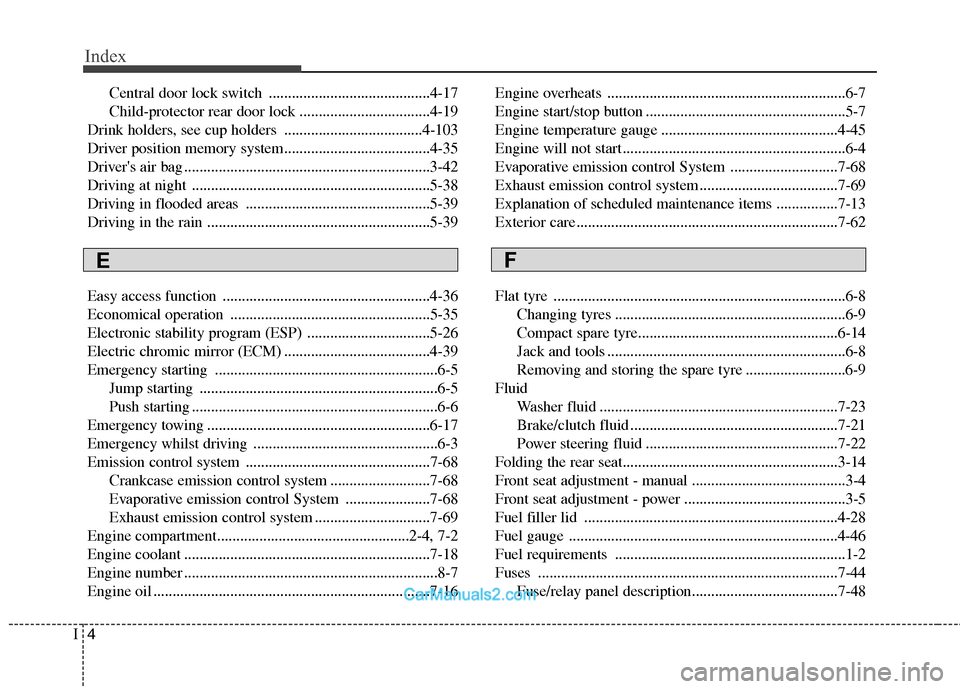

Index
