Features of your vehicle
38
4
3. Setting the compass zone
1. Find your current location and vari-
ance zone number on the zone map.
2. Press and hold the button for more than 6 but less than 9 seconds. The
current zone number will appear in the
display.
3. Press the button until the new zone number appears in the display. After
you stop pressing the button in, the
display will show a compass direction
within a few seconds. 4. Changing Mirror Angle setting
(if equipped):
Due to mirror positions being angled
towards the driver, the compass mirror
can also compensate for drivers seated
on the Left Hand side of the vehicle
(steering wheel on the LH side of the
vehicle) or Right Hand side of the vehicle
(steering wheel on the RH side of the
vehicle).
To adjust the Left Hand, “L” or Right
Hand, “R”, setting:
1. Press and hold the button for more than 12 seconds.
2. Release then press the button to tog- gle between “L” and “R”.
✽✽ NOTICE
This procedure also causes the compass
to be de-calibrated.
3. To re-calibrate the compass, drive the vehicle in 2 complete circles at less than 8km/h (5mph).
CAUTION
1. Do not install the ski rack, anten-
na, etc. which are attached to thevehicle by means of a magnet.They affect the operation of the compass.
2. If the compass deviates from the correct indication soon afterrepeated adjustment, have thecompass checked at an author- ized HYUNDAI dealer.
3. The compass may not indicate the correct compass point in tun-nels or while driving up or down asteep hill.
(The compass returns to the cor-rect compass point when the
vehicle moves to an area wherethe geomagnetism is stabilized.)
4. When cleaning the mirror, use a paper towel or similar material
dampened with glass cleaner. Donot spray glass cleaner directly on the mirror as that may causethe liquid cleaner to enter the mir-
ror housing.

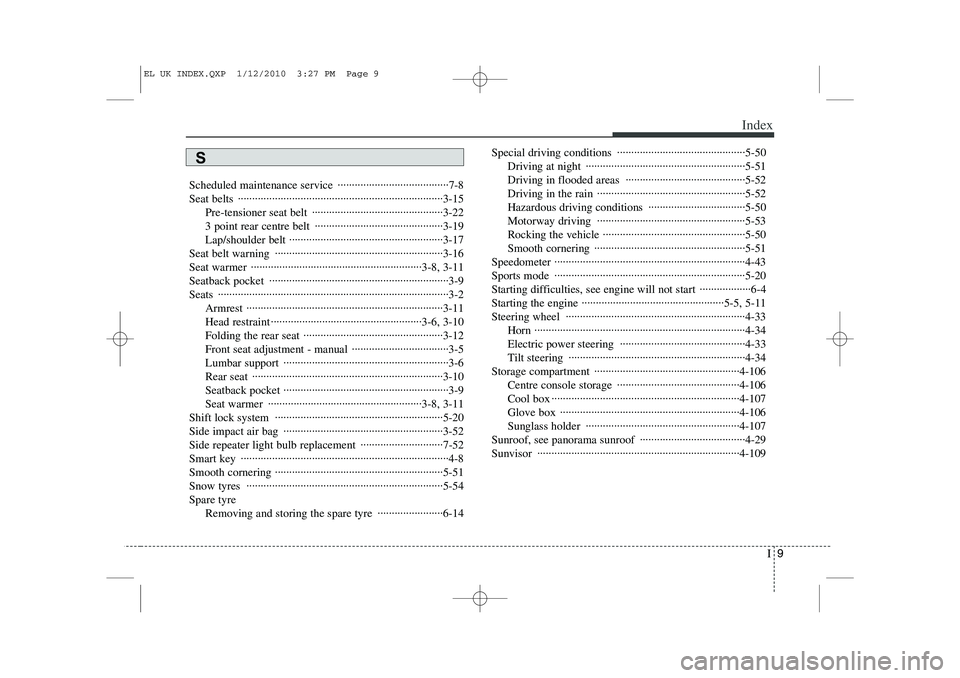

I9
Index
Scheduled maintenance service ·······································7-8
Seat belts ········································································3-15
Pre-tensioner seat belt ··············································3-22
3 point rear centre belt ·············································3-19
Lap/shoulder belt ······················································3-17
Seat belt warning ···························································3-16
Seat warmer ····························································3-8, 3-11
Seatback pocket ·······························································3-9Seats ·················································································3-2 Armrest ·····································································3-11
Head restraint ·····················································3-6, 3-10
Folding the rear seat ·················································3-12
Front seat adjustment - manual ··································3-5
Lumbar support ··························································3-6
Rear seat ···································································3-10
Seatback pocket ··························································3-9
Seat warmer ······················································3-8, 3-11
Shift lock system ···························································5-20
Side impact air bag ························································3-52
Side repeater light bulb replacement ·····························7-52
Smart key ·········································································4-8
Smooth cornering ···························································5-51
Snow tyres ·····································································5-54Spare tyre Removing and storing the spare tyre ·······················6-14 Special driving conditions ·············································5-50
Driving at night ························································5-51
Driving in flooded areas ··········································5-52
Driving in the rain ····················································5-52
Hazardous driving conditions ··································5-50
Motorway driving ····················································5-53
Rocking the vehicle ··················································5-50
Smooth cornering ·····················································5-51
Speedometer ···································································4-43
Sports mode ···································································5-20
Starting difficulties, see engine will not start ··················6-4
Starting the engine ··················································5-5, 5-11
Steering wheel ·······························································4-33 Horn ··········································································4-34
Electric power steering ············································4-33
Tilt steering ······························································4-34
Storage compartment ···················································4-106 Centre console storage ···········································4-106
Cool box ··································································4-107
Glove box ·······························································4-106
Sunglass holder ······················································4-107
Sunroof, see panorama sunroof ·····································4-29Sunvisor ·······································································4-109
S
EL UK INDEX.QXP 1/12/2010 3:27 PM Page 9

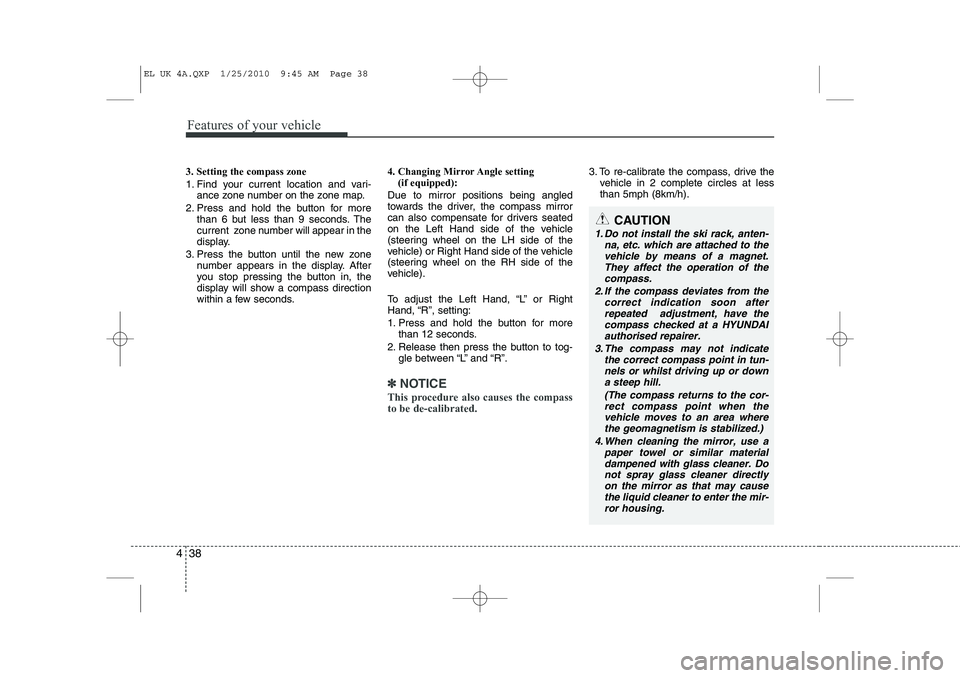

Features of your vehicle
38
4
3. Setting the compass zone
1. Find your current location and vari-
ance zone number on the zone map.
2. Press and hold the button for more than 6 but less than 9 seconds. The
current zone number will appear in the
display.
3. Press the button until the new zone number appears in the display. After
you stop pressing the button in, the
display will show a compass direction
within a few seconds. 4. Changing Mirror Angle setting
(if equipped):
Due to mirror positions being angled
towards the driver, the compass mirror
can also compensate for drivers seated
on the Left Hand side of the vehicle
(steering wheel on the LH side of the
vehicle) or Right Hand side of the vehicle
(steering wheel on the RH side of the
vehicle).
To adjust the Left Hand, “L” or Right
Hand, “R”, setting:
1. Press and hold the button for more than 12 seconds.
2. Release then press the button to tog- gle between “L” and “R”.
✽✽ NOTICE
This procedure also causes the compass to be de-calibrated.
3. To re-calibrate the compass, drive the vehicle in 2 complete circles at less than 5mph (8km/h).
CAUTION
1. Do not install the ski rack, anten-
na, etc. which are attached to thevehicle by means of a magnet. They affect the operation of thecompass.
2. If the compass deviates from the correct indication soon afterrepeated adjustment, have the compass checked at a HYUNDAI
authorised repairer.
3. The compass may not indicate the correct compass point in tun-nels or whilst driving up or downa steep hill.
(The compass returns to the cor-rect compass point when thevehicle moves to an area wherethe geomagnetism is stabilized.)
4. When cleaning the mirror, use a paper towel or similar materialdampened with glass cleaner. Do not spray glass cleaner directlyon the mirror as that may cause the liquid cleaner to enter the mir-
ror housing.
EL UK 4A.QXP 1/25/2010 9:45 AM Page 38
