Features of your vehicle
72
4
To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when released. The
headlight switch does not need to be on
to use this flashing feature. Turn signals and lane change sig- nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). The green arrow indicators on the
instrument panel indicate which turn sig-
nal is operating. They will self-cancel
after a turn is completed. If the indicator
continues to flash after a turn, manually
return the lever to the off position.To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the off positionwhen released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out andwill require replacement.
One-touch lane change function
(if equipped)
To activate an one-touch lane change
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3 times.
✽✽ NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
OED040804OED040802
JC ENG 4A.QXP 9/7/2010 11:40 AM Page 72
procarmanuals.com

557
Driving your vehicle

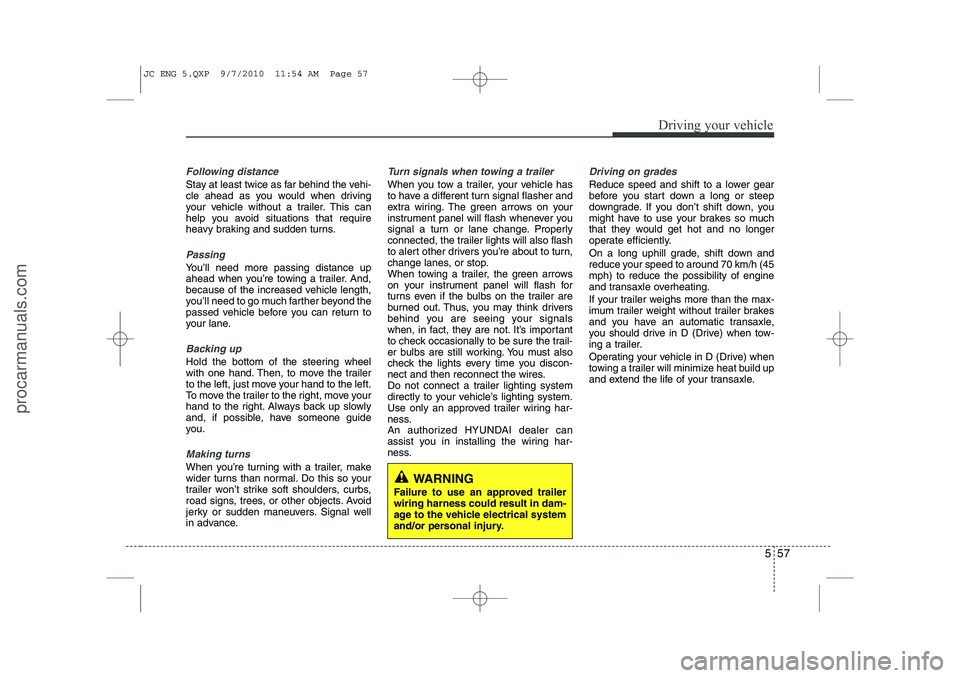

Following distance
Stay at least twice as far behind the vehi-
cle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer. And,
because of the increased vehicle length,
you’ll need to go much farther beyond the
passed vehicle before you can return to
your lane.
Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the trailer
to the left, just move your hand to the left.
To move the trailer to the right, move your
hand to the right. Always back up slowly
and, if possible, have someone guide
you.
Making turns
When you’re turning with a trailer, make
wider turns than normal. Do this so your
trailer won’t strike soft shoulders, curbs,
road signs, trees, or other objects. Avoid
jerky or sudden maneuvers. Signal well
in advance.
Turn signals when towing a trailer
When you tow a trailer, your vehicle has
to have a different turn signal flasher and
extra wiring. The green arrows on your
instrument panel will flash whenever you
signal a turn or lane change. Properly
connected, the trailer lights will also flash
to alert other drivers you’re about to turn,
change lanes, or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer are
burned out. Thus, you may think drivers
behind you are seeing your signals
when, in fact, they are not. It’s important
to check occasionally to be sure the trail-
er bulbs are still working. You must also
check the lights every time you discon-
nect and then reconnect the wires.
Do not connect a trailer lighting system
directly to your vehicle’s lighting system.
Use only an approved trailer wiring har-
ness.
An authorized HYUNDAI dealer can
assist you in installing the wiring har-
ness.
Driving on grades
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift down, you
might have to use your brakes so much
that they would get hot and no longer
operate efficiently.
On a long uphill grade, shift down and
reduce your speed to around 70 km/h (45mph) to reduce the possibility of engine
and transaxle overheating.
If your trailer weighs more than the max-
imum trailer weight without trailer brakes
and you have an automatic transaxle,
you should drive in D (Drive) when tow-
ing a trailer.
Operating your vehicle in D (Drive) when
towing a trailer will minimize heat build up
and extend the life of your transaxle.
WARNING
Failure to use an approved trailer wiring harness could result in dam-
age to the vehicle electrical system
and/or personal injury.
JC ENG 5.QXP 9/7/2010 11:54 AM Page 57
procarmanuals.com

771
Maintenance

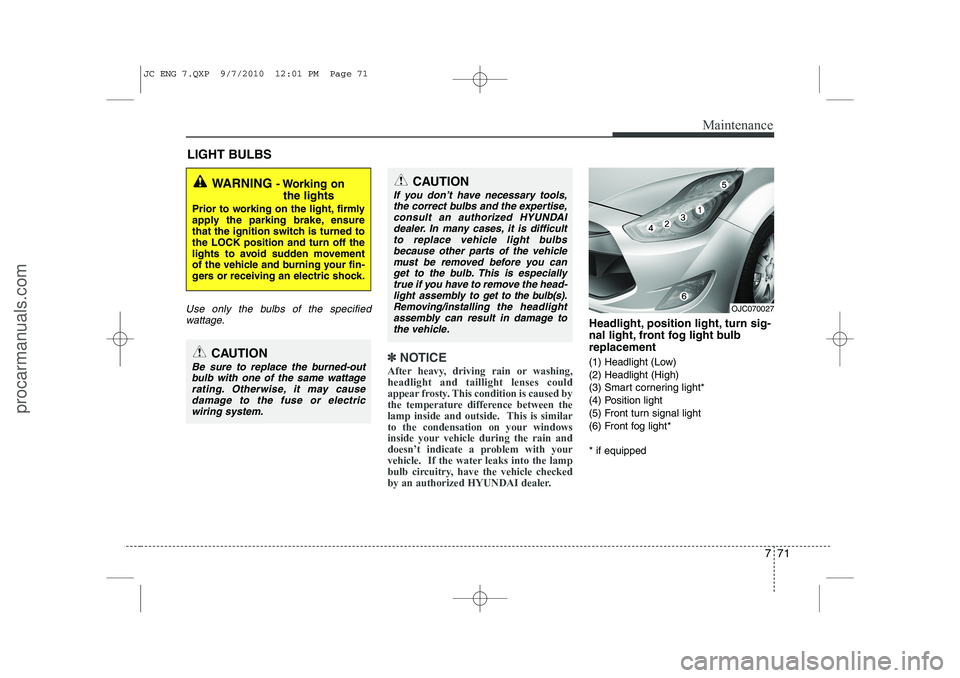

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After heavy, driving rain or washing, headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (Low) (2) Headlight (High)
(3) Smart cornering light*
(4) Position light
(5) Front turn signal light
(6) Front fog light* * if equipped
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattagerating. Otherwise, it may cause
damage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficult to replace vehicle light bulbsbecause other parts of the vehicle
must be removed before you canget to the bulb. This is especially true if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OJC070027
JC ENG 7.QXP 9/7/2010 12:01 PM Page 71
procarmanuals.com

773
Maintenance
2. Remove the headlight bulb cover byturning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket connector.
8. Install the headlight bulb cover by turn- ing it clockwise. Position light
1. Remove the headlight bulb cover by
turning it counterclockwise.
2. Remove the socket from the assembly by pulling it out.
3. Remove the bulb by pulling it straight out.
4. Insert a new bulb into the socket.
5. Install the socket into the assembly by pushing it in.
Turn signal light
1. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket
3. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
4. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
OJC070032OJC070029
JC ENG 7.QXP 9/7/2010 12:02 PM Page 73
procarmanuals.com

775
Maintenance
Type B
1. Remove the light assembly from thevehicle by pushing the lens forward
and pulling the assembly out.
2. Disconnect the bulb electrical connec- tor.
3. Separate the socket and the lens parts by turning the socket counter clock-
wise until the tabs on the socket align
with the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the light assembly to the body of the vehicle. Rear combination light bulb replacement (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
(4) Tail light
(5) Rear fog light
1. Open the tailgate.Outside
2-1. Loosen the outside light assemblyretaining screws with a cross-tip
screwdriver.
2-2. Remove the rear combination light assembly from the body of the vehi-
cle.
OJC070036
OJC070037
OJC070038
OYN079051
JC ENG 7.QXP 9/7/2010 12:02 PM Page 75
procarmanuals.com

Specifications & Consumer information
2
8
ENGINE DIMENSIONS
Item mm (in.)
Overall length 4100 (161.42)
Overall width 1765 (69.49)
Overall height 1600 (62.99)
Front tread 195/65R15 1553 (61.14)
205/55R16 1547 (60.91)
205/50R17 1541 (60.67)
Rear tread 195/65R15 1557 (61.30)
205/55R16 1551 (61.06)
205/50R17 1545 (60.83)
Wheelbase 2615 (102.95)
Item Gasoline 1.4 Gasoline 1.6
Diesel 1.4
Displacement cc (cu. in) 1396
(85.19) 1591
(97.09) 1396
(85.12)
Bore x Stroke mm (in.)77x74.99
(3.03x2.95) 77x85.44
(3.03x3.36) 75x79
(2.95x3.11)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-lineLight BulbWattageBulb type
HeadlightsHigh55H7
Low55H7
Smart cornering lights*55H7
Front turn signal lights21P21W
Position lights5W5W
Side repeater lights*5W5W
Front fog lights*27H27W
Stop and tail lights21/5P21/5W
Tail lights21/5P21/5W
Rear turn signal lights 21P21W
Back-up lights16W16W
Rear fog lights21P21W
High mounted stop lightLEDLED
License plate lights5W5W
Front map lamp10FEST00N
Side room lamp*5W5W
Center room lamp*8FEST00N
Vanity mirror lamp*5W5W
Luggage room lamp5W5W
Glove box lamp5W5W
BULB WATTAGE
* : If equipped
JC ENG 8.QXP 9/7/2010 1:43 PM Page 2
procarmanuals.com

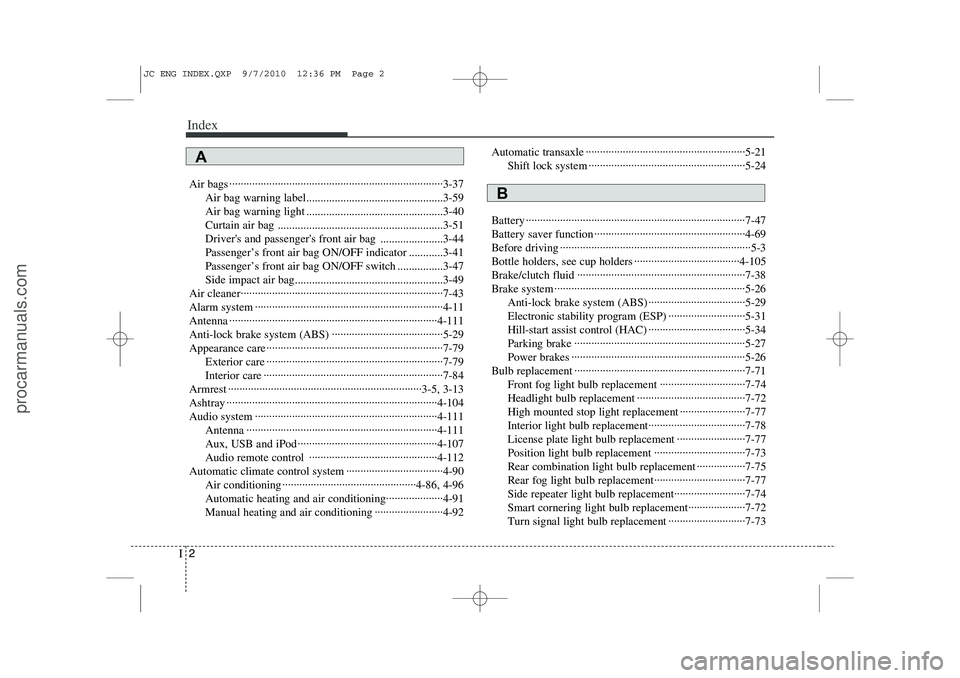

Index
2
I
Air bags ···········································································3-37
Air bag warning label................................................3-59
Air bag warning light ................................................3-40
Curtain air bag ..........................................................3-51
Driver's and passenger's front air bag ......................3-44
Passenger’s front air bag ON/OFF indicator ............3-41
Passenger’s front air bag ON/OFF switch ................3-47
Side impact air bag....................................................3-49
Air cleaner·······································································7-43
Alarm system ··································································4-11
Antenna ·········································································4-111
Anti-lock brake system (ABS) ·······································5-29
Appearance care······························································7-79 Exterior care ······························································7-79
Interior care ·······························································7-84
Armrest ····································································3-5, 3-13
Ashtray ··········································································4-104
Audio system ································································4-111 Antenna ···································································4-111
Aux, USB and iPod ·················································4-107
Audio remote control ·············································4-112
Automatic climate control system ··································4-90 Air conditioning ···············································4-86, 4-96
Automatic heating and air conditioning····················4-91
Manual heating and air conditioning ························4-92 Automatic transaxle ························································5-21
Shift lock system ·······················································5-24
Battery ·············································································7-47
Battery saver function ·····················································4-69
Before driving ···································································5-3
Bottle holders, see cup holders ·····································4-105
Brake/clutch fluid ···························································7-38
Brake system ···································································5-26 Anti-lock brake system (ABS) ··································5-29
Electronic stability program (ESP) ···························5-31
Hill-start assist control (HAC) ··································5-34
Parking brake ····························································5-27
Power brakes ·····························································5-26
Bulb replacement ····························································7-71 Front fog light bulb replacement ······························7-74
Headlight bulb replacement ······································7-72
High mounted stop light replacement ·······················7-77
Interior light bulb replacement··································7-78
License plate light bulb replacement ························7-77
Position light bulb replacement ································7-73
Rear combination light bulb replacement ·················7-75
Rear fog light bulb replacement································7-77Side repeater light bulb replacement·························7-74
Smart cornering light bulb replacement····················7-72
Turn signal light bulb replacement ···························7-73
A
B
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 2
procarmanuals.com

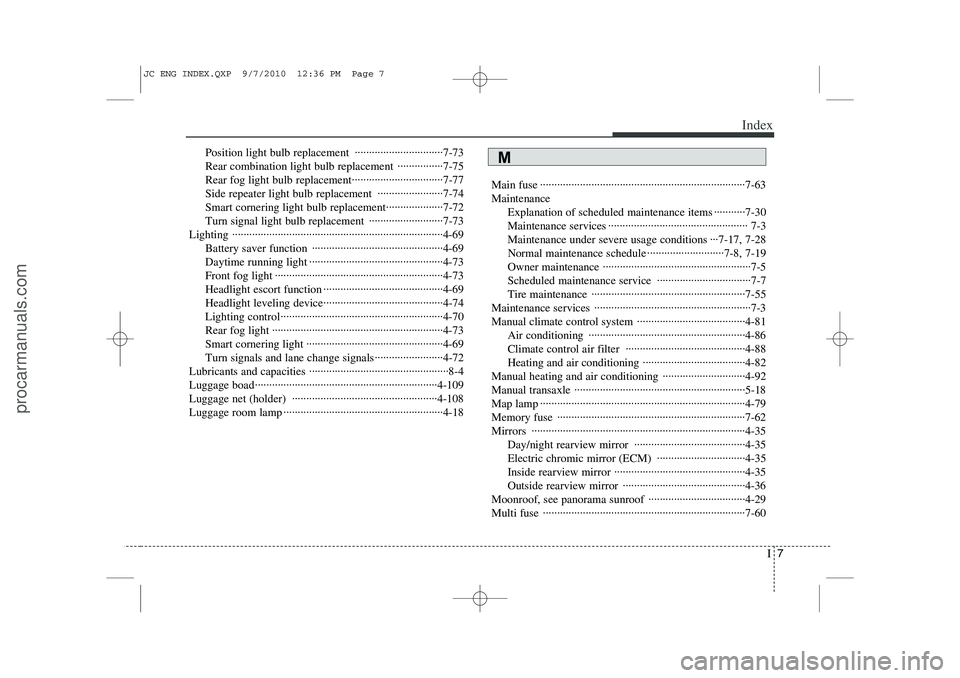

I7
Index
Position light bulb replacement ·······························7-73
Rear combination light bulb replacement ················7-75
Rear fog light bulb replacement································7-77
Side repeater light bulb replacement ·······················7-74
Smart cornering light bulb replacement····················7-72
Turn signal light bulb replacement ··························7-73
Lighting ··········································································4-69 Battery saver function ··············································4-69
Daytime running light ···············································4-73
Front fog light ···························································4-73
Headlight escort function ··········································4-69
Headlight leveling device··········································4-74
Lighting control·························································4-70
Rear fog light ····························································4-73
Smart cornering light ················································4-69
Turn signals and lane change signals························4-72
Lubricants and capacities ·················································8-4
Luggage boad································································4-109
Luggage net (holder) ···················································4-108
Luggage room lamp ························································4-18 Main fuse ········································································7-63Maintenance
Explanation of scheduled maintenance items ···········7-30Maintenance services ················································· 7-3
Maintenance under severe usage conditions ···7-17, 7-28 Normal maintenance schedule ···························7-8, 7-19
Owner maintenance ····················································7-5
Scheduled maintenance service ·································7-7
Tire maintenance ······················································7-55
Maintenance services ·······················································7-3
Manual climate control system ······································4-81 Air conditioning ·······················································4-86
Climate control air filter ··········································4-88
Heating and air conditioning ····································4-82
Manual heating and air conditioning ·····························4-92
Manual transaxle ····························································5-18
Map lamp ········································································4-79
Memory fuse ··································································7-62Mirrors ···········································································4-35 Day/night rearview mirror ·······································4-35
Electric chromic mirror (ECM) ·······························4-35
Inside rearview mirror ··············································4-35
Outside rearview mirror ···········································4-36
Moonroof, see panorama sunroof ··································4-29
Multi fuse ·······································································7-60M
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 7
procarmanuals.com
