2011 HYUNDAI IX20 tow

631
What to do in an emergency
Tie-down hook
(for flatbed towing, if equipped)
WARNING
Do not use the tie-down hooks
under the front (or rear) of the vehi-
cle for towing purposes. These
hooks are designed ONLY for trans-
port tie-down. If the tie-down hooks
are used for towing, the tie-down
hooks or front (or rear) bumper will
be damaged and this could lead to
serious injury.
CAUTION - Automatic
transaxle
 If the car is being towed with all four wheels on the ground, it can
be towed only from the front. Besure that the transaxle is in neu-tral. Be sure the steering is unlocked by placing the ignition
switch in the ACC position. Adriver must be in the towed vehi- cle to operate the steering and
brakes.
 To avoid serious damage to the automatic transaxle, limit thevehicle speed to 15 km/h (10 mph) and drive less than 1.5 km (1
mile) when towing.
 Before towing, check the level of the automatic transaxle fluid. If itis below the "HOT" range on the
dipstick, add fluid. If you cannotadd fluid, a towing dolly must beused.
JC ENG 6.QXP 9/7/2010 11:57 AM Page 31
procarmanuals.com

Maintenance
18
7

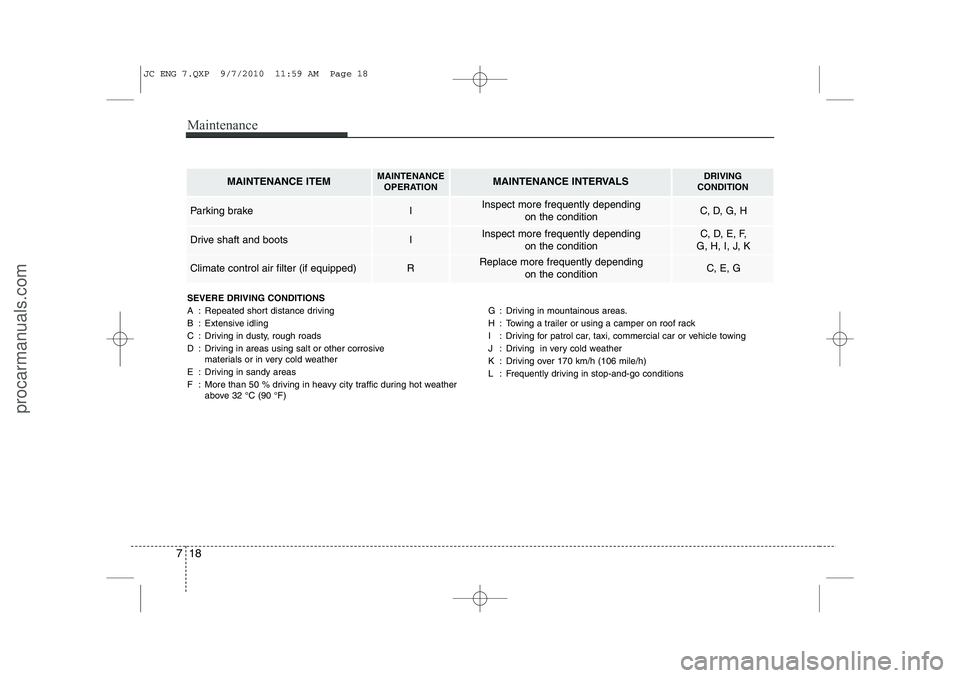

SEVERE DRIVING CONDITIONS
A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive
materials or in very cold weather
E : Driving in sandy areas
F : More than 50 % driving in heavy city traffic during hot weather above 32 °C (90 °F) G : Driving in mountainous areas.
H : Towing a trailer or using a camper on roof rack
I : Driving for patrol car, taxi, commercial car or vehicle towing
J : Driving in very cold weather
K : Driving over 170 km/h (106 mile/h)
L : Frequently driving in stop-and-go conditions
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING
CONDITION
Parking brakeIInspect more frequently depending
on the conditionC, D, G, H
Drive shaft and bootsIInspect more frequently depending on the conditionC, D, E, F,
G, H, I, J, K
Climate control air filter (if equipped) RReplace more frequently depending on the conditionC, E, G
JC ENG 7.QXP 9/7/2010 11:59 AM Page 18
procarmanuals.com

729
Maintenance

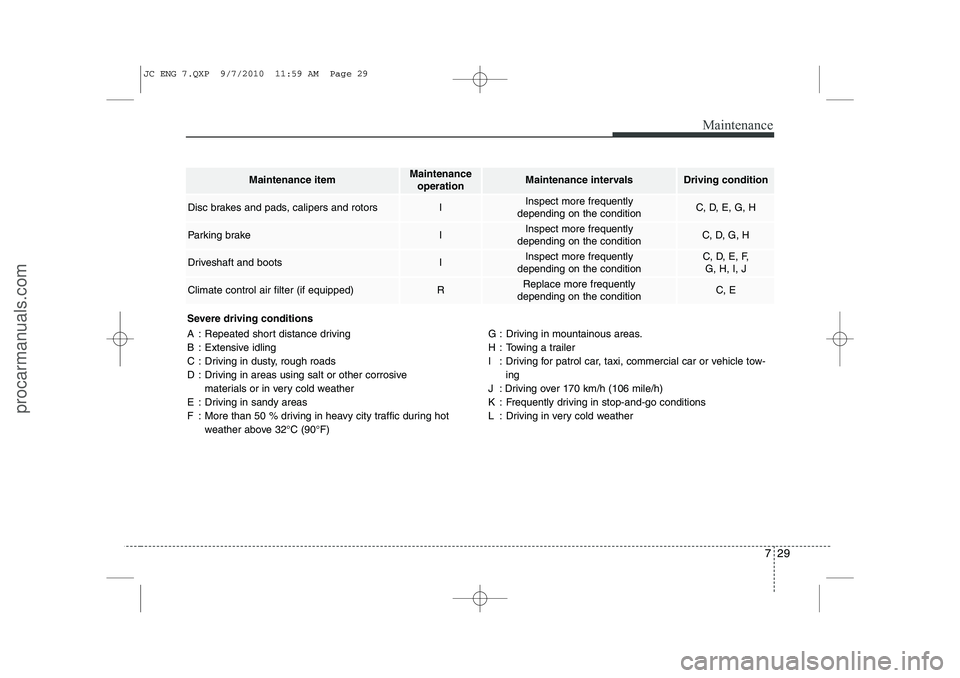

Severe driving conditions
A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive materials or in very cold weather
E : Driving in sandy areas
F : More than 50 % driving in heavy city traffic during hot weather above 32°C (90°F) G : Driving in mountainous areas.
H : Towing a trailer
I : Driving for patrol car, taxi, commercial car or vehicle tow-
ing
J : Driving over 170 km/h (106 mile/h)
K : Frequently driving in stop-and-go conditions
L : Driving in very cold weather
Maintenance itemMaintenance operationMaintenance intervalsDriving condition
Disc brakes and pads, calipers and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brakeIInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and bootsIInspect more frequently
depending on the conditionC, D, E, F, G, H, I, J
Climate control air filter (if equipped)RReplace more frequently
depending on the conditionC, E
JC ENG 7.QXP 9/7/2010 11:59 AM Page 29
procarmanuals.com

735
Maintenance
Changing the engine oil and filter
Have the engine oil and filter changed by
an authorized HYUNDAI dealer accord-ing to the Maintenance Schedule at thebeginning of this section.The high-pressure cooling system has a
reservoir filled with year-round antifreeze
coolant. The reservoir is filled at the fac-
tory.
Check the antifreeze protection and
coolant level at least once a year, at thebeginning of the winter season, and
before traveling to a colder climate.
Checking the coolant level
WARNING
Used engine oil may cause skin irri- tation or cancer if left in contact
with the skin for prolonged periods
of time. Used engine oil contains
chemicals that have caused cancer
in laboratory animals. Always pro-
tect your skin by washing your
hands thoroughly with soap and
warm water as soon as possibleafter handling used oil.
ENGINE COOLANT
WARNING - Removing
radiator cap
 Never attempt to remove the radi- ator cap while the engine is oper-
ating or hot. Doing so might leadto cooling system and engine
damage. Also hot coolant orsteam could cause serious per-
sonal injury.
(Continued)
(Continued)
 Turn the engine off and wait untilit cools down. Use extreme care
when removing the radiator cap.
Wrap a thick towel around it, and
turn it counterclockwise slowly to
the first stop. Step back while the
pressure is released from the
cooling system. When you aresure all the pressure has been
released, press down on the cap,
using a thick towel, and continue
turning counterclockwise to
remove it.
 Even if the engine is not operat- ing, do not remove the radiatorcap or the drain plug while the
engine and radiator are hot. Hot
coolant and steam may still blow
out under pressure, causing seri-
ous injury.
JC ENG 7.QXP 9/7/2010 11:59 AM Page 35
procarmanuals.com

Index
4
I
Displays, see instrument cluster ····································4-40 Display illumination, see instrument
panel illumination ·······················································4-41
Door locks ·······································································4-13 Central door lock/unlock switch ······························4-14
Child-protector rear door lock ·································4-16
Drinks holders, see cup holders ···································4-105
Driver's air bag ·······························································3-44
Driving at night ······························································5-47
Driving in flooded areas ················································5-48
Driving in the rain ·························································5-48
Economical operation ····················································5-43
Electric chromic mirror (ECM) ·····································4-35
Electric power steering ··················································4-33
Electronic stability program (ESP) ·································5-31
Emergency starting ··························································6-5 Jump starting ······························································6-5
Push starting ·······························································6-7
Emergency tailgate safety release ··································4-18
Emergency towing ·························································6-29
Emergency while driving ·················································6-3
Emission control system ················································7-85 Crankcase emission control system ·························7-85
Evaporative emission control system ······················7-85
Exhaust emission control system ·····························7-86 Engine ···············································································8-2
Engine compartment ················································2-6, 7-2
Engine coolant ·······························································7-35
Engine number ·································································8-8
Engine oil ·······································································7-34
Engine overheats ······························································6-8
Engine start/stop button ···················································5-8
Engine temperature gauge ·············································4-42
Engine will not start ·························································6-4
Evaporative emission control system ····························7-85
Exhaust emission control system ···································7-86Explanation of scheduled maintenance items ················7-30
Exterior care ···································································7-79
Flat tire ·············································································6-9
Changing tires ··························································6-10
Jack and tools ·····························································6-9
Removing and storing the spare tire ························6-10
Flat tire (with TireMobilityKit) ······································6-17
Floor mat anchor(s) ·····················································4-108Fluid Brake/clutch fluid ·····················································7-38
Washer fluid ·····························································7-41
Folding the rear seat ······················································3-10
Front fog light ·································································4-73
Front fog light bulb replacement ···································7-74
E
F
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 4
procarmanuals.com

Index
10
I
Tire Pressure Monitoring System (TPMS) ·····················6-22
Tire specification and pressure label ·······························8-8
Tires and wheels ·····················································7-50, 8-3
Checking tire inflation pressure ·······························7-51
Recommended cold tire inflation pressures ·············7-50
Tire care ···································································7-50
Tire maintenance ······················································7-55
Tire replacement ······················································7-54
Tire rotation ······························································7-52
Tire sidewall labeling ···············································7-56
Tire traction ······························································7-55
Wheel alignment and tire balance ····························7-53
Wheel replacement ···················································7-55
Towing ···········································································6-27 Emergency towing ···················································6-29
Removable towing hook ··········································6-28
Trailer towing ·································································5-54Transaxle Automatic transaxle ·················································5-21
Manual transaxle ······················································5-18
Tripmeter ·······································································4-44
Trip computer ································································4-44
Turn signals and lane change signals ·····························4-72
Turn signal light bulb replacement ································7-73 Vanity mirror lamp ·························································4-79
Vehicle break-in process ·················································1-6
Vehicle certification label ················································8-7
Vehicle identification number (VIN) ······························8-7
Vehicle weight ························································5-62, 8-3
Base curb weight ······················································5-62
Cargo weight ····························································5-62
GAW (Gross axle weight) ·······································5-62
GAWR (Gross axle weight rating) ··························5-62
GVW (Gross vehicle weight) ··································5-62
GVWR (Gross vehicle weight rating) ·····················5-62
Washer fluid ···································································7-41
Waste tray, see ashtray ················································4-104
Warnings and indicators ················································4-47
Wheel alignment and tire balance ·································7-53
Wheel replacement ························································7-55Windows ········································································4-19 Auto down window ··················································4-21
Auto up/down window ·············································4-21
Power window lock switch ······································4-22
Windshield defrosting and defogging ···························4-98
Winshield deicer ·····························································4-80V
W
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 10
