2011 HYUNDAI IX20 tailgate

777

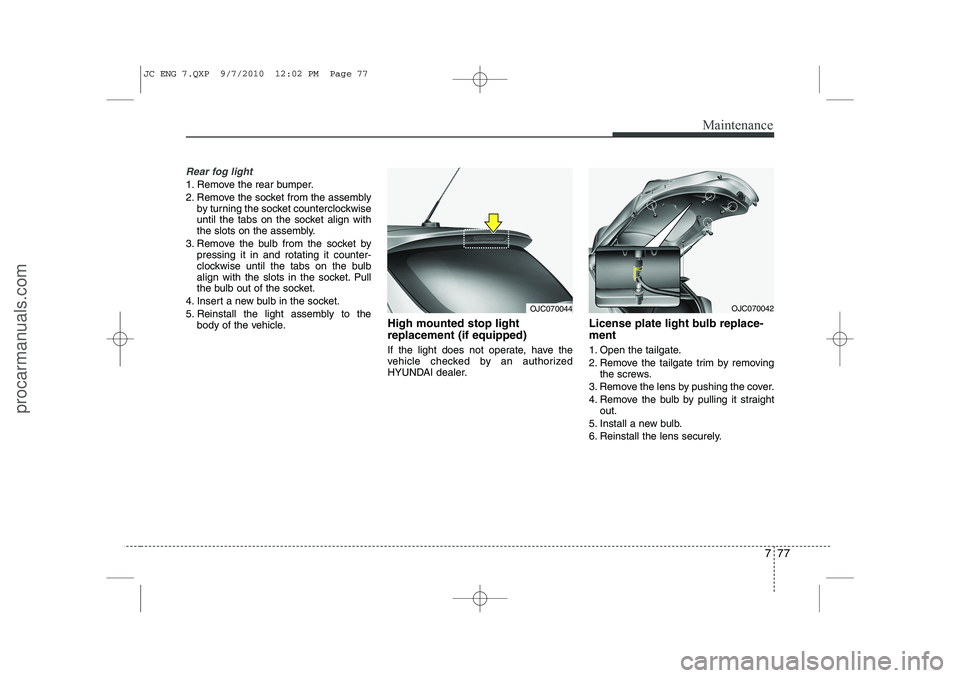

Maintenance
Rear fog light
1. Remove the rear bumper.
2. Remove the socket from the assemblyby turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
3. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
4. Insert a new bulb in the socket.
5. Reinstall the light assembly to the body of the vehicle. High mounted stop light replacement (if equipped)
If the light does not operate, have the
vehicle checked by an authorized
HYUNDAI dealer. License plate light bulb replace- ment
1. Open the tailgate.
2. Remove the tailgate trim by removing
the screws.
3. Remove the lens by pushing the cover.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall the lens securely.
OJC070044OJC070042
JC ENG 7.QXP 9/7/2010 12:02 PM Page 77
procarmanuals.com

Index
4
I
Displays, see instrument cluster ····································4-40 Display illumination, see instrument
panel illumination ·······················································4-41
Door locks ·······································································4-13 Central door lock/unlock switch ······························4-14
Child-protector rear door lock ·································4-16
Drinks holders, see cup holders ···································4-105
Driver's air bag ·······························································3-44
Driving at night ······························································5-47
Driving in flooded areas ················································5-48
Driving in the rain ·························································5-48
Economical operation ····················································5-43
Electric chromic mirror (ECM) ·····································4-35
Electric power steering ··················································4-33
Electronic stability program (ESP) ·································5-31
Emergency starting ··························································6-5 Jump starting ······························································6-5
Push starting ·······························································6-7
Emergency tailgate safety release ··································4-18
Emergency towing ·························································6-29
Emergency while driving ·················································6-3
Emission control system ················································7-85 Crankcase emission control system ·························7-85
Evaporative emission control system ······················7-85
Exhaust emission control system ·····························7-86 Engine ···············································································8-2
Engine compartment ················································2-6, 7-2
Engine coolant ·······························································7-35
Engine number ·································································8-8
Engine oil ·······································································7-34
Engine overheats ······························································6-8
Engine start/stop button ···················································5-8
Engine temperature gauge ·············································4-42
Engine will not start ·························································6-4
Evaporative emission control system ····························7-85
Exhaust emission control system ···································7-86Explanation of scheduled maintenance items ················7-30
Exterior care ···································································7-79
Flat tire ·············································································6-9
Changing tires ··························································6-10
Jack and tools ·····························································6-9
Removing and storing the spare tire ························6-10
Flat tire (with TireMobilityKit) ······································6-17
Floor mat anchor(s) ·····················································4-108Fluid Brake/clutch fluid ·····················································7-38
Washer fluid ·····························································7-41
Folding the rear seat ······················································3-10
Front fog light ·································································4-73
Front fog light bulb replacement ···································7-74
E
F
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 4
procarmanuals.com

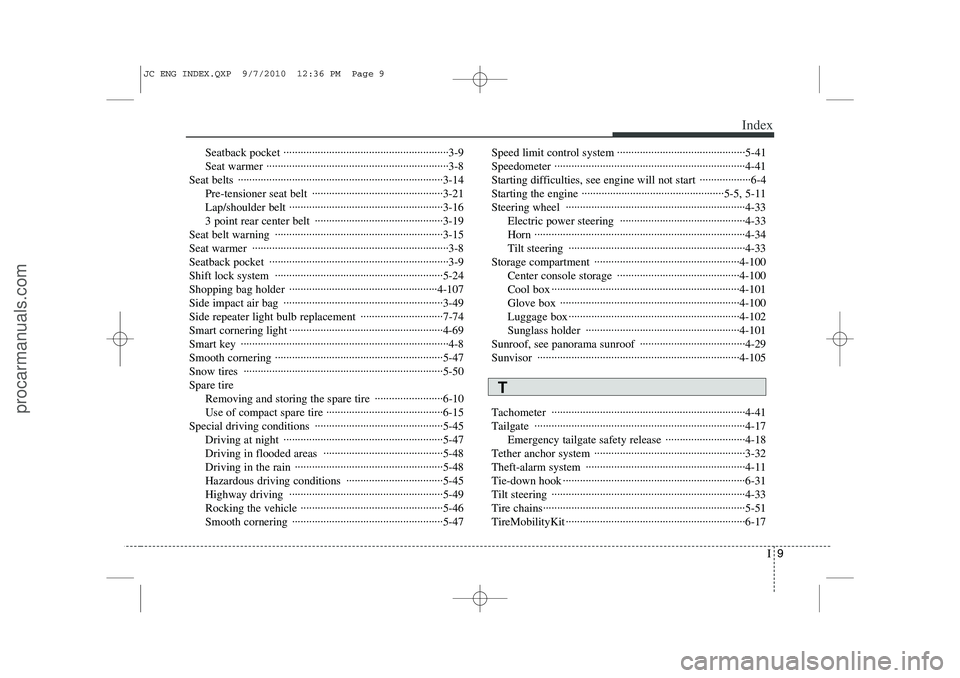

I9
Index
Seatback pocket ··························································3-9
Seat warmer ································································3-8
Seat belts ········································································3-14 Pre-tensioner seat belt ··············································3-21
Lap/shoulder belt ······················································3-16
3 point rear center belt ·············································3-19
Seat belt warning ···························································3-15
Seat warmer ·····································································3-8
Seatback pocket ·······························································3-9
Shift lock system ···························································5-24
Shopping bag holder ····················································4-107
Side impact air bag ························································3-49
Side repeater light bulb replacement ·····························7-74
Smart cornering light ······················································4-69
Smart key ·········································································4-8
Smooth cornering ···························································5-47
Snow tires ······································································5-50Spare tire Removing and storing the spare tire ························6-10Use of compact spare tire ·········································6-15
Special driving conditions ·············································5-45 Driving at night ························································5-47
Driving in flooded areas ··········································5-48
Driving in the rain ····················································5-48
Hazardous driving conditions ··································5-45
Highway driving ······················································5-49
Rocking the vehicle ··················································5-46
Smooth cornering ·····················································5-47 Speed limit control system ·············································5-41Speedometer ···································································4-41
Starting difficulties, see engine will not start ··················6-4
Starting the engine ··················································5-5, 5-11
Steering wheel ·······························································4-33
Electric power steering ············································4-33Horn ··········································································4-34
Tilt steering ······························································4-33
Storage compartment ···················································4-100 Center console storage ···········································4-100
Cool box ··································································4-101
Glove box ·······························································4-100
Luggage box ····························································4-102
Sunglass holder ······················································4-101
Sunroof, see panorama sunroof ·····································4-29Sunvisor ·······································································4-105 Tachometer ····································································4-41 Tailgate ··········································································4-17 Emergency tailgate safety release ····························4-18
Tether anchor system ·····················································3-32
Theft-alarm system ························································4-11
Tie-down hook ································································6-31
Tilt steering ····································································4-33
Tire chains·······································································5-51
TireMobilityKit ·······························································6-17
T
JC ENG INDEX.QXP 9/7/2010 12:36 PM Page 9
