2011 HYUNDAI IX20 glove box

Features of your vehicle
96
4
Air conditioning
Press the A/C button to turn the air con- ditioning system on (indicator light willilluminate).
Press the button again to turn the air
conditioning system off.
OFF mode
Push the OFF button to turn off the air cli-
mate control system. However you can
still operate the mode and air intake but-
tons as long as the ignition switch is inthe ON position. Climate control air filter (if equipped) The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi-cle from the outside through the heating
and air conditioning system. If dust or
other pollutants accumulate in the filter
over a period of time, the air flow from the
air vents may decrease, resulting in
moisture accumulation on the inside of
the windshield even when the outside
(fresh) air position is selected. If this hap-
pens, have the climate control air filter
replaced by an authorized HYUNDAI
dealer.
OJC040074OJC040073
JC ENG 4A.QXP 9/7/2010 11:44 AM Page 96
procarmanuals.com

Features of your vehicle
100
4

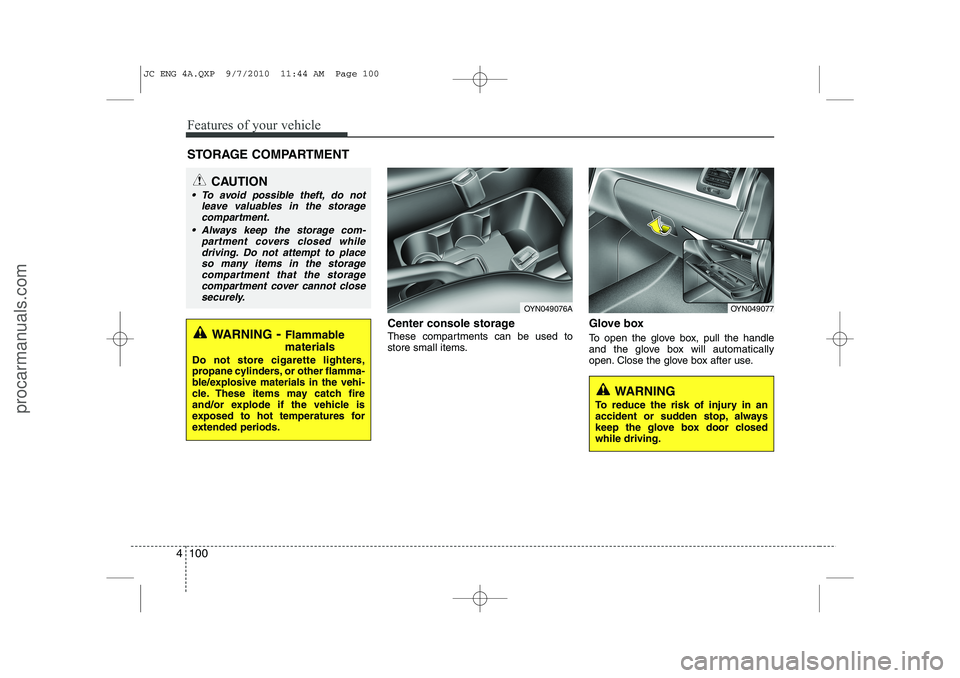

Center console storage
These compartments can be used to
store small items. Glove box
To open the glove box, pull the handle
and the glove box will automatically
open. Close the glove box after use.
STORAGE COMPARTMENT
WARNING
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closedwhile driving.
WARNING - Flammable
materials
Do not store cigarette lighters,
propane cylinders, or other flamma-
ble/explosive materials in the vehi-
cle. These items may catch fire
and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
CAUTION
 To avoid possible theft, do not leave valuables in the storage
compartment.
 Always keep the storage com- partment covers closed whiledriving. Do not attempt to place
so many items in the storage compartment that the storagecompartment cover cannot closesecurely.
OYN049077OYN049076A
JC ENG 4A.QXP 9/7/2010 11:44 AM Page 100
procarmanuals.com

4 101
Features of your vehicle

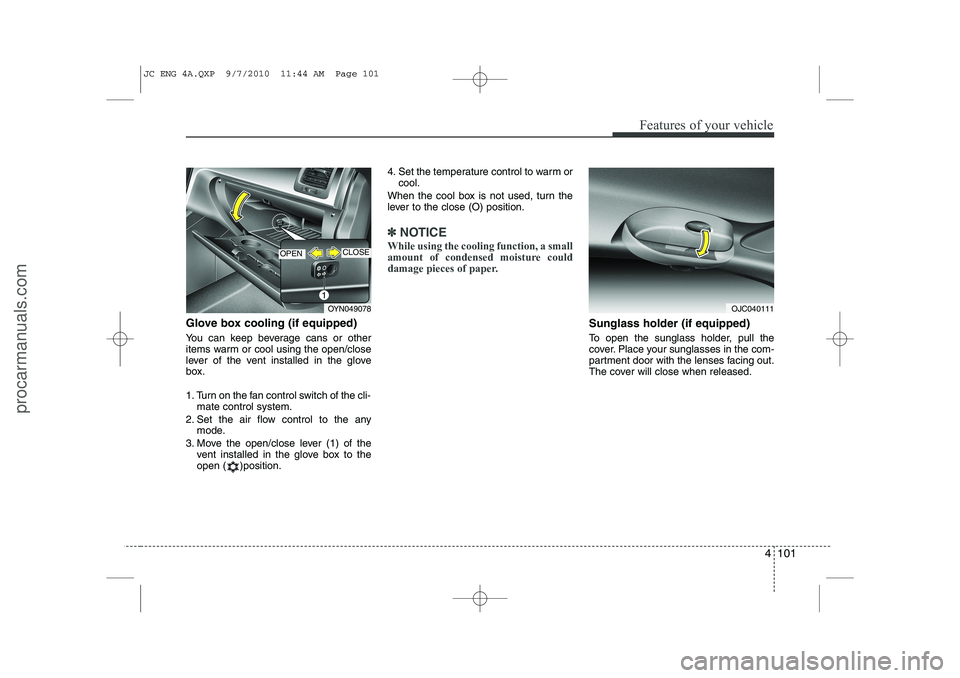

Glove box cooling (if equipped)
You can keep beverage cans or other
items warm or cool using the open/close
lever of the vent installed in the glove
box.
1. Turn on the fan control switch of the cli-mate control system.
2. Set the air flow control to the any mode.
3. Move the open/close lever (1) of the vent installed in the glove box to the
open ( )position. 4. Set the temperature control to warm or
cool.
When the cool box is not used, turn the
lever to the close (O) position.
✽✽ NOTICE
While using the cooling function, a small
amount of condensed moisture could
damage pieces of paper.
Sunglass holder (if equipped)
To open the sunglass holder, pull the
cover. Place your sunglasses in the com-
partment door with the lenses facing out.
The cover will close when released.
OYN049078
1
OJC040111
OPENCLOSE
JC ENG 4A.QXP 9/7/2010 11:44 AM Page 101
procarmanuals.com

Maintenance
78
7

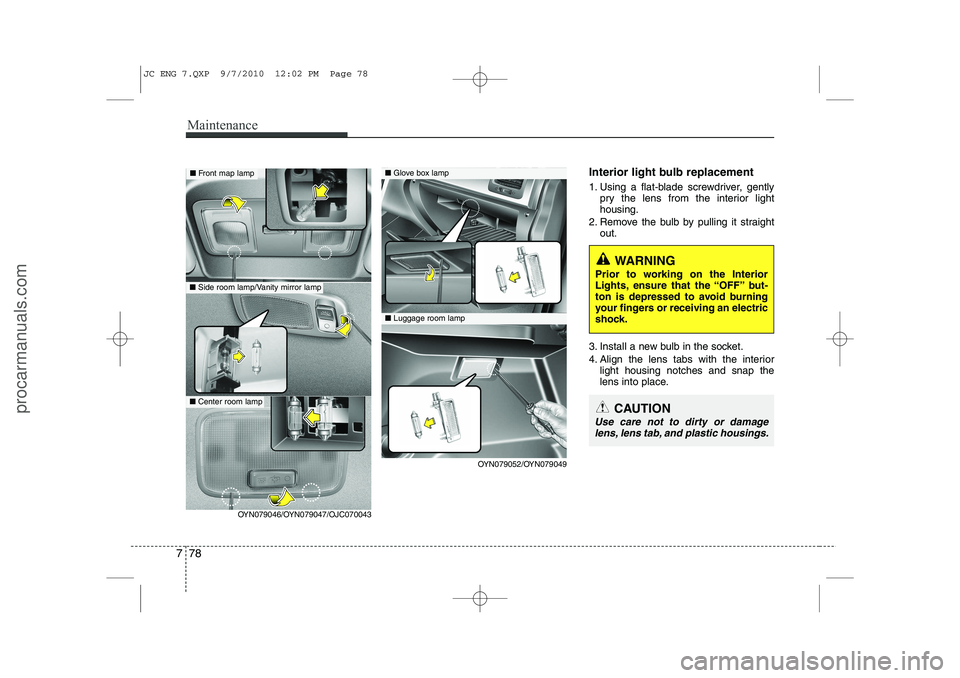

Interior light bulb replacement
1. Using a flat-blade screwdriver, gently
pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.■Front map lamp
■ Side room lamp/Vanity mirror lamp
OYN079052/OYN079049
■Glove box lamp
■Luggage room lamp
OYN079046/OYN079047/OJC070043
WARNING
Prior to working on the Interior
Lights, ensure that the “OFF” but-
ton is depressed to avoid burning
your fingers or receiving an electric
shock.
CAUTION
Use care not to dirty or damage lens, lens tab, and plastic housings.
■ Center room lamp
JC ENG 7.QXP 9/7/2010 12:02 PM Page 78
procarmanuals.com

Specifications & Consumer information
2
8
ENGINE DIMENSIONS
Item mm (in.)
Overall length 4100 (161.42)
Overall width 1765 (69.49)
Overall height 1600 (62.99)
Front tread 195/65R15 1553 (61.14)
205/55R16 1547 (60.91)
205/50R17 1541 (60.67)
Rear tread 195/65R15 1557 (61.30)
205/55R16 1551 (61.06)
205/50R17 1545 (60.83)
Wheelbase 2615 (102.95)
Item Gasoline 1.4 Gasoline 1.6
Diesel 1.4
Displacement cc (cu. in) 1396
(85.19) 1591
(97.09) 1396
(85.12)
Bore x Stroke mm (in.)77x74.99
(3.03x2.95) 77x85.44
(3.03x3.36) 75x79
(2.95x3.11)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-lineLight BulbWattageBulb type
HeadlightsHigh55H7
Low55H7
Smart cornering lights*55H7
Front turn signal lights21P21W
Position lights5W5W
Side repeater lights*5W5W
Front fog lights*27H27W
Stop and tail lights21/5P21/5W
Tail lights21/5P21/5W
Rear turn signal lights 21P21W
Back-up lights16W16W
Rear fog lights21P21W
High mounted stop lightLEDLED
License plate lights5W5W
Front map lamp10FEST00N
Side room lamp*5W5W
Center room lamp*8FEST00N
Vanity mirror lamp*5W5W
Luggage room lamp5W5W
Glove box lamp5W5W
BULB WATTAGE
* : If equipped
JC ENG 8.QXP 9/7/2010 1:43 PM Page 2
procarmanuals.com

I5
Index
Front seat adjustment ························································3-4
Fuel filler lid ··································································4-26
Fuel filter(for diesel) ······················································7-42
Fuel gauge ······································································4-43
Fuel requirements ····························································1-3Fuses ··············································································7-60
Fuse/relay panel description ····································7-64
Main fuse ··································································7-63
Memory fuse ·····························································7-62
Multi fuse ·································································7-60
Gauges·············································································4-41 Engine temperature gauge·········································4-42
Fuel gauge ································································4-43
Glassroof, see panorama sunroof····································4-29
Glove box ·····································································4-100
Glove box cooling·························································4-101 Hazard warning flasher ··········································4-68, 6-2
Hazardous driving conditions ········································5-45
Headlight bulb replacement ···········································7-72
Headlight escort function ···············································4-69
Headlight leveling device ··············································4-74
Headrest ··································································3-6, 3-12
Heating and air conditioning ·········································4-82High mounted stop light replacement ····························7-77
Highway driving ····························································5-49
Hill-start assist control (HAC)········································5-34Hood ···············································································4-24Horn ···············································································4-34
How to use this manual ···················································1-2
Immobilizer system ·························································4-3
Indicators and warnings ·················································4-47Indicator symbols on the instrument cluster ····················1-7
Instrument cluster ··························································4-40
Engine temperature gauge ········································4-42
Fuel gauge ································································4-43
Instrument panel illumination ··································4-41
LCD display ······························································4-58Odometer ··································································4-43Speedometer ·····························································4-41
