Safety features of your vehicle
6
3

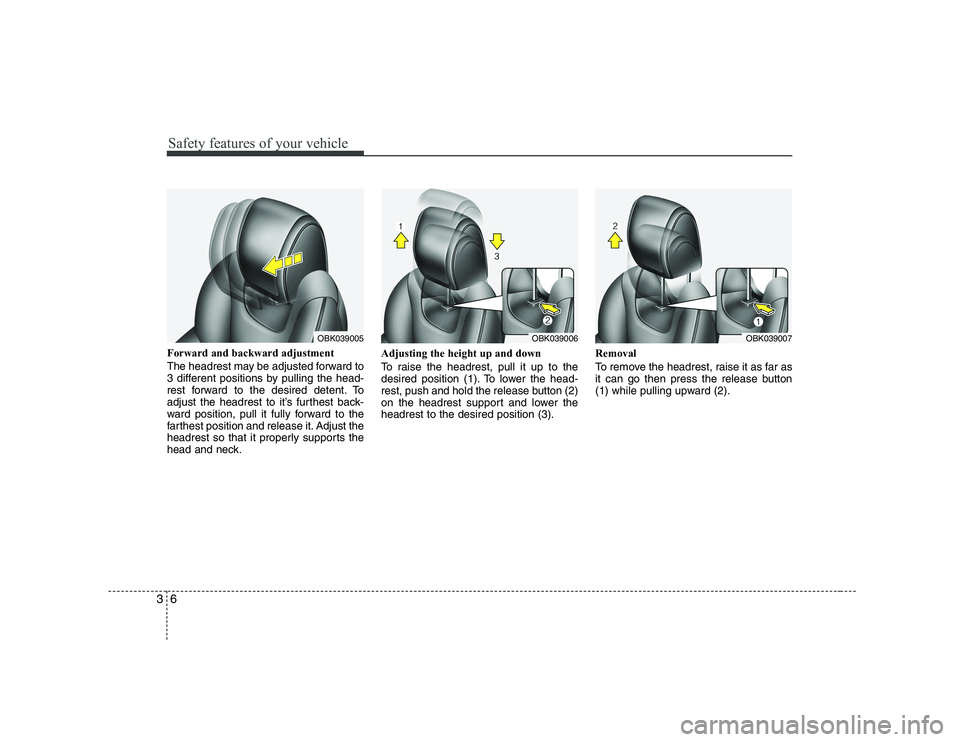

Forward and backward adjustment
The headrest may be adjusted forward to
3 different positions by pulling the head-
rest forward to the desired detent. To
adjust the headrest to it’s furthest back-
ward position, pull it fully forward to the
farthest position and release it. Adjust the
headrest so that it properly supports the
head and neck. Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).
Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
OBK039006OBK039005OBK039007
Safety features of your vehicle
10
3
C010203ABH

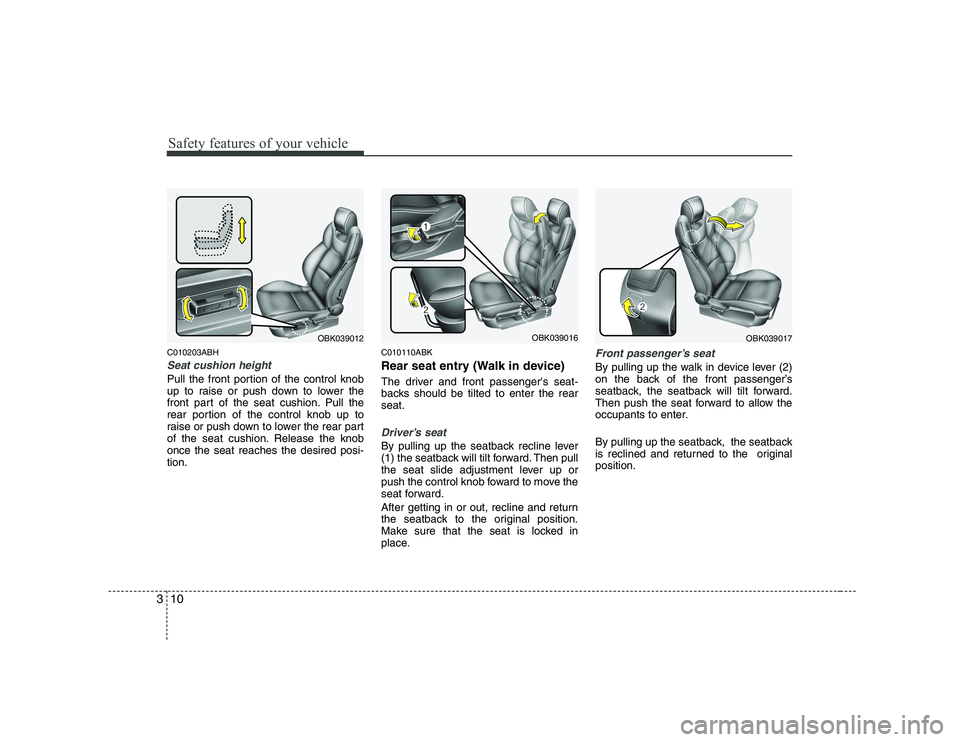

Seat cushion height
Pull the front portion of the control knob
up to raise or push down to lower the
front part of the seat cushion. Pull the
rear portion of the control knob up to
raise or push down to lower the rear part
of the seat cushion. Release the knobonce the seat reaches the desired posi-tion. C010110ABK
Rear seat entry (Walk in device)
The driver and front passenger's seat-
backs should be tilted to enter the rearseat.
Driver’s seat
By pulling up the seatback recline lever
(1) the seatback will tilt forward. Then pull
the seat slide adjustment lever up or
push the control knob foward to move the
seat forward.
After getting in or out, recline and return
the seatback to the original position.
Make sure that the seat is locked in
place.
Front passenger’s seat
By pulling up the walk in device lever (2)
on the back of the front passenger’s
seatback, the seatback will tilt forward.
Then push the seat forward to allow the
occupants to enter.
By pulling up the seatback, the seatback
is reclined and returned to the originalposition.
OBK039012OBK039016OBK039017
