2011 HONDA PILOT display

ÛÝÛÝ
ÛÝ
To change the display, press the
INFO( / )buttononthesteering
wheel repeatedly until the main
menu appears (see page ).With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown on the
next page each time you press the
INFO ( / ) button or the SEL/
RESET button.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.
You can also change the display by
pressing the select/reset knob in the
instrument panel.
When you open the driver’s door, a
‘‘Welcome’’ message is shown on the
multi-inf ormation display.
8894
97
CONT INUED
On vehicles with navigation system
Multi-Inf ormation Display
Inst rument s and Cont rols
87
SEL/RESET
BUTTON
INFO ( / )
BUTTON
10/01/26 18:38:25 31SZA620_092
2011 Pilot

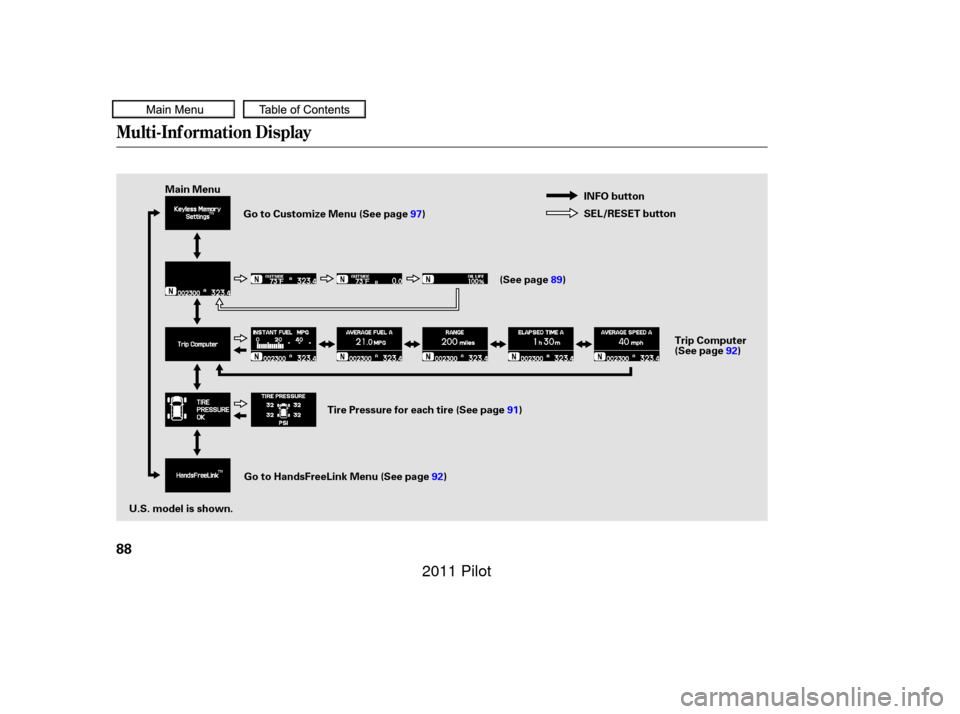

Multi-Inf ormation Display
88
INFO button
SEL/RESET button
U.S. model is shown. Main Menu
GotoCustomizeMenu(Seepage97 )
(See page89)
Trip Computer
(See page92)
Tire Pressure for each tire (See page 91)
Go to HandsFreeLink Menu (See page 92)
10/01/26 18:38:29 31SZA620_093
2011 Pilot

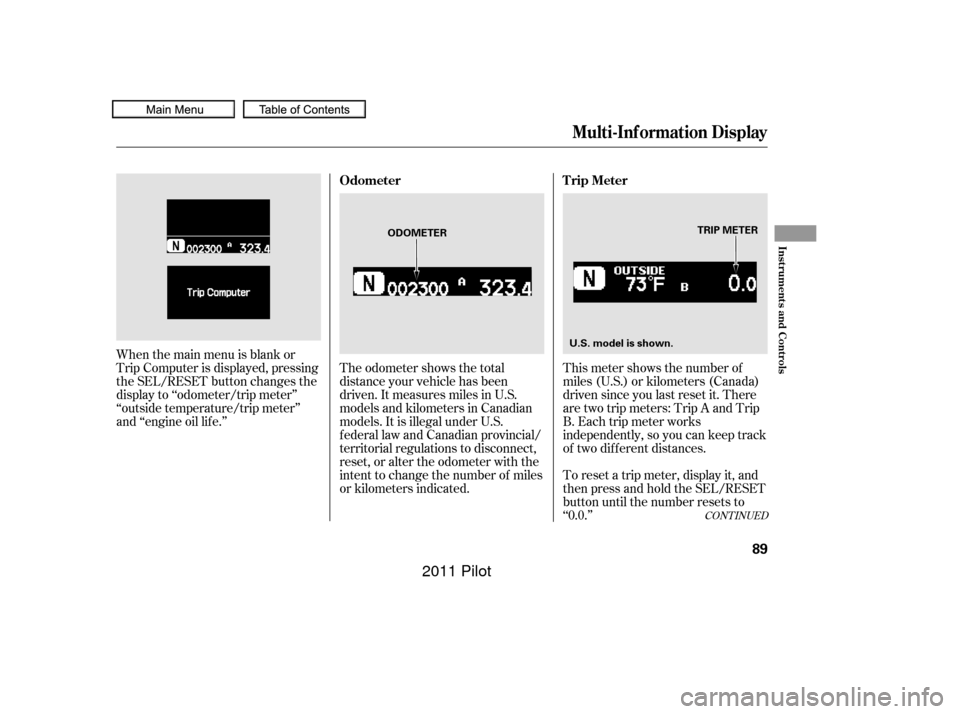

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it, and
then press and hold the SEL/RESET
button until the number resets to
‘‘0.0.’’
When the main menu is blank or
Trip Computer is displayed, pressing
the SEL/RESET button changes the
display to ‘‘odometer/trip meter’’
‘‘outside temperature/trip meter’’
and ‘‘engine oil lif e.’’
CONT INUED
Multi-Inf ormation Display
Trip Meter
Odometer
Inst rument s and Cont rols
89
TRIP METER
ODOMETER
U.S. model is shown.
10/01/26 18:38:40 31SZA620_094
2011 Pilot

When you reset Trip A, AVERAGE
FUEL A, AVERAGE SPEED A, and
ELAPSED TIME A are reset at the
same time. When you reset Trip B,
AVERAGE FUEL B, AVERAGE
SPEED B, and ELAPSED TIME B
are reset.
You can customize the Trip A,
AVERAGE FUEL A, AVERAGE
SPEED A, and ELAPSED TIME A
reset condition on the multi-

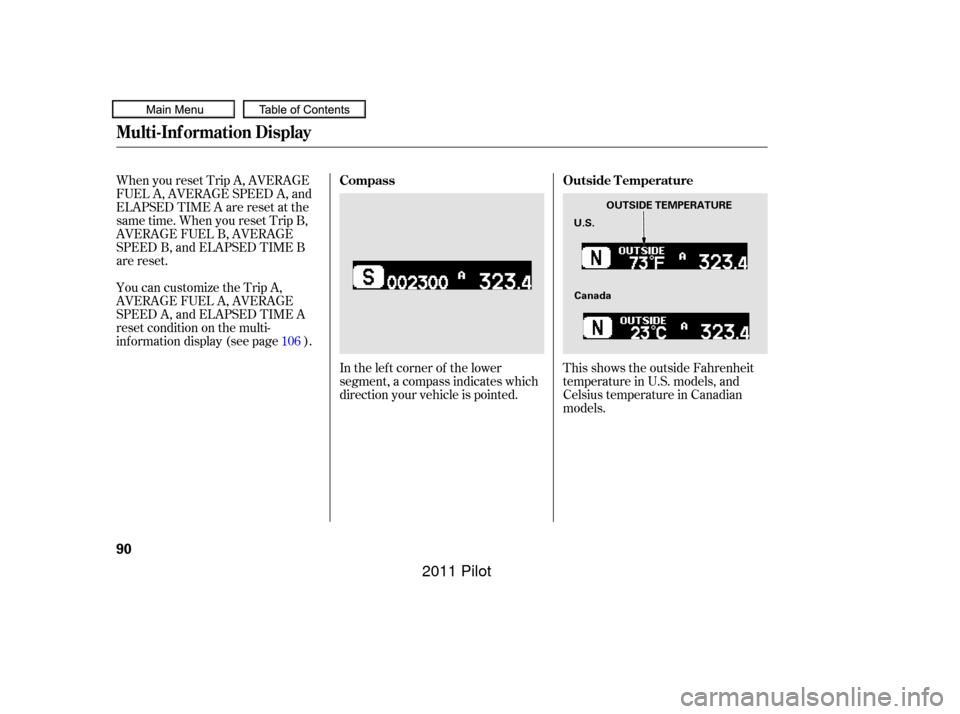

inf ormation display (see page ).This shows the outside Fahrenheit
temperature in U.S. models, and
Celsius temperature in Canadian
models.
In the lef t corner of the lower
segment, a compass indicates which
direction your vehicle is pointed.
106
Multi-Inf ormation Display
Outside Temperature
Compass
90
U.S. OUTSIDE TEMPERATURE
Canada
10/01/26 18:38:50 31SZA620_095
2011 Pilot

Whenthetirepressuremonitoris
shown on the multi-inf ormation
display, press the SEL/RESET
button. The display changes as
shown.
You can see the pressure of each tire
in this monitor. If one or more tires
are low, inflate them to the correct
pressure. For more inf ormation, see
page .
This shows the remaining lif e of the
engine oil. It shows 100% af ter the
engine oil is replaced and the display
is reset. The engine oil lif e is
calculated based on engine operating
conditions and accumulated engine
revolutions. For more inf ormation,
see page .
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ).
105
455 424
Tire Pressure Monitor
Engine Oil L if e
Multi-Inf ormation Display
Inst rument s and Cont rols
91
U.S.
Canada
ENGINE OIL LIFE
10/01/26 18:39:01 31SZA620_096
2011 Pilot

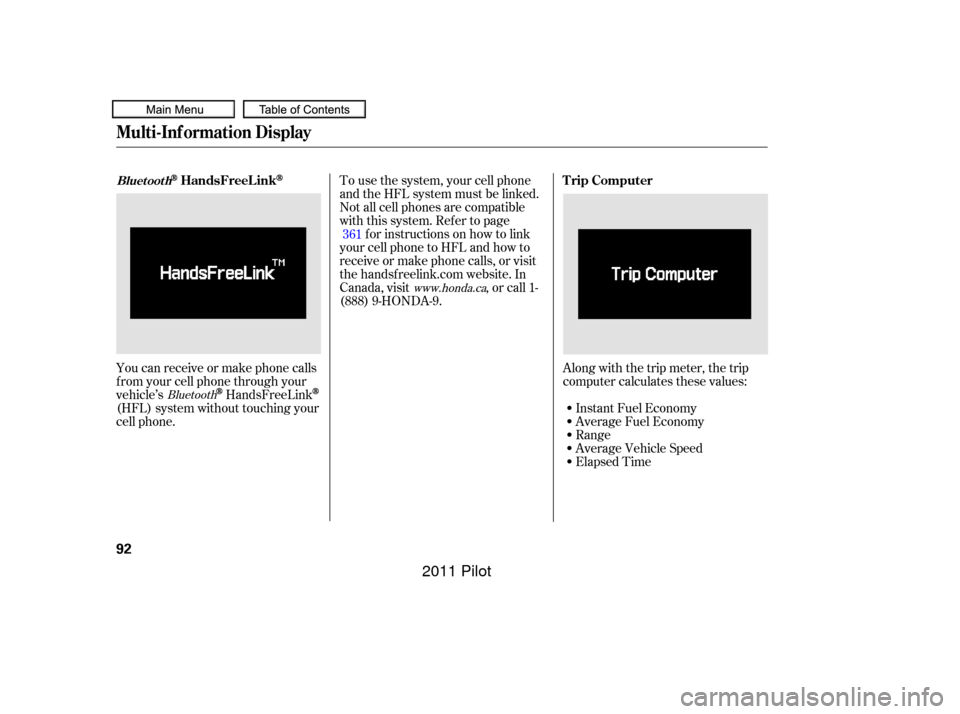

You can receive or make phone calls
f rom your cell phone through your
vehicle’s
HandsFreeLink
(HFL) system without touching your
cell phone.To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Ref er to page
for instructions on how to link
your cell phone to HFL and how to
receive or make phone calls, or visit
the handsf reelink.com website. In
Canada, visit , or call 1-
(888) 9-HONDA-9.
Along with the trip meter, the trip
computer calculates these values:Average Fuel Economy
Range
Average Vehicle Speed
Elapsed Time Instant Fuel Economy
361
Bluetooth
www.honda.ca
Multi-Inf ormation Display
Trip ComputerHandsFreeL inkBluet oot h
92
10/01/26 18:39:13 31SZA620_097
2011 Pilot

This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles (U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traf f ic, etc.
This shows the average speed you
are traveling in miles per hour (mph)
forU.S.modelsorkilometersper
hour (km/h) f or Canadian models.This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch to
the ON (II) position, ELAPSED
TIME is reset.
This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset Trip A or Trip B. This shows your instant f uel
economy.
You can customize the TRIP A INFO
(Trip A, AVERAGE FUEL A,
ELAPSED TIME A, and AVERAGE
SPEED A) reset condition in the
multi-inf ormation display (see page).
106
RANGE
AVERAGE SPEED A/B EL A PSED T IME A /B
INST A NT FUEL MPG (U.S.
models)/INST A NT FUEL L /100 km(Canadian models)
AVERAGE FUEL A/B
Multi-Inf ormation Display
Inst rument s and Cont rols
93
10/01/26 18:39:23 31SZA620_098
2011 Pilot

ÛÝ
ÛÝ
If there is a problem with your
vehicle, f or example the engine oil
level is low or a door is not f ully
closed, the multi-inf ormation display
will show you the problem. It does
this by interrupting the current

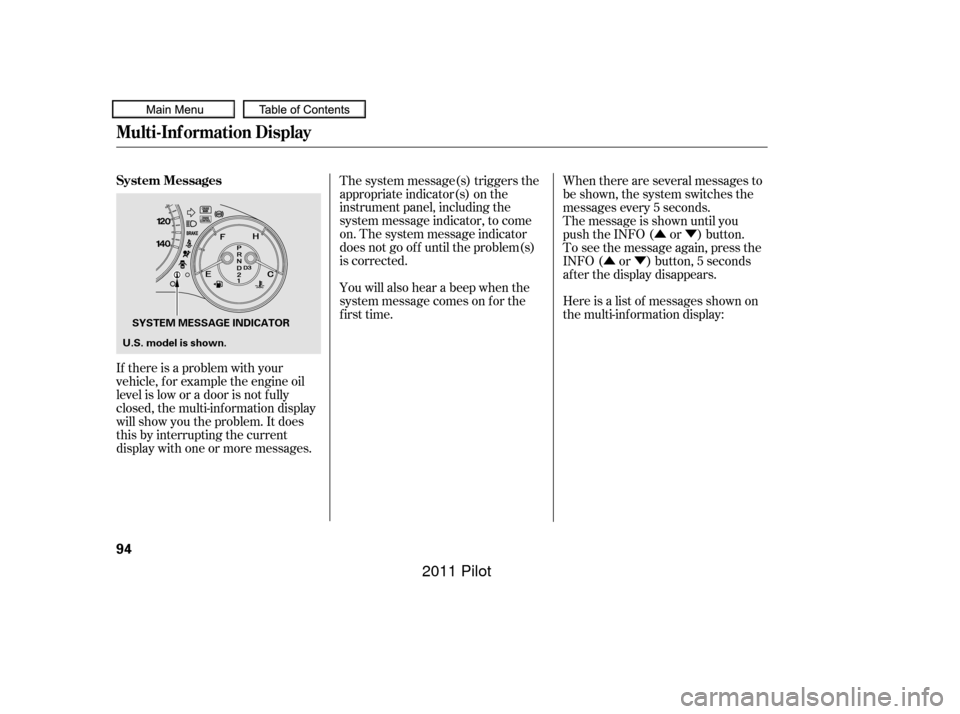

display with one or more messages. The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message comes on f or the
first time.
When there are several messages to
be shown, the system switches the
messages every 5 seconds.
The message is shown until you
push the INFO ( or ) button.
To see the message again, press the
INFO ( or ) button, 5 seconds
after the display disappears.
Here is a list of messages shown on
the multi-information display:
Multi-Inf ormation Display
System Messages
94
SYSTEM MESSAGE INDICATOR
U.S. model is shown.
