2011 HONDA ODYSSEY headlight bulb

CONT INUED
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or other qualif ied technician.Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
f rom contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch of f
and the key removed. Because of
this, you should not attempt to
examine or change a low beam
headlight bulb yourself . If a low
beam headlight bulb fails, take your
vehicle to a dealer to have it replaced.
On Touring Elite and Canadian Touring
models
Lights
Headlight A iming Replacing a Headlight Bulb
High Voltage Discharge Tube
Headlights
Maint enance
625
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
10/07/17 10:57:48 31TK8600_630
2011 Odyssey

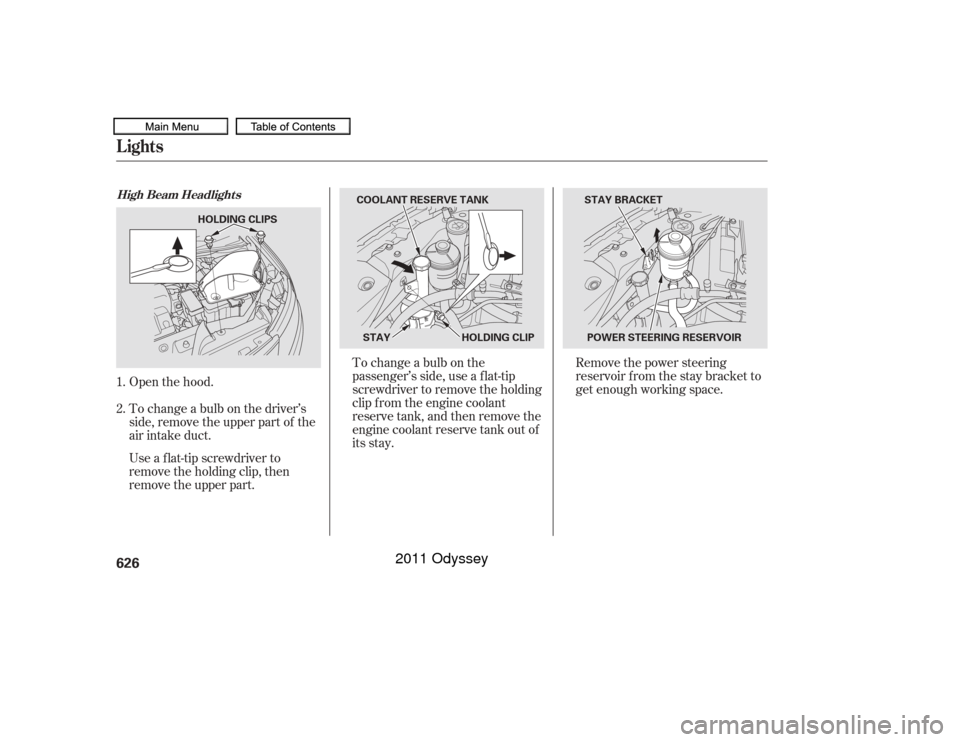

Open the hood.
To change a bulb on the driver’s
side, remove the upper part of the
air intake duct.
Use a f lat-tip screwdriver to
remove the holding clip, then
remove the upper part.To change a bulb on the
passenger’s side, use a f lat-tip
screwdriver to remove the holding
clip f rom the engine coolant
reserve tank, and then remove the
engine coolant reserve tank out of
its stay.
Remove the power steering
reservoir f rom the stay bracket to
get enough working space.
1.
2.
LightsHigh Beam Headlights626
HOLDING CLIPS
STAY
COOLANT RESERVE TANK
HOLDING CLIP POWER STEERING RESERVOIR
STAY BRACKET
10/07/17 10:57:56 31TK8600_631
2011 Odyssey

Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector onto
the new bulb.
Turn on the headlights to test the
new bulb.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it
about one-quarter turn
counterclockwise. Reinstall the air intake duct
securely.
Reinstall the engine coolant
reserve tank and power steering
reservoir. Open the hood.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it
about one-quarter turn
counterclockwise.
4. 5.
6.
3. 7.
8.
2.
3. 1.
CONT INUED
Driver’s sidePassenger’s side
Lights
L ow Beam Headlight s
Maint enance
627
TAB
CONNECTOR BULB
BULBTAB
CONNECTOR
10/07/17 10:58:08 31TK8600_632
2011 Odyssey

Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Push the electrical connector onto
the new bulb.
Turn on the headlights to test the
new bulb.Open the hood.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.Turn on the lights to make sure
the new bulb is working. Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place. Push the new bulb straight into
the socket until it bottoms.
1.
4.
5.
6.
2.
3. 4.
5.
6.
Lights
Replacing the Front Side Marker/
Parking/Turn Signal Light Bulb
628
BULB
SOCKET
10/07/17 10:58:18 31TK8600_633
2011 Odyssey

ÎÎ
Î ÎÎÎ
Î
Î
Î
Î Î
µ
µ
µ Î
Î
Î
Î
Î
ÎSpecif ications
T echnical Inf ormation
689
Battery Lights
Seating Capacities Tires Alignment Fuses
60 W (HB3)
55 W
28/8 W
3.8 W (2 CP) 8W
1.4 W 8W 16 W
5W
21 W
3CP
21/5 W
21 W 55 W
Capacity 12 V
12 V 60 AH/5 HR
72 AH/20 HR 35 W
5W
1.4 W
The low beam headlights are high voltage discharged type.
Replacement of a low beam headlight bulb should be performed
by your dealer.
Replacement of a light bulb should be done by your dealer.
Headlights
Fog lights
Front turn signal/Parking/Side
marker lights
Side turn signal lights
Rear turn signal lights
Stop/Side marker/Taillights
Taillights
Back-up lights
License plate lights
High-mount brake light
Individual map lights
Vanity mirror lights
Cargo area light
Door courtesy lights
Glove box light
Foot light
3
3/2 2
8/7
Total
Front
Rear 60 psi (420 kPa , 4.2 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm)
33 psi (230 kPa , 2.3 kgf/cm)
T135/80D17 103M P235/60R18 102T P235/65R17 103T
Size
Pressure 2°36’
0°30’0°
Toe-in
Camber
Caster Interior
Under-hood
Rear
0.07 in (2.0 mm) 0.00 in (0.0 mm)
See page
680or the fuse label
attached to the dashboard.
See page 681or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 678and 679or the fuse
box cover.
See page 682or the fuse label
attached on the inside of fuse box
lid.
Front
Rear
Front
Rear
Front
Driver’s side
Passenger’s side
High
Low
:Second row
Third row
1:
2:
3:
4:
Touring models
Touring models LED(Amber) (H11) (H11)
(D2S)
Front/Rear
Spare
Front/Rear
Spare
(Amber)
Front
Rear
LX models
:
LED
U.S. Touring Elite and Canadian Touring models
4 4
4 21, 3
2
