2011 HONDA ACCORD COUPE navigation system

Most audio system f unctions can still
be controlled by standard buttons,
dials, and knobs, but some f unctions
can only be accessed using the
interf ace dial. The interf ace dial has
two parts, a knob and a selector.The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.
The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection.The audio system can also be
operated by voice control. See the
navigation system manual f or
complete details.
Interf ace Dial
Voice Control System
Audio System (Models with navigation system)
194
SELECTOR
KNOB ENTER
10/06/18 16:07:33 31TA5630_199
2011 Accord Sedan

Playing the FM/A M Radio (Models with navigation system)
Features
195
INTERFACE DIALCENTER DISPLAY
SKIP BAR NAVIGATION SCREEN
POWER/VOLUME KNOB
TUNE BAR FM/AM BUTTON
CATEGORY BAR
AUDIO BUTTON SOUND BUTTON
U.S. model is shown. SCAN/A.SEL
(SCAN/AUTO SELECT) BAR
10/06/18 16:07:37 31TA5630_200
2011 Accord Sedan

µ
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob or the FM/AM
button. Adjust the volume by turning
the power/volume knob.
The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press the FM/AM button. You can also
change bands by pushing the
interf ace selector up. Each time you
push it up, the band will change to
FM1, FM2, or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
center display, if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
information on the RDS, see
. Use the TUNE bar to tune
the radio to a desired f requency.
Press the right side of the bar to
tune to a higher f requency, or the
lef t side to tune to a lower f requency.
To tune with the interf ace dial, push
the selector down, and turn the knob
to TUNE icon. Then press ENTER
on the selector, and turn the knob to
the desired f requency. To exit the
TUNE mode, press ENTER on the
selector, then push the selector up.
Playing the FM/A M Radio (Models with navigation system)
To Play the FM/AM Radio
To Select a StationTUNE
196
BAND
TUNE ICON
STEREO INDICATOR
10/06/18 16:07:46 31TA5630_201
page 199
2011 Accord Sedan

µµ µ
CONT INUED
The skip (seek)
f unction searches up and down f rom
the current f requency to f ind a
station with a strong signal. To
activate it, press either side ( or ) of the SKIP bar, then release
it. You can also activate the skip
f unction (SEEK is displayed on the
screen) by pushing the interf ace
selector to the right or lef t.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN side of
the SCAN/A.SEL bar, then release it.
To scan with the interf ace dial, push
the selector down, and then push it
to the right. You will see SCAN
f lashing on the screen. When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds. If you
do nothing, the system will then scan
f or the next strong station and play it
f or 10 seconds. When it plays a
station that you want to listen to,
press the scan side of the bar again,
or push the interf ace selector to the
right again.
Each preset button or
preset icon can store one f requency
onAMandtwofrequenciesonFM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two sets of FM f requencies with
the preset buttons (on-screen
icons).
1.
To store a preset memory location:
Playing the FM/A M Radio (Models with navigation system)
SK IP (SEEK )
SCANPreset
Features
197
SCAN INDICATOR
10/06/18 16:07:53 31TA5630_202
2011 Accord Sedan

µIf you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
Usethetune,skip(seek),scan,or
RDS function to tune the radio to a
desired station.
Press the preset button, and hold
it until you hear a beep. You can
also store f requencies with the
interf ace dial. Select the preset
icon you want to store the
f requency on, then press ENTER
on the interf ace selector, and hold
it f or more than 2 seconds.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Push the interf ace selector down to
scroll down the screen, highlight
A.SEL, then press ENTER on the
interf ace selector. You will see
A.SEL on the screen, and the system
goes into scan mode f or several
seconds. press ENTER
on the interf ace selector.
You can also press the A.SEL side of
the SCAN/A.SEL bar. You will see
A.SEL on the screen, and the system
goes into scan mode f or several
seconds. The system stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described.
2.
3.
4.
To turn of f auto select,
AUTO SELECT
Playing the FM/A M Radio (Models with navigation system)
198
A.SEL INDICATOR
A.SEL ICON
PRESET ICON
10/06/18 16:08:02 31TA5630_203
2011 Accord Sedan

CONT INUED
On the FM band, you can select a
favorite station and display the
program service name provided by
the radio data system (RDS).
,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
For inf ormation on FM/AM radio
frequencies and reception, see
.

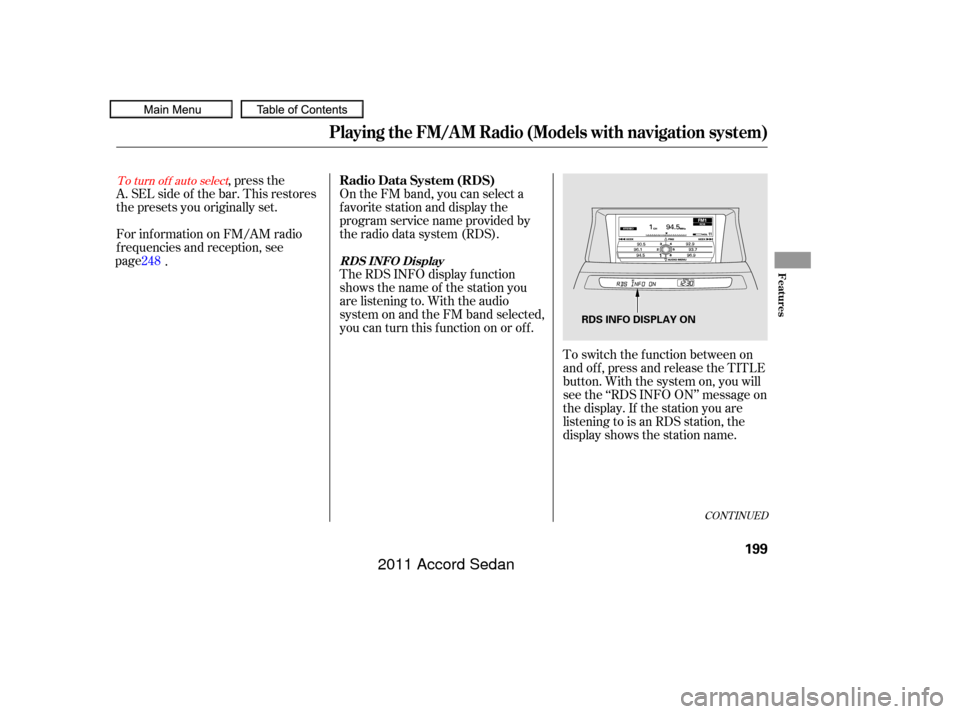

To switch the function between on
and off, press and release the TITLE
button. With the system on, you will
see the ‘‘RDS INFO ON’’ message on
the display. If the station you are
listening to is an RDS station, the
display shows the station name.
The RDS INFO display f unction
shows the name of the station you
are listening to. With the audio
system on and the FM band selected,
you can turn this f unction on or of f .
To turn of f auto select
Playing the FM/A M Radio (Models with navigation system)
Radio Data System (RDS)
RDS INFO DisplayFeatures
199
RDS INFO DISPLAY ON
10/06/18 16:08:10 31TA5630_204
page 248
2011 Accord Sedan

With the FM band selected, you can
select the program type provided by
the RDS. Press the AUDIO button to
display the radio inf ormation on the
screen. Push down the selector on
the interf ace dial, then turn the knob
to select RDS SEARCH icon. Press
ENTER to set your selection. The
principal RDS categories are shown
as f ollows:
If the station you are listening to is
not an RDS station, the audio screen
and the center display continue to
show the f requency.
INFO: News, inf ormation, sports,
talk shows, f oreign language,
personality, public, college, and
weather JAZZ: Jazz CLASSIC: Classical music RELIGION: Programs concerned
with religion R & B: Rhythm and blues, and sof t
rhythm and blues OLDIES: Nostalgia music and oldies TOP 40: Top 40 hits
SOFT: Adult hits and sof t music
COUNTRY: Country music ROCK: Rock, classic rock and sof t
rock music ALL: All RDS category stations
TRAFFIC: Traffic information
When you turn of f this f unction by
pressing the TITLE button, the
center display shows ‘‘RDS INFO
OFF.’’
Playing the FM/A M Radio (Models with navigation system)
Radio Data System (RDS) Category
200
RDS SEARCH ICON
10/06/18 16:08:21 31TA5630_205
2011 Accord Sedan

ÛÝ
CONT INUED
This f unction searches up and down
a f requency f or the strongest signal
f rom the f requencies that carry the
selected RDS category inf ormation.
This can help you to find a station in
your favorite category. To activate it,
press and release either side
( or ) of the SKIP bar. You
will also see the selected RDS
category name blinking in the center
display while searching it. When the
system f inds a station, the selected
RDS category name will be displayed
again for about 5 seconds in the
center display.
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station.

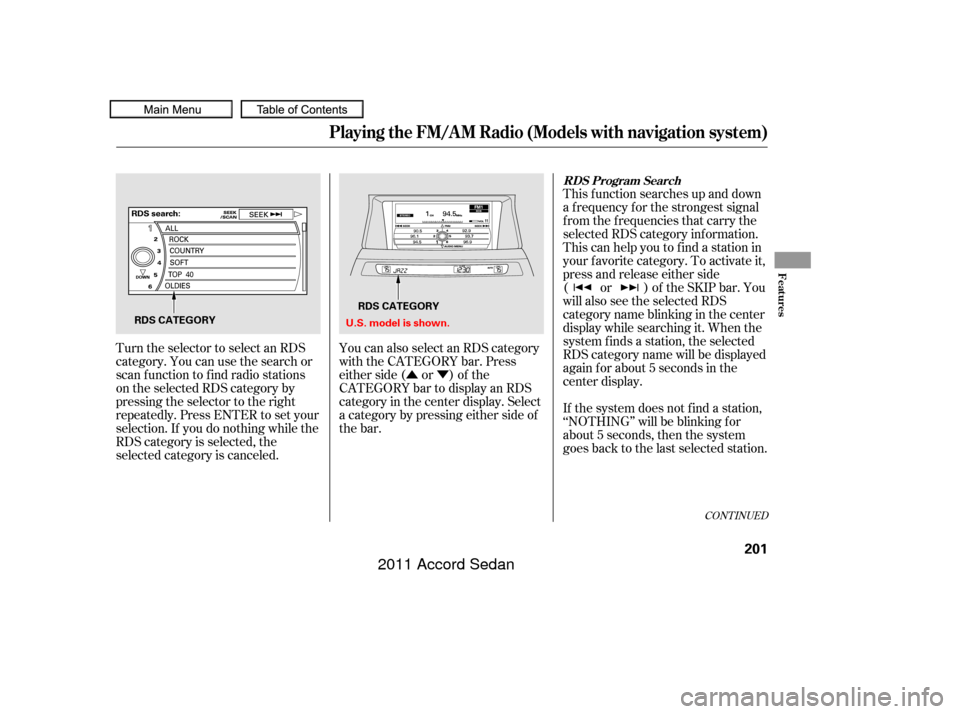

Turn the selector to select an RDS
category. You can use the search or
scan function to find radio stations
on the selected RDS category by
pressing the selector to the right
repeatedly. Press ENTER to set your
selection. If you do nothing while the
RDS category is selected, the
selected category is canceled. You can also select an RDS category
with the CATEGORY bar. Press
either side ( or ) of the
CATEGORY bar to display an RDS
category in the center display. Select
a category by pressing either side of
the bar.
Playing the FM/A M Radio (Models with navigation system)
RDS Program Search
Features
201
U.S. model is shown.
RDS CATEGORY RDS CATEGORY
