2011 HONDA ACCORD COUPE key

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
If you lose your key and you cannot
start the engine, contact your dealer.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key. The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
Inst rument s and Cont rols
77
Always take the ignition key with you
whenever you leave the vehicle alone.
10/06/18 15:52:06 31TA5630_082
2011 Accord Sedan

µµ
µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III) You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shif t lever must
also be in Park. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn of f the beeper.
If your vehicle has an automatic
transmission, the shif t lever must be
in Park bef ore you can remove the
key f rom the ignition switch.
If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key. This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position. You can
operate the audio system and the
accessory power sockets in this
position.
Ignition Switch
LOCK (0)
ST A RT (III) ON (II) A CCESSORY (I)
78
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.
10/06/18 15:52:14 31TA5630_083
2011 Accord Sedan

The lock tab on any passenger’s door
locks and unlocks that door.
When the door is unlocked, you can
seetheredindicatoronthelocktab
above the inner door handle.Youcanopenorclosethewindows
and the moonroof (if equipped) by
using the key in the driver’s door
(see page ). All doors can be locked f rom the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door, insert the key, turn it
clockwise, and release it. The
remaining doors unlock when you
turn the key a second time within a
f ew seconds.
To lock all doors, push the f ront of
the master door lock switch on
either f ront door, pull the lock tab
rearward on the driver’s door, or use
the key on the outside lock on the
driver’s door.
Pushing the rear of either master
door lock switch will unlock all doors.
Pushing f orward the lock tab on the
driver’s door unlocks only that door. To lock any passenger’s door
pull the lock tab rearward and
close the door. To lock the
driver’s door, remove the key
from the ignition switch, pull the
lock tab rearward or push the
front of the master switch,
then close the door.108
CONT INUED
Door L ocks
Instruments and Controls
79
POWER DOOR LOCK MASTER SWITCH
RED INDICATORLock
Unlock
Lock
Unlock LOCK TAB
10/06/18 15:52:21 31TA5630_084
when getting out of the vehicle,
2011 Accord Sedan

If you forget and leave the key
in the ignition switch, lockout
prevention will not allow you to lock
the driver’s door. With any door
open and the key in the
ignition switch, locking with the
master door lock switch is disabled.
If the driver’s door is closed, the
lock tab on the driver’s door is not
disabled. Pulling the driver’s lock
tab rearward will lock all doors. If
you try to lock an open driver’s door
by pulling the lock tab rearward, the
driver’s door lock tab pops out
and unlocks the driver’s door.The auto door locking f eature has
three possible settings:
The auto door locking is
deactivated all the time.
The doors lock whenever you
move the shift lever out of the
Park (P) position (A/T vehicles).
The doors lock when the vehicle
speedreaches10mph(15km/h).
Your vehicle has customizable
settings f or the doors to
automatically lock and unlock. There
are default settings for each of these
f eatures. You can turn of f or change
the settings for these features as
described on the f ollowing pages.
This is the def ault setting.
When you customize the setting,
make sure your vehicle is parked
saf ely, the engine is of f , and the
parking brake is applied. Make all
settings bef ore you start driving.
U.
S. EX-L V6
Canadian EX-L andEX-L V6 with
navigation system
L ockout Prevent ion
Door L ocks
A uto Door L ocking
A uto Door L ocking/Unlocking
80
NOTE: When customizing a setting,
use the appropriate remote transmitter
(Driver 1 or Driver 2).
T o customize, remove the master key
with the remote transmitter, and press
the UNLOCK button once.
10/06/18 15:52:29 31TA5630_085
2011 Accord Sedan

µµ

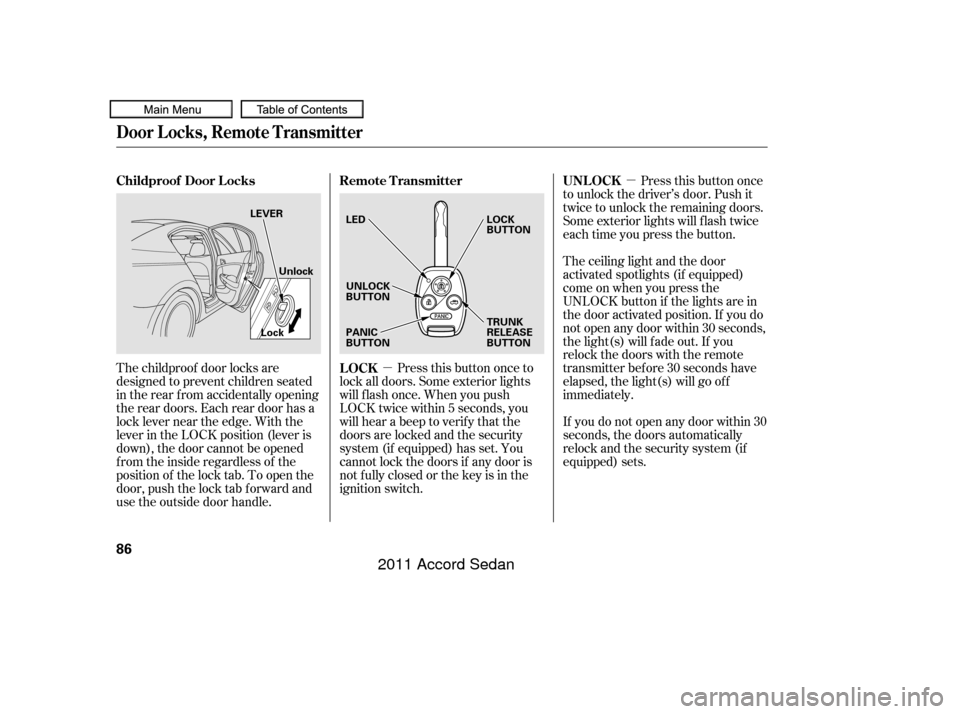

The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
fromtheinsideregardlessof the
position of the lock tab. To open the
door, push the lock tab f orward and
use the outside door handle. Press this button once to
lock all doors. Some exterior lights
will f lash once. When you push
LOCK twice within 5 seconds, you
will hear a beep to verify that the
doors are locked and the security
system (if equipped) has set. You
cannot lock the doors if any door is
not f ully closed or the key is in the
ignition switch. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the remaining doors.
Some exterior lights will f lash twice
each time you press the button.
The ceiling light and the door
activated spotlights (if equipped)
come on when you press the
UNLOCK button if the lights are in
the door activated position. If you do
not open any door within 30 seconds,
the light(s) will f ade out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light(s) will go of f
immediately.
If you do not open any door within 30
seconds, the doors automatically
relock and the security system (if
equipped) sets.
Childproof Door L ocks
Remote T ransmitter
LOCK UNL OCK
Door Locks, Remote Transmitter
86
Unlock
LEVER
Lock UNLOCK
BUTTON LED
TRUNK
RELEASE
BUTTON
PANIC
BUTTON LOCK
BUTTON
10/06/18 15:53:25 31TA5630_091
2011 Accord Sedan

µµ
You can also open all power windows
and the moonroof (if equipped) f rom
outside the vehicle with the remote
transmitter (see page ).
Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press and hold this
button f or about 1 second to open
the trunk. You cannot open the trunk
if the key is in the ignition switch. Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
108
CONT INUED
Remote Transmitter
PA NIC
TRUNK
Remote Transmitter Care
Replacing the Transmitter Battery
Inst rument s and Cont rols
87
10/06/18 15:53:33 31TA5630_092
2011 Accord Sedan

´

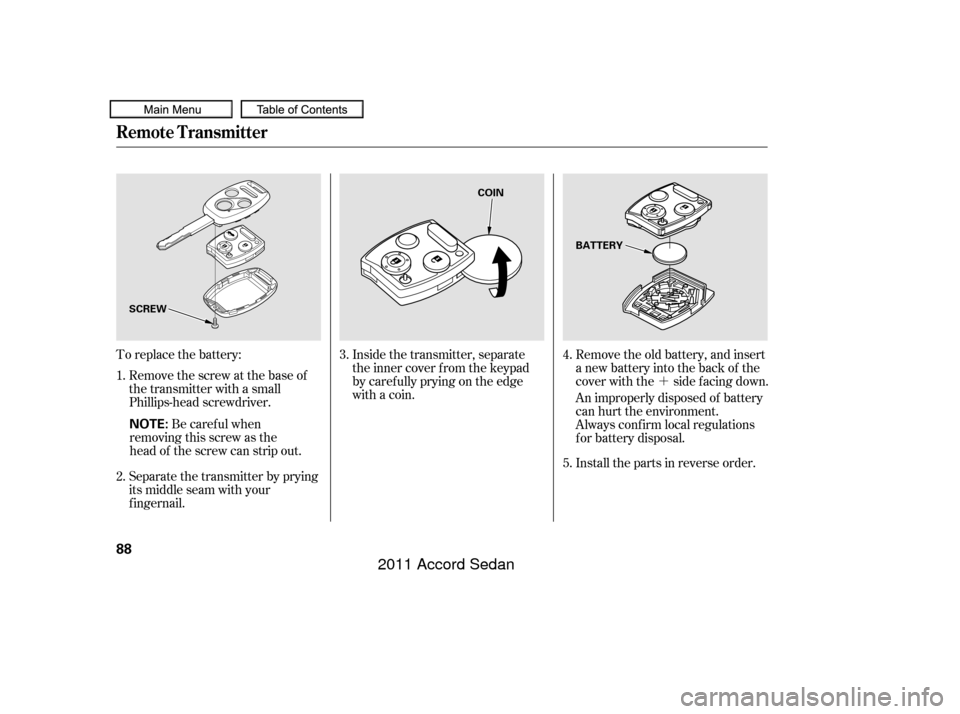

To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Be careful when
removing this screw as the
head of the screw can strip out.
Separate the transmitter by prying
its middle seam with your
f ingernail. Inside the transmitter, separate
the inner cover f rom the keypad
by caref ully prying on the edge
with a coin.
Remove the old battery, and insert
a new battery into the back of the
cover with the side f acing down.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
Install the parts in reverse order.
1.
2. 3.
4.
5.
Remote Transmitter
88
NOTE:
SCREW BATTERY
COIN
10/06/18 15:53:42 31TA5630_093
2011 Accord Sedan

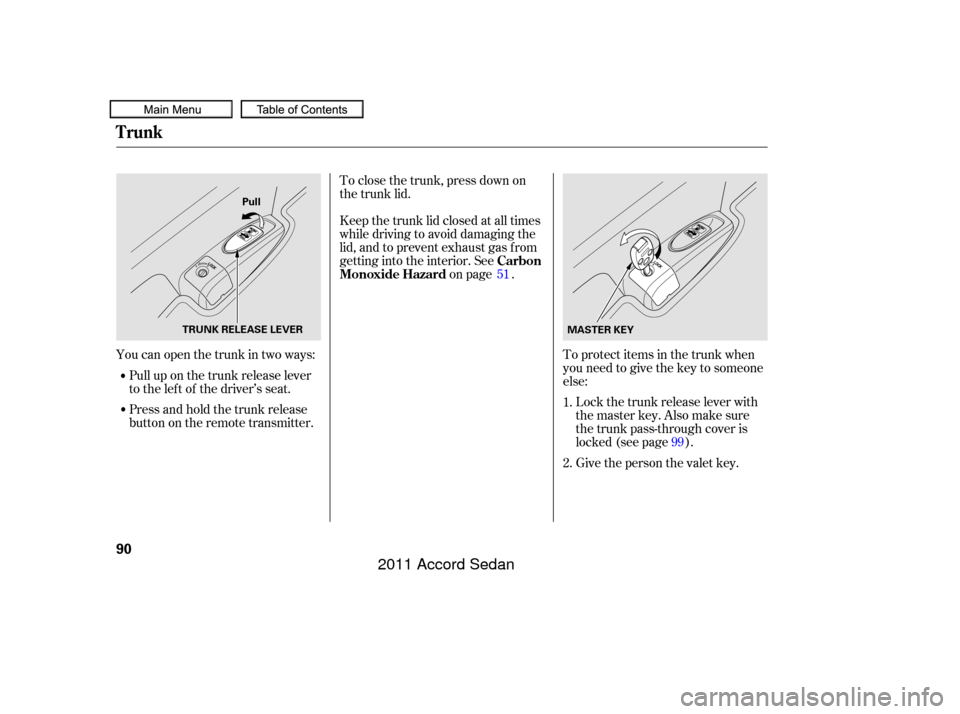

To protect items in the trunk when
you need to give the key to someone
else:Give the person the valet key. Lockthetrunkreleaseleverwith
the master key. Also make sure
the trunk pass-through cover is
locked (see page ).
To close the trunk, press down on
the trunk lid.
Youcanopenthetrunkintwoways: Pull up on the trunk release lever
to the lef t of the driver’s seat.
Press and hold the trunk release
button on the remote transmitter. Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas f rom
getting into the interior. See
on page .
1.
2.
51
99
Trunk
Carbon
Monoxide Hazard
90
Pull
TRUNK RELEASE LEVER MASTER KEY
10/06/18 15:53:59 31TA5630_095
2011 Accord Sedan
