Black plate (79,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-79
Vehicles that have a tire pressure
monitoring system may give an
inaccurate low‐pressure warning
if non‐TPC Spec-rated tires are
installed on the vehicle. Non‐TPC
Spec-rated tires may give a
low‐pressure warning that is
higher or lower than the proper
warning level you would get with
TPC Spec-rated tires. SeeTire
Pressure Monitor System on
page 10‑68.
The vehicle's original equipment
tires are listed on the Tire and
Loading Information label. See
Vehicle Load Limits on page 9‑25
for more information about the Tire
and Loading Information label and
its location on the vehicle.Different Size Tires and
Wheels
If you add wheels or tires that are
a different size than the original
equipment wheels and tires, this
could affect the way the vehicle
performs, including its braking,
ride and handling characteristics,
stability, and resistance to rollover.
Additionally, if the vehicle has
electronic systems such as antilock
brakes, rollover airbags, traction
control, and electronic stability
control, the performance of these
systems can be affected.
{WARNING
If different sized wheels are used,
there may not be an acceptable
level of performance and safety
if tires not recommended for
those wheels are selected.
This increases the chance
of a crash and serious injury.
Only use GM specific wheel
and tire systems developed
for the vehicle, and have them
properly installed by a GM
certified technician.
See Buying New Tires on
page 10‑77 andAccessories
and Modifications on page 10‑3
for additional information.

Black plate (82,1)GMC Sierra Owner Manual - 2011
10-82 Vehicle Care
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts and
wheel nuts should be replaced.
If the wheel leaks air, replace it
(except some aluminum wheels,
which can sometimes be repaired).
See your dealer if any of these
conditions exist.
Your dealer will know the kind of
wheel you need.
Each new wheel should have
the same load-carrying capacity,
diameter, width, offset and be
mounted the same way as the
one it replaces.
If you need to replace any of the
wheels, wheel bolts, wheel nuts
or Tire Pressure Monitor System
(TPMS) sensors, replace them only
with new GM original equipment
parts. This way, you will be sure to
have the right wheel, wheel bolts,
wheel nuts, and TPMS sensors for
the vehicle.{WARNING
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling
of the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Notice: The wrong wheel
can also cause problems with
bearing life, brake cooling,
speedometer or odometer
calibration, headlamp aim,
bumper height, vehicle ground
clearance, and tire or tire chain
clearance to the body and
chassis. Whenever a wheel, wheel
bolt or wheel nut is replaced
on a dual wheel setup, check
the wheel nut torque after
160, 1 600 and 10 000 km
(100, 1,000 and 6,000 miles)
of driving. For proper torque,
see
“Wheel Nut Torque” under
Capacities and Specifications on
page 12‑2.
See If a Tire Goes Flat on
page 10‑84 for more information.
Used Replacement Wheels
{WARNING
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.

Black plate (97,1)GMC Sierra Owner Manual - 2011
Vehicle Care 10-97

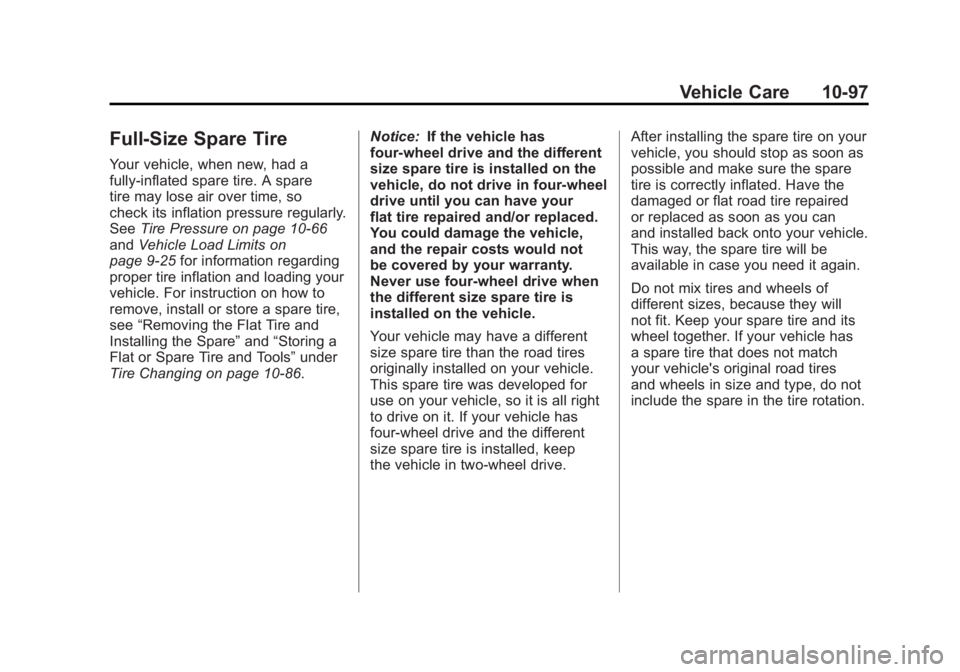

Full-Size Spare Tire
Your vehicle, when new, had a
fully-inflated spare tire. A spare
tire may lose air over time, so
check its inflation pressure regularly.
SeeTire Pressure on page 10‑66
and Vehicle Load Limits on
page 9‑25 for information regarding
proper tire inflation and loading your
vehicle. For instruction on how to
remove, install or store a spare tire,
see “Removing the Flat Tire and
Installing the Spare” and“Storing a
Flat or Spare Tire and Tools” under
Tire Changing on page 10‑86. Notice:
If the vehicle has
four-wheel drive and the different
size spare tire is installed on the
vehicle, do not drive in four-wheel
drive until you can have your
flat tire repaired and/or replaced.
You could damage the vehicle,
and the repair costs would not
be covered by your warranty.
Never use four-wheel drive when
the different size spare tire is
installed on the vehicle.
Your vehicle may have a different
size spare tire than the road tires
originally installed on your vehicle.
This spare tire was developed for
use on your vehicle, so it is all right
to drive on it. If your vehicle has
four-wheel drive and the different
size spare tire is installed, keep
the vehicle in two-wheel drive. After installing the spare tire on your
vehicle, you should stop as soon as
possible and make sure the spare
tire is correctly inflated. Have the
damaged or flat road tire repaired
or replaced as soon as you can
and installed back onto your vehicle.
This way, the spare tire will be
available in case you need it again.
Do not mix tires and wheels of
different sizes, because they will
not fit. Keep your spare tire and its
wheel together. If your vehicle has
a spare tire that does not match
your vehicle's original road tires
and wheels in size and type, do not
include the spare in the tire rotation.

Black plate (3,1)GMC Sierra Owner Manual - 2011
Service and Maintenance 11-3
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 miles since
the last service. Reset the oil life
system whenever the oil is changed.
SeeEngine Oil Life System on
page 10‑11.
Every Engine Oil Change
.Change engine oil and
filter. Reset oil life system.
See Engine Oil on page 10‑7
and Engine Oil Life System on
page 10‑11. An Emission Control
Service.
.Engine coolant level check.
See Engine Coolant on
page 10‑22.
.Engine cooling system
inspection. Visual inspection
of hoses, pipes, fittings, and
clamps and replacement,
if needed.
.Windshield washer fluid level
check. See Washer Fluid on
page 10‑29.
.Windshield wiper blade
inspection for wear, cracking,
or contamination and windshield
and wiper blade cleaning,
if contaminated. See Exterior
Care on page 10‑108. Worn
or damaged wiper blade
replacement. See Wiper Blade
Replacement on page 10‑41.
.Tire inflation pressures
check. See Tire Pressure on
page 10‑66.
.Tire wear inspection. See Tire
Inspection on page 10‑73.
.Rotate tires if necessary.
See Tire Rotation on
page 10‑73.
.Fluids visual leak check
(or every 12 months, whichever
occurs first). A leak in any
system must be repaired and
the fluid level checked.
.Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter on page 10‑19.
.Brake system inspection
(or every 12 months, whichever
occurs first).
.For vehicles with Allison
Transmission®only: At the first
engine oil change only, replace
external transmission filter.
.Steering and suspension
inspection. Visual inspection
for damaged, loose, or missing
parts or signs of wear.

Black plate (5,1)GMC Sierra Owner Manual - 2011
Service and Maintenance 11-5
Additional Required Services
At the First 160 km/100 Miles,
1 600 km/1,000 Miles, and
10 000 km/6,000 Miles
.For vehicles with dual
wheels: Check dual wheel
nut torque. For proper
torque, seeCapacities and
Specifications on page 12‑2.
Every 12 000 km/7,500 Miles
.Rotate tires. Tires should
be rotated every 12 000 km/
7,500 miles. See Tire Rotation
on page 10‑73.
At Each Fuel Stop
.Engine oil level check.
See Engine Oil on page 10‑7.
.Engine coolant level check.
SeeEngine Coolant on
page 10‑22.
.Windshield washer fluid level
check. See Washer Fluid on
page 10‑29. Once a Month
.Tire inflation pressures
check. See
Tire Pressure on
page 10‑66.
.Tire wear inspection. See Tire
Inspection on page 10‑73.
.Sunroof track and seal
inspection, if equipped.
See Sunroof (Extended Cab) on
page 2‑21 orSunroof (Crew
Cab) on page 2‑22.
Once a Year
.See Starter Switch Check on
page 10‑39.
.See Automatic Transmission
Shift Lock Control Function
Check on page 10‑40.
.See Ignition Transmission Lock
Check on page 10‑40.
.See Park Brake and P (Park)
Mechanism Check on
page 10‑40.
.Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
.Underbody flushing service.
.Hood/Decklid/Liftgate/Liftglass
Support Gas Strut Service:
Visually inspect gas strut,
if equipped, for signs of wear,
cracks, or other damage. Check
the hold open ability of the gas
strut. Contact your dealer if
service is required.

Black plate (19,1)GMC Sierra Owner Manual - 2011
Customer Information 13-19

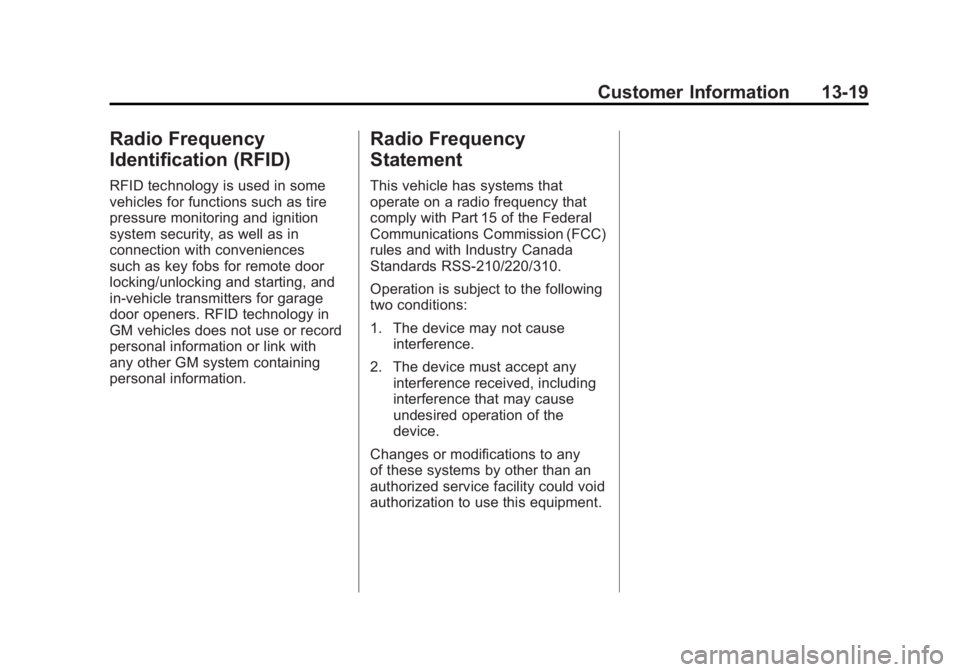

Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tire
pressure monitoring and ignition
system security, as well as in
connection with conveniences
such as key fobs for remote door
locking/unlocking and starting, and
in-vehicle transmitters for garage
door openers. RFID technology in
GM vehicles does not use or record
personal information or link with
any other GM system containing
personal information.
Radio Frequency
Statement
This vehicle has systems that
operate on a radio frequency that
comply with Part 15 of the Federal
Communications Commission (FCC)
rules and with Industry Canada
Standards RSS‐210/220/310.
Operation is subject to the following
two conditions:
1. The device may not causeinterference.
2. The device must accept any interference received, including
interference that may cause
undesired operation of the
device.
Changes or modifications to any
of these systems by other than an
authorized service facility could void
authorization to use this equipment.

Black plate (5,1)GMC Sierra Owner Manual - 2011
INDEX i-5
Engine (cont.)Cooling System Messages . . . 5-44
Drive Belt Routing . . . . . . . . . . . . 12-6
Exhaust . . . . . . . . . . . . . . . . . . . . . . 9-44
Fan . . . . . . . . . . . . . . . . . . . . . . . . . 10-28
Oil Pressure Gauge . . . . . . . . . . 5-16
Overheated Protection
Operating Mode . . . . . . . . . . . 10-28
Overheating . . . . . . . . . . . . . . . . 10-25
Power Messages . . . . . . . . . . . . . 5-45
Pressure Light . . . . . . . . . . . . . . . . 5-31
Running While Parked . . . . . . . . 9-45
Starting . . . . . . . . . . . . . . . . . . . . . . . 9-37
Engine Oil
Life System . . . . . . . . . . . . . . . . . .10-11
Messages . . . . . . . . . . . . . . . . . . . . 5-45
Entry Lighting . . . . . . . . . . . . . . . . . . . 6-9
Equipment, Towing . . . . . . . . . . . 9-112
Event Data Recorders . . . . . . . . 13-17
Exit Lighting . . . . . . . . . . . . . . . . . . . . 6-9
Extender, Safety Belt . . . . . . . . . . 3-27
Exterior Lamp Controls . . . . . . . . . 6-1
Exterior Lamps Off Reminder . . . 6-3F
Fan Engine . . . . . . . . . . . . . . . . . . . . . . 10-28
Fast Idle System . . . . . . . . . . . . . . . 9-39
Features Memory . . . . . . . . . . . . . . . . . . . . . . . 1-13
Filter
Engine Air Cleaner . . . . . . . . . 10-19
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 6-3
Flashers, Hazard Warning . . . . . . 6-5
Flat Tire . . . . . . . . . . . . . . . . . . . . . . 10-84 Changing . . . . . . . . . . . . . . . . . . . 10-86
Floor Mats . . . . . . . . . . . . . . . . . . . 10-116
Fluid AutomaticTransmission . . . . . . . 10-13, 10-16
Brakes . . . . . . . . . . . . . . . . . . . . . . 10-32
Four-Wheel Drive Transfer Case . . . . . . . . . . . . . . . 9-54
Power Steering . . . . . . . . . . . . . 10-29
Washer . . . . . . . . . . . . . . . . . . . . . 10-29 Fog Lamps
Bulb Replacement . . . . . . . . . . . . . 6-6
Folding Mirrors . . . . . . . . . . . . . . . . 2-16
Four-Wheel Drive . . . . . . . 10-34, 9-54
Four-Wheel-Drive Light . . . . . . . . 5-29
Front Axle . . . . . . . . . . . . . . . . . . . . 10-36
Front Fog Lamps Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . 3-3
Heated . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-84 Additives . . . . . . . . . . . . . . . . . . . . . 9-86
E85 (85% Ethanol) . . . . . . . . . . . 9-87
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 9-90
Filling the Tank . . . . . . . . . . . . . . . 9-88
Fuels in Foreign Countries . . . . 9-86
Gasoline Specifications . . . . . . . 9-85
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 5-15
Low Fuel Warning Light . . . . . . . 5-31

Black plate (6,1)GMC Sierra Owner Manual - 2011
i-6 INDEX
Fuel (cont.)Management, Active . . . . . . . . . . 9-44
Recommended . . . . . . . . . . . . . . . 9-84
Requirements, California . . . . . 9-85
System Messages . . . . . . . . . . . . 5-46
Fuel Economy Driving . . . . . . . . . . . . . . . . . . . . . . . . 1-35
Full-Size Spare Tire . . . . . . . . . . 10-97
Fuses Engine CompartmentFuse Block . . . . . . . . . . . . . . . . 10-50
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . 10-50
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . 10-54
G
Garage Door Opener . . . . . . . . . . 5-61Programming . . . . . . . . . . . . . . . . . 5-61
Gasoline
Specifications . . . . . . . . . . . . . . . . . 9-85 Gauges
Engine Coolant
Temperature . . . . . . . . . . . . . . . . 5-17
Engine Oil Pressure . . . . . . . . . . 5-16
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
Odometer . . . . . . . . . . . . . . . . . . . . . 5-14
Speedometer . . . . . . . . . . . . . . . . . 5-14
Tachometer . . . . . . . . . . . . . . . . . . . 5-15
Trip Odometer . . . . . . . . . . . . . . . . 5-14
Voltmeter . . . . . . . . . . . . . . . . . . . . . 5-18
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 5-12
General Information Service and Maintenance . . . . . 11-1
Towing . . . . . . . . . . . . . . . . . . . . . . . . 9-90
Vehicle Care . . . . . . . . . . . . . . . . . . 10-2
Glass Replacement . . . . . . . . . . . 10-41
Glove Box . . . . . . . . . . . . . . . . . . . . . . 4-1
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . 13-7
H
Halogen Bulbs . . . . . . . . . . . . . . . . 10-44
Hazard Warning Flashers . . . . . . . 6-5
Head Restraints . . . . . . . . . . . . . . . . 3-2
Headlamps . . . . . . . . . . . . . . . . . . . 10-44Aiming . . . . . . . . . . . . . . . . . . . . . . 10-42
Automatic . . . . . . . . . . . . . . . . . . . . . . 6-4
Bulb Replacement . . . . . . . . . . 10-44
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . 6-4
Flash-to-Pass . . . . . . . . . . . . . . . . . . 6-3
High-Beam On Light . . . . . . . . . . 5-32
High/Low Beam Changer . . . . . . 6-3
Heated Front Seats . . . . . . . . . . . . . 3-8
Heated Mirrors . . . . . . . . . . . . . . . . . 2-17
Heater Engine Coolant . . . . . . . . . . . . . . . 9-40
Heating and Air Conditioning . . . . . . . . . . . . . . . 8-1, 8-4
