2011 GMC ACADIA headrest

Black plate (3,1)GMC Acadia/Acadia Denali Owner Manual - 2011
Seats and Restraints 3-3
2. Push down on the head restraintafter the button is released to
make sure that it is locked in
place.
The vehicle's second‐row seats
have head restraints in the outboard
seating positions that cannot be
adjusted.
The vehicle's third‐row seats have
headrests in the outboard seating
positions that cannot be adjusted.
The vehicle's head restraints and
headrests are not designed to be
removed.Front Seats

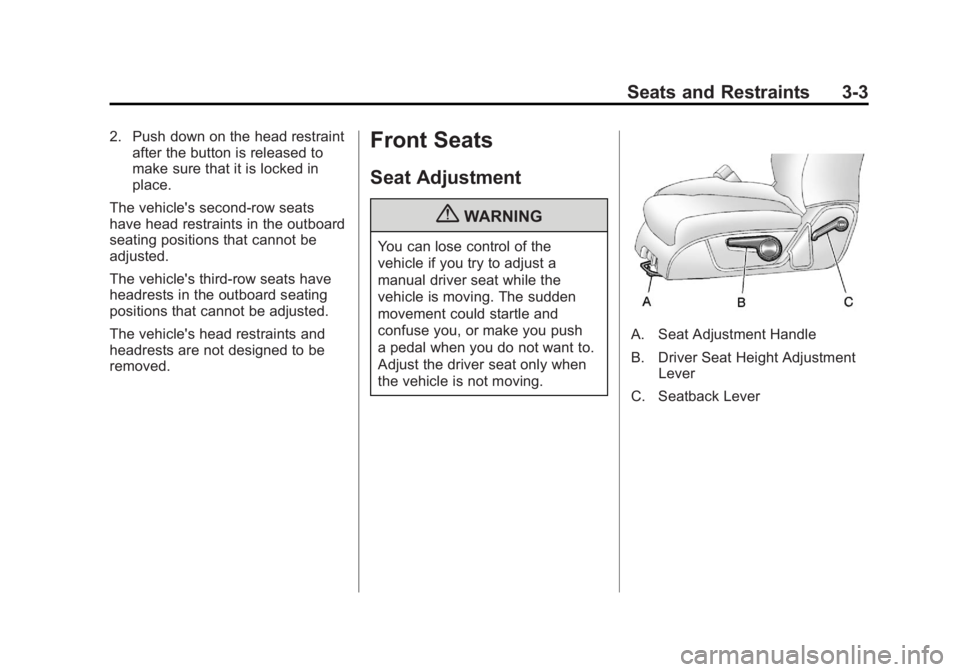

Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push
a pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
A. Seat Adjustment Handle
B. Driver Seat Height Adjustment Lever
C. Seatback Lever

Black plate (28,1)GMC Acadia/Acadia Denali Owner Manual - 2011
3-28 Seats and Restraints
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety
belt pretensioners cannot be seen,
they are part of the safety belt
assembly. They can help tighten
the safety belts during the early
stages of a moderate to severe
frontal, near frontal, or rear crash
if the threshold conditions for
pretensioner activation are met.
And, for vehicles with side impact
airbags, safety belt pretensioners
can help tighten the safety belts in
a side crash or a rollover event.
Pretensioners work only once.
If the pretensioners activate in a
crash, they will need to be replaced,
and probably other new parts for
the vehicle's safety belt system.
SeeReplacing Safety Belt System
Parts After a Crash on page 3‑32.
Rear Safety Belt Comfort
Guides
This vehicle may have rear shoulder
belt comfort guides. If not, they
are available through your dealer.
The guides may provide added
safety belt comfort for older children
who have outgrown booster seats
and for some adults. When installed
and properly adjusted, the comfort
guide positions the shoulder belt
away from the neck and head. Here is how to install a comfort
guide to the safety belt:
Outboard Positions
1. For the outboard positions, remove the guide from its
storage clip on the interior body.
For the third row center position,
locate the comfort guide which
is located in a storage pocket,
at the top of the seat, under
the headrest on the driver's
side of the vehicle.

Black plate (29,1)GMC Acadia/Acadia Denali Owner Manual - 2011
Seats and Restraints 3-29
To access the comfort guide,
you will first need to move the
headrest forward by pulling on
the handle behind the seatback.
The comfort guide will now be
accessible.
Third Row Center Position
Pull the comfort guide out of
its storage location and then
return the headrest to its upright
position.
2. Place the guide over the belt and insert the two edges of the
belt into the slots of the guide.3. Be sure that the belt isnot twisted and it lies flat.
The elastic cord must be under
the belt and the guide on top.

Black plate (63,1)GMC Acadia/Acadia Denali Owner Manual - 2011
Seats and Restraints 3-63
1.3. Put the child restraint onthe seat.
1.4. Attach and tighten the lower attachments on the child
restraint to the lower
anchors.
2. If the child restraint manufacturer recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor, if the vehicle has one.
Refer to the child restraint
instructions and the following
steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered, flip open the cover to expose
the anchor. 2.3. Route, attach, and tighten
the top tether according
to your child restraint
instructions and the
following instructions:
If the position you are using
does not have a headrest
or head restraint and you
are using a single tether,
route the tether over the
seatback.
If the position you are using
does not have a headrest
or head restraint and you
are using a dual tether,
route the tether over the
seatback.

Black plate (64,1)GMC Acadia/Acadia Denali Owner Manual - 2011
3-64 Seats and Restraints
If the position you are using
has a fixed headrest or
head restraint and you
are using a dual tether,
route the tether around the
headrest or head restraint.If the position you are using
has a fixed headrest or
head restraint and you are
using a single tether, route
the tether over the headrest
or head restraint.
3. Before placing a child in the child restraint, make sure it
is securely held in place.
To check, grasp the child
restraint at the LATCH path
and attempt to move it side
to side and back and forth.
There should be no more than
2.5 cm (1 in) of movement,
for proper installation.
Replacing LATCH System
Parts After a Crash
{WARNING
A crash can damage the
LATCH system in the vehicle.
A damaged LATCH system may
not properly secure the child
restraint, resulting in serious
injury or even death in a crash.
To help make sure the LATCH
system is working properly after
a crash, see your dealer to have
the system inspected and any
necessary replacements made
as soon as possible.
If the vehicle has the LATCH system
and it was being used during a
crash, new LATCH system parts
may be needed.
New parts and repairs may be
necessary even if the LATCH
system was not being used at
the time of the crash.
