2011 FORD TRANSIT display

Answering a second incoming call
If another calls comes in while you are already on an active call, you will
hear a beep. You have the choice to end your current call and accept the
incoming call.
To accept the incoming call,press the
button on the audio
system.
To reject the incoming call,by pressing CD or AM/FM on the audio
system.
Redialing a number
To redial a number:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly to cycle through CALL OUT, CALL IN,
MISSED, INCOMING or OUTGOING appears in the display.
3. When the desired selection appears in the display, press < or > to
access the desired number.
4. When the desired number appears in the display, press
for the
system to initiate the call.
To redial a number using voice commands:
1. Press VOICE on the stalk.
2. After the tone, say, “Phone”.
3. When prompted, say, “Redial”. The system will attempt to redial the
last number.
Changing the active phone
With yourBluetooth system, you can pair (bond) and save up to six
phones. At any time, you can choose to make another one of your saved
phones the ’active’ phone with which the system will connect. To select a
another paired (bonded) phone as your active phone:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly until ACTIVE appears in the display.
3. Press < or > on the audio system to scroll through the list of paired
(bonded) phones.
4. When the desired selection appears in the display, press MENU.
Entertainment Systems
34
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

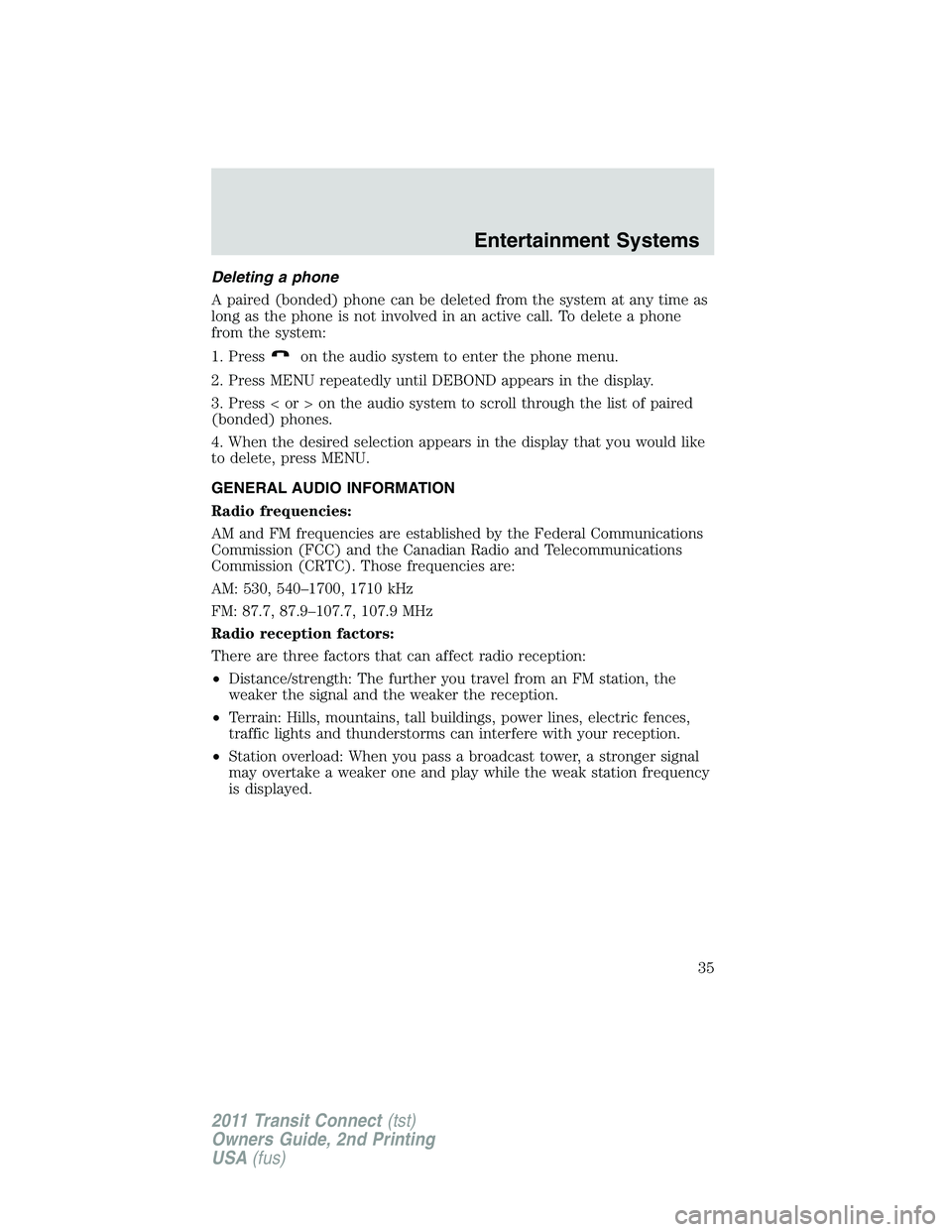

Deleting a phone
A paired (bonded) phone can be deleted from the system at any time as
long as the phone is not involved in an active call. To delete a phone
from the system:
1. Press
on the audio system to enter the phone menu.
2. Press MENU repeatedly until DEBOND appears in the display.
3. Press < or > on the audio system to scroll through the list of paired
(bonded) phones.
4. When the desired selection appears in the display that you would like
to delete, press MENU.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Entertainment Systems
35
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Automatic dimming interior rear view mirror (if equipped)
The interior rear view mirror has an auto-dimming function. The
electronic day/night mirror will change from the normal (high reflective)
state to the non-glare (darkened) state when bright lights (glare) reach
the mirror. When the mirror detects bright light from behind the vehicle,
it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a rearview camera system, a video image will
display in the mirror when the vehicle is put in R (Reverse). As you shift
into any other gear from R (Reverse), the image will remain for a few
seconds and then turn off. Refer toRearview camera systemin the
Drivingchapter.
EXTERIOR MIRRORS
Power side view mirrors (if equipped)
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror or
counterclockwise to adjust the left
mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Heated side view mirrors (if equipped)
Both mirrors are heated automatically to remove ice, mist and fog when
the rear window defroster is activated.
Driver Controls
60
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera is located on
the rear doors. The camera system
provides a video image which
appears in the rear view mirror of
the area behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display in the rear view mirror. The area displayed on the
screen may vary according to the vehicle orientation and/or road
condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Use the side mirrors and rear view mirror to get better coverage on both
sides and rear of the vehicle.
The camera lens for the camera is located on the rear doors. Keep the
lens clean so that the video image remains clear and undistorted. Clean
the lens with a soft, lint-free cloth and non-abrasive cleaner.
Note:If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the rear view camera
system.
WARNING:The camera system is a reverse aid supplement
device that still requires the driver to use it in conjunction with
the rear view mirror and the side mirrors for maximum coverage.
Driving
181
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
