2011 FORD TRANSIT CONNECT relay

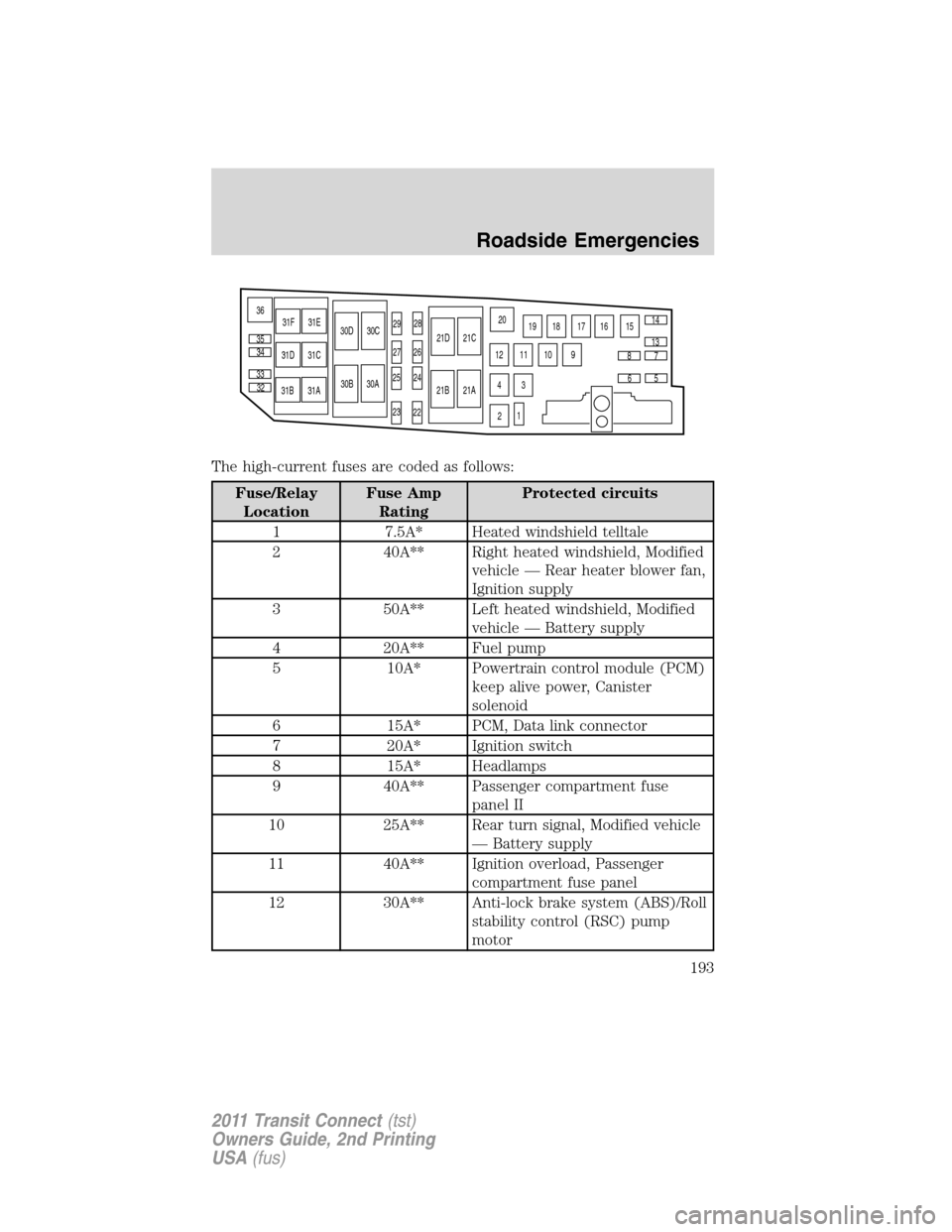

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 7.5A* Heated windshield telltale
2 40A** Right heated windshield, Modified
vehicle — Rear heater blower fan,
Ignition supply
3 50A** Left heated windshield, Modified
vehicle — Battery supply
4 20A** Fuel pump
5 10A* Powertrain control module (PCM)
keep alive power, Canister
solenoid
6 15A* PCM, Data link connector
7 20A* Ignition switch
8 15A* Headlamps
9 40A** Passenger compartment fuse
panel II
10 25A** Rear turn signal, Modified vehicle
— Battery supply
11 40A** Ignition overload, Passenger
compartment fuse panel
12 30A** Anti-lock brake system (ABS)/Roll
stability control (RSC) pump
motor
25
24
22 2326 2728
29
21A
21B21C
21D
30A
30B30C 30D
31A
31B31C 31D31E 31F
32 3334 35 36
15
16 17
18 19 20
10 11 12
9
3 4
1
25
67 81314
Roadside Emergencies
193
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
13 30A* Heater blower motor
14 10A* PCM relay
15 20A** ABS/RSC valves
16 30A** Cooling fan – low
17 50A** Cooling fan – high
18 25A** Daytime running lamps (DRL),
Low beam interrupt relay
19 50A** Passenger compartment fuse
panel III
20 — A/C clutch relay
21A — Right heated windshield relay,
Modified vehicle — Rear fan relay
21B — Starter lock relay
21C — High beam headlamp relay
21D — PCM relay
22 10A* PCM, Auxiliary connector, Fuel
injectors
23 10A* Right low beam headlamp
24 10A* A/C clutch solenoid
25 10A* Left low beam headlamp
26 10A* Mass air flow sensor, Brake
switch, Backup lamps relay, EGR
stepper motor, EVAP canister
purge valve, Heated oxygen
sensors, Floor shifter,
Transmission range sensor
27 — Not used
28 15A* PCM vehicle power 1
29 15A* Auxiliary connector, Coil on plugs
30A 70A Relay Cooling fan high relay
30B
30C — Cooling fan low relay
Roadside Emergencies
194
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
30D — Left heated windshield relay
31A — Backup lamp relay
31B — Fuel pump relay
31C — DRL relay
31D — Low beam headlamps relay
31E — Modified vehicle — Right rear
turn signal relay
31F — Front fog lamps
32 — Cooling fan diode
33 — Fuel pump relay diode
34 — Gear shifter diode
35 30A* Start lock relay
36 — Modified vehicle — Left rear turn
signal relay
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
Roadside Emergencies
195
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

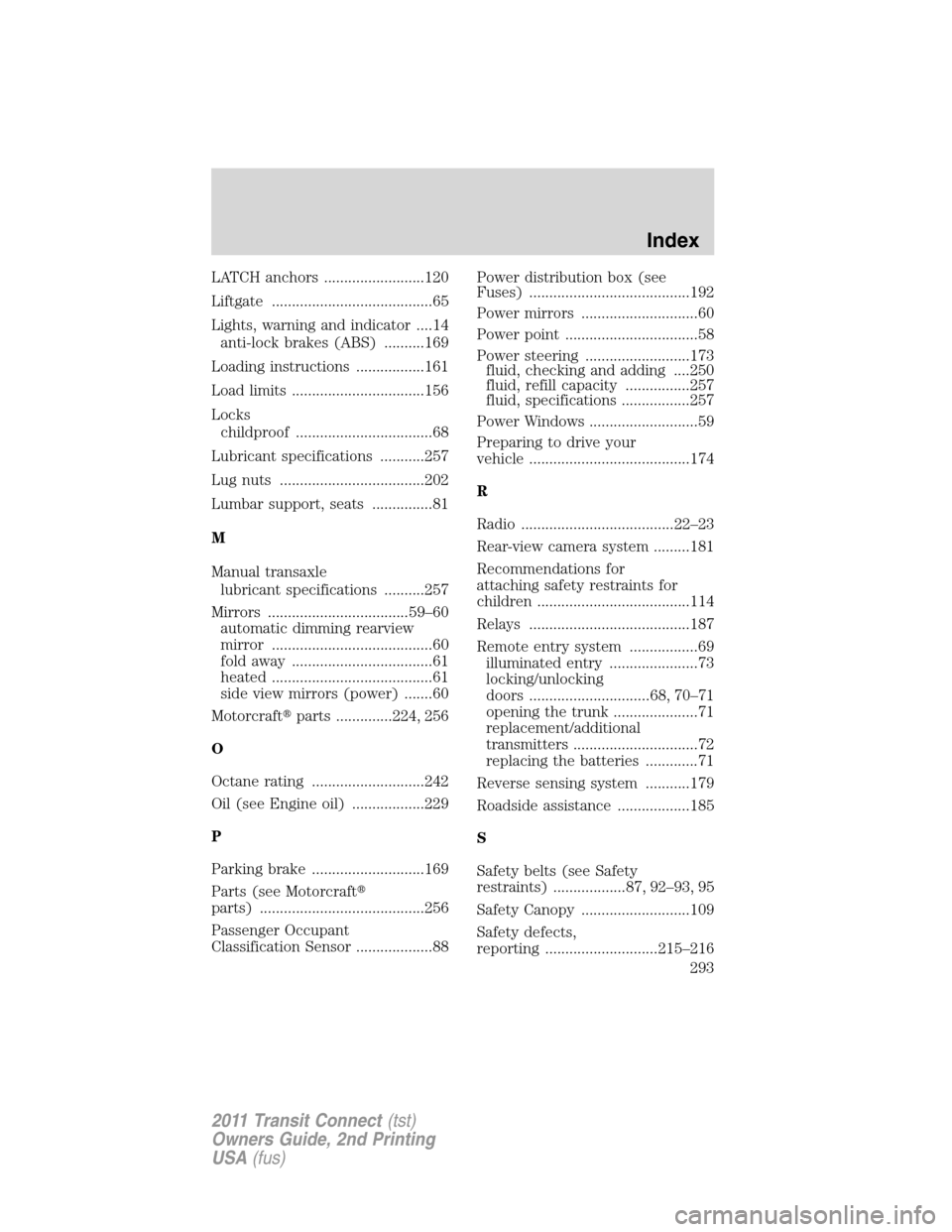

LATCH anchors .........................120
Liftgate ........................................65
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........169
Loading instructions .................161
Load limits .................................156
Locks
childproof ..................................68
Lubricant specifications ...........257
Lug nuts ....................................202
Lumbar support, seats ...............81
M
Manual transaxle
lubricant specifications ..........257
Mirrors ...................................59–60
automatic dimming rearview
mirror ........................................60
fold away ...................................61
heated ........................................61
side view mirrors (power) .......60
Motorcraftparts ..............224, 256
O
Octane rating ............................242
Oil (see Engine oil) ..................229
P
Parking brake ............................169
Parts (see Motorcraft
parts) .........................................256
Passenger Occupant
Classification Sensor ...................88Power distribution box (see
Fuses) ........................................192
Power mirrors .............................60
Power point .................................58
Power steering ..........................173
fluid, checking and adding ....250
fluid, refill capacity ................257
fluid, specifications .................257
Power Windows ...........................59
Preparing to drive your
vehicle ........................................174
R
Radio ......................................22–23
Rear-view camera system .........181
Recommendations for
attaching safety restraints for
children ......................................114
Relays ........................................187
Remote entry system .................69
illuminated entry ......................73
locking/unlocking
doors ..............................68, 70–71
opening the trunk .....................71
replacement/additional
transmitters ...............................72
replacing the batteries .............71
Reverse sensing system ...........179
Roadside assistance ..................185
S
Safety belts (see Safety
restraints) ..................87, 92–93, 95
Safety Canopy ...........................109
Safety defects,
reporting ............................215–216
