2011 FORD TAURUS Filter

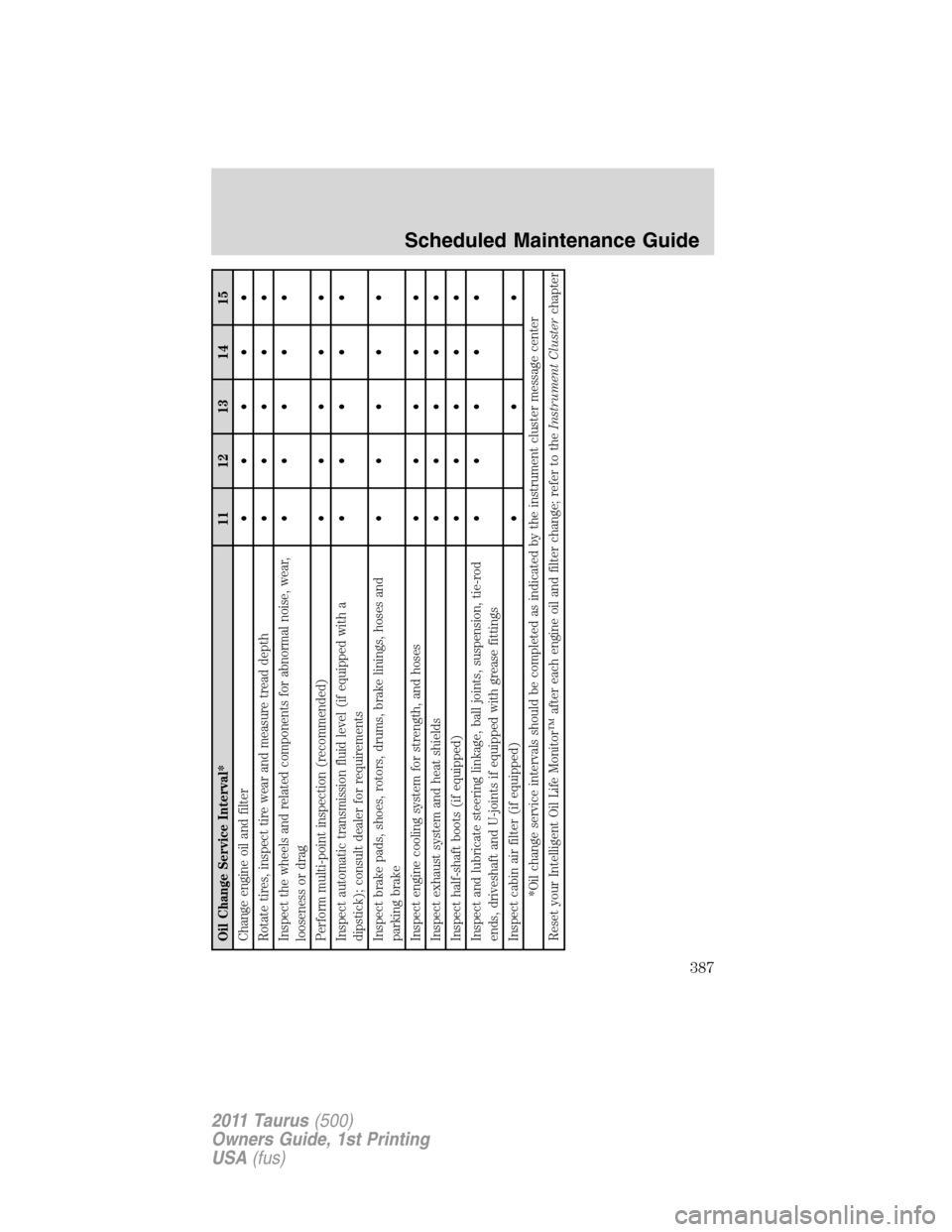

Oil Change Service Interval* 11 12 13 14 15
Change engine oil and filter•••••
Rotate tires, inspect tire wear and measure tread depth•••••
Inspect the wheels and related components for abnormal noise, wear,
looseness or drag•••••
Perform multi-point inspection (recommended)•••••
Inspect automatic transmission fluid level (if equipped with a
dipstick); consult dealer for requirements•••••
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and
parking brake•••••
Inspect engine cooling system for strength, and hoses•••••
Inspect exhaust system and heat shields•••••
Inspect half-shaft boots (if equipped)•••••
Inspect and lubricate steering linkage, ball joints, suspension, tie-rod
ends, driveshaft and U-joints if equipped with grease fittings•••••
Inspect cabin air filter (if equipped)•••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
387
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Perform the services noted in the following table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Every 20,000 miles
(32,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)Replace climate-controlled seat filter (if
equipped)
Replace engine air filter
Every 100,000 miles
(160,000 km)Change engine coolant
1
Replace spark plugs
Inspect accessory drive belt(s)2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(filter not required on 6F35, 6F50, and
AWF-21 transmissions); consult dealer for
requirements
Change manual transmission fluid
Change rear axle fluid on all rear-wheel drive
(RWD) vehicles
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace timing belt (Fiesta).Failure to
replace timing belt can cause internal
engine damage.
1Initial replacement at 100,000 miles (160,000 km) or 72 months; every
50,000 miles (80,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance Guide
388
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your Ford/Lincoln/Mercury vehicleprimarilyin one of the
more demandingSpecial Operating Conditionslisted below, you will
need to have some items maintained more frequently. If you only
occasionallyoperate your vehicle under these conditions, it is not
necessary to perform the additional maintenance. For specific
recommendations, see your Ford or Lincoln Mercury dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid.
Every 60,000 miles (96,000 km)– Change manual transmission fluid.
Inspect frequently, service as
required.– See axle maintenance items under
Exceptions.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
392
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
As required– Change engine oil and replace oil filter as indicated by
message center and perform services as listed in the
Normal Scheduled Maintenance chart (except Fiesta).
Every 300 hours of engine
operation*– Change engine oil and replace oil filter (Fiesta).
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta).
Every 60,000 miles (96,000 km)– Replace spark plugs.
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
* Engine hour meter installation is recommended for these operating
conditions.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (5,000 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance Guide
393
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

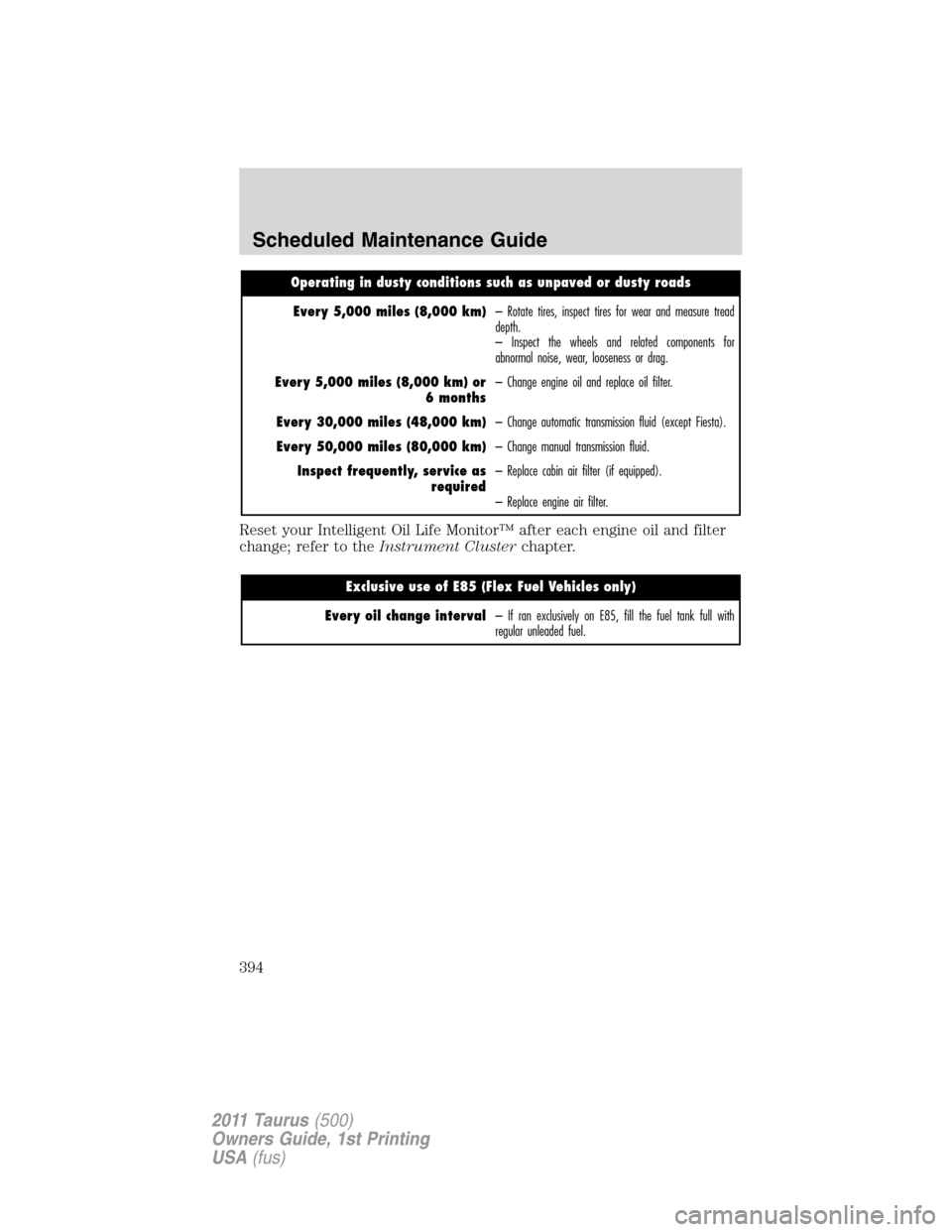

Operating in dusty conditions such as unpaved or dusty roads
Every 5,000 miles (8,000 km)– Rotate tires, inspect tires for wear and measure tread
depth.
– Inspect the wheels and related components for
abnormal noise, wear, looseness or drag.
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and replace oil filter.
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta).
Every 50,000 miles (80,000 km)– Change manual transmission fluid.
Inspect frequently, service as
required– Replace cabin air filter (if equipped).
– Replace engine air filter.
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change interval– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel.
Scheduled Maintenance Guide
394
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
397
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................85
Adaptive Cruise Control .............90
AdvanceTrac ..............................245
AdvanceTrac Sport Mode .........249
Air cleaner filter ...............361, 365
Air conditioning ....................51, 54
automatic temperature
control system ..........................56
manual heating and air
conditioning system .................51
Airbag supplemental restraint
system ................171–172, 180, 182
and child safety seats ............173
description ..............172, 180, 182
disposal ....................................186
driver airbag ............174, 181, 183
indicator light .................180, 185
operation .................174, 181, 183
passenger airbag .....174, 181, 183
side airbag ...............................180
All Wheel Drive (AWD),
driving off road .........................270
Ambient mood/lighting ...............70
AM/FM .........................................32
Antifreeze
(see Engine coolant) ................337
Anti-lock brake system
(see Brakes) ..............................243
Anti-theft system ..............131, 136
arming the system ..................136
disarming a triggered
system .....................................136
Audio system (see Radio) .........32
Automatic transaxle
fluid, refill capacities ..............366fluid, specification ..................366
Automatic transmission
driving an automatic
overdrive .........................253, 255
fluid, adding ............................356
fluid, checking ........................356
Selectshift (SST) ....................256
Auxiliary input jack (Line in) ....41
B
Battery .......................................335
acid, treating emergencies .....335
jumping a disabled battery ....305
maintenance-free ....................335
replacement, specifications ...365
servicing ..................................335
Belt-Minder
.............................167
Blind Spot Information
System .......................................264
Booster seats .............................199
Brakes ........................................242
anti-lock ...................................243
anti-lock brake system (ABS)
warning light ...........................243
fluid, checking and adding ....356
fluid, refill capacities ..............366
fluid, specifications .................366
lubricant specifications ..........366
parking ....................................244
shift interlock ..........................251
Bulbs ............................................70
C
Capacities for refilling fluids ....366
Cargo cover ...............................101
Cargo net ...................................106
CD ................................................32
Index
400
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................305
running out of fuel .........304, 348
Emission control system ..........352
Engine ........................................369
cleaning ...................................318
coolant .....................................337
fail-safe cooling .......................341
idle speed control ...................335
lubrication specifications .......366
refill capacities ........................366
service points ..................328–329
Engine block heater .................241
Engine oil ..................................331
change oil soon warning,
message center .......................331
checking and adding ..............331
dipstick ....................................331
filter, specifications ................365
refill capacities ........................366
specifications ..........................366
Event data recording ....................7
Exhaust fumes ..........................240
F
Fail safe cooling ........................341
Fleet MyKey programming ......108
Floor mats .................................105
Fluid capacities .........................366
Four-Wheel Drive vehicles
driving off road .......................271
Fuel ............................................343
calculating fuel
economy ............................21, 349cap ...........................................345
capacity ...................................366
choosing the right fuel ...........347
detergent in fuel .....................348
filler funnel .............................348
filling your vehicle
with fuel ..................343, 345, 350
filter, specifications ........343, 365
fuel pump shut-off ..................279
improving fuel economy ........349
octane rating ...................347, 369
quality ......................................347
running out of fuel .........304, 348
safety information relating to
automotive fuels .....................343
Fuses ..........................................280
G
Garage door opener ..................101
Gas cap (see Fuel cap) ............345
Gas mileage (see Fuel
economy) ...................................349
Gauges .........................................17
H
Hazard flashers .........................279
Headlamps ...................................62
aiming ........................................67
autolamp system .......................62
bulb specifications ....................70
daytime running lights .............66
flash to pass ..............................66
high beam .................................63
replacing bulbs .........................71
turning on and off ....................62
Heating
heating and air conditioning
system ...........................51, 54, 56
Index
402
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
