2011 FORD SUPER DUTY fold seats

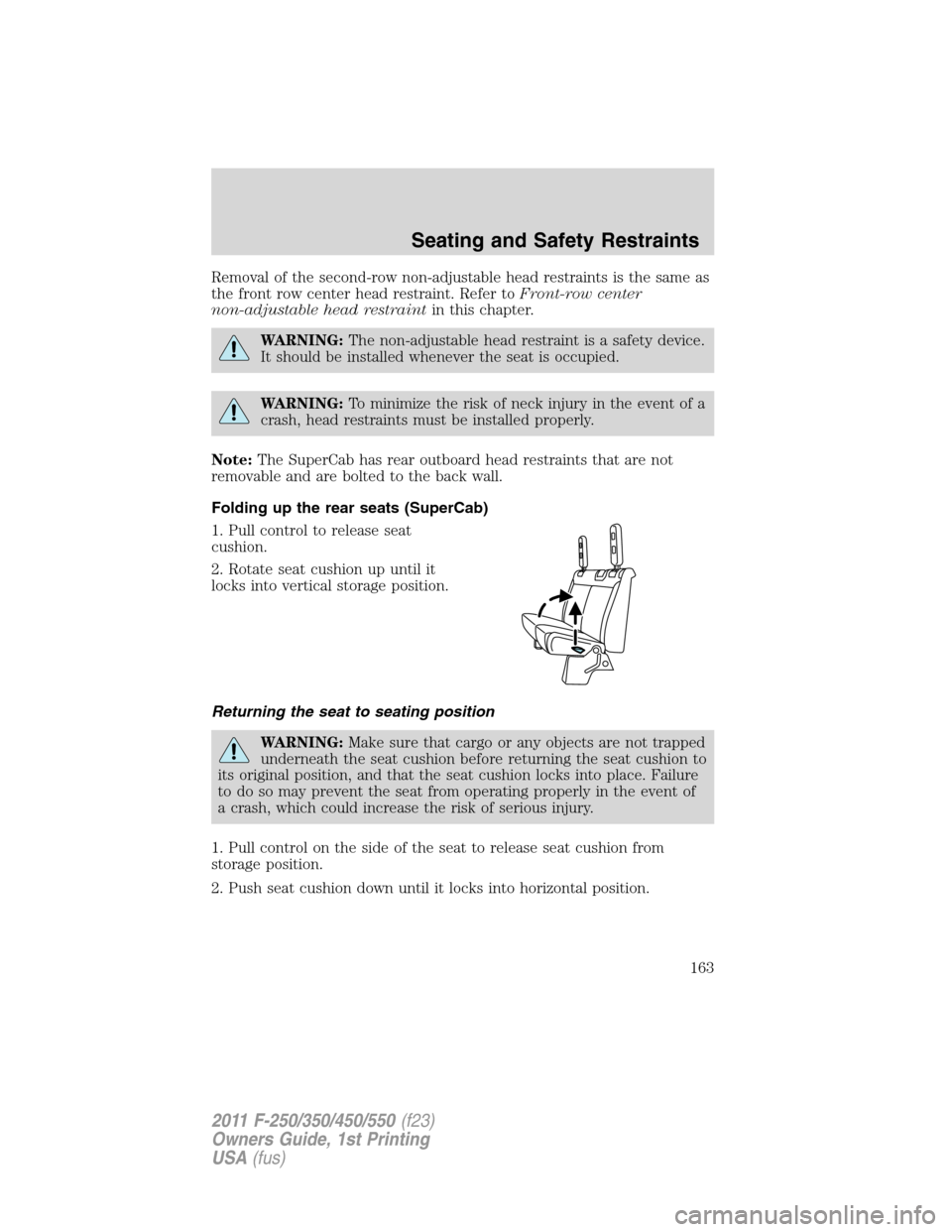

Removal of the second-row non-adjustable head restraints is the same as
the front row center head restraint. Refer toFront-row center
non-adjustable head restraintin this chapter.
WARNING:The non-adjustable head restraint is a safety device.
It should be installed whenever the seat is occupied.
WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Note:The SuperCab has rear outboard head restraints that are not
removable and are bolted to the back wall.
Folding up the rear seats (SuperCab)
1. Pull control to release seat
cushion.
2. Rotate seat cushion up until it
locks into vertical storage position.
Returning the seat to seating position
WARNING:Make sure that cargo or any objects are not trapped
underneath the seat cushion before returning the seat cushion to
its original position, and that the seat cushion locks into place. Failure
to do so may prevent the seat from operating properly in the event of
a crash, which could increase the risk of serious injury.
1. Pull control on the side of the seat to release seat cushion from
storage position.
2. Push seat cushion down until it locks into horizontal position.
Seating and Safety Restraints
163
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

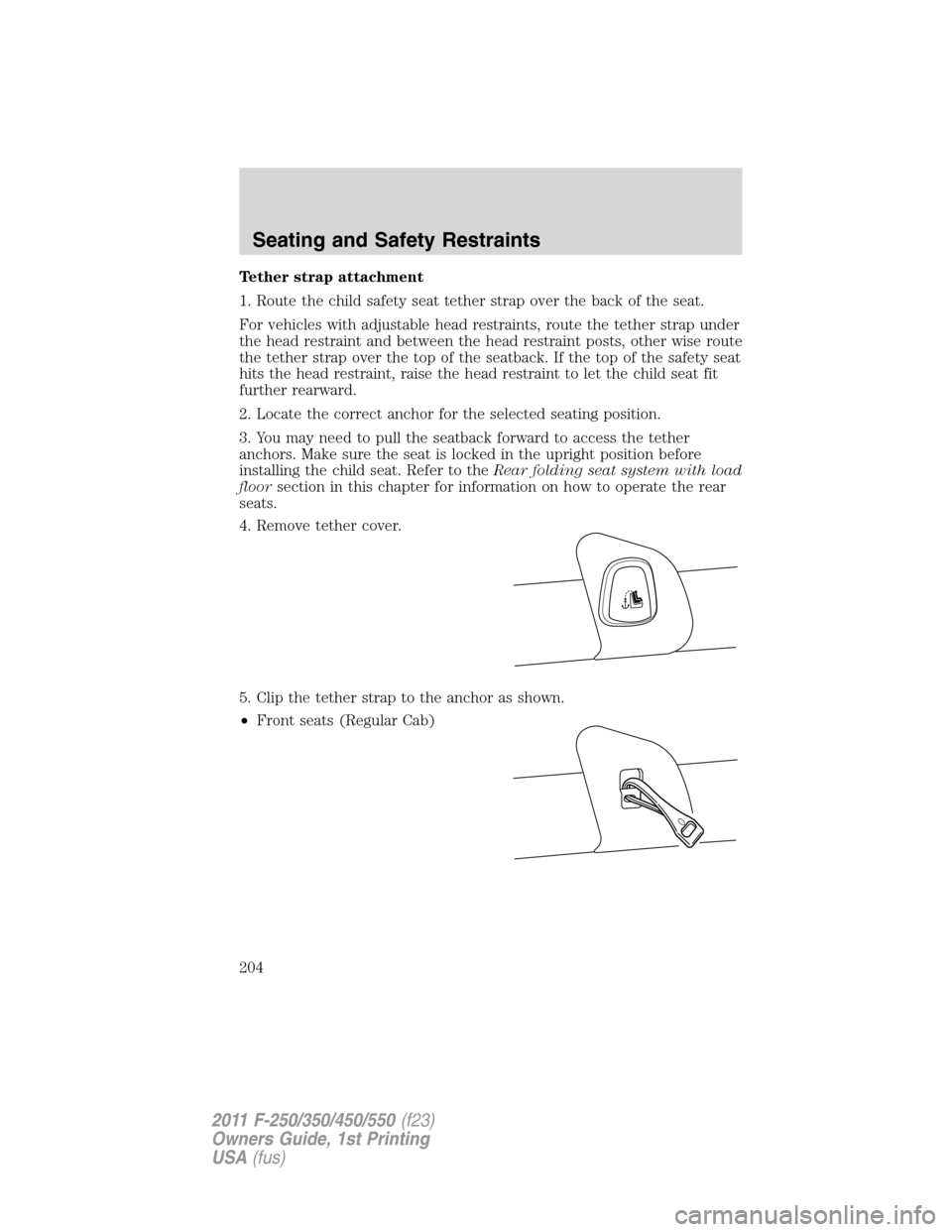

Tether strap attachment
1. Route the child safety seat tether strap over the back of the seat.
For vehicles with adjustable head restraints, route the tether strap under
the head restraint and between the head restraint posts, other wise route
the tether strap over the top of the seatback. If the top of the safety seat
hits the head restraint, raise the head restraint to let the child seat fit
further rearward.
2. Locate the correct anchor for the selected seating position.
3. You may need to pull the seatback forward to access the tether
anchors. Make sure the seat is locked in the upright position before
installing the child seat. Refer to theRear folding seat system with load
floorsection in this chapter for information on how to operate the rear
seats.
4. Remove tether cover.
5. Clip the tether strap to the anchor as shown.
•Front seats (Regular Cab)
Seating and Safety Restraints
204
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

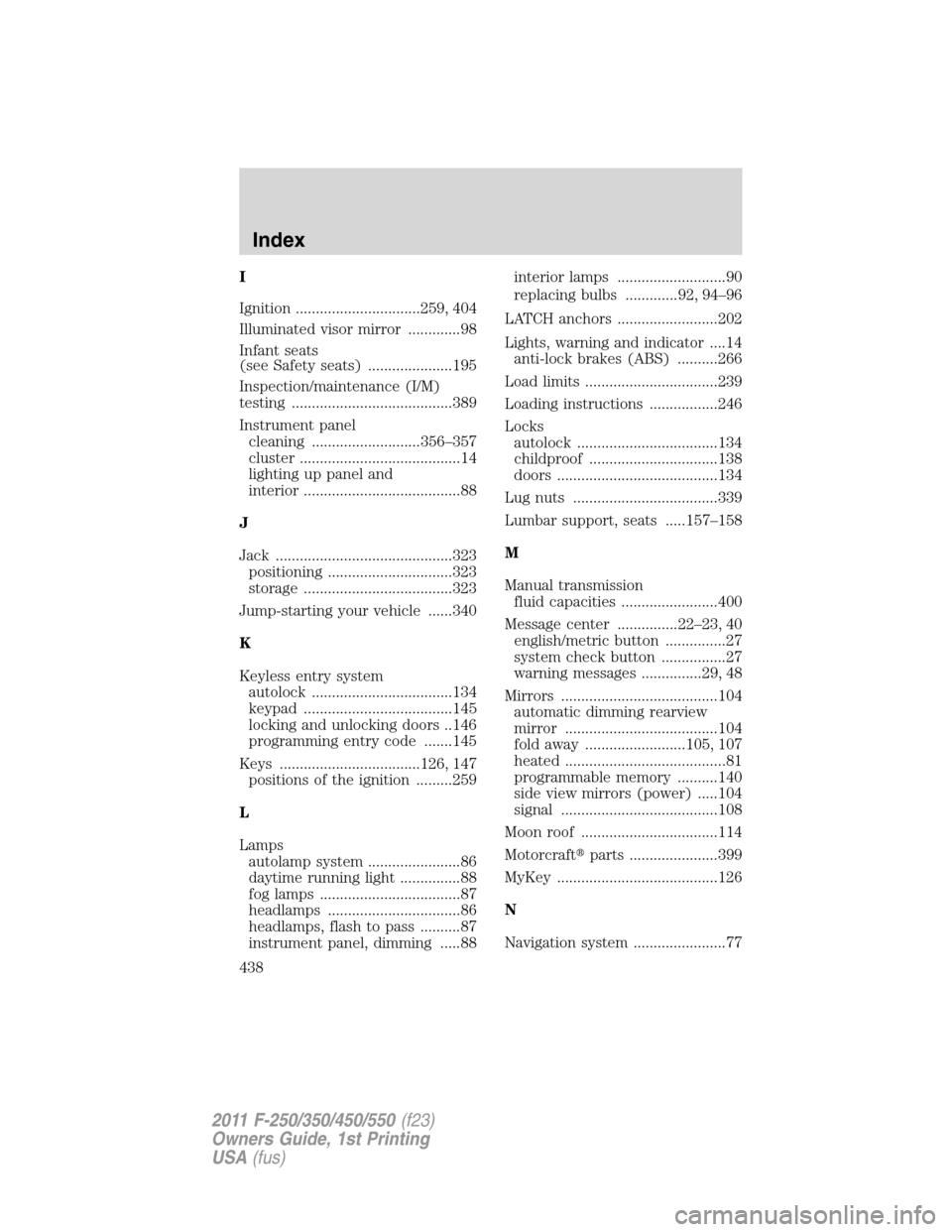

I
Ignition ...............................259, 404
Illuminated visor mirror .............98
Infant seats
(see Safety seats) .....................195
Inspection/maintenance (I/M)
testing ........................................389
Instrument panel
cleaning ...........................356–357
cluster ........................................14
lighting up panel and
interior .......................................88
J
Jack ............................................323
positioning ...............................323
storage .....................................323
Jump-starting your vehicle ......340
K
Keyless entry system
autolock ...................................134
keypad .....................................145
locking and unlocking doors ..146
programming entry code .......145
Keys ...................................126, 147
positions of the ignition .........259
L
Lamps
autolamp system .......................86
daytime running light ...............88
fog lamps ...................................87
headlamps .................................86
headlamps, flash to pass ..........87
instrument panel, dimming .....88interior lamps ...........................90
replacing bulbs .............92, 94–96
LATCH anchors .........................202
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........266
Load limits .................................239
Loading instructions .................246
Locks
autolock ...................................134
childproof ................................138
doors ........................................134
Lug nuts ....................................339
Lumbar support, seats .....157–158
M
Manual transmission
fluid capacities ........................400
Message center ...............22–23, 40
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors .......................................104
automatic dimming rearview
mirror ......................................104
fold away .........................105, 107
heated ........................................81
programmable memory ..........140
side view mirrors (power) .....104
signal .......................................108
Moon roof ..................................114
Motorcraftparts ......................399
MyKey ........................................126
N
Navigation system .......................77
Index
438
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
