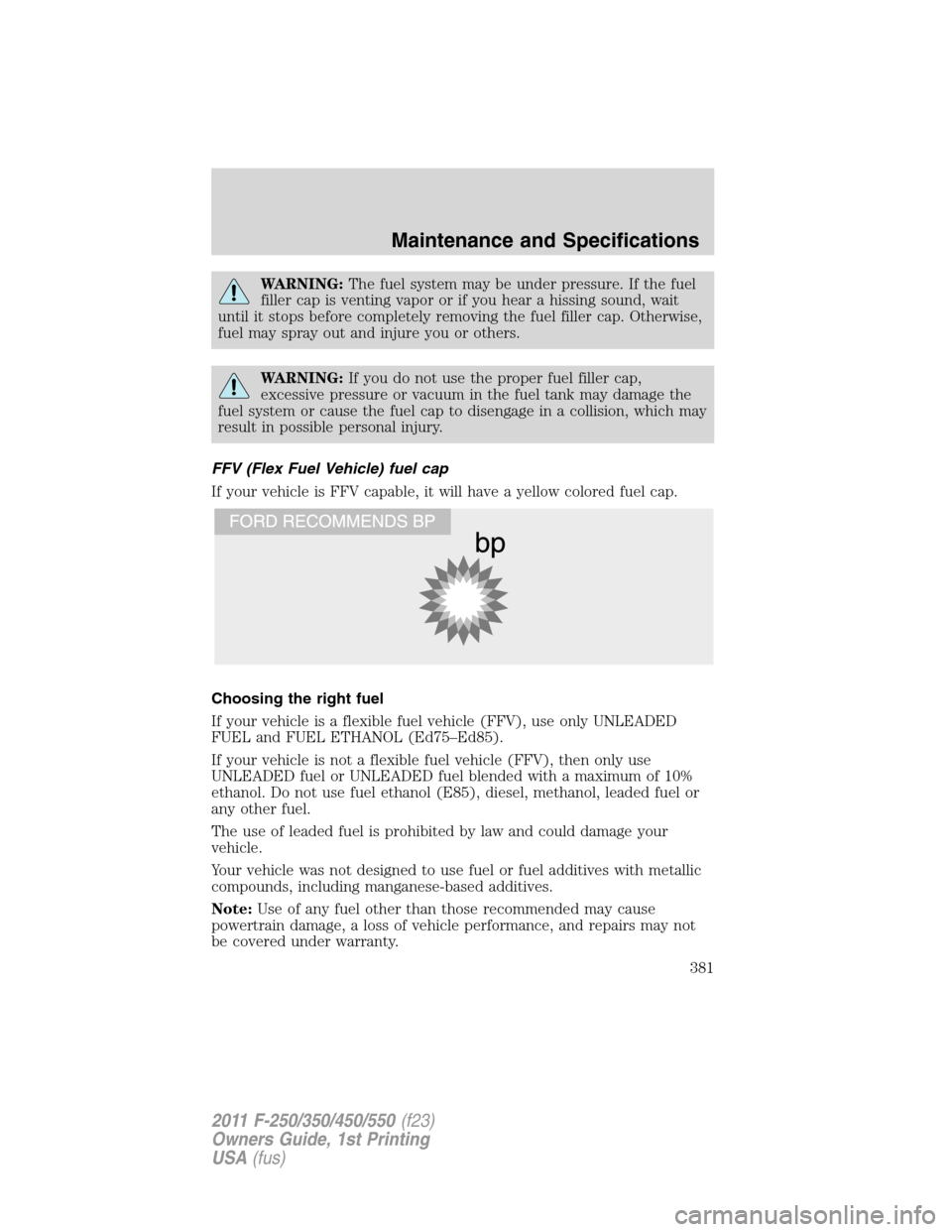

2011 FORD SUPER DUTY warning

WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive pressure or vacuum in the fuel tank may damage the
fuel system or cause the fuel cap to disengage in a collision, which may
result in possible personal injury.
FFV (Flex Fuel Vehicle) fuel cap
If your vehicle is FFV capable, it will have a yellow colored fuel cap.
Choosing the right fuel
If your vehicle is a flexible fuel vehicle (FFV), use only UNLEADED
FUEL and FUEL ETHANOL (Ed75–Ed85).
If your vehicle is not a flexible fuel vehicle (FFV), then only use
UNLEADED fuel or UNLEADED fuel blended with a maximum of 10%
ethanol. Do not use fuel ethanol (E85), diesel, methanol, leaded fuel or
any other fuel.
The use of leaded fuel is prohibited by law and could damage your
vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives.
Note:Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
Maintenance and Specifications
381
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
rating. These products have not been approved for your engine and
could cause damage to the fuel system. Repairs to correct the effects of
using an aftermarket product in your fuel may not be covered by your
warranty.
Many of the world’s automakers approved the World-Wide Fuel Charter
that recommends gasoline specifications to provide improved
performance and emission control system protection for your vehicle.
Gasolines that meet the World-Wide Fuel Charter should be used when
available. Ask your fuel supplier about gasolines that meet the
World-Wide Fuel Charter.
Diesel engine (if equipped)
Refer to the diesel supplement for information regarding diesel fuel
recommendations and requirements of your diesel-powered truck.
Cleaner air
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the right
fuelsection.
Running out of fuel
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than
1 gallon (3.8L) may be required.
•The service engine soon
indicator may come on. For more
information on the service engine soon
indicator, refer to
Warning lights and chimesin theInstrument Clusterchapter.
Maintenance and Specifications
383
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
•Use only the specified fuel listed.
•Avoid running out of fuel.
•Do not turn off the ignition while your vehicle is moving, especially at
high speeds.
•Have the items listed inscheduled maintenance information
performed according to the specified schedule.
The scheduled maintenance items listed inscheduled maintenance
informationare essential to the life and performance of your vehicle
and to its emissions system.
If other than Ford, Motorcraftor Ford-authorized parts are used for
maintenance replacements or for service of components affecting
emission control, such non-Ford parts should be equivalent to genuine
Ford Motor Company parts in performance and durability.
WARNING:Do not park, idle, or drive your vehicle in dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.
Illumination of the service engine soon
indicator, charging system
warning light or the temperature warning light, fluid leaks, strange odors,
smoke or loss of engine power could indicate that the emission control
system is not working properly.
An improperly operating or damaged exhaust system may allow exhaust
to enter the vehicle. Have a damaged or improperly operating exhaust
system inspected and repaired immediately.
WARNING:Exhaust leaks may result in entry of harmful and
potentially lethal fumes into the passenger compartment.
Maintenance and Specifications
387
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

Multi-point inspection
Ford recommended scheduled maintenance – In order to keep your
vehicle running right, it is important to have the systems on your vehicle
checked regularly. This can help identify potential issues and prevent
major problems. Ford Motor Company recommends the following
multi-point inspection be performed at every scheduled maintenance
interval to help ensure your vehicle keeps running great.
Be sure to ask your Ford or Lincoln Mercury dealership service advisor or
technician about the multi-point vehicle inspection. It’s a comprehensive
way to perform a thorough inspection of your vehicle. It’s your checklist
that gives you immediate feedback on the overall condition of your vehicle.
You’ll know what’s been checked, what’s okay, as well as those things that
may require future or immediate attention. The multi-point vehicle
inspection is one more way to keep your vehicle running great!
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, airbag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
MUTLI-POINT INSPECTION - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
418
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ........................103
AdvanceTrac ..............................268
Air cleaner filter .......394–395, 399
Air conditioning ....................78, 81
manual heating and air
conditioning system .................78
Airbag supplemental restraint
system ........................176, 180, 182
and child safety seats ............177
description ..............176, 180, 182
disposal ....................................190
driver airbag ............178, 181, 183
indicator light .........................185
operation .................178, 181, 183
passenger airbag .....178, 181, 183
passenger deactivation
switch ......................................186
side airbag ...............................180
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................370
Anti-lock brake system
(see Brakes) ..............................265
Anti-theft system ..............146, 148
arming the system ..........147, 149
disarming a triggered
system .....................................149
triggering .................................149
Audio system
(see Radio) ............................60, 62
Automatic transmission ............283
driving an automatic
overdrive .................................281
fluid, adding ............................391
fluid, checking ........................391
fluid, refill capacities ..............400
Selectshift (SST) ....................286Auxiliary Input Jack ...................69
Auxiliary power point ...............100
Axle
refill capacities ........................400
B
Battery .......................................368
acid, treating emergencies .....368
jumping a disabled battery ....340
maintenance-free ....................368
replacement, specifications ...399
servicing ..................................368
Bed extender ............................123
Belt-Minder.............................172
Booster seats .............................207
Brakes ........................................265
anti-lock ...................................265
anti-lock brake system (ABS)
warning light ...........................266
fluid, checking and adding ....391
fluid, refill capacities ..............400
parking ....................................266
shift interlock ..........................279
trailer .......................................251
Bulbs ............................................91
C
Capacities for refilling fluids ....400
Car2UHome Automation
System .......................................115
Cassette tape player ...................60
Cell phone use ............................10
Changing a tire .........................323
Child safety seats ......................195
attaching with tether straps ..202
in front seat ....................195, 202
Index
435
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

I
Ignition ...............................259, 404
Illuminated visor mirror .............98
Infant seats
(see Safety seats) .....................195
Inspection/maintenance (I/M)
testing ........................................389
Instrument panel
cleaning ...........................356–357
cluster ........................................14
lighting up panel and
interior .......................................88
J
Jack ............................................323
positioning ...............................323
storage .....................................323
Jump-starting your vehicle ......340
K
Keyless entry system
autolock ...................................134
keypad .....................................145
locking and unlocking doors ..146
programming entry code .......145
Keys ...................................126, 147
positions of the ignition .........259
L
Lamps
autolamp system .......................86
daytime running light ...............88
fog lamps ...................................87
headlamps .................................86
headlamps, flash to pass ..........87
instrument panel, dimming .....88interior lamps ...........................90
replacing bulbs .............92, 94–96
LATCH anchors .........................202
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........266
Load limits .................................239
Loading instructions .................246
Locks
autolock ...................................134
childproof ................................138
doors ........................................134
Lug nuts ....................................339
Lumbar support, seats .....157–158
M
Manual transmission
fluid capacities ........................400
Message center ...............22–23, 40
english/metric button ...............27
system check button ................27
warning messages ...............29, 48
Mirrors .......................................104
automatic dimming rearview
mirror ......................................104
fold away .........................105, 107
heated ........................................81
programmable memory ..........140
side view mirrors (power) .....104
signal .......................................108
Moon roof ..................................114
Motorcraftparts ......................399
MyKey ........................................126
N
Navigation system .......................77
Index
438
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

O
Octane rating ............................382
Oil (see Engine oil) ..................366
P
Parental MyKey
programming .............................126
Parking brake ............................266
Parts
(see Motorcraftparts) ...........399
Pedals (see Power adjustable
foot pedals) ...............................108
Power adjustable foot pedals ...108
Power distribution box
(see Fuses) ...............................319
Power door locks ......................134
Power mirrors ...........................104
Power point ...............................100
Power steering ..........................276
fluid, checking and adding ....390
fluid, refill capacity ................400
Power Windows .........................102
Preparing to drive your
vehicle ........................................278
R
Radio ......................................60, 62
Rear-view camera system .........291
Relays ........................................313
Remote entry system .......138–139
illuminated entry ....................142
locking/unlocking
doors ................................139–140
Remote start ...........................143replacement/additional
transmitters .............................142
replacing the batteries ...........141
Remote start .............................143
Remote start climate
operation .....................................85
Reverse sensing system ...........289
Roadside assistance ..................311
S
Safety belts (see Safety
restraints) ..................166–170, 172
Safety Canopy ...................181–182
Safety defects, reporting ..........351
Safety restraints ........166–170, 172
Belt-Minder...........................172
extension assembly ................171
for adults .........................167–170
for children .............................190
warning light and chime ........172
Safety restraints - LATCH
anchors ......................................202
Safety seats for children ..........195
Safety Compliance
Certification Label ....................405
Satellite Radio Information ........74
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............419
What Maintenance Schedule
Should You Follow? ................417
Seats ..........................................150
child safety seats ....................195
cleaning ...................................358
climate control ..................81, 159
easy access/easyout feature ..161
memory seat ...................140, 160
Index
439
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)

V
Vehicle Identification Number
(VIN) ..........................................406
Vehicle loading ..........................239
Ventilating your vehicle ...........263
W
Warning lights (see Lights) .......14Washer fluid ..............................365
Water, Driving through .............307
Windows
power .......................................102
Windshield washer fluid and
wipers ..........................................97
checking and adding fluid .....365
replacing wiper blades ...........365
Wrecker towing .........................343
Index
441
2011 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
