Replacing front sidemarker bulbs
1. Turn the headlamp switch to the
off position, then open the hood.
2. At the back of the headlamp, pry
up the two retainer pins to release
the headlamp assembly from the
vehicle and pull headlamp forward.
3. Remove bolt(s) from lamp
assembly and disengage lamp
assembly.
4. Rotate bulb socket
counterclockwise and remove from
lamp assembly.
5. Carefully pull bulb straight out of
socket and push in the new bulb.
6. Install the bulb socket in lamp
assembly by turning clockwise.
Install the new bulb in reverse
order.
Lights
45
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Page 46 of 302
Replacing tail lamp/backup lamp bulbs
1. Make sure the headlamp switch is
in the off position, then open the
tailgate to expose the lamp
assemblies.
2. Remove the four screws and the
lamp assembly from vehicle.
3. Rotate bulb socket
counterclockwise turn and remove
from lamp assembly.
4. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse
order.
Lights
46
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Page 47 of 302
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the off position and remove the
bulb socket from the fog lamp by
turning it counterclockwise.
2. Disconnect the electrical
connector.
Install the new bulb in reverse
order.
Replacing high-mount brake lamp bulb
1. Make sure the headlamp switch is
in the off position and remove the
two screws and lamp assembly from
vehicle.
2. Remove the bulb socket from
lamp assembly by rotating it counterclockwise.
3. Carefully pull bulb straight out of socket.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position and reach behind
the rear bumper to locate the bulb
socket.
2. Twist the socket counterclockwise
and remove.
3. Carefully pull the bulb straight
out of the socket.
Install the new bulb(s) in reverse
order.
Lights
47
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Page 145 of 302

WARNING:Towing trailers beyond the maximum recommended
gross trailer weight exceeds the limit of the vehicle and could
result in engine damage, transmission damage, structural damage, loss
of vehicle control, vehicle rollover and personal injury.
Trailer tow connector
The trailer tow connector is located
under the rear bumper, on the
driver’s side of the vehicle.
Refer to the following chart for information regarding the
factory-equipped trailer tow connector:
Color Function Comment
1. Dark
GreenTrailer right turn
signalCircuit activated when brake
pedal is pressed or when ignition
is on and right turn signal is
applied.
2. Yellow Trailer left turn
signalCircuit activated when brake
pedal is pressed or when ignition
is on and left turn signal is
applied.
3. Tan/White Tail lamp Relay-controlled circuit activated
when the park lamps/headlamps
are on.
4. White Ground Matching vehicle circuit returns to
battery’s negative ground.
Preparing to tow
Use the proper equipment for towing a trailer and make sure it is
properly attached to your vehicle. Contact your authorized dealer or a
reliable trailer dealer as soon as possible if you require assistance.
1
2
34
Tires, Wheels and Loading
145
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

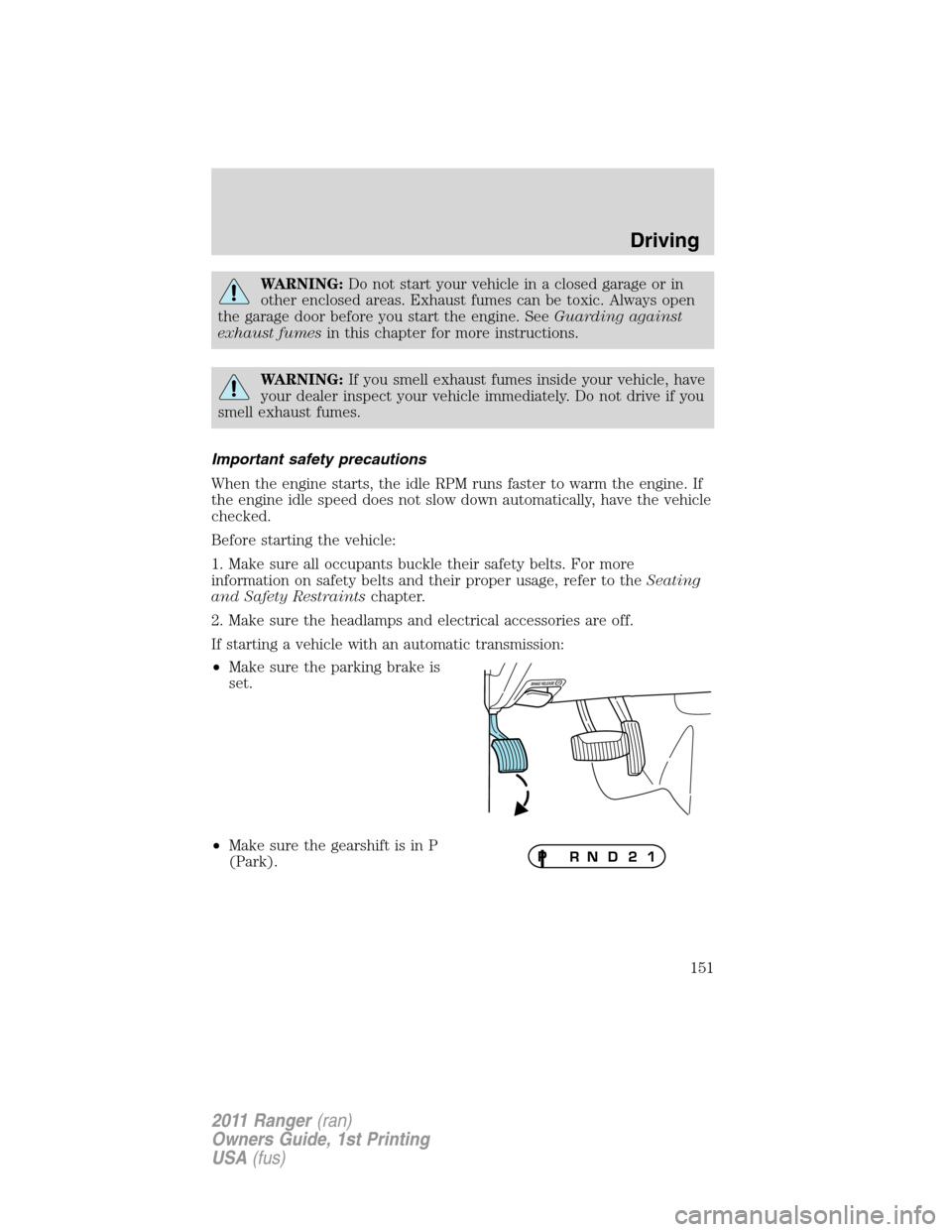

Page 151 of 302

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
If starting a vehicle with an automatic transmission:
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
Driving
151
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Page 183 of 302
The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module
(run/accy)
6 10A Radio (run/accy), Door switch
illumination
7 — Not used
8 10A Restraints control module (RCM),
Passenger airbag deactivation
indicator (PADI), Occupant
classification sensor (OCS)
15
252
1
3
4
5 6
8 9
11
12 7
10
13
14
17
18
20 21
22
23
24 16 19
27 28 29
30 31
26
32
33
34 35
Roadside Emergencies
183
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
Page 184 of 302

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
9 5A Cluster air bag indicator
10 10A Cluster (run/start), 4x4 module
(run/start)
11 10A Passenger compartment fuse
panel (Logic power)
12 15A Satellite radio
13 15A Horn, Interior lamps
14 15A High beam headlamp, High beam
indicator (cluster)
15 — Not used
16 30A cartridge
fusePower windows
17 15A Turn signals/hazards
18 — Not used
19 20A Center high-mounted stop lamp
(CHMSL)/Stop lamps
20 10A Speed control module, Back-up
lamps, Overdrive cancel switch,
Electronic flasher (turn),
Anti-lock brake system (ABS)
(roll stability control)
21 5A Starter relay coil
22 5A Not used (spare)
23 30A Headlamps (low and high beam)
24 20A Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2A Redundant cruise switch
27 10A Climate control blower relay/blend
doors
28 15A 4x4 module battery feed (B+)
29 20A Cigar lighter, Diagnostic connector
(OBD II)
Roadside Emergencies
184
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
